MK41S80N12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> MK41S80N12

MK41S80N12: Description4KX4 CACHE TAG SRAM, 12ns, PDIP22, 0.300 INCH, PLASTIC, SDIP-22; Categorystorage; File Size269KB，9 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

MK41S80N12 Overview

4KX4 CACHE TAG SRAM, 12ns, PDIP22, 0.300 INCH, PLASTIC, SDIP-22

MK41S80N12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, SDIP-22
Contacts	22
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Maximum access time	12 ns
Other features	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR
JESD-30 code	R-PDIP-T22
JESD-609 code	e0
length	26.289 mm
memory density	16384 bit
Memory IC Type	CACHE TAG SRAM
memory width	4
Mixed memory types	N/A
Number of functions	1
Number of ports	1
Number of terminals	22
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.334 mm
Maximum standby current	0.12 A
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

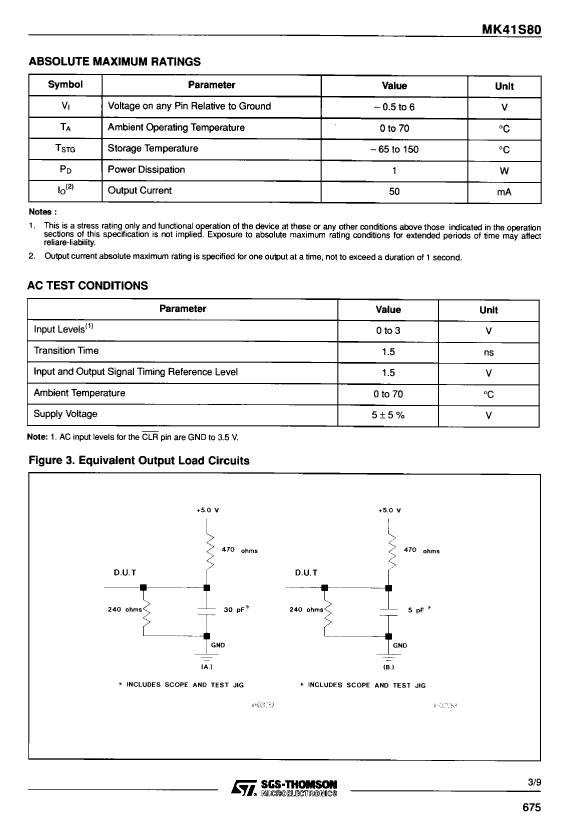

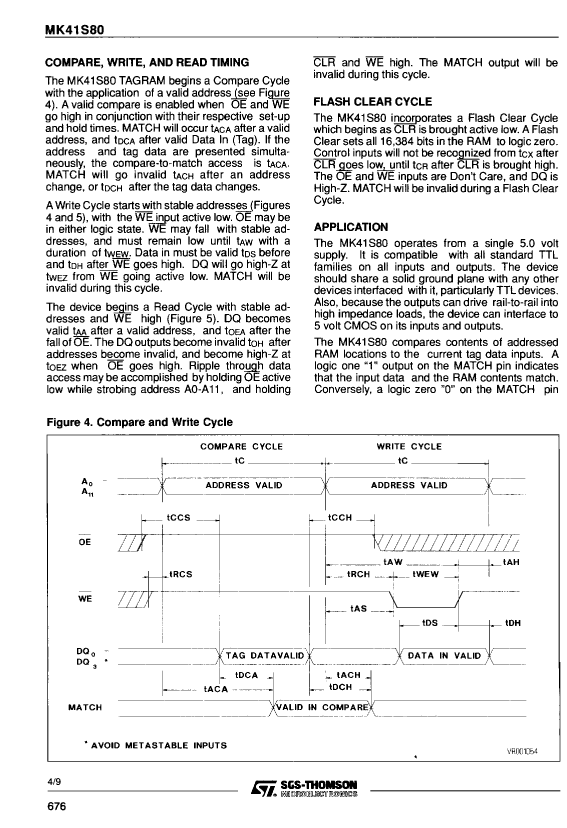

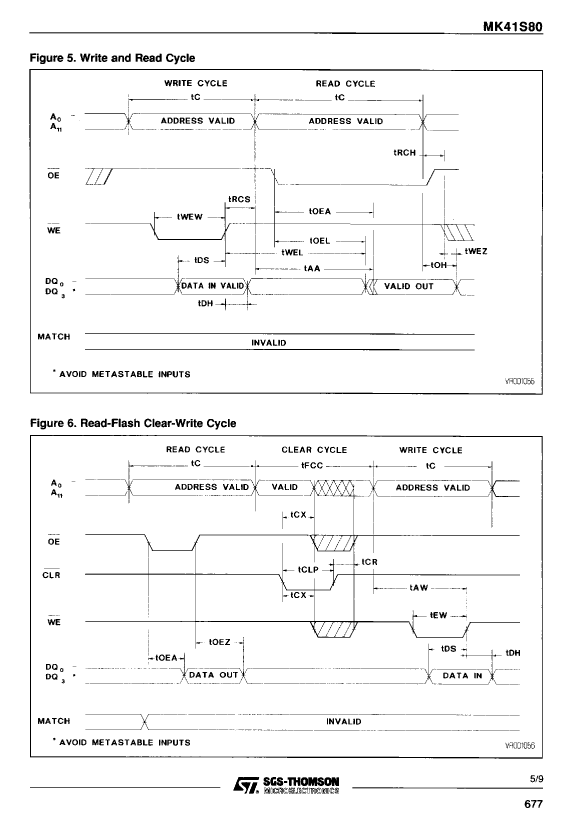

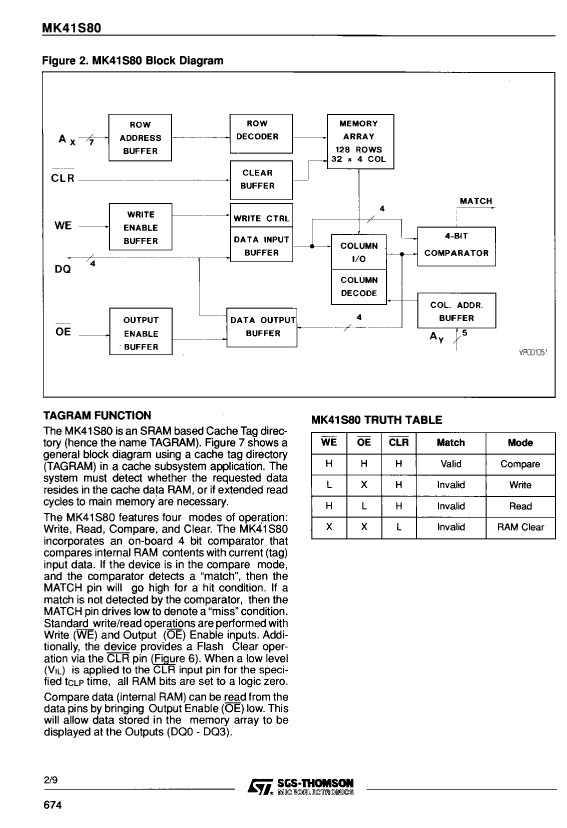

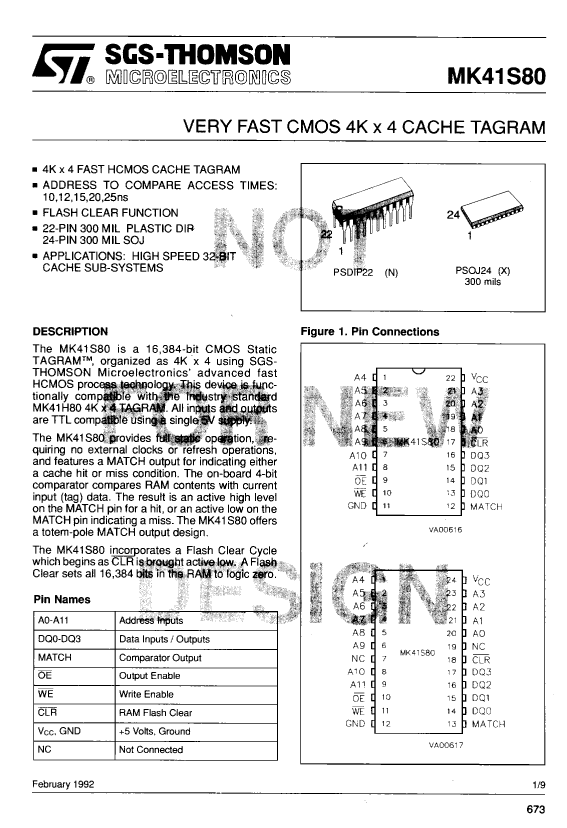

Preview

Download Datasheet

View All

MK41S80N12 Related Products

	MK41S80N12	MK41S80X25	MK41S80X20	MK41S80N25	MK41S80X12	MK41S80X10	MK41S80X15	MK41S80N15	MK41S80N20
Description	4KX4 CACHE TAG SRAM, 12ns, PDIP22, 0.300 INCH, PLASTIC, SDIP-22	4KX4 CACHE TAG SRAM, 25ns, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	4KX4 CACHE TAG SRAM, 20ns, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	4KX4 CACHE TAG SRAM, 25ns, PDIP22, 0.300 INCH, PLASTIC, SDIP-22	4KX4 CACHE TAG SRAM, 12ns, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	4KX4 CACHE TAG SRAM, 10ns, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	4KX4 CACHE TAG SRAM, 15ns, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	4KX4 CACHE TAG SRAM, 15ns, PDIP22, 0.300 INCH, PLASTIC, SDIP-22	4KX4 CACHE TAG SRAM, 20ns, PDIP22, 0.300 INCH, PLASTIC, SDIP-22
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	SOJ	SOJ	DIP	SOJ	SOJ	SOJ	DIP	DIP
package instruction	0.300 INCH, PLASTIC, SDIP-22	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, SDIP-22	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, SDIP-22	0.300 INCH, PLASTIC, SDIP-22
Contacts	22	24	24	22	24	24	24	22	22
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	12 ns	25 ns	20 ns	25 ns	12 ns	10 ns	15 ns	15 ns	20 ns
Other features	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR	TOTEM-POLE MATCH OUTPUT; FLASH CLEAR
JESD-30 code	R-PDIP-T22	R-PDSO-J24	R-PDSO-J24	R-PDIP-T22	R-PDSO-J24	R-PDSO-J24	R-PDSO-J24	R-PDIP-T22	R-PDIP-T22
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	26.289 mm	15.418 mm	15.418 mm	26.289 mm	15.418 mm	15.418 mm	15.418 mm	26.289 mm	26.289 mm
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM
memory width	4	4	4	4	4	4	4	4	4
Mixed memory types	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	22	24	24	22	24	24	24	22	22
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOJ	SOJ	DIP	SOJ	SOJ	SOJ	DIP	DIP
Encapsulate equivalent code	DIP22,.3	SOJ24,.34	SOJ24,.34	DIP22,.3	SOJ24,.34	SOJ24,.34	SOJ24,.34	DIP22,.3	DIP22,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.334 mm	3.556 mm	3.556 mm	5.334 mm	3.556 mm	3.556 mm	3.556 mm	5.334 mm	5.334 mm
Maximum standby current	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A
Maximum slew rate	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1	1	-	-
