DATE
REV.
ECN
APP'D BY
10-22-10
10-4-12
A0
A1
-
9616
SAW
SAW
LEFT PLUG: CAT 7a
RIGHT PLUG: CAT 7a
B
B
+4 INCH [10.16 CM]
L-.000 [0]
CA77-XXXMX-2
LENGTH
100.0
PIN 4
BL
PIN 5
WBL
LENGTH
10.0
LENGTH
1.0
10 METER
7 METER
5 METER
3 METER
CA77-010M0-2
CA77-007M0-2
CA77-005M0-2
CA77-003M0-2
CA77-002M0-2
CA77-001M0-2
PART NUMBER
A
PIN 3
WG
PIN 6
G
PIN 4
BL
PIN 5
WBL
PIN 3
WG
PIN 6
G
LENGTH
.1
A
2 METER
PIN 1
WO
PIN 2
O

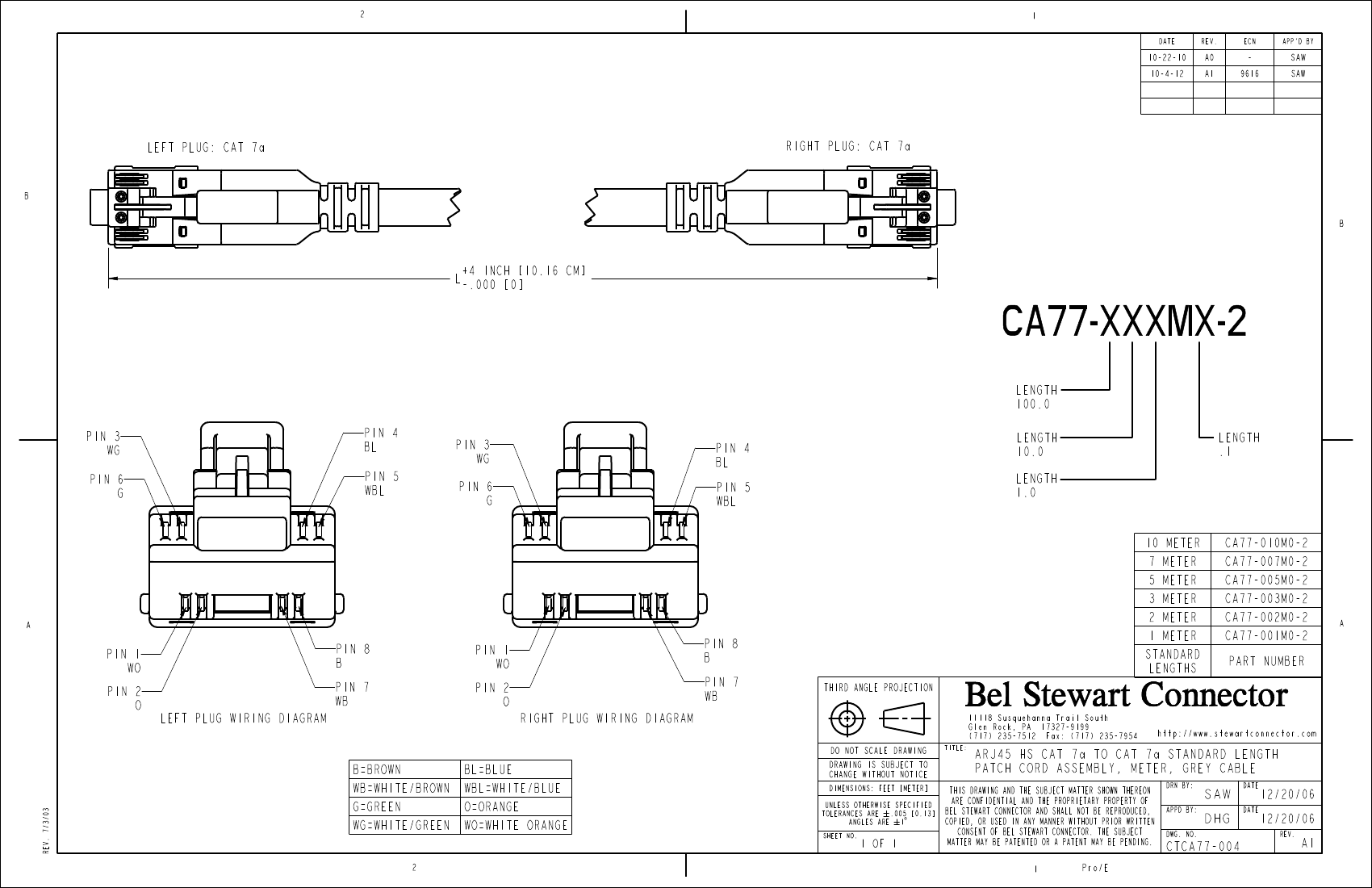

LEFT PLUG WIRING DIAGRAM
PIN 8
B
PIN 7
WB
PIN 1
WO
PIN 2
O
PIN 8
B
PIN 7
WB
RIGHT PLUG WIRING DIAGRAM
DRAWING IS SUBJECT TO
CHANGE WITHOUT NOTICE
DIMENSIONS: FEET [METER]
THIRD ANGLE PROJECTION
Bel Stewart Connector
TITLE:
STANDARD
LENGTHS
1 METER
11118 Susquehanna Trail South
Glen Rock, PA 17327-9199
(717) 235-7512 Fax: (717) 235-7954
http://www.stewartconnector.com
DO NOT SCALE DRAWING
B=BROWN
REV. 7/3/03
WB=WHITE/BROWN WBL=WHITE/BLUE
G=GREEN
WG=WHITE/GREEN WO=WHITE ORANGE
2
BL=BLUE
ARJ45 HS CAT 7a TO CAT 7a STANDARD LENGTH
PATCH CORD ASSEMBLY, METER, GREY CABLE
DRN BY:
O=ORANGE
THIS DRAWING AND THE SUBJECT MATTER SHOWN THEREON
ARE CONFIDENTIAL AND THE PROPRIETARY PROPERTY OF
UNLESS OTHERWISE SPECIFIED
APPD BY:
TOLERANCES ARE .005 [0.13]
BEL STEWART CONNECTOR AND SHALL NOT BE REPRODUCED,
COPIED, OR USED IN ANY MANNER WITHOUT PRIOR WRITTEN
ANGLES ARE 1
CONSENT OF BEL STEWART CONNECTOR. THE SUBJECT
DWG. NO.
SHEET NO.
MATTER MAY BE PATENTED OR A PATENT MAY BE PENDING.
1 OF 1
1
SAW
DHG
DATE
DATE
12/20/06
12/20/06
REV.
CTCA77-004
A1
Pro/E
