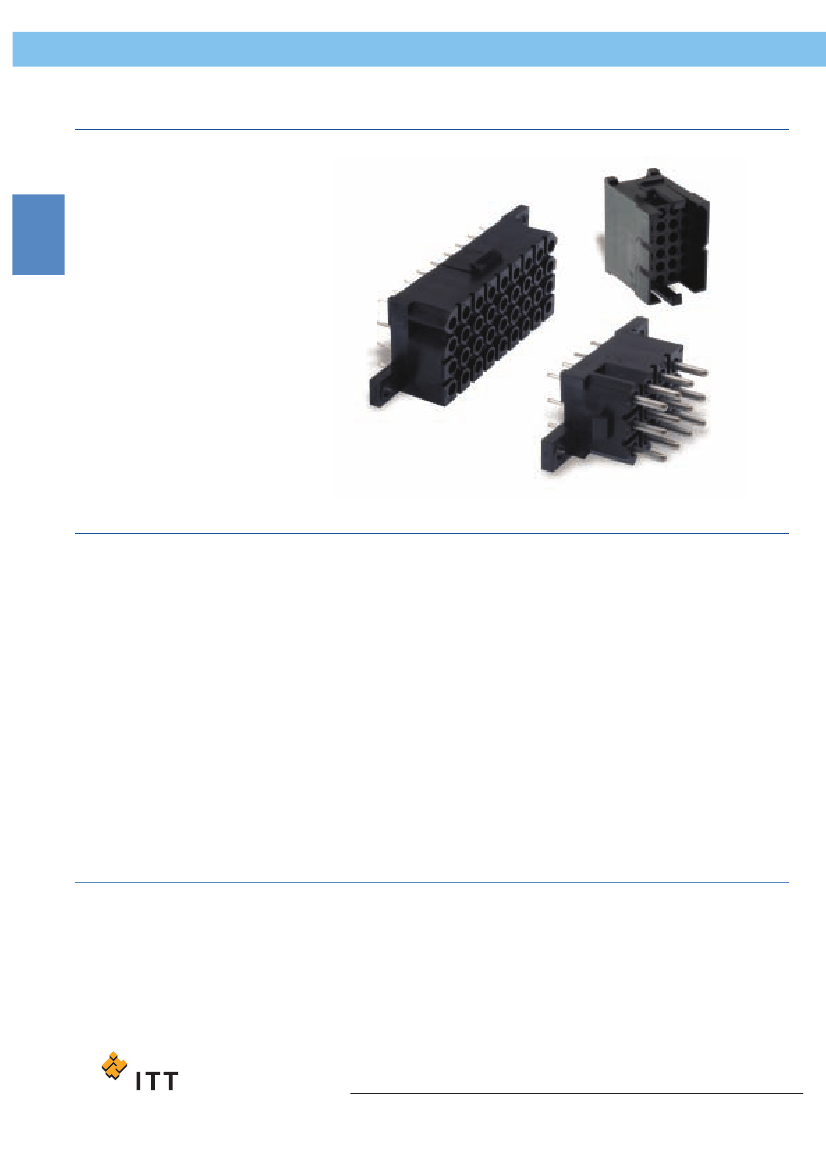

Cannon Trident Connector System
Snap Together-Rectangular
These are low installed cost connectors
rated for up to 13 A and 250 V ac. They
are typically used for circuit board and
internal wiring applications. Snap
Together connectors facilitate easy
assembly and removal of equipment
such as motors, fans, transformers, etc.
Snap Together
Rectangular
Applications:
•
Circuit board connections.
•
Internal connections.
Product Features
•
Easy cost effective installation.
•
Integrally molded latches and
connector polarization.
•
Recognized under the component
program of UL Inc. and CSA.
•
Inter-connector discrimination facilities
available.
•
Accepts formed (stamped) or
machined contacts, see page 47.
Performance Specifications
Operating Voltage
Contact Current Rating
Temperature Range
250 V ac rms
Up to 13 A (For derating curve, see page 44)
–55°C to 105°C (–67°F to 221°F) for Free
Plug and Panel Receptacles
–40°C to 105°C (–40°F to 221°F) for PCB
Mounted Receptacles
5000 MΩ at 500 V dc
150 N min. with latches engaged
2000 V ac for 60 secs
500 N min.
Insulation Resistance
Connector Latching Force
Test Voltage
Panel Retention Force
Materials and Finishes
Description
Insulator
Material
Black Nylon, UL 94V-0
Finish
None
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
6
www.ittcannon.com
Cannon Trident Connector System
Snap Together-Rectangular

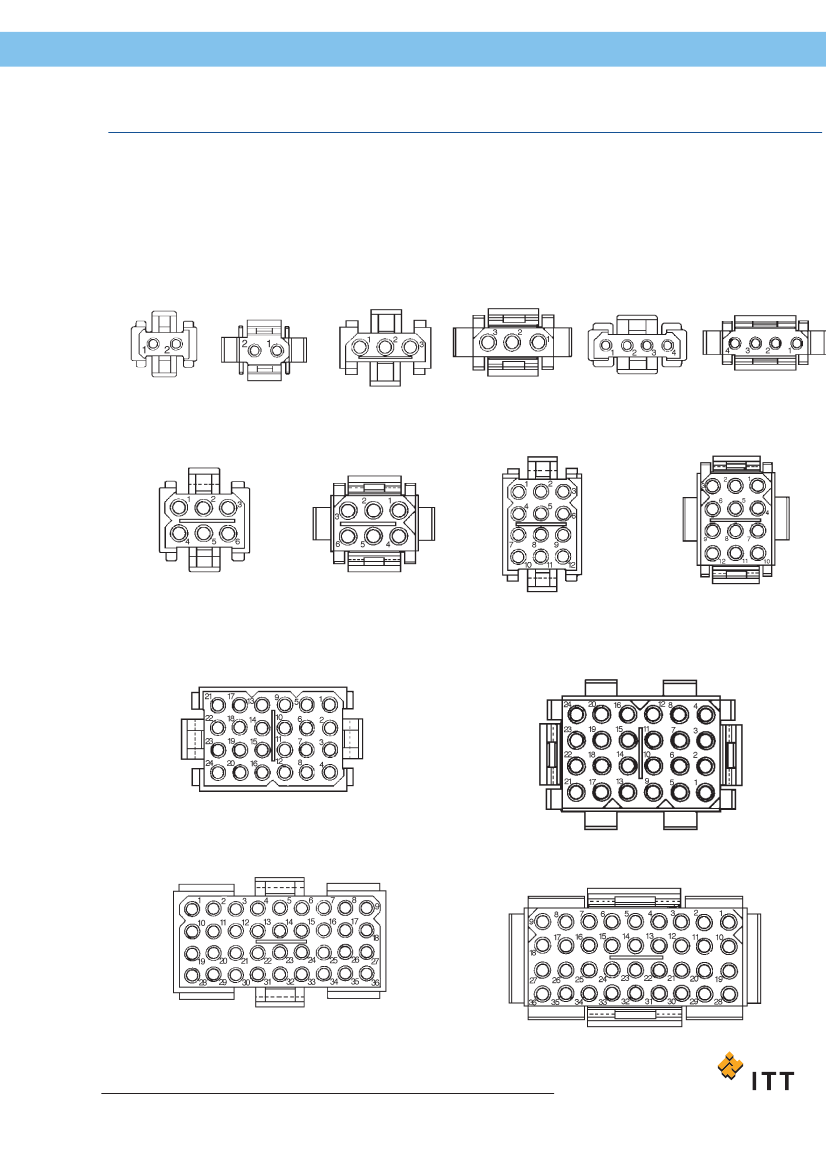

Contact Cavity Arrangements—Mating Face View
2 Way
Plug
Receptacle
3 Way
Plug
Receptacle
4 Way
Plug
Receptacle
6 Way
Plug
Receptacle
12 Way
Plug
Receptacle
24 Way
Plug
Receptacle
36 Way
Plug
Receptacle
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
7
Cannon Trident Connector System
Snap Together-Rectangular
Snap Together
Rectangular

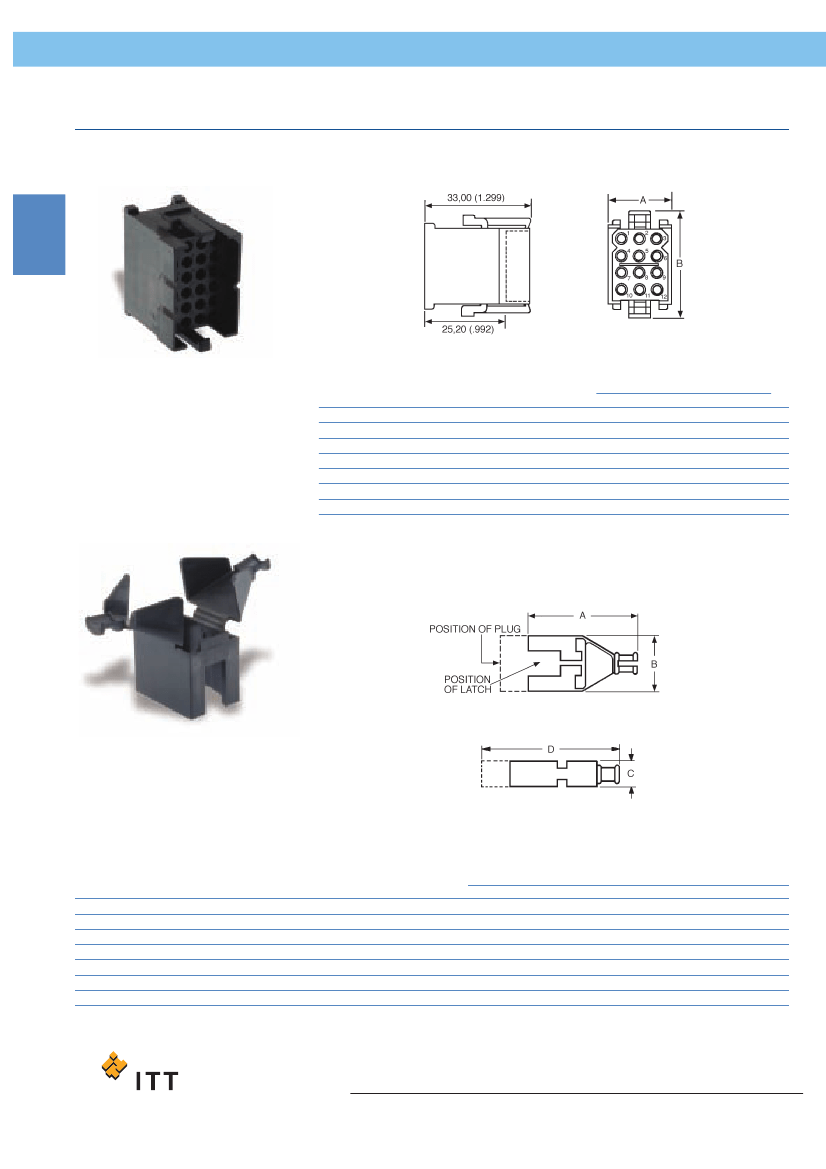

Free Plug
•
Accepts Pin or Socket contacts.
•
Contacts to be ordered separately,
see page 47.
•
Mates with panel mounted receptacles,
see page 9.
•
Mates with PCB mounted receptacles,
see pages 10-12.
Number of
Contacts
2
3
4
6
12
24
36
Part Number
(Pack of 100)
192990-0350
192923-5920
192990-0370
192923-5930
192923-5940
192923-5950
192923-5960
Dimensions (max.)
Nomenclature
A
B
TST 02 PA 00 15,50 (.610)
17,00 (.669)
TST 03 PA 00 19,00 (.748)
17,00 (.669)
TST 04 PA 00 24,00 (.944)
17,00 (.669)
TST 06 PA 00 19,00 (.748)
22,00 (.866)
TST 12 PA 00 19,00 (.748)
32,00 (1.259)
TST 24 PA 00 24,00 (.944)
42,00 (1.653)
TST 36 PA 00 49,50 (1.948)
32,00 (1.259)
Plug Strain Relief Hood
•
Provides strain relief and wire
protection.
•
Secure with a tie-wrap (customer
supplies tie-wrap).
•
Connector Discriminating (Keying) Pins
available, see page 52.
Number of
Contacts
2
3
4
6
12
24
36
Part Number
(Pack of 100) Nomenclature Wire Bundle Dia.
192990-0460 TST 02 AH 00 2,30-8,30 (.090-.326)
192990-0470 TST 03 AH 00 2,30-8,30 (.090-.326)
192990-0480 TST 04 AH 00 3,00-10,00 (.118-.393)
192923-5970 TST 06 AH 00 2,30-8,30 (.090-.326)
192923-5980 TST 12 AH 00 3,00-10,00 (.118-.393)
192923-5990 TST 24 AH 00 4,60-12,70 (.181-.500)
192923-6000 TST 36 AH 00 7,00-15,90 (.275-.625)
Dimensions (max.)
A
B
C
46,20 (1.818) 16,10 (.633)
11,00 (.433)
11,00 (.433)
46,20 (1.818) 18,60 (.732)
46,20 (1.818) 23,70 (.933)
11,00 (.433)
46,20 (1.818) 19,00 (.748)
16,40 (.645)
45,50 (1.791) 19,00 (.748) 26,40 (1.039)
51,00 (2.007) 24,10 (.948) 36,80 (1.448)
57,50 (2.263) 49,50 (1.948) 26,40 (1.039)
D
56,50 (2.224)
56,50 (2.224)
56,50 (2.224)
56,50 (2.224)
55,80 (2.196)
60,30 (2.374)
68,00 (2.677)
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
8
www.ittcannon.com
Cannon Trident Connector System
Snap Together-Rectangular

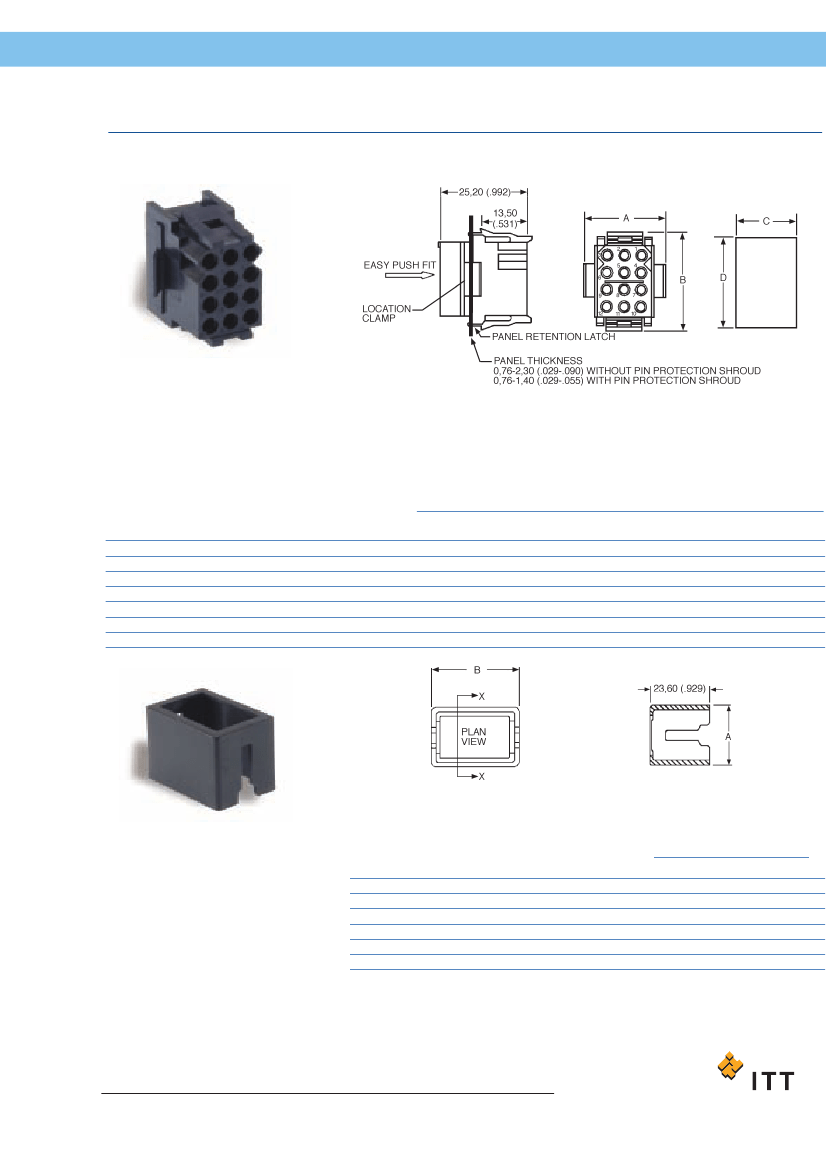

Panel Cutout
Receptacle —
Panel Mounted
•
Accepts Pin or Socket contacts.
•
Contacts to be ordered separately,
see page 47.
•
Mates with Free Plugs, see page 8.
Dimensions
Number of
Contacts
2
3
4
6
12
24
36
Part Number
(Pack of 100)
192990-0360
192923-6010
192990-0380
192923-6020
192923-6030
192923-6040
192923-6050
Nomenclature
TST 02 RA 00
TST 03 RA 00
TST 04 RA 00
TST 06 RA 00
TST 12 RA 00
TST 24 RA 00
TST 36 RA 00
A
19,00 (.748)
24,00 (.944)
29,00 (1.141)
24,00 (.944)
24,00 (.944)
29,00 (1.141)
54,20 (2.133)
B
14,00 (.551)
14,00 (.551)
13,50 (.531)
19,00 (.748)
29,00 (1.141)
39,00 (1.535)
29,00 (1.141)
C
±0,13 (.005)
11,50 (.452)
16,50 (.649)
21,70 (.854)
16,50 (.649)
16,70 (.657)
21,80 (.858)
46,70 (1.838)
D
±0,13 (.005)
11,60 (.456)
11,60 (.456)
11,60 (.456)
16,70 (.657)
26,70 (1.051)
36,90 (1.452)
26,40 (1.039)
Section X-X
Dimensions
Protection Shrouds
for Receptacles with
Pin Contacts
•
Provides protection for panel mounted
receptacles with pin contacts.
•
Shrouds can be fitted onto panels up
to 1,40 (.055) thick.
•
Connector Discriminating (Keying) Pins
available, see page 52.
Number of
Contacts
3
4
6
12
24
36
Part Number
(Pack of 100)
192990-0400
192991-0668
192990-0420
192990-0430
192990-0440
192990-0450
Nomenclature
TST 03 AS 00
TST 04 AS 00
TST 06 AS 00
TST 12 AS 00
TST 24 AS 00
TST 36 AS 00
A
23,50 (.925)
28,60 (1.126)
23,50 (.925)
23,60 (.929)
29,70 (1.169)
54,40 (2.141)
B
19,05 (.748)
19,05 (.748)
24,13 (.948)
34,20 (1.346)
44,40 (1.748)
34,00 (1.338)
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
9
Cannon Trident Connector System
Snap Together-Rectangular
Snap Together
Rectangular

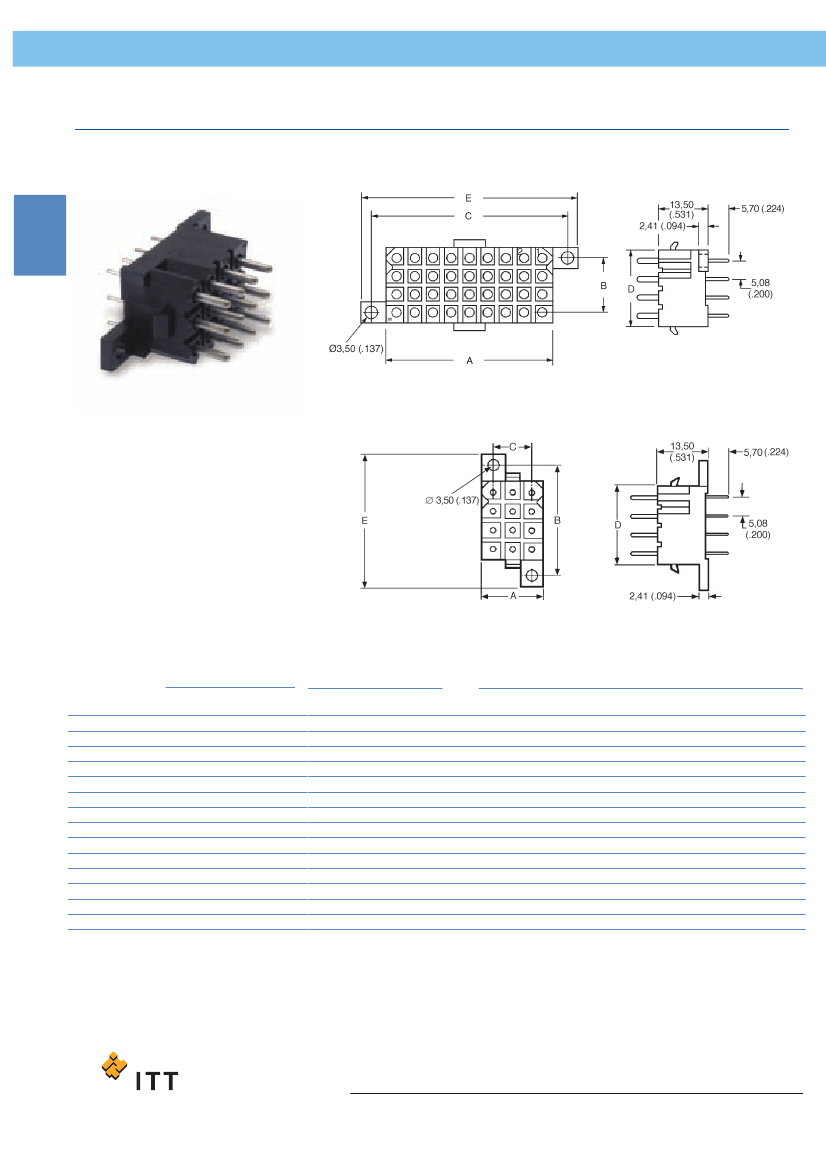

PCB Mounted Connectors
— Pin Contacts
•
Mates with Free Plug, see page 8.
•
Integrally molded flanges.
•
Contacts are on a 5,08 (.200) grid,
symmetrical on center lines.
•
Recommended PCB hole Ø1,15 (.045).
•
Connector Discriminating Caps
available, see page 52.
Number of
Contacts Plating
2
Gold*
2
Tin
Gold*
3
3
Tin
4
Gold*
4
Tin
Gold*
6
6
Tin
12
Gold*
12
Tin
24
Gold*
Tin
24
Gold*
36
36
Tin
Formed (Stamped)
Part Number
(Pack of 100) Nomenclature
192900-0411 TST 02 RB 05Y
192990-3230 TST 02 RB 05T
192900-0412 TST 03 RB 05Y
192990-3240 TST 03 RB 05T
192900-0413 TST 04 RB 05Y
192990-3250 TST 04 RB 05T
192900-0414 TST 06 RB 05Y
192990-3260 TST 06 RB 05T
192900-0415 TST 12 RB 05Y
192990-3270 TST 12 RB 05T
192900-0416 TST 24 RB 05Y
192990-3280 TST 24 RB 05T
192900-0417 TST 36 RB 05Y
192990-3290 TST 36 RB 05T
Machined
Part Number
(Pack of 100) Nomenclature Figure
A
192991-0270 TST 02 RB 01Z
1 11,13 (.438)
192991-0271 TST 02 RB 01T
1 11,13 (.438)
2 16,21 (.638)
192991-0278 TST 03 RB 01Z
192991-0279 TST 03 RB 01T
2 16,21 (.638)
192991-0286 TST 04 RB 01Z
2 21,30 (.838)
192991-0287 TST 04 RB 01T
2 21,30 (.838)
2 16,20 (.637)
192991-0294 TST 06 RB 01Z
192991-0295 TST 06 RB 01T
2 16,20 (.637)
192991-0302 TST 12 RB 01Z
2 16,20 (.637)
192991-0303 TST 12 RB 01T
2 16,20 (.637)
192991-0310 TST 24 RB 01Z
2 21,30 (.838)
2 21,30 (.838)
192991-0311 TST 24 RB 01T
1 46,60 (1.834)
192991-0402 TST 36 RB 01Z
192991-0403 TST 36 RB 01T
1 46,60 (1.834)
B
±0,08 (.003)
N/A
N/A
14,05 (.553)
14,05 (.553)
14,05 (.553)
14,05 (.553)
19,12 (.752)
19,12 (.752)
29,30 (1.153)
29,30 (1.153)
39,37 (1.550)
39,37 (1.550)
15,24 (.600)
15,24 (.600)
Dimensions
C
±0,08 (.003)
19,13 (.753)
19,13 (.753)
10,24 (.403)
10,24 (.403)
15,32 (.603)
15,32 (.603)
10,23 (.402)
10,23 (.402)
10,26 (.404)
10,26 (.404)
15,32 (.603)
15,32 (.603)
54,64 (2.151)
54,64 (2.151)
D
6,00 (.236)
6,00 (.236)
6,00 (.236)
6,00 (.236)
6,00 (.236)
6,00 (.236)
11,00 (.433)
11,00 (.433)
21,20 (.834)
21,20 (.834)
31,30 (1.232)
31,30 (1.232)
21,20 (.834)
21,20 (.834)
E
25,00 (.984)
25,00 (.984)
20,10 (.791)
20,10 (.791)
20,10 (.791)
20,10 (.791)
26,00 (1.023)
26,00 (1.023)
35,20 (1.385)
35,20 (1.385)
45,60 (1.795)
45,60 (1.795)
60,50 (2.382)
60,50 (2.382)
* Gold plating for Formed (Stamped) Contacts is 0,75 µm (30 µ in.) min gold. Gold plating for Machined Contacts is gold flash.
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
10
www.ittcannon.com
