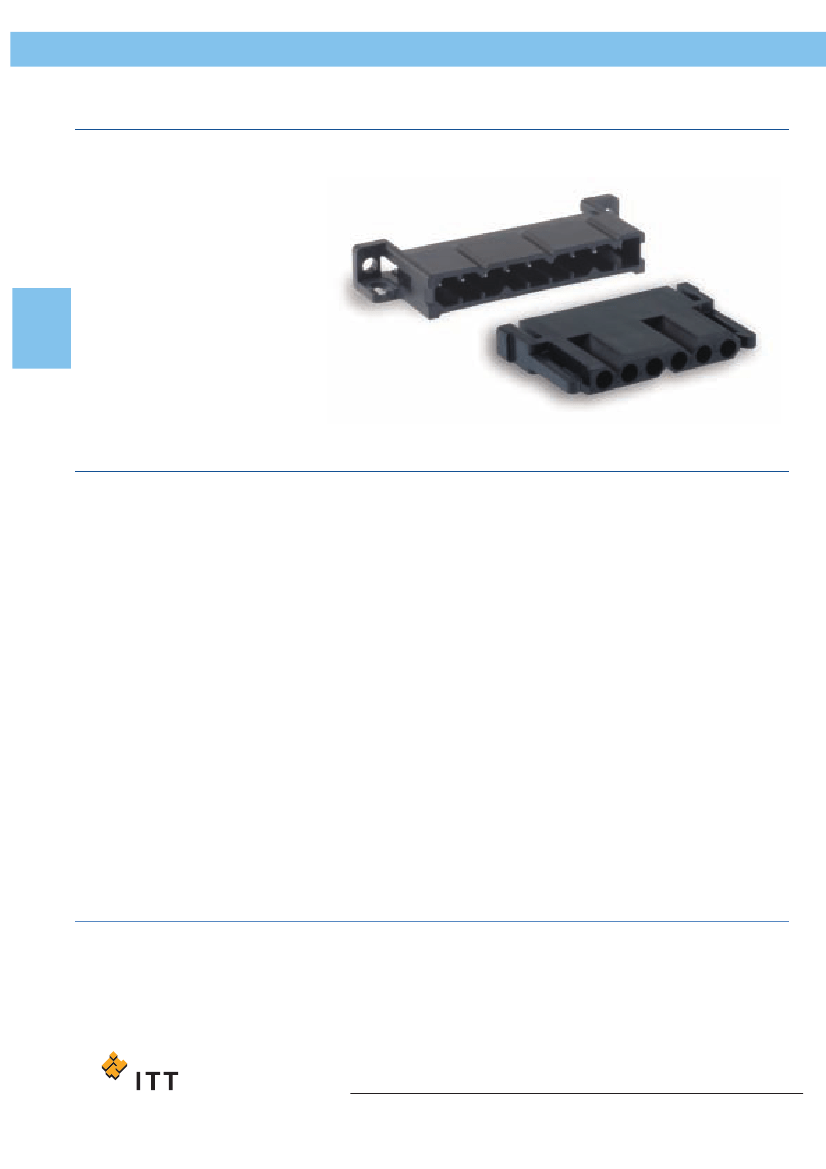

Cannon Trident Connector System
The Slimline Range offers a low profile
connector system that is well suited
for circuit board applications. The
precision machined contacts are ideal
for power and sensitive signals.
Snap Together-Slimline
Applications:
Snap Together
Slimline
•
Communications equipment.
•
Test equipment.
•
Heavy duty equipment.
Product Features
•
Less than 10,00 (.393) width on PC
board.
•
Pin headers pre-loaded with straight or
90° machined solder tail pins.
•
Mating plug accepts all Trident signal
crimp socket contacts, see page 00.
•
Plugs have integrally molded quick
connect/disconnect latches.
•
Five single row contact arrangements
available.
•
Recognized under the component
program of UL Inc. and CSA.
•
Gold plated version available with
earth pin capability.
•
10 A per circuit.
Performance Specifications
Operating Voltage
Contact Current Rating
Temperature Range
Insulation Resistance
250 V ac rms
Up to 10 A (For derating curve, see page 44)
-40°C to 105°C (-40°F to 221°F)
5000 MΩ at 500 V dc
Materials and Finishes
Description
Insulator
Material
Black Nylon, UL 94V-0
Finish
None
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
12
www.ittcannon.com

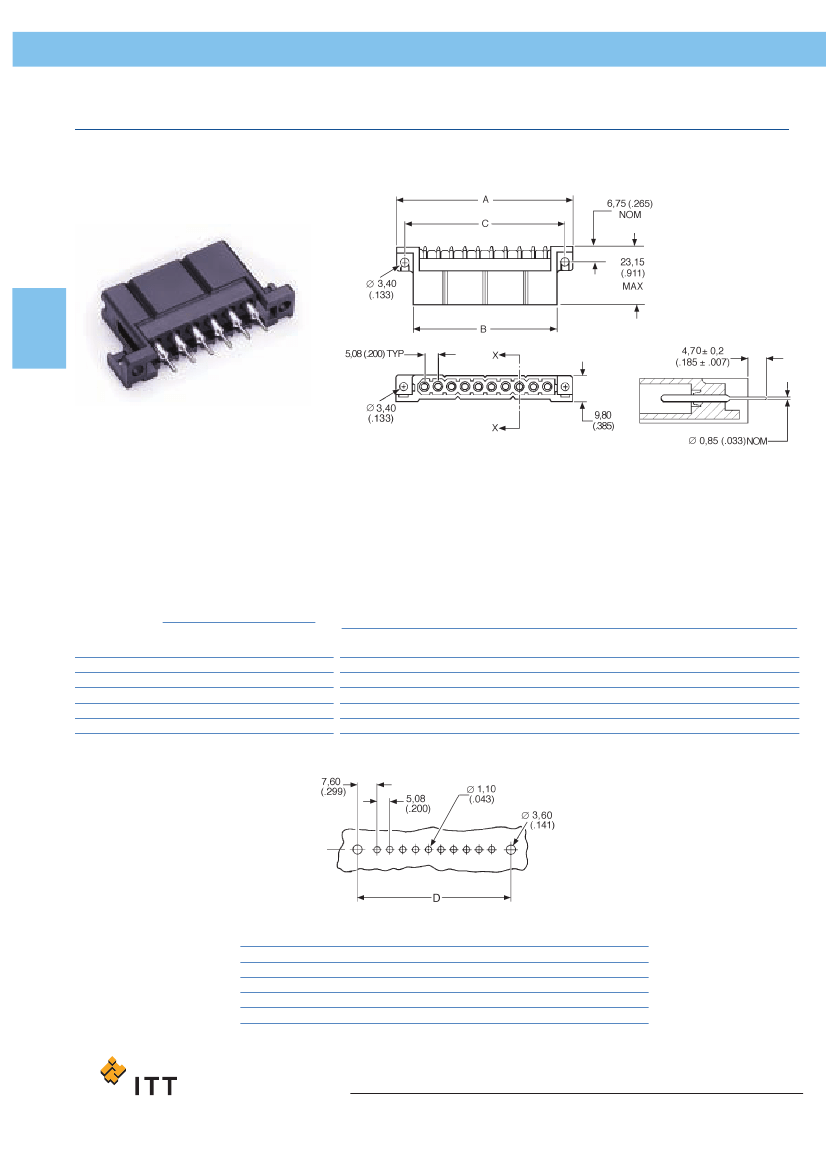

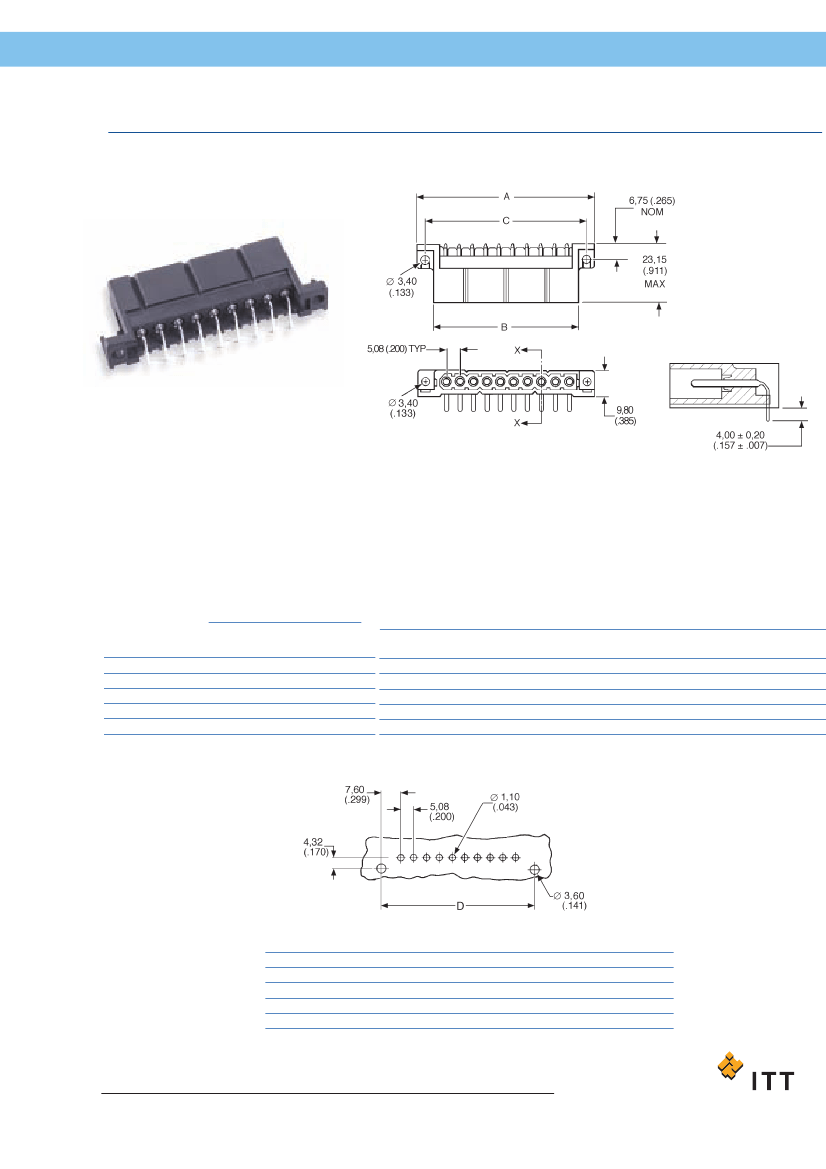

Cannon Trident Connector System
Snap Together-Slimline

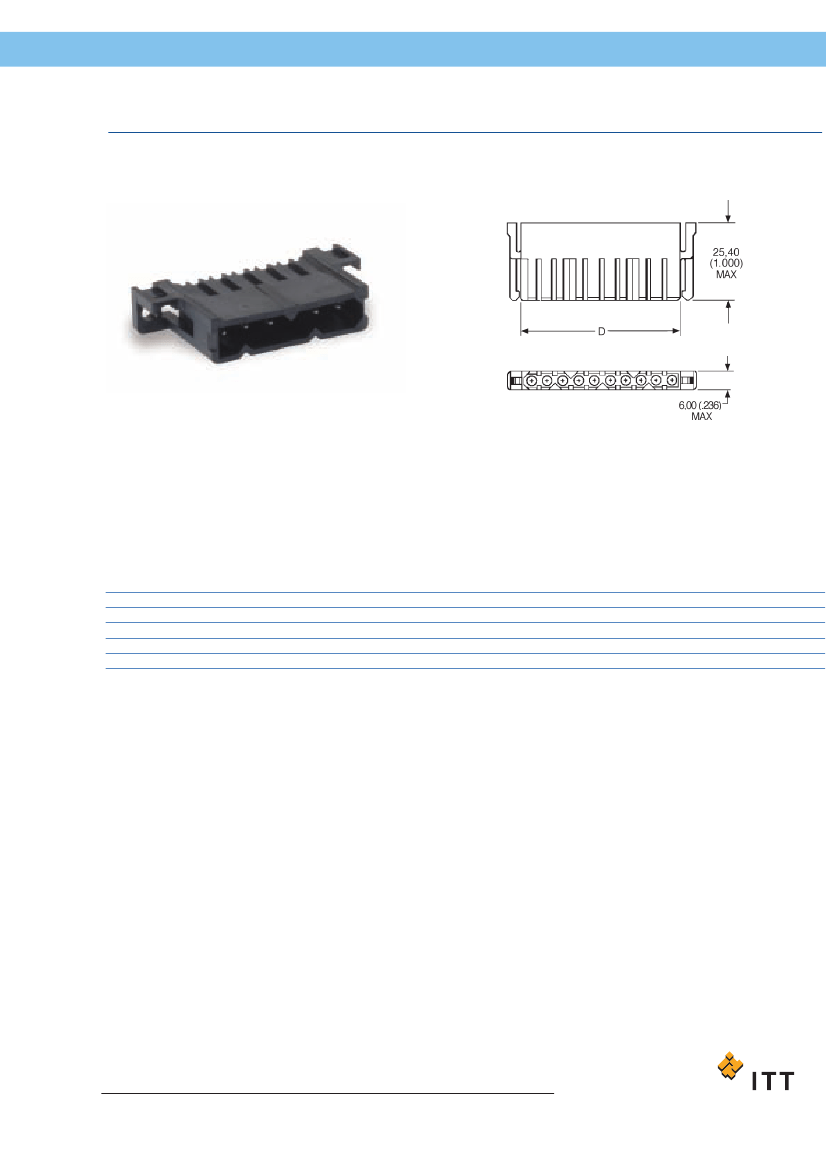

Plug Connector
•
Socket contacts must be ordered separately
for the plug connectors, see page 47.
Part Numbers — Plug Connector
Number of
Contacts
3
4
6
9
10
Part Number
(Pack of 100)
192990-0960
192990-0970
192990-0980
192990-0990
192990-1000
Nomenclature
TST 03 PF 00
TST 04 PF 00
TST 06 PF 00
TST 09 PF 00
TST 10 PF 00
D
max.
16,10 (.633)
21,20 (.834)
31,40 (1.236)
46,60 (1.834)
51,60 (2.031)
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
13
Cannon Trident Connector System
Snap Together-Slimline
Snap Together
Slimline
Pin Header — Straight
•
For gold plated versions extended earth
pins are available in any one or two
positions. Contact your local Cannon
Sales Office for further details.
Section X-X
Part Numbers — Straight Pin Header
Gold Plated Version
0,4
µm
(16µin.) min. Gold
Number of Part Number
Contacts (Pack of 100)
3
192991-0337
4
192991-0347
6
192991-0342
9
192991-0536
10
192991-0354
Tin Plated Version
Part Number
Nomenclature (Pack of 100) Nomenclature
TP 03 R4E 00Y 192991-0316
TST 03 RD 01T
TP 04 R4E 00Y 192991-0318
TST 04 RD 01T
TP 06 R4E 00Y 192991-0320
TST 06 RD 01T
TP 09 R4E 00Y 192991-0322
TST 09 RD 01T
TP 10 R4E 00Y 192991-0324
TST 10 RD 01T
Dimensions (max.)
A
31,40 (1.236)
36,50 (1.437)
46,70 (1.838)
61,90 (2.437)
67,00 (2.637)
B
19,40 (.763)
14,50 (.964)
34,70 (1.366)
49,90 (1.964)
55,00 (2.165)
C
25,50 (1.003)
30,60 (1.204)
40,70 (1.602)
56,00 (2.204)
61,10 (2.405)
PCB Layout
Number of
Contacts
3
4
6
9
10
D
max.
25,50 (1.003)
30,60 (1.204)
40,70 (1.602)
56,00 (2.204)
61,10 (2.405)
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
14
www.ittcannon.com
Cannon Trident Connector System
Snap Together-Slimline
Pin Header — 90°
•
For gold plated versions extended
earth pins are available in any one
or two positions. Contact your local
Cannon Sales Office for further details.
Section X-X
Part Numbers — 90° Pin Header
Gold Plated Version
0,4
µm
(16µin.) min. Gold
Number of
Contacts
3
4
6
9
10
Part Number
(Pack of 100)
192991-0532
192991-0533
192991-0534
192991-0535
192991-0538
Nomenclature
TP 03 R3E 00Y
TP 04 R3E 00Y
TP 06 R3E 00Y
TP 09 R3E 00Y
TP 10 R3E 00Y
Tin Plated Version
Part Number
(Pack of 100) Nomenclature
192991-0317
TST 03 RE 01T
192991-0319
TST 04 RE 01T
192991-0321
TST 06 RE 01T
TST 09 RE 01T
192991-0323
192991-0325
TST 10 RE 01T
Dimensions (max.)
A
31,40 (1.236)
36,50 (1.437)
46,70 (1.838)
61,90 (2.437)
67,00 (2.637)
B
19,40 (.763)
14,50 (.964)
34,70 (1.366)
49,90 (1.964)
55,00 (2.165)
C
25,50 (1.003)
30,60 (1.204)
40,70 (1.602)
56,00 (2.204)
61,10 (2.405)
PCB Layout
Number of
Contacts
3
4
6
9
10
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
D
max.
25,50 (1.003)
30,60 (1.204)
40,70 (1.602)
56,00 (2.204)
61,10 (2.405)
www.ittcannon.com
15
