ABM11-16.000MHZ-9-B1U-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> ABM11-16.000MHZ-9-B1U-T

Preview

ABM11-16.000MHZ-9-B1U-T: DescriptionCRYSTAL 16.000MHZ 9PF SMD; CategoryPassive components; File Size530KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM11-16.000MHZ-9-B1U-T Overview

CRYSTAL 16.000MHZ 9PF SMD

ABM11-16.000MHZ-9-B1U-T Parametric

Parameter Name	Attribute value
type	MHz crystal
frequency	16MHz
frequency stability	±10ppm
frequency tolerance	±10ppm
load capacitance	9pF
ESR (equivalent series resistance)	150 Ohms
Operating mode	basic harmony
Operating temperature	-20°C ~ 70°C
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.079" long x 0.063" wide (2.00mm x 1.60mm)
Height - Installation (maximum)	0.023"（0.59mm）

Preview

Download Datasheet

View All

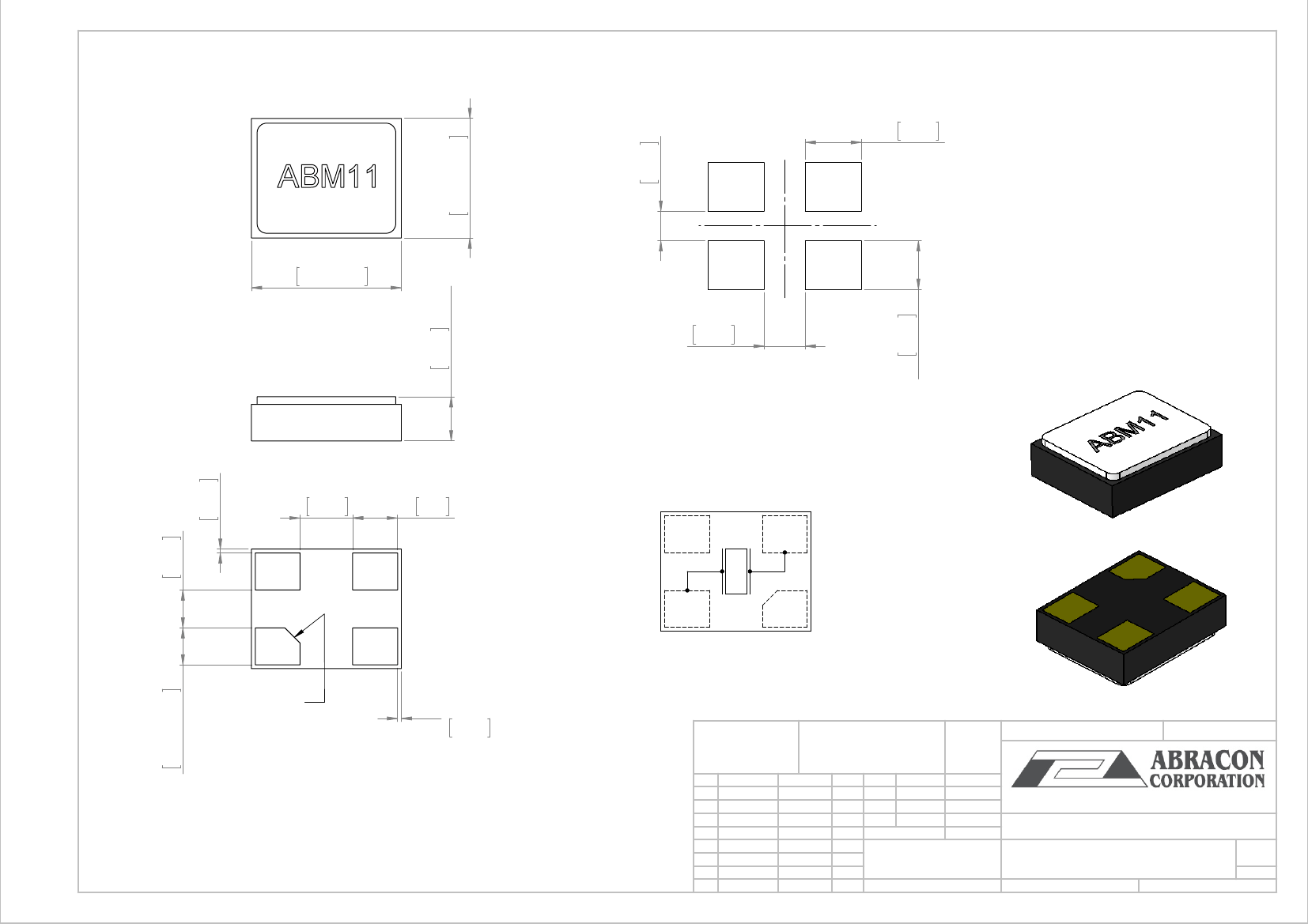

Recommended Land Pattern

0.063±0.006

1.60±0.15

0.030

0.75

0.023 Max.

0.59

0.079±0.006

2.0±0.15

0.016

0.40

0.022

0.55

0.002

0.05

0.03

0.71

3

0.02

0.6

4

GND

3

0.02

0.51

4

GND

2

1

C0.008

[C0.2

]

1

Top View

0.002

0.05

2

0.02±0.004

0.50±0.10

2X 0.026

0.65

FINISH:

DEBUR AND

BREAK SHARP

EDGES

Note:

Due to the availability of raw materials, this part may be

manufactured with the chamfer on pin 1 or 4. Be advised that this

does not affect the electrical

characteristics of crystal in any way.

TOP PACKAGE MARKING IS

FOR ILLUSTRATION PURPOSES ONLY

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

SMD Crystal

MATERIAL:

DWG NO.

ABM11

SHEET 1 OF 1

A3

WEIGHT:

SCALE:24:1
