ABM3-32.000MHZ-B4Y-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ABM3-32.000MHZ-B4Y-T

Preview

ABM3-32.000MHZ-B4Y-T: DescriptionCRYSTAL 32.0000MHZ 18PF SMD; CategoryPassive components Crystal/resonator; File Size109KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM3-32.000MHZ-B4Y-T Overview

CRYSTAL 32.0000MHZ 18PF SMD

ABM3-32.000MHZ-B4Y-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Other features	AT-CUT; TR, 7 INCH
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series resistance	25 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

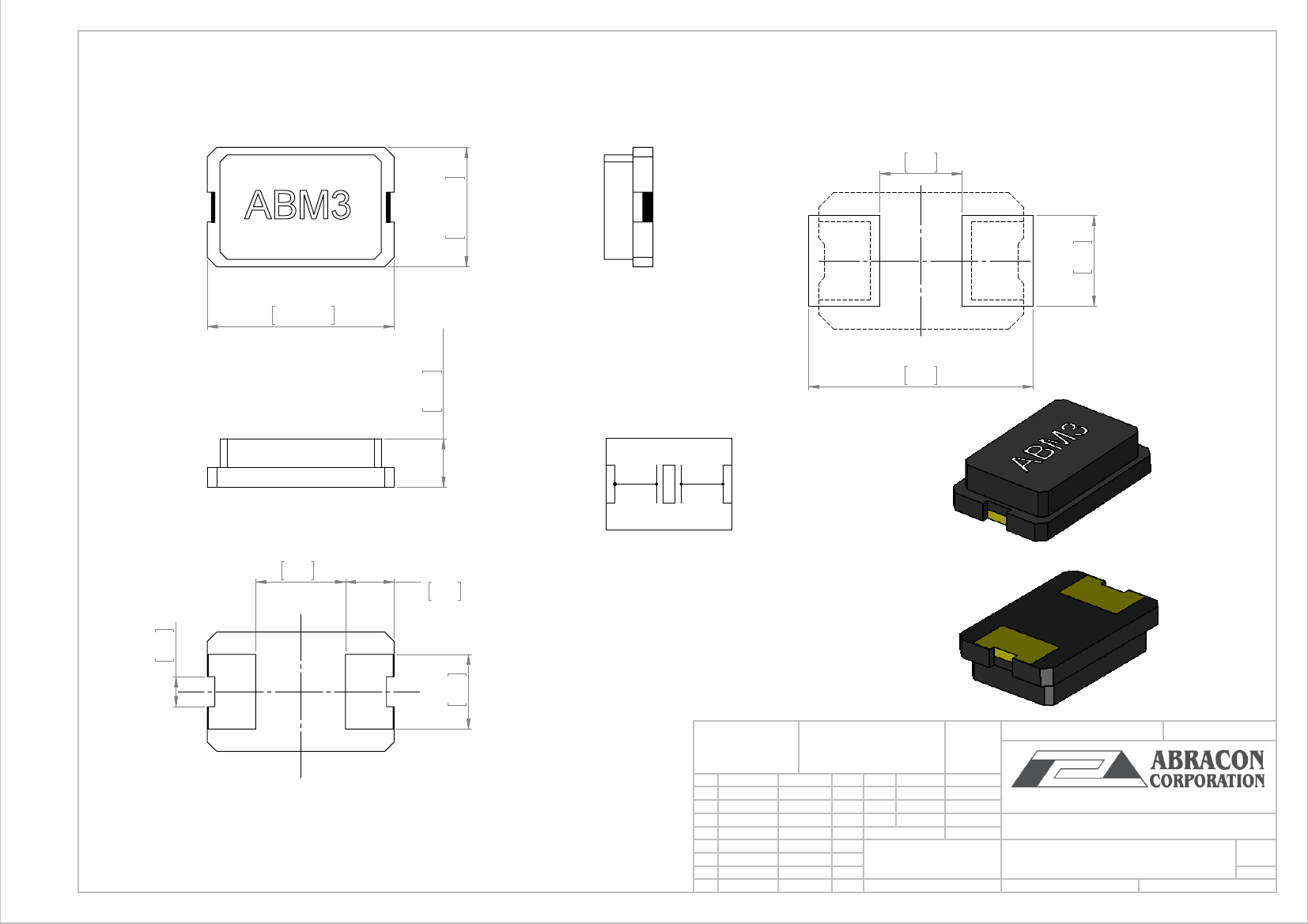

Recommended Land Pattern

0.09

2.2

0.126±0.008

3.2±0.2

0.197±0.008

5.0±0.2

0.051 Max.

1.30

0.24

6.0

Connection

0.1

2.4

0.05

1.3

0.031

0.8

0.079

2.0

PIN 1

PIN 2

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

FINISH:

DEBUR AND

BREAK SHARP

EDGES

0.10

2.4

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

Note: Due to availability of the ceramic base, a chamfer

may appear on pin 1.

TOP PACKAGE MARKING IS

FOR ILLUSTRATION PURPOSES ONLY

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

Crystal

MATERIAL:

DWG NO.

ABM3

SHEET 1 OF 1

A3

WEIGHT:

SCALE:12:1
