ECS-VXO-73-40.00-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> ECS-VXO-73-40.00-TR

Preview

ECS-VXO-73-40.00-TR: DescriptionOSC VCXO 40.000MHZ CMOS SMD; CategoryPassive components; File Size475KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ECS-VXO-73-40.00-TR Overview

OSC VCXO 40.000MHZ CMOS SMD

ECS-VXO-73-40.00-TR Parametric

Parameter Name	Attribute value
type	VCXO
frequency	40MHz
Function	enable/disable
output	CMOS
Voltage - Power	3.3V
frequency stability	±50ppm
Absolute pulling range (APR)	-
Operating temperature	-10°C ~ 70°C
Current - Power (maximum)	20mA
grade	-
Installation type	surface mount
Package/casing	6-SMD, no leads
size/dimensions	0.276" long x 0.197" wide (7.00mm x 5.00mm)
Height - Installation (maximum)	0.063"（1.60mm）
Current - Power (disabled) (maximum)	-

Preview

Download Datasheet

View All

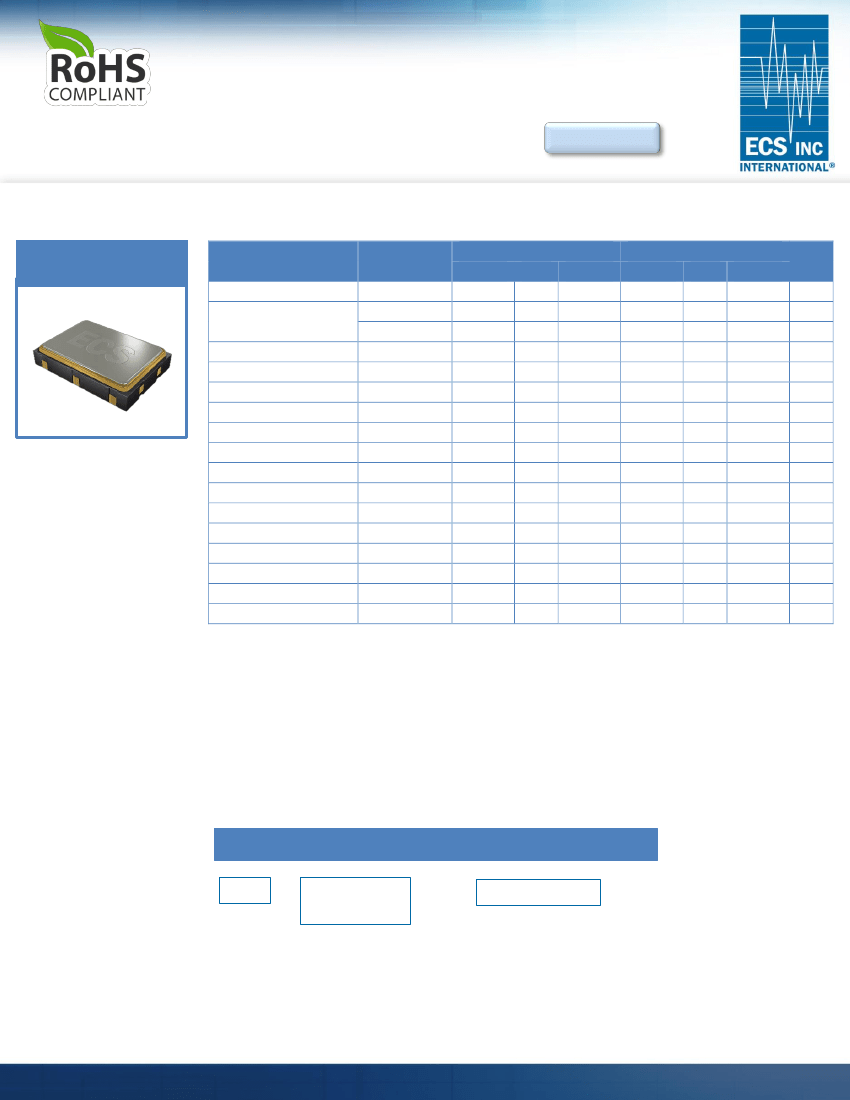

ECS-VXO-73/VXO-75

SMD VCXO

The ECS-VXO-73 (3.3V) and ECS-VXO-75 (5.0V) are miniature VCXO’s

Voltage Controlled Crystal Oscillator with tri-state in a ceramic SMD

package. The low profile package is ideal for todays advanced portable

PC and instrumentation applications.

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-VXO-73/

VXO-75

Parameters

Frequency Range

Temperature Range

Supply Voltage

Frequency Stability*

Frequency Pulling Range

Control Voltage

Frequency Linearity

•

3.3V &5.0V versions

1.6 mm profile

Low power consumption

Tri-State

Seam welded package

Tape & Reel (1,000 pcs

standard)

PbFree/RoHS Compliant

Input Current

Output Symmetry

Rise and Fall Times

Logic “0” Level

Logic “1” Level

Load

Start-Up Time

Modulation Bandwidth

Disable Time

(-3 dB)

10

100

CMOS

90% V

CC

15

10

100

Positive Slope

No Load

@ ½ V

CC

Level

40/60

All Conditions

±90

0

+1.65

+3.3

±15

20

60/40

5

10% V

CC

90% V

CC

15

10

40/60

Operating

Storage

Conditions

ECS-VXO-73 (3.3V)

MIN

3.000

-10

-40

+3.14

+3.3

TYP

MAX

77.760

+70

+85

+3.465

±50

±100

+0.5

+2.5

+4.5

±10

40

60/40

5

10% V

CC

ECS-VXO-75 (5.0V)

MIN

3.000

-10

-40

+4.75

+5.0

TYP

MAX

77.760

+70

+85

+5.25

±50

Units

MHz

°C

V DC

PPM

V DC

%

mA

%

nS

V DC

pF

ms

KHz

ns

* Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, aging shock and vibration.

Note: A 0.01~0.1 µF bypass capacitor should be placed between V

CC

(Pad 6) and GND (Pad 3) for stable oscillation to minimize power line

noise.

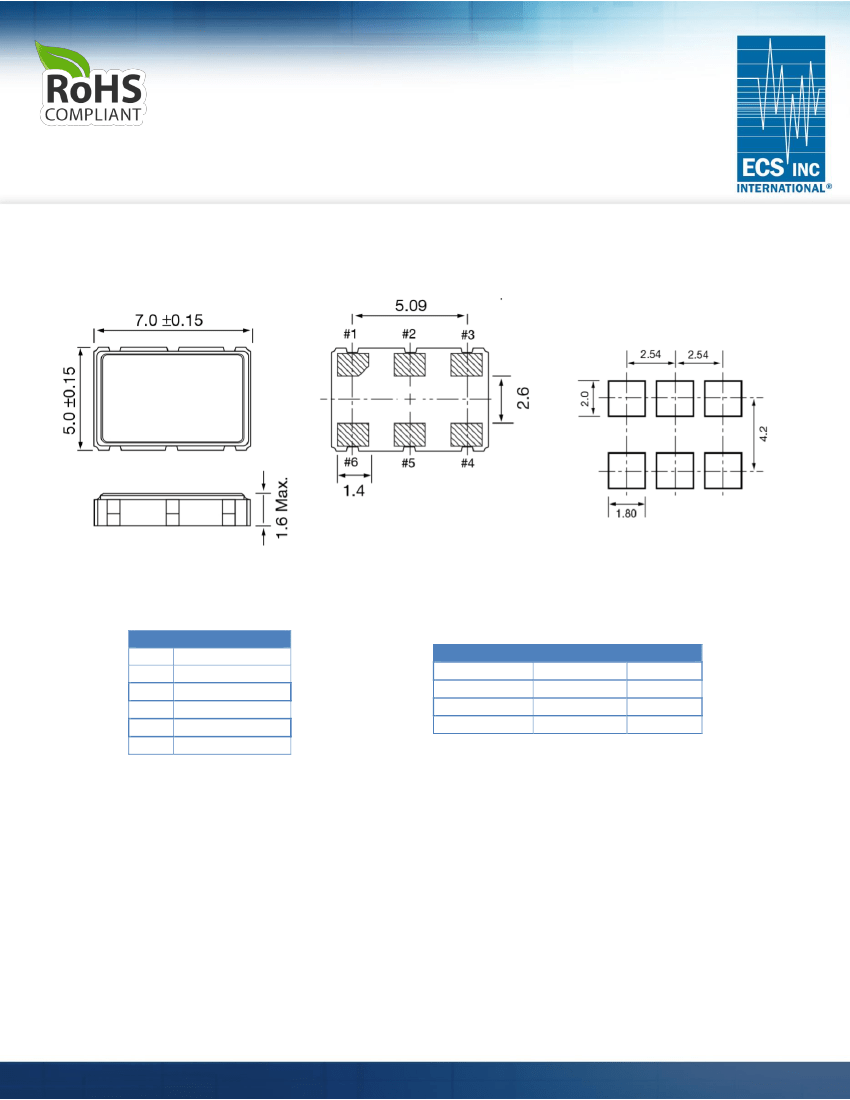

Part Numbering Guide: Example ECS-VXO-73-270

ECS

-

Series

-

Frequency Abbreviations

ECS

VXO-73 = +3.3V

VXO-75 = +5.0V

270 = 27.000 MHz

15351 West 109

th

Street

|

Lenexa, KS 66219

|

Phone: 913.782.7787

|

Fax: 913.782.6991

|

www.ecsxtal.com

ECS-VXO-73-40.00-TR Related Products

	ECS-VXO-73-40.00-TR	ECS-VXO-73-44.736-TR	ECS-VXO-73-32.768-TR	ECS-VXO-73-19.440-TR	ECS-VXO-73-27.00-TR	ECS-VXO-73-20.00-TR	ECS-VXO-73-FREQ	ECS-VXO-75-FREQ
Description	OSC VCXO 40.000MHZ CMOS SMD	osc vcxo 44.736mhz cmos smd	OSC VCXO 32.768MHZ CMOS SMD	OSC VCXO 19.44MHZ CMOS SMD	OSC VCXO 27.000MHZ CMOS SMD	OSC VCXO 20.000MHZ CMOS SMD	CMOS Output Clock Oscillator, 3MHz Min, 77.76MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	CMOS Output Clock Oscillator, 3MHz Min, 77.76MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN
type	VCXO	-	VCXO	VCXO	VCXO	VCXO	-	-
frequency	40MHz	-	32.768MHz	19.44MHz	27MHz	20MHz	-	-
Function	enable/disable	-	enable/disable	enable/disable	enable/disable	enable/disable	-	-
output	CMOS	-	CMOS	CMOS	CMOS	CMOS	-	-
Voltage - Power	3.3V	-	3.3V	3.3V	3.3V	3.3V	-	-
frequency stability	±50ppm	-	±50ppm	±50ppm	±50ppm	±50ppm	50%	50%
Operating temperature	-10°C ~ 70°C	-	-10°C ~ 70°C	-10°C ~ 70°C	-10°C ~ 70°C	-10°C ~ 70°C	-	-
Current - Power (maximum)	20mA	-	20mA	20mA	20mA	20mA	-	-
Installation type	surface mount	-	surface mount	surface mount	surface mount	surface mount	-	-
Package/casing	6-SMD, no leads	-	6-SMD, no leads	6-SMD, no leads	6-SMD, no leads	6-SMD, no leads	-	-
size/dimensions	0.276" long x 0.197" wide (7.00mm x 5.00mm)	-	0.276" long x 0.197" wide (7.00mm x 5.00mm)	0.276" long x 0.197" wide (7.00mm x 5.00mm)	0.276" long x 0.197" wide (7.00mm x 5.00mm)	0.276" long x 0.197" wide (7.00mm x 5.00mm)	-	-
Height - Installation (maximum)	0.063"（1.60mm）	-	0.063"（1.60mm）	0.063"（1.60mm）	0.063"（1.60mm）	0.063"（1.60mm）	-	-

Recommended Resources

KJZ6 three-phase fully controlled bridge rectifier circuit

Galanz CFXB50-70B luxury multi-function rice cooker circuit diagram

Flash beat circuit once per second

Button indicator circuit

Simple touch switch

moving object detector
