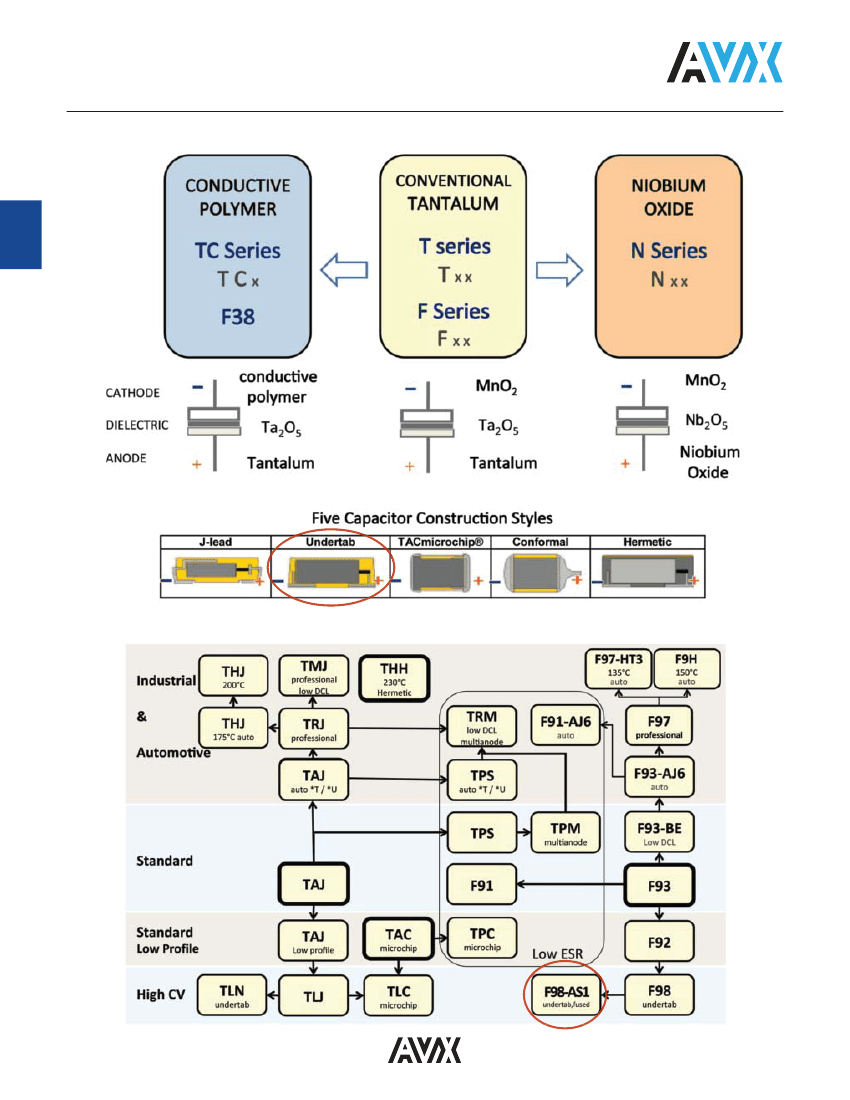

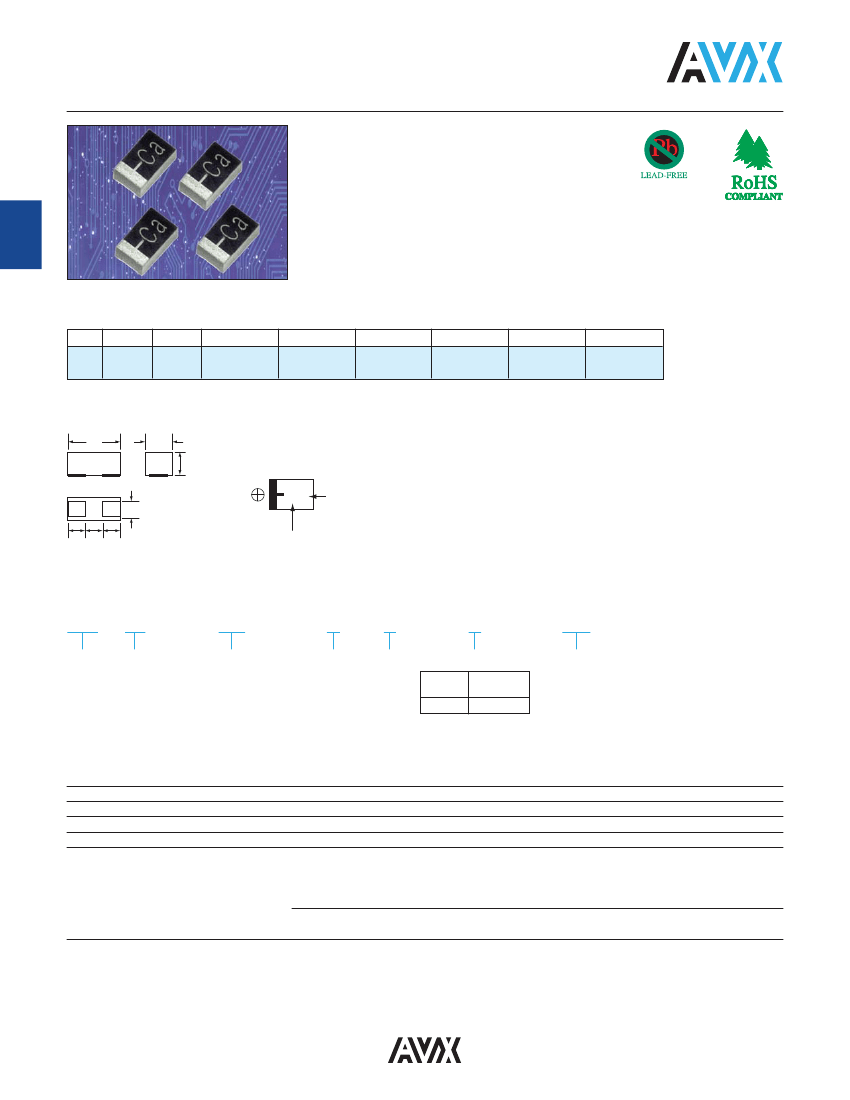

F98-AS1 Series
Fused Face-Down, High CV
FEATURES
• Compliant to the RoHS2 directive 2011/65/EU
APPLICATIONS
• Industrial equipment
• Smartphone
• Medical equipment
• Automotive electronics
• Portable game
LEAD-FREE COMPATI-
BLE
COMPONENT
CASE DIMENSIONS:
millimeters (inches)
Code EIA Code EIA Metric
S
0805
2012-09
2.00
(0.079
L
+0.20
-0.10
+0.008
-0.004
W
1
)
1.25
(0.049
+0.20
-0.10
+0.008
-0.004
W
2
)
0.90±0.10
(0.035±0.004)
H
0.80±0.10
(0.031±0.004)
S
1
0.50±0.10
(0.020±0.004)
S
2
1.00±0.10
(0.039±0.004)
L
W
1
H
MARKING
S CASE
An
W
2
S
1
S
2
S
1
*Capacitance
Code
Rated Voltage
Code
HOW TO ORDER
F98
1A
336
Type
Rated
Voltage
Capacitance
Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
M
Tolerance
M = ±20%
S
Case
Size
See
table
above
Packaging
Reel Dia
(φ180)
A
Tape Width
(mm)
8
AS1
Fuse Series
Code
TECHNICAL SPECIFICATIONS
Category Temperature Range:
Rated Temperature:
Capacitance Tolerance:
Dissipation Factor:
ESR 100kHz:
Leakage Current:
-55 to +125°C
+85°C
±20% at 120Hz
Refer to next page
Refer to next page
Refer to next page
Provided that:
After 5 minute’s application of rated voltage, leakage current at 85°C
10 times or less than 20ºC specified value.
After 5 minute’s application of rated voltage, leakage current at 125°C
12.5 times or less than 20ºC specified value.
62
010418
F98-AS1 Series
Fused Face-Down, High CV
CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
1.0
105
2.2
225
4.7
475
10
106
22
226
33
336
47
476
10V (1A)
16V (1C)
Rated Voltage
20V (1D)
25V (1E)
35 (1V)
S
*Cap
Code
A
J
S
a
J
n
s
S
S
S
S
Released ratings
Please contact to your local AVX sales office when these series are being designed in your application.
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
Case Capacitance
Size
(μF)
Rated
Voltage
(V)
*2
DCL
(μA)
DF
ESR
@ 120Hz @ 100kHz
(%)
(Ω)
*1
ΔC/C
(%)
MSL
F981A226MSAAS1
F981A336MSAAS1
F981A476MSAAS1
F981C106MSAAS1
F981V105MSAAS1
S
S
S
S
S
22
33
47
10
1
10 Volt
10
10
10
16 Volt
16
35 Volt
35
2.2
3.3
9.4
1.6
0.7
20
30
35
18
20
4.5
6.5
5.5
4.5
8.5
±20
±30
±30
±20
±30
3
3
3
3
3
*2: Leakage Current
After 5 minute’s application of rated voltage,
leakage current at 20ºC.
Moisture Sensitivity Level (MSL) is defined according to J-STD-020.
QUALIFICATION TABLE
TEST
Damp Heat
(Steady State)
Temperature Cycles
Resistance to
Soldering Heat
F98-AS1 series (Temperature range -55ºC to +125ºC)
Condition
At 40°C, 90 to 95% R.H., 500 hours (No voltage applied)
Capacitance Change ........... Refer to the table above (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
-55°C / +125°C, 30 minutes each, 5 cycles
Capacitance Change ........... Refer to the table above (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
10 seconds reflow at 260°C, 5 seconds immersion at 260°C.
Capacitance Change ........... Refer to the table above (*1)
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After application of surge in series with a 1kΩ resistor at the rate of 30 seconds ON, 30 seconds OFF,
for 1000 successive test cycles at 85ºC, capacitors shall meet the characteristic requirements in the table above.
Capacitance Change ........... Refer the table above (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
After 1000 hours’ application of rated voltage in series with a 3Ω resistor at 85°C,
capacitors shall meet the characteristic requirements in the table above.
Capacitance Change ........... Refer to the table above (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
After applying the pressure load of 5N for 10±1 seconds horizontally to the center of capacitor side body
which has no electrode and has been soldered beforehand on a substrate, there shall be found neither
exfoliation nor its sign at the terminal electrode.
Keeping a capacitor surface-mounted on a substrate upside down and supporting the substrate at
both of the opposite bottom points 45mm apart from the center of capacitor, the pressure strength is
applied with a specified jig at the center of substrate so that the substrate may bend by 1mm as
illustrated. Then, there shall be found no remarkable abnormality on the capacitor terminals.
5 seconds max. with 2A min. applied current
Surge
Endurance
Shear Test
Terminal Strength
Fuse Activation
NOTICE: DESIGN, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
010418
63
