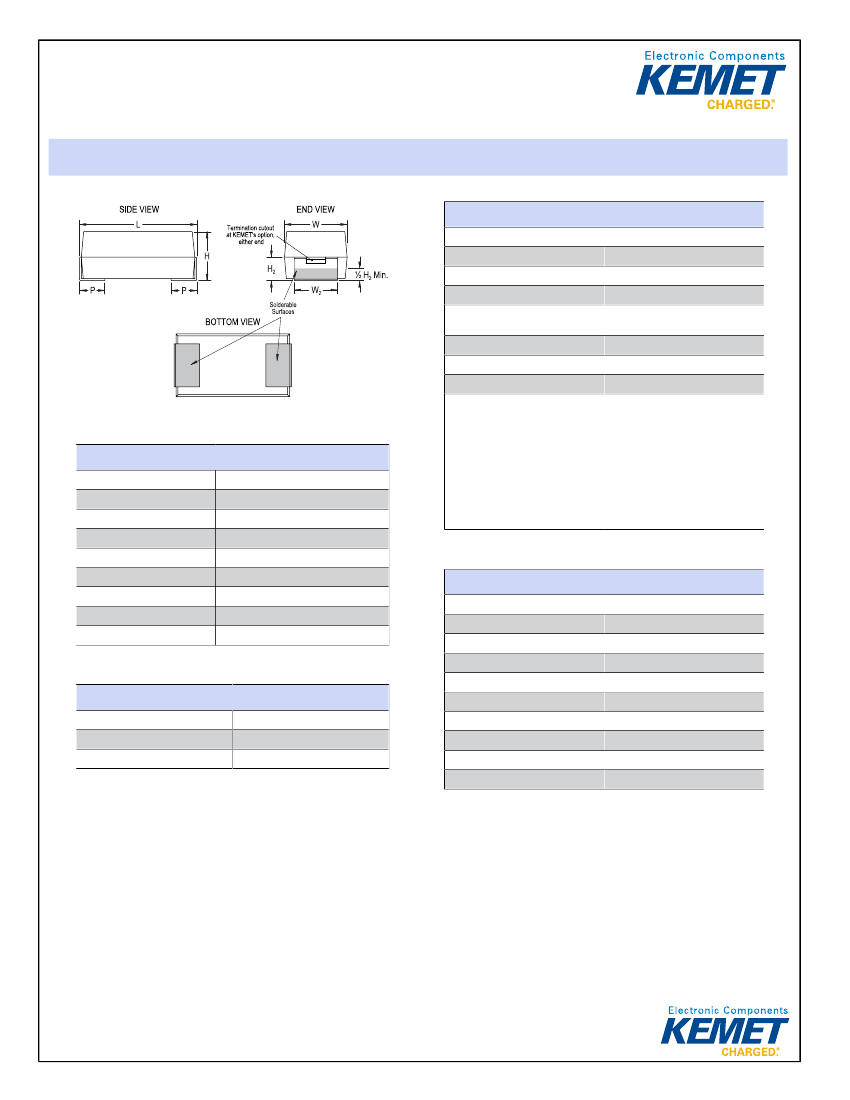

KEMET Part Number: CWR09FB475KB
(T409D475K010BB)
T409_CWR09, Tantalum, MnO2 Tantalum, Military/High Reliability, 4.7 uF, 10%, 10 VDC, SMD, MnO2, Molded, Military Equivalent,
B (0.1%/1000 Hrs), 4.5 Ohms, 3825, Height Max = 1.65mm
General Information
Supplier:
Series:
Dielectric:
Style:
Description:
RoHS:
Termination:
Qualifications:
KEMET
T409_CWR09
MnO2 Tantalum
SMD Chip
SMD, MnO2, Molded, Military
Equivalent
Yes
Gold
MIL-PRF-55365/4, CWR09 Style
Note: When Option C Is Selected
For Lead Material, Add An
Additional 0.38mm To The
Tolerances For "L", "W", "H",
"K" ,"F" And "S". P And R
Dimensions Represents The
Minimum Solderable Area Of
The Termination Surface Entirely
Below Cutout (If One Is Present)
Dimensions
Footprint
L
W
H
S
F
A
K
P
3825
3.81mm +/-0.38mm
2.54mm +/-0.38mm
1.27mm +/-0.38mm
0.76mm +0.025/-0.13mm
2.41mm +0.13/-0.25mm
2.29mm NOM
0.76mm MIN
0.38mm MIN
Notes:
Specifications
Capacitance:
Capacitance Tolerance:
Voltage DC:
Temperature Range:
Rated Temperature:
Dissipation Factor:
Failure Rate:
Resistance:
Leakage Current:
Testing and Reliability:
4.7 uF
10%
10 VDC (85C), 6.7 VDC (125C)
-55/+125C
85C
6.00%
B (0.1%/1000 Hrs)
4.5 Ohms (100kHz)
1 uA (20C)
Standard Testing Only
Packaging Specifications
Weight:
Packaging:
Packaging Quantity:
264.12 mg
T&R, 178mm
2500
Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and
we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the
requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us
with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.
Generated 9/30/2018 - 9182213c-7e64-416d-869a-4ec9f953afc7
© 2006 - 2018 KEMET
