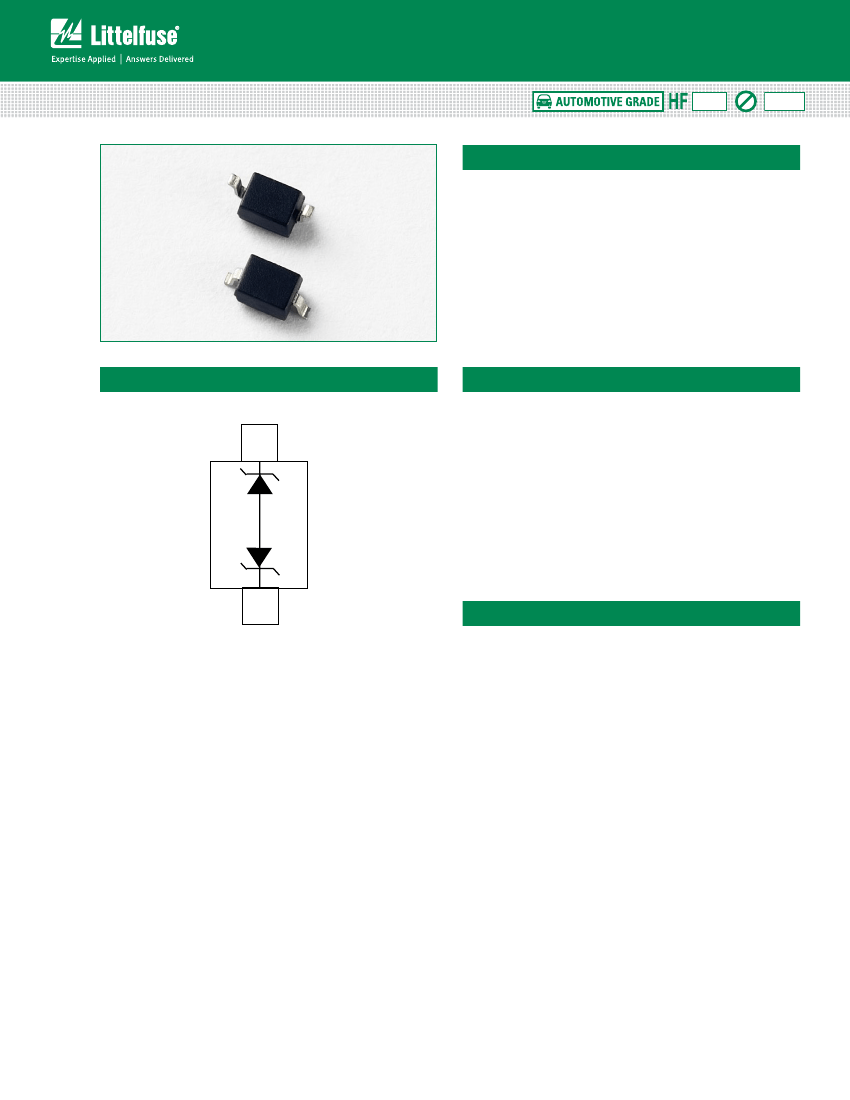

TVS Diode Array
(SPA
®
Diodes)
General Purpose ESD Protection -
AQxxC-01FTG Series
SD-C Series
AQxxC-01FTG Series
Description
RoHS
Pb
GREEN
The bidirectional AQxxC series is designed to replace
multilayer varistors (MLVs) in electronic equipment for low
speed and DC applications. It will protect any sensitive
equipment from damage due to electrostatic discharge
(ESD) and other transient events.
The AQxxC series can safely absorb repetitive ESD strikes
at ±30kV (contact discharge, IEC 61000-4-2) without
performance degradation and safely dissipate 30A (AQ05C)
of 8/20μs induced surge current (IEC 61000-4-5) with very
low clamping voltages.
Pinout and Functional Block Diagram
Features
• ESD, IEC 61000-4-2,
±30kV contact, ±30kV air
• Low leakage current
• Small SOD323 package
fits 0805 footprints
• AEC-Q101 qualified
• Moisture Sensitivity
Level(MSL -1)
• Halogen free, lead free
and RoHS compliant
1
• EFT, IEC 61000-4-4, 40A
(5/50ns)
• Lightning, 30A (8/20 as
defined in IEC 61000-4-5
2nd edition) AQ05C
• Low clamping voltage
• PPAP capable
2
Applications
• Switches / Buttons
• Test Equipment /
Instrumentation
• Point-of-Sale Terminals
• Medical Equipment
• Notebooks / Desktops /
Servers
• Computer Peripherals
• CAN Bus protection
• Automotive applications
Life Support Note:
Not Intended for Use in Life Support or Life Saving Applications
The products shown herein are not designed for use in life sustaining or life saving
applications unless otherwise expressly indicated.
©2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revision: 07/19/18
®
TVS Diode Array
(SPA
®
Diodes)
General Purpose ESD Protection -
AQxxC Series
SD-C Series
Absolute Maximum Ratings
Symbol
P
pk
T
OP
T
STOR
Notes:
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the component. This is a stress only rating and
operation of the component at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Parameter
Peak Pulse Power (t
p
=8/20μs)
Operating Temperature
Storage Temperature
Value
450
-40 to 150
-55 to 150
Units
W
°C
°C
AQ05C Electrical Characteristics
(T
OP
=25ºC)
Parameter
Reverse Standoff Voltage
Breakdown Voltage
Reverse Leakage Current
Clamp Voltage
1
Dynamic Resistance
2
Peak Pulse Current
ESD Withstand Voltage
1
Diode Capacitance
1
Symbol
V
RWM
V
R
V
BR
V
C
R
DYN
I
pp
V
ESD
C
I/O-I/O
Test Conditions
I
R
≤1μA
I
R
=1μA
V
R
=5V
I
PP
=1A, t
p
=8/20µs, Fwd
I
PP
=10A, t
P
=8/20μs, Fwd
TLP t
p
=100ns, I/O to Ground
,
t
p
=8/20µs
IEC 61000-4-2 (Contact Discharge)
IEC 61000-4-2 (Air Discharge)
Reverse Bias=0V, f=1MHz
±30
±30
200
0.31
30.0
6.0
1.0
10.0
14.5
Min
Typ
Max
5.0
Units
V
V
μA
V
V
Ω
A
kV
kV
pF
AQ12C Electrical Characteristics
(T
OP
=25ºC)
Parameter
Reverse Standoff Voltage
Breakdown Voltage
Reverse Leakage Current
Clamp Voltage
1
Dynamic Resistance
2
Peak Pulse Current
ESD Withstand Voltage
1
Diode Capacitance
1
Symbol
V
RWM
V
R
V
BR
V
C
R
DYN
I
pp
V
ESD
C
D-GND
Test Conditions
I
R
≤1μA
I
R
=1μA
V
R
=12V
I
PP
=1A, t
p
=8/20µs, Fwd
I
PP
=10A, t
P
=8/20μs, Fwd
TLP t
p
=100ns, I/O to Ground
,
t
p
=8/20µs
IEC 61000-4-2 (Contact Discharge)
IEC 61000-4-2 (Air Discharge)
Reverse Bias=0V, f=1MHz
±30
±30
100
0.41
17
.0
13.3
1.0
18.5
23.0
Min
Typ
Max
12.0
Units
V
V
μA
V
V
Ω
A
kV
kV
pF
©2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revision: 07/19/18
®
TVS Diode Array
(SPA
®
Diodes)
General Purpose ESD Protection -
AQxxC
Series
SD-C
Series
AQ15C Electrical Characteristics
(T
OP
=25ºC)
Parameter
Reverse Standoff Voltage
Breakdown Voltage
Reverse Leakage
Current
Clamp Voltage
1
Dynamic Resistance
2
Peak Pulse Current
ESD Withstand Voltage
1
Symbol
V
RWM
V
R
V
BR
V
C
R
DYN
I
pp
V
ESD
Test Conditions
I
R
≤1μA
I
R
=1μA
V
R
=15V
I
PP
=1A, t
p
=8/20µs, Fwd
I
PP
=10A, t
p
=8/20µs, Fwd
TLP t
p
=100ns, I/O to Ground
,
t
p
=8/20µs
IEC 61000-4-2 (Contact Discharge)
IEC 61000-4-2 (Air Discharge)
±30
±30
0.46
12.0
16.7
1.0
24.0
31.0
Min
Typ
Max
15.0
Units
V
V
μA
V
V
Ω
A
kV
kV
AQ24C Electrical Characteristics
(T
OP
=25ºC)
Parameter
Reverse Standoff Voltage
Breakdown Voltage
Reverse Leakage
Current
Clamp Voltage
1
Dynamic Resistance
2
Peak Pulse Current
ESD Withstand Voltage
1
Symbol
V
RWM
V
R
V
BR
V
C
R
DYN
I
pp
V
ESD
Test Conditions
I
R
≤1μA
I
R
=1μA
V
R
=24V
I
PP
=1A, t
p
=8/20µs, Fwd
I
PP
=5A, t
p
=8/20µs, Fwd
TLP t
p
=100ns, I/O to Ground
,
t
p
=8/20µs
IEC 61000-4-2 (Contact Discharge)
IEC 61000-4-2 (Air Discharge)
±30
±30
0.62
7
.0
26.7
1.0
36.0
42.0
Min
Typ
Max
24.0
Units
V
V
μA
V
V
Ω
A
kV
kV
AQ36C Electrical Characteristics
(T
OP
=25ºC)
Parameter
Reverse Standoff Voltage
Breakdown Voltage
Reverse Leakage
Current
Clamp Voltage
1
Dynamic Resistance
2
Peak Pulse Current
ESD Withstand Voltage
1
Symbol
V
RWM
V
R
V
BR
V
C
R
DYN
I
pp
V
ESD
Test Conditions
I
R
≤1μA
I
R
=1μA
V
R
=36V
I
PP
=1A, t
p
=8/20µs, Fwd
I
PP
=5A, t
p
=8/20µs, Fwd
TLP t
p
=100ns, I/O to Ground
,
t
p
=8/20µs
IEC 61000-4-2 (Contact Discharge)
IEC 61000-4-2 (Air Discharge)
±30
±30
0.68
5.0
40.0
1.0
52.0
62.0
Min
Typ
Max
36.0
Units
V
V
μA
V
V
Ω
A
kV
kV
Note:
1. Parameter is guaranteed by design and/or component characterization.
2.Transmission Line Pulse (TLP) with 100ns width, 2ns rise time, and average window t1=70ns to t2= 90ns
©2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revision: 07/19/18
®
TVS Diode Array
(SPA
®
Diodes)
General Purpose ESD Protection -
AQxxC Series
SD-C Series

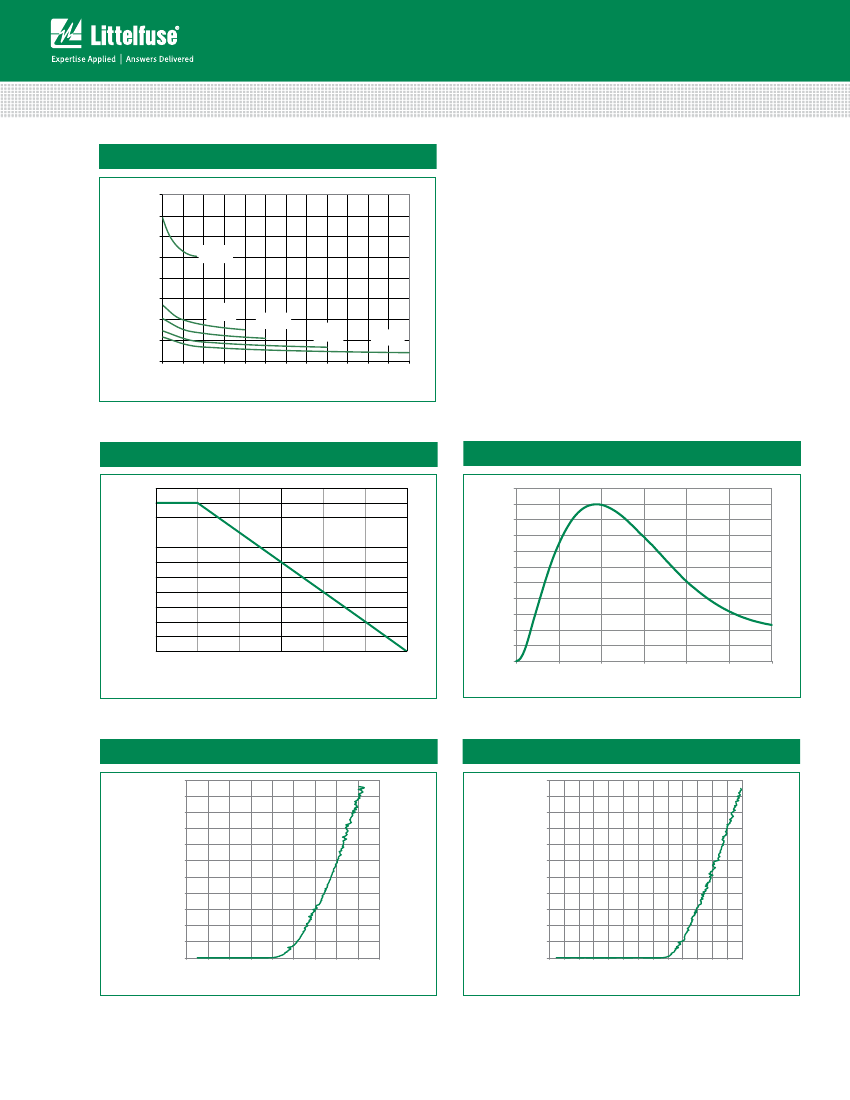

Capacitance vs. Bias
160
140
Capacitance (pF
120
100
80
60
40
20
0
0
3
6
9
12
15
18
21
SD05C
AQ05C
SD12C
AQ12C
AQ15C
SD15C
SD24C
AQ24C
AQ36C
SD36C
24
27
30
33
36
Bias Voltage (V
Power Derating Curve
110
100
90
% of Rated Power I
PP
8/20μs Pulse Waveform
110%
100%
90%
80%
80
60
50
40
30
20
10
0
0
25
50
75
100
125
150
Percent of I
PP
70
70%
60%
50%
40%
30%
20%
10%
0%
0.0
5.0
10.0
15.0
20.0
25.0
30.0
Ambient Temperature - T
A
(
o
C)
Time ( s)
AQ05C Transmission Line Pulsing(TLP) Plot
22
20
18
16
AQ12C Transmission Line Pulsing(TLP) Plot
22
20
18
16
TLP Current (A)
14
12
10
8
6
4
2
0
0
2
4
6
8
10
12
14
16
18
TLP Current (A)
14
12
10
8
6
4
2
0
0
2
4
6
8
10
12
14
16
18
20
22
24
26
TLP Voltage (V)
TLP Voltage (V)
©2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revision: 07/19/18
®
TVS Diode Array
(SPA
®
Diodes)
General Purpose ESD Protection -
AQxxC Series
SD-C Series

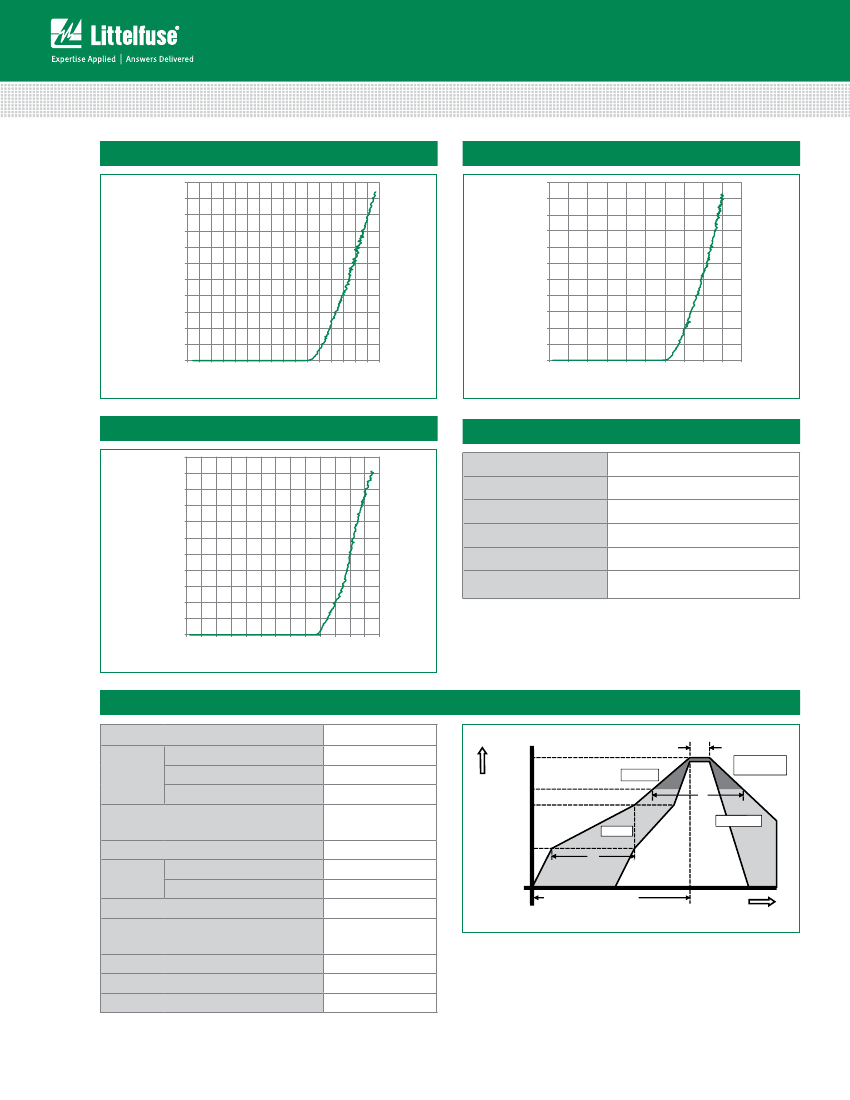

AQ15C Transmission Line Pulsing(TLP) Plot
22
20
18
16
AQ24C Transmission Line Pulsing(TLP) Plot
22
20
18
16
TLP Current (A)
TLP Current (A)
14
12
10
8
6
4
2
0
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30 32
14
12
10
8
6
4
2
0
0
5
10
15
20
25
30
35
40
45
50
TLP Voltage (V)
TLP Voltage (V)
AQ36C Transmission Line Pulsing(TLP) Plot
22
20
18
16
Product Characteristics
Lead Plating
Lead Material
Lead Coplanarity
Substrate material
Body Material
Flammability
Matte Tin
Copper Alloy
0.0004 inches (0.102mm)
Silicon
Molded Compound
UL Recognized compound meeting
flammability rating V-0
TLP Current (A)
14
12
10
8
6
4
2
0
0
5
10
15
20
25
30
35
40
45
50
55
60
65
TLP Voltage (V)
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus) Temp (T
L
)
to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
Pb – Free assembly
150°C
Temperature
T
P
T
L
T
S(max)
Preheat
Ramp-up
t
P
Critical Zone
T
L
to T
P
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
t
L
Ramp-do
Ramp-down
T
S(min)
t
S
time to peak temperature
25
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
©2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revision: 07/19/18
°C
Time
20 – 40 seconds
6°C/second max
8 minutes Max.
260°C
