PRODUCT SPECIFICATION
TITLE
1.0 SCOPE
This Product Specification covers the 2.54 mm pitch Mega SIM card connector.
2.0 PRODUCT DESCRIPTION
2.1 PRODUCT NAME AND SERIES NUMBER (S)
Scalable SIM card connector 47494 series
3.0 APPLICABLE DOCUMENTS AND SPECIFICATIONS
See sales drawings and other sections of this specification for the relevant reference documents.
In cases where the specification differs from the drawings, the drawings take precedence.
4.0 RATINGS
4.1 VOLTAGE
MAX 15V DC
4.2 CURRENT
MAX 0.5A per contact
4.3 TEMPERATURE
Operating:
- 40° to + 85°
C
C
Storage:
- 40° to + 85°
C
C
5.0 Mechanical interface
5.1 Card interface:
SIM card interface: GSM 11.11 specification.
5.2 PWB interface
Plating on PWB pads: OSP plated copper.
REVISION: ECR/ECN INFORMATION: TITLE:
SHEET NO.
1
EC NO:
DATE:
2006/07/14
MEGA SIM CARD CONNECTOR
WRITTEN BY:
CHECKED BY:
APPROVED BY:
1
OF
6
DOCUMENT NUMBER:
FILE NAME
PS-47494-001
CYZHU
XIXU
JNCHEN
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC
PRODUCT SPECIFICATION
6.0 PERFORMANCE
6.1 ELECTRICAL REQUIREMENTS
TEST
REF.
DESCRIPTION
Test Condition
Requirement
6.1
Contact
Resistance
Mate connectors with dry circuit
(20mV, 100mA Max) at minimum
deflection Per EIA-364-23
Unmated connectors: apply a voltage
of 500 VDC between adjacent contact
for 1 minute Per EIA-364-21
Unmated connectors: apply a voltage
of 500 VAC for 1 minute between
adjacent contact. Per EIA-364-20
Mated connectors: measure the
temperature rise at the rated current
0.5A after: 96 hours Per EIA-364-70
method 1
50 milliohms
Maximum
[Initial]
Value includes bulk
resistance of terminal.
1000 Mega ohms
Minimum
No voltage breakdown;
6.2
Insulation
Resistance
Dielectric
Withstanding
Voltage
Temperature
Rise
6.3
6.4
Temperature rise:
+30° MAXIMUM
C
7 ENVIRONMENTAL PERFORMANCE
TEST
REF.
ITEM
TEST CONDITION
Upper air temp 25-55° and 90-
C
100%RH for 6 cycles of 24hrs.
Cycle is: temp change 25°
C->55° in 3
C
hours; then maintain at 55° for 9hours
C
Temp change: 55°
C->25° in 3 hours;
C
then maintain at 25° for 9hours.
C
Recovery at 25° and 75%RH for 2
C
hours.
REQUIREMENTS
No mechanical
damage.
No change to
performance
Contact resistance
100 milliohms
MAXIMUM
Insulation resistance
in spec.
No mechanical
damage.
No change to
performance of
connector.
Contact resistance
100 milliohms
MAXIMUM
7.1
High Relative
Humidity Exposure
7.2
Low Temperature
Exposure
At -40° for 96 hours
C
Recovery: 2hours
REVISION: ECR/ECN INFORMATION: TITLE:
SHEET NO.
1
EC NO:
DATE:
2006/07/14
MEGA SIM CARD CONNECTOR
WRITTEN BY:
CHECKED BY:
APPROVED BY:
2
OF
6
DOCUMENT NUMBER:
FILE NAME
PS-47494-001
CYZHU
XIXU
JNCHEN
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC
PRODUCT SPECIFICATION
No mechanical
damage.
No change to
performance of
connector.
Contact resistance
100 milliohms
MAXIMUM
No mechanical
damage.
No change to
performance of
connector.
Contact resistance
100 milliohms
MAXIMUM
No mechanical
damage.
No change to
performance of
connector.
Contact resistance
100 milliohms
Contact solder Pad
shall have a Min. 95%
solder coverage
7.3
High Temperature
Exposure
At +85° for 96 hours
C
Recovery: 2hours
7.4
Thermal Shock
50 cycle at Ta=-55° for 0.5 hours, then
C
change of temp=25° Maximum
C
5min,then Tb=+85° for 0.5 hours, then
C
cool to ambient
Recovery: 2hours at ambient
atmosphere Per EIA-364-32
7.5
Salt Spray
IEC60068-2-11
Test Ka
48 hours spray, at temp 35+/-2° R/H
C,
90-95%, Salt NaCl mist 5% after test
wash parts and return to room ambient
for 1-2hours
Dip solder tails into the molten solder
(held at 250 5 ) up to 0.5mm from
the tip of tails for 3 0.5 seconds.
Infrared reflow condition
7.7
Resistance to
Soldering reflow
Heat
TEMPERATURE CONDITION GRAPH
(TEMPERATURE ON BOARD
PATTERN SIDE)
REVISION: ECR/ECN INFORMATION: TITLE:
1
EC NO:
DATE:
2006/07/14
MEGA SIM CARD CONNECTOR
WRITTEN BY:
CHECKED BY:
APPROVED BY:
DOCUMENT NUMBER:
PS-47494-001
CYZHU
±
℃±
7.6
Solderability
No damage After 2
times of reflow
SHEET NO.
3
OF
6
FILE NAME
XIXU
JNCHEN
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC
PRODUCT SPECIFICATION
8 MECHANICAL PERFORMANCE
TEST
REF.
DESCRIPTION
Terminal Normal
force
Terminal
Retention Force
Test Condition
Measure normal force:
Displaced to 0.20mm above the
housing surface at 2.54mm/min.
Axial pullout force on the terminal in
the housing at a rate of 25 ± 6 mm
(1 ± ¼ inch) per minute.
Mate connectors at 400-600
cycles/hour to 500 cycles.
Horizontal insertion for maximum
deflection case.
Requirement
8.1
0.5~0.7N
8.2
3N
MINIMUM per contact
No mechanical
damage. Contact
resistance 100
milliohms MAX
Normal force within
spec.
No mechanical
damage. Contact
resistance 100
milliohms MAX
Normal force within
spec.
Normal force within
spec.
No mechanical
damage. Contact
resistance 100
milliohms MAX
No mechanical
damage. No change to
performance of
connector.
Contact resistance 100
milliohms Maximum
Discontinuity < 1
microsecond
No mechanical
damage.
No change to
performance of
connector.
Contact resistance 100
milliohms Maximum
Discontinuity < 1
microsecond
8.3
Durability (Horizontal
Direction 1)
8.4
Durability
(Horizontal Direction
2)
Mate connectors at 400-600
cycles/hour to 500 cycles.
Horizontal insertion for maximum
deflection case.
8.5
Durability
(Vertical)
Mate connectors at 2.54cm/minute
to 500cycles.Vertical insertion for
maximum deflection case
8.5
Mechanical Shock
Pulse shape=half sine
Peak acceleration=490m/s2 (50G)
Duration of pulse=11ms
Apply 3 successive shocks in each
direction along the 3 mutually
perpendicular axes
Per EIA-364-27B
8.6
Vibration
Frequency: 10~100 HZ, 0.0132
g2/Hz;
Frequency: 100~500 Hz, -3dB/Oct.
Applied for 1 hours in each 3
mutually perpendicular axes

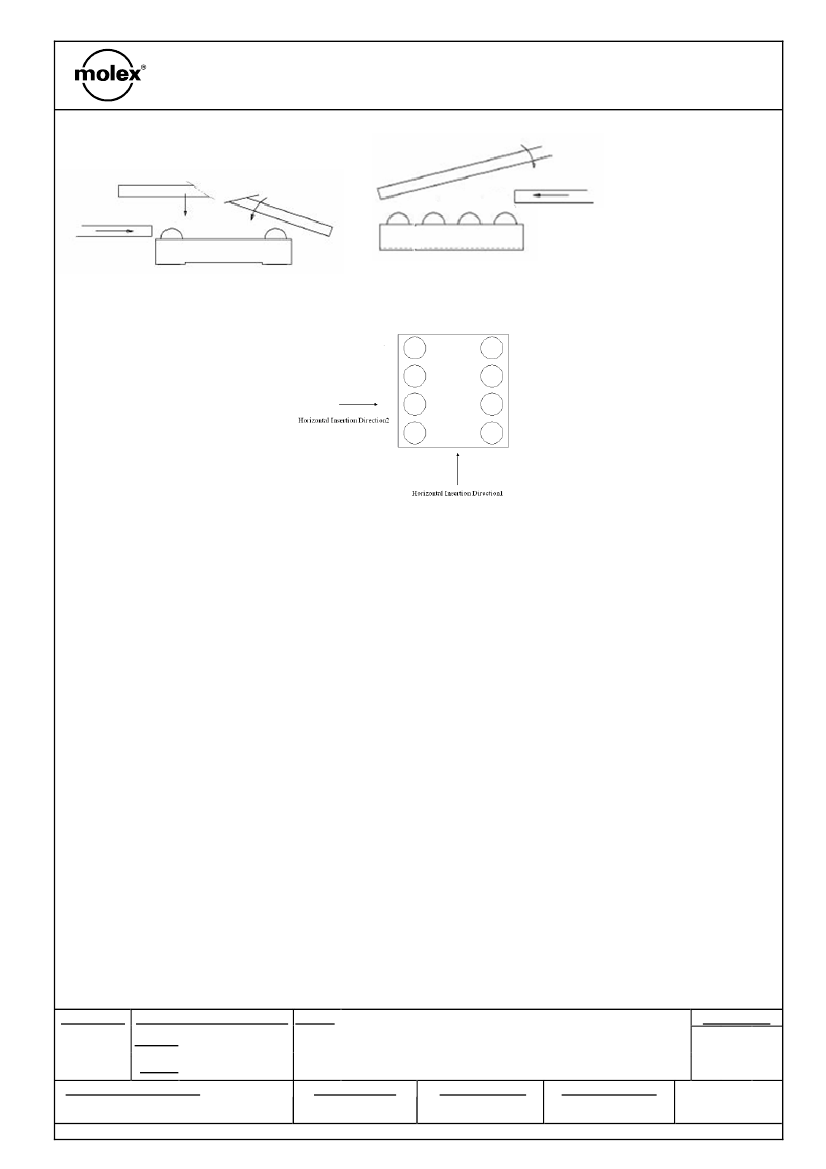

Card insertion directions
REVISION: ECR/ECN INFORMATION: TITLE:
SHEET NO.
1
EC NO:
DATE:
2006/07/14
MEGA SIM CARD CONNECTOR
WRITTEN BY:
CHECKED BY:
APPROVED BY:
4
OF
6
DOCUMENT NUMBER:
FILE NAME
PS-47494-001
CYZHU
XIXU
JNCHEN
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC
PRODUCT SPECIFICATION
8.0 PACKAGING
See packaging specification and pack assembly drawing. Parts shall be packaged to protect against
damage during handing, transit and storage.
