Available in 7 colors: Green, Super Red, High
Efficiency Red, Yellow, Super Yellow and Super
Orange, with water-clear or diffused color lenses.
Descriptions and Features
Surface Mount Technology
• Tape and reel packaged for high-speed autoinsertion.
• Convection and vapor-phase reflow compatible.
• Compact form enables high density placement.
• Packaged 3000 pieces per reel.
• Lead Finish (Plating): Au
• Under Plating Material: NiCu
Leading Edge LED Optoelectronic Performance
• Consistent high brightness.
• Bi-color available.
Exceptional Reliability
• Stringent process controls assure quality.
• Extensive qualification testing to meet strictest requirements.
• Designed to permit easy post-reflow solder joint inspection.
CMD17-21 Series
SMT LEDs 0805 Package Size

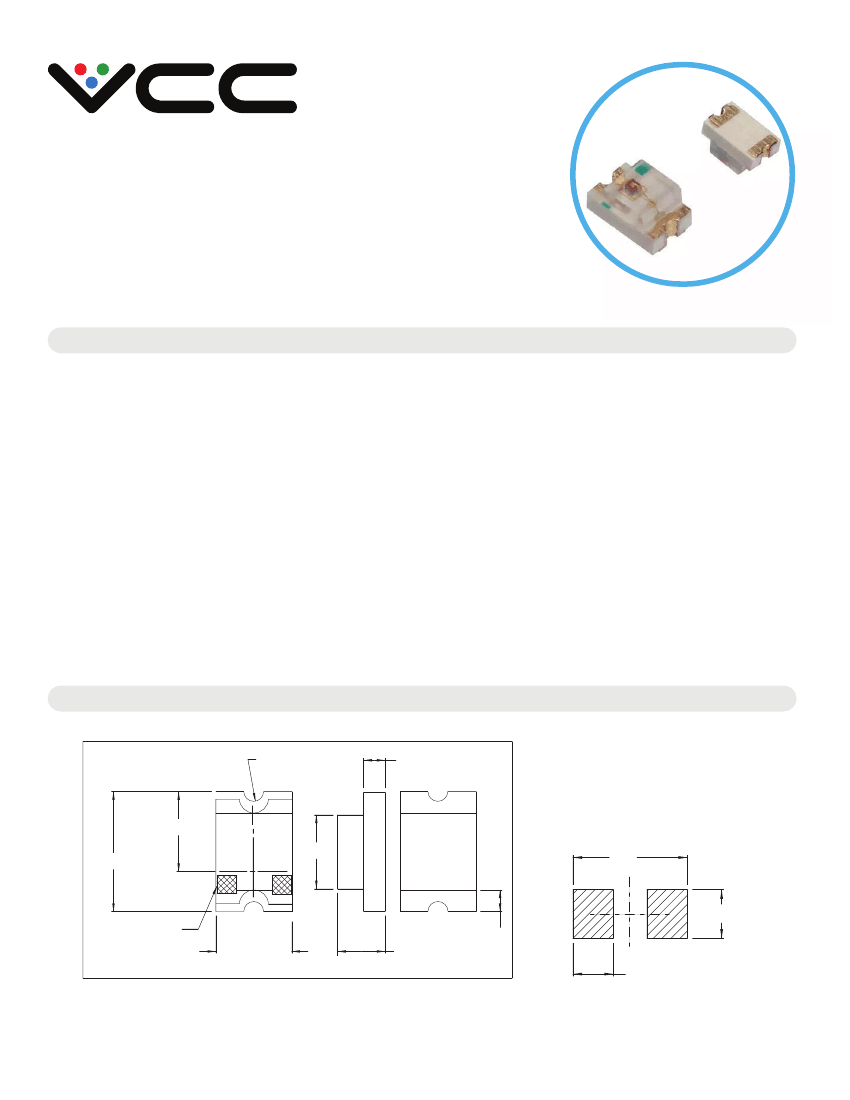

Dimensions
All dimensions in mm.
0.20 R
0.60
1.25
2.00±0.20
1.40
Solder Pad Geometry for
0805 Package Size
3.40
C AT HODE
MAS K
1.30
1.25±0.20
1.10±0.10
0.40
1.10
the first call for illuminated components
www.vcclite.com
1
1.800.522.5546
02/17 Rev 3
Electro-Optical Characteristics
Part Number
CMD17-21SRC/TR8
CMD17-21VRC/TR8
CMD17-21VYC/TR8
Emitted Color
Super Red
H.E.Red
Yellow
Green
Green
Lens Color
Clear
Clear
Clear
Clear
Clear
Red Diffused
Angle
Typ. Max. Current Wavelength
(mA)
(nm)
(degrees)
(mcd) (mcd) (V) (V)
20
660
140
10.0 21.0 1.7 2.4
20
640
140
4.5
13.0 2.0 2.8
Min.
Typ.
5.0
6.0
8.0
3.0
12.0
10.0
15.0
6.0
4.0
7.0
61.0
43.0
2.0
2.1
2.1
2.0
2.0
2.1
2.1
2.1
2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
20
20
20
20
20
20
20
20
585
570
570
640
505
570
590
620
140
140
140
140
140
140
140
140
Luminous
Intensity
Forward
Voltage
Test
Peak
View
CMD17-21VGC/TR8
CMD17-21VRD/TR8
CMD17-21VYD/TR8
CMD17-21UGC/TR8
H.E.Red
Yellow
Green
Super Yellow
CMD17-21VGD/TR8
CMD17-21UYC/TR8
Yellow Diffused 2.5
CMD17-21USOC/TR8
Super Orange
Green Diffused 4.0
Clear
41.0
Clear
26
Absolute Maximum Ratings
Red
Yellow
Green
Units
Power Dissipation.......................................................100.................105................105........................ mW
Operating/Storage Temperature..........................-40 to +85......-40 to +85......-40 to +85.....................°C
Peak Forward Current (1 μs @ 10% duty cycle).......150.................150................150.........................mA
Reverse Voltage (IR=100μA)..................................... 5.0..................5.0.................5.0............................V
Lead Solder Time @ 260°C..........................................5.....................5....................5.....................seconds
Average Forward Current............................................30...................30..................30...........................mA
Compliances and Approvals
the first call for illuminated components
www.vcclite.com
2
1.800.522.5546
02/17 Rev 3
