3SK292
TOSHIBA Field Effect Transistor
Silicon N-Channel Dual Gate MOS Type
3SK292
TV Tuner, VHF RF Amplifier Application
•
•
•
Superior cross modulation performance.
Low reverse transfer capacitance: C
rss
= 20 fF (typ.)
Low noise figure: NF = 1.4dB (typ.)
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Drain-source voltage
Gate 1-source voltage
Gate 2-source voltage
Drain current
Drain power dissipation
Channel temperature
Storage temperature range
Symbol
V
DS
V
G1S
V
G2S
I
D
P
D
T
ch
T
stg
Rating
12.5
±8
±8
30
150
125
−55
to 125
Unit
V
V
V
mA
mW
°C
°C
SMQ
Note: Using continuously under heavy loads (e.g. the application of high
JEDEC
―
temperature/current/voltage and the significant change in
JEITA
―
temperature, etc.) may cause this product to decrease in the
TOSHIBA
2-3J1A
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
Weight: 13 mg (typ.)
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and
individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Gate 1 leakage current
Gate 2 leakage current
Drain-source voltage
Drain current
Gate 1-source cut-off voltage
Gate 2-source cut-off voltage
Forward transfer admittance
Input capacitance
Reverse transfer capacitance
Power gain
Noise figure
Symbol
I
G1SS
I
G2SS
V
(BR) DSX
I
DSS
V
G1S (OFF)
V
G2S (OFF)
⎪Y
fs
⎪
C
iss
C
rss
G
ps
NF
Test Condition
V
DS
=
0, V
G1S
= ±6
V, V
G2S
=
0
V
DS
=
0, V
G1S
=
0, V
G2S
= ±6
V
V
G1S
= −0.5
V, V
G2S
= −0.5
V,
I
D
=
100
μA
V
DS
=
6 V, V
G1S
=
0, V
G2S
=
4.5 V
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
100
μA
V
DS
=
6 V, V
G1S
=
4.0 V, I
D
=
100
μA
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
10 mA,
f
=
1 kHz
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
10 mA,
f
=
1 MHz
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
10 mA,
f
=

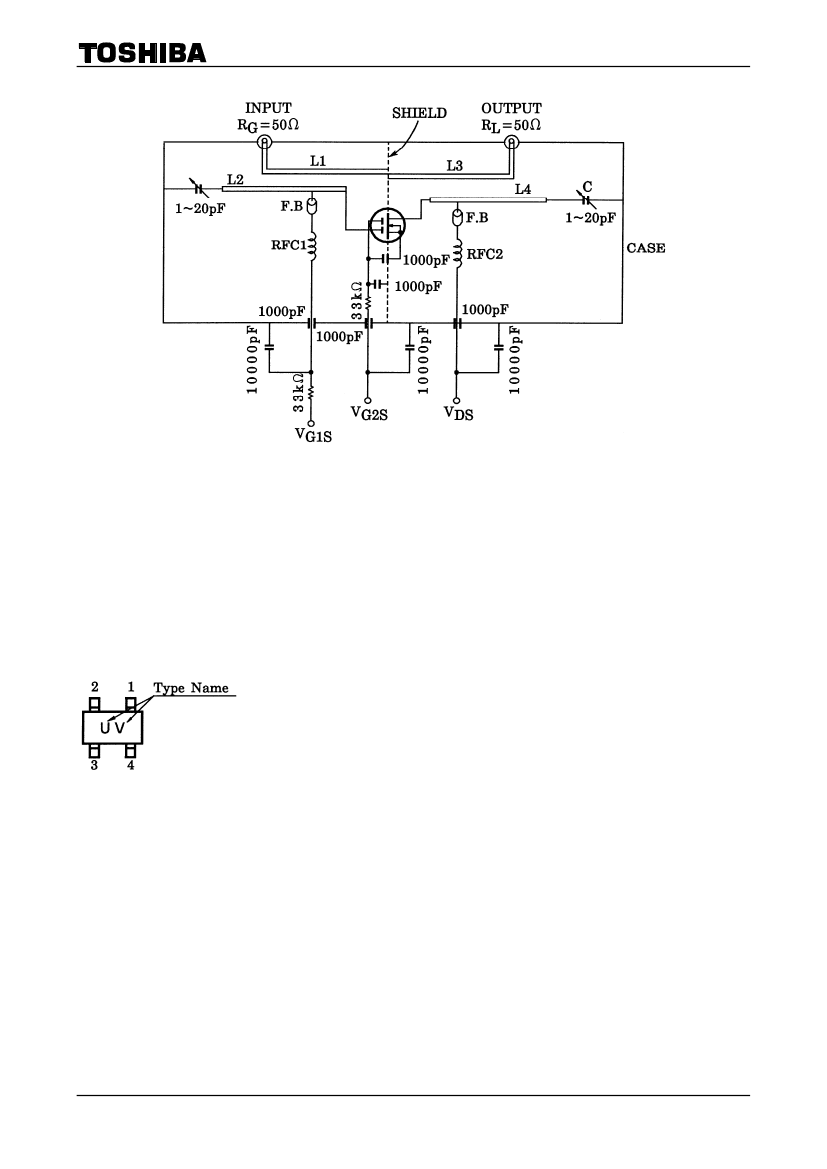

500 MHz (Figure 1)
Min
⎯
⎯
12.5
⎯
0.3
0.5
19.5
⎯
⎯
23.5
⎯
Typ.
⎯
⎯
⎯
⎯
0.9
1.0
23.5
2.5
20
26.0
1.4
Max
±50
±50
⎯
0.1
1.3
1.5
⎯
3.1
40
⎯
2.5
Unit
nA
nA
V
mA
V
V
mS
pF
fF
dB
dB
Start of commercial production
1996-04
1
2014-03-01
3SK292
