LC-11.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LC-11.0

LC-11.0: DescriptionLIGHT PIPE 4MM RND LENS 11.0"; CategoryLED optoelectronic/LED; File Size40KB，1 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric View All

LC-11.0 Overview

LIGHT PIPE 4MM RND LENS 11.0"

LC-11.0 Parametric

Parameter Name	Attribute value
color	transparent
Configuration	single
type	Flexible 11" (279.4mm) - Fiber Optic
Lens style	Round, with flat top
Lens size	4mm

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

FLP-LC

FLPS1022-X.XXX

PART DESCRIPTION

HOLDER CAP, FLEXIBLE LIGHT-PIPE

LIGHT PIPE CABLE, CUT LENGTH IN INCHES

REV.

DESCRIPTION

DATE

APPROVED

FLP Length Update

FLP Length Clarification

Corrected "L" Dimension Measurement

Updated Fiber In BOM

Added Note 2

10/18/05

01/11/06

07/25/07

11/14/12

10/06/16

M. C.

T. Y.

J. C.

2 FLPS1022-X.XXX

0.030 [0.8mm]

FLP-LC 1

0.145 [3.7mm]

0.230 [5.8mm]

Ø.165 [Ø4.2mm]

+.003

Ø.128-.002

" L "

0.750" ~ 16.000"

16.100" ~ 40.000"

40.100" ~ 80.000"

80.100" ~ 3,940.0"

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

Tolerance

±0.050"

±0.150"

±0.300"

±0.5%

Recommended Mounting Holes

NOTE:

1. ALLOWABLE CUT LENGTH IS UP TO 3 DECIMAL PLACES.

2. MINIMUM BEND RADIUS OF FLEXIBLE LIGHT PIPE: 0.87" [22mm].

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

S. Irving

CHECKED:

05/22/02

DATE:

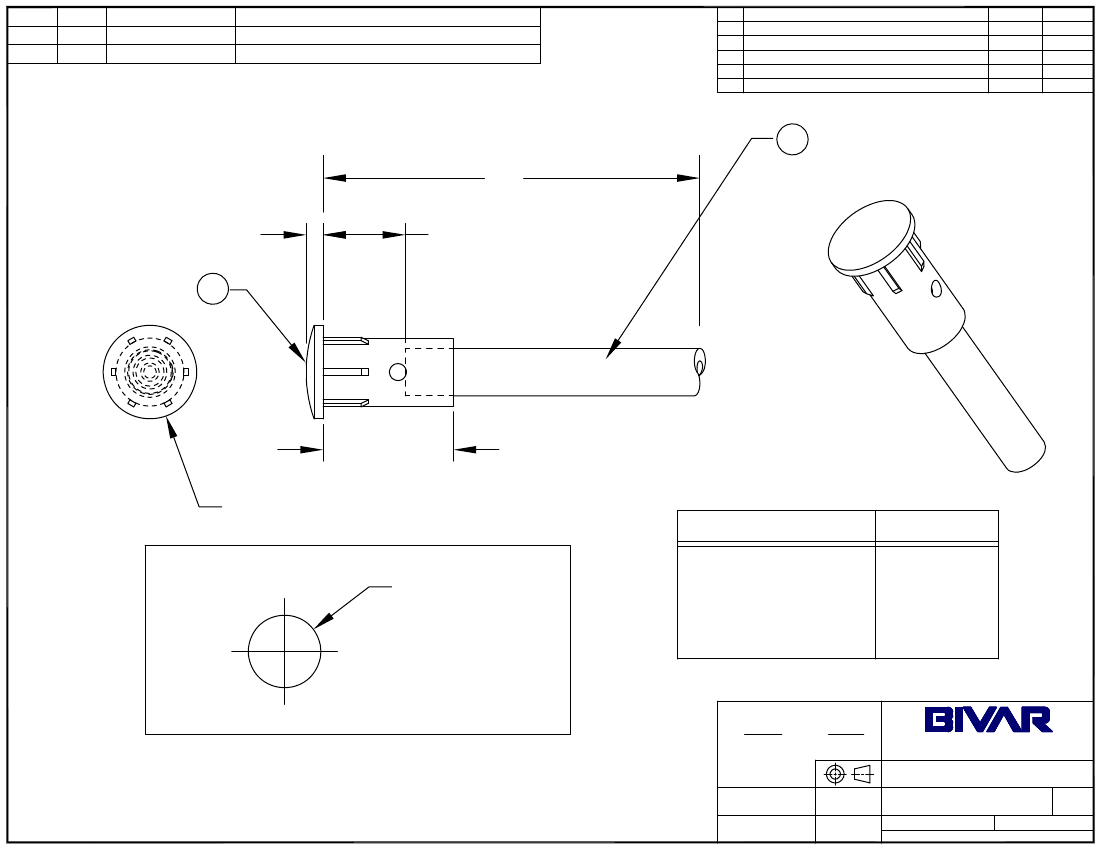

LENS CAP / FLP ASSEMBLY,

4mm ROUND

REVISION:

PART NO:

TITLE:

LC-XX.X

M. Chen

05/22/02

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
