D15S33E6RL09LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> D15S33E6RL09LF

Preview

D15S33E6RL09LF: DescriptionCONN D-SUB RCPT 15POS R/A; CategoryThe connector The connector; File Size162KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

D15S33E6RL09LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D15S33E6RL09LF	-	-	View	Buy Now

D15S33E6RL09LF Overview

CONN D-SUB RCPT 15POS R/A

D15S33E6RL09LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Other features	STANDARD: DIN 41652
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

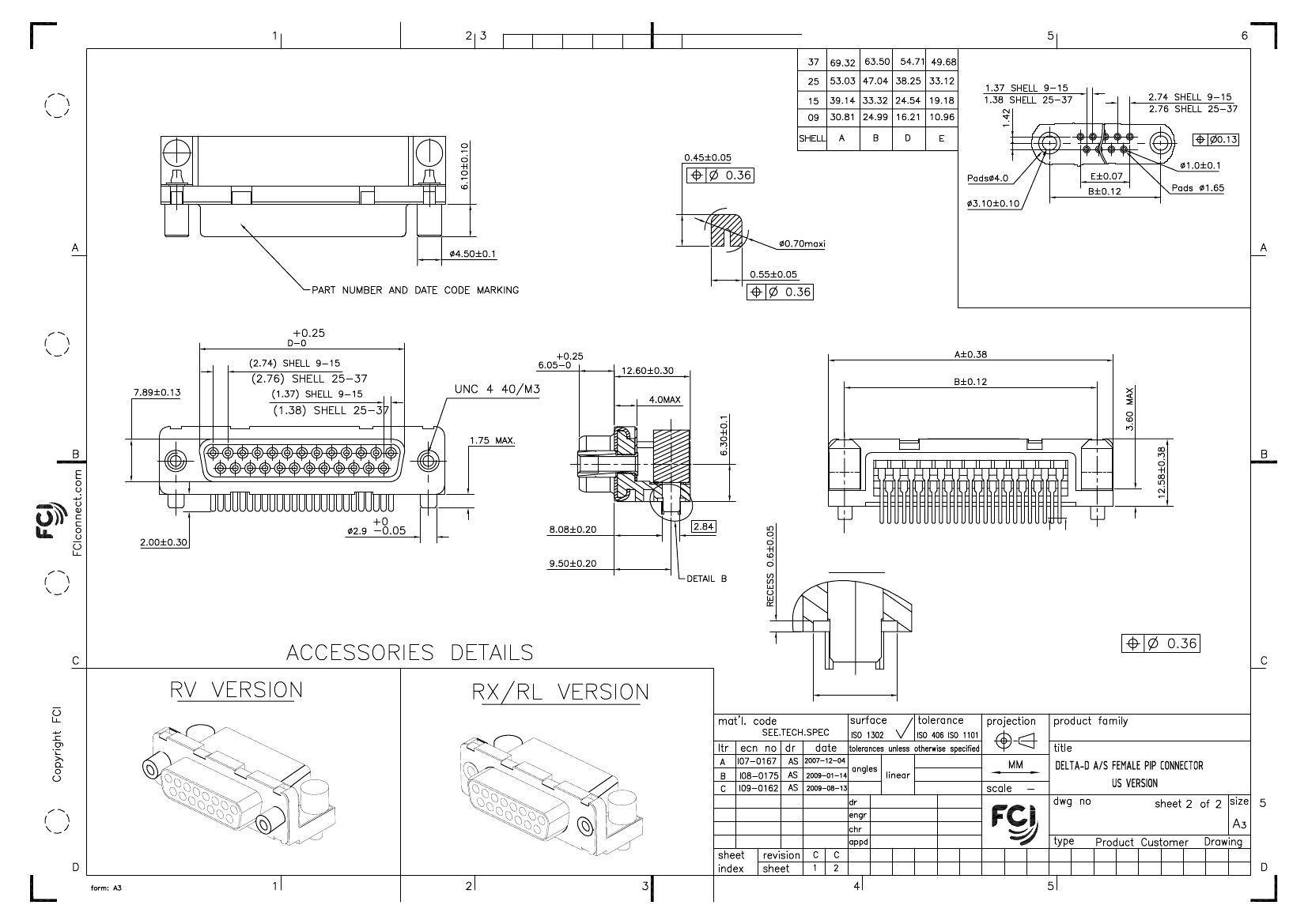

Preview

Download Datasheet

View All

D

SERIES

NO.OF CONTACTS

09,15,25,37

X

S

3

E

6

X

0

9

L

F

SEE NOTE RoHS

PACKAGING SPECIFICATION

09- TRAY PACKAGING

MOUNTING OPTIONS

TYPE OF CONTACTS

S-SOCKET

TYPE OF TERMINATION

33-ANGLED SPILL

PITCH 2.84 USA

FOOT PRINT 8.08 USA

HEIGHT OF TERMINATION

E-2.00mm COMPATIBLE FOR 1.6mm PCB

RoHS INFORMATIONS

"This LF product meets European Union Directives and other country

regulations as described in GS-22-008"

The housing will withstand exposure to 260°C peak temperature for 30 seconds

in a convection,infra-red or vapor reflow oven solder application.

Packaging as per GS-14-920

RV->LIF METAL PEG +F.SCREW LOCK UNC 4 40+METAL BRACKET

RL->LIF METAL PEG+ INSERT M3+METAL BRACKET

RX->LIF METAL PEG + INSERT UNC 4-40 +METAL BRACKET

PLATING

6->500 Mating/Un-mating performance

4->200 Mating/Un-mating performance

PRODUCT SPECIFICATION

See :- GS-12-433

PACKAGING SPECIFICATION

See :- GS-14-1157

C

1

C

2

.00±0.1

0°±1°

ANISH.SALAM

.000±.00X

2007-12-04

2009-08-13

DELTA-D

C-DD-0099

6

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

.
