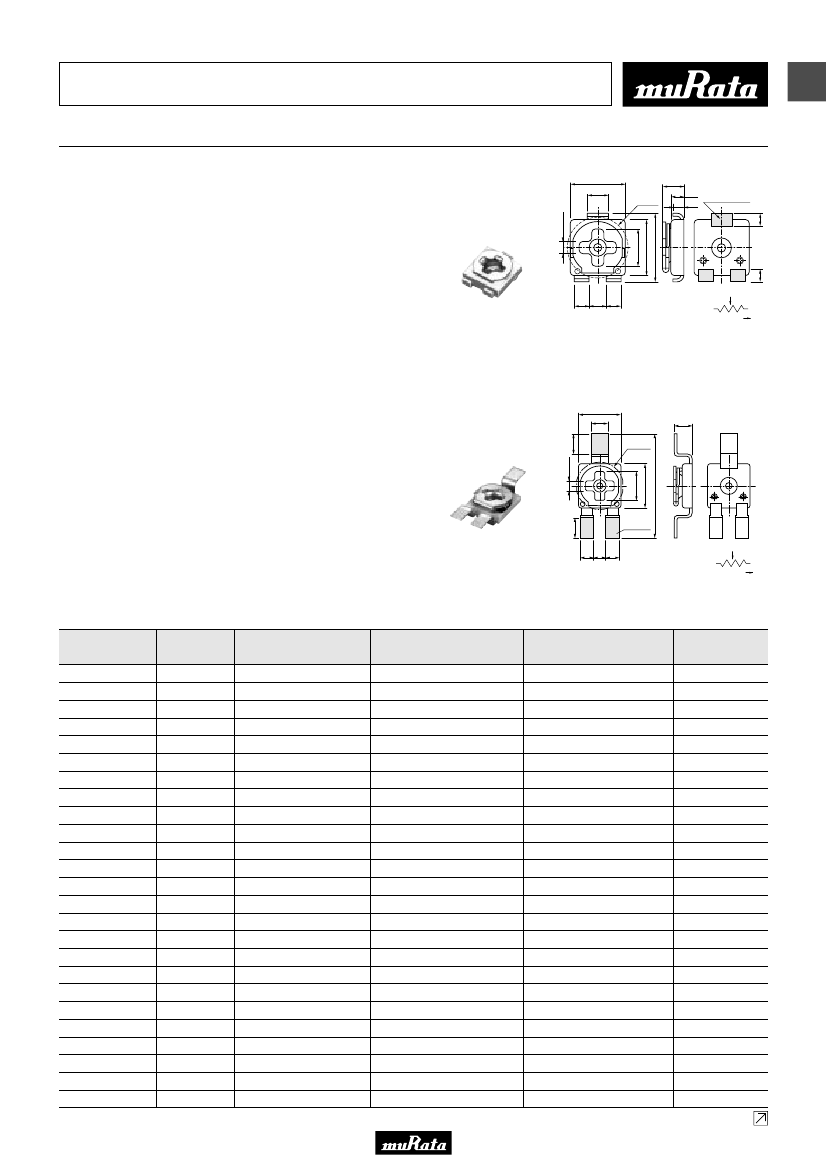

Trimmer Potentiometers
SMD Open Type 2mm Size PVZ2 Series
2.1
∗2
0.5
2.4 Dia.
∗1
0.4
Soldering Part
0.5
1
s
Features
1. Ultra-small and thin external dimensions of
2.1(W)x2.7(L)x0.85 max. (T)mm.
(PVZ2A_A04 Series)
2. Au plated termination achieves a high density
P.C.B. mounting.
3. Cross-shaped driver slot allows for in-process
automatic adjustment and it provides superior
adjustability.
4. Two-piece parts construction achieves low cost and
excellent quality.
5. Special resin substrate allows high peak temperature
for reflow soldering.
0.45±0.1
0.8
#2
1
4
1.3
2.2
2.7±0.3
#1
#3
0.55 0.7 0.55
#2
#1
CLOCKWISE
#3
PVZ2A
∗1
Driver Plate Rotation Area :
Please do not place any components
more than 0.7mm in height within this area.
∗2
PVZ2A_A01 : 0.9±0.1
in mm
PVZ2A_A04 : 0.8±0.05
Tolerance :
±0.2
(
2.1
0.8
#2
(1.0)
0.9
-0.2
+0.1
s
Applications
1. Pick-up module
3. Cellular-phone
5. Pager
7. Digital camera
2. LCD
4. PHS
6. DVC
8. Portable audio, etc.
0.45±0.1
2.4 Dia.
*1
(1.0)
Soldering
Part
#1
#3
0.65 0.6 0.65
#2
#1
CLOCKWISE
#3
PVZ2K
∗1.
Driver Plate Rotation Area :
Please do not place any components
more than 0.7mm in height within this area.
1.3
2.2
5.4
mm
(
Tolerancein
±0.2
)
:
Part Number
PVZ2p501A01
PVZ2p102A01
PVZ2p202A01
PVZ2p302A01
PVZ2p502A01
PVZ2p103A01
PVZ2p203A01
PVZ2p303A01
PVZ2p503A01
PVZ2p104A01
PVZ2p204A01
PVZ2p304A01
PVZ2p504A01
PVZ2p105A01
PVZ2p501A04
PVZ2p102A04
PVZ2p202A04
PVZ2p302A04
PVZ2p502A04
PVZ2p103A04
PVZ2p203A04
PVZ2p303A04
PVZ2p503A04
PVZ2p104A04
PVZ2p204A04
Power Rating
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
Soldering Method
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Number of Turns
(Effective Rotation Angle)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
Total Resistance Value
500ohm
±30%
1k ohm
±30%
2k ohm
±30%
3k ohm
±30%
5k ohm
±30%
10k ohm
±30%
20k ohm
±30%
30k ohm
±30%
50k ohm
±30%
100k ohm
±30%
200k ohm
±30%
300k ohm
±30%
500k ohm
±30%
1M ohm
±30%
500ohm
±30%
1k ohm
±30%
2k ohm
±30%
3k ohm
±30%
5k ohm
±30%
10k ohm
±30%
20k ohm
±30%
30k ohm
±30%
50k ohm
±30%
100k ohm
±30%
200k ohm
±30%
TCR
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
±500ppm/°C
Continued on the following page.
0.5
)
5
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11
Continued from the preceding page.
1
Part Number
PVZ2p304A04
PVZ2p504A04
PVZ2p105A04
Power Rating
0.1W(50°C)
0.1W(50°C)
0.1W(50°C)
Soldering Method
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Number of Turns
(Effective Rotation Angle)
1(240°±10°)
1(240°±10°)
1(240°±10°)
Total Resistance Value
300k ohm
±30%
500k ohm
±30%
1M ohm
±30%
TCR
±500ppm/°C
±500ppm/°C
±500ppm/°C
The blank column is filled with the code of adjustment direction A (top) or K (rear).
s

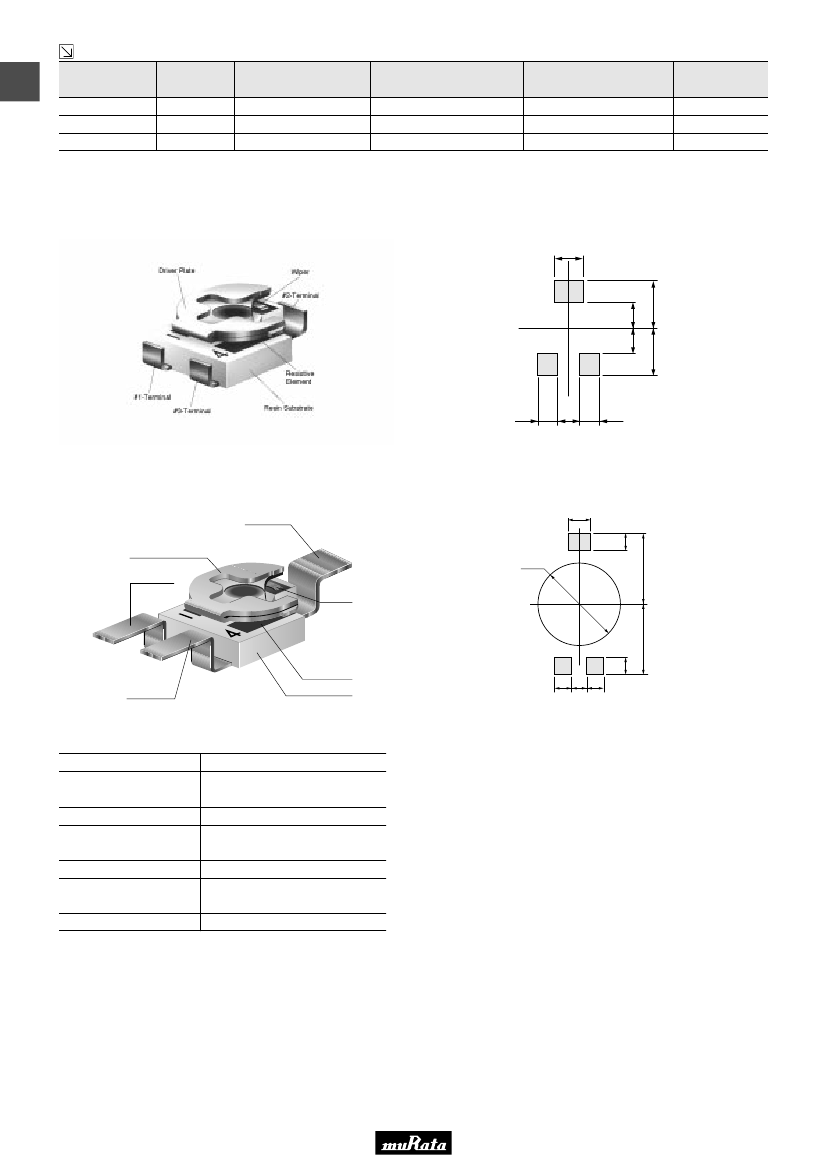

Construction
PVZ2A
s
Standard Land Pattern
PVZ2A
0.9
0.85
0.6
0.7
0.6
0.85
1.55
1.55
mm
(
Tolerancein
±0.1
)
:
s
Construction
PVZ2K
#2-Terminal
s
Standard Land Pattern
PVZ2K
0.9
Driver Plate
2.9
0.7 0.6
#3-Terminal
Resin Substrate
0.7
mm
(
Tolerancein
±0.1
)
:
0.7
2.9
Resistive
Element
3.4 Dia.
#1-Terminal
Wiper
s
Characteristics
Humidity Exposure
High Temperature
Exposure
Humidity Load Life
Load Life
Temperature Cycle
Temperature Coefficient
of Resistance
Rotational Life
Res. Change : +10, -2%
Res. Change : R
<
50kohm···+2, -10%
=
50kohm<R···+2, -15%
Res. Change :
±10%
Res. Change : R
<
50kohm···+2, -10%
=
50kohm<R···+2, -15%
Res. Change :
±5%
±500ppm/˚C
Res. Change :
±10%
(10 cycles)
6
0.7
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11
PVZ2 Series Notice
s
Notice (Operating and Storage Conditions)
1. Store in temperatures of -10 to +40 deg. C and
relative humidity of 30-85%RH.
2. Do not store in or near corrosive gases.
3. Use within six months after delivery.
4. Open the package just before using.
5. Do not store under direct sunlight.
6. If you use the trimmer potentiometer in an
environment other than listed below, please
consult with a Murata factory representative prior
to using.
The trimmer potentiometer should not be used under
the following environmental conditions:
(1) Corrosive gaseous atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas, Ammonia
gas, Sulfuric acid gas, Nitric oxide gas, etc.)
(2) In liquid
(Ex. Oil, Medical liquid, Organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
(7) Other variations of the above
1
s
Notice (Rating)
1. When using with partial load (rheostat), minimize
the power depending on the resistance value.
2. The maximum input voltage to a trimmer
potentiometer should not exceed (P.R)^1/2 or the
maximum operating voltage, whichever is smaller.
3. The maximum input current to a trimmer
potentiometer should not exceed (P/R)^1/2 or the
allowable wiper current, whichever is smaller.
4. If the trimmer potentiometer is used in DC and high
humidity conditions, please connect wiper (#2) for
plus and resistive element (#1 or #3) for minus.
s
Notice (Soldering and Mounting)
1. Soldering
(1) Reflow soldering and Soldering Iron are
available. Cannot be soldered using the flow
soldering method. If you use the flow soldering
method, the trimmer potentiometer may not
function.
(2) Use our standard land dimension. Excessive land
area causes displacement due to the effect of the
surface tension of the solder. Insufficient
land area leads to insufficient soldering
strength of the chip.
(3) Standard soldering condition
(a) Reflow soldering :
Refer to the standard temperature profile.
(b) Soldering iron:
>Temperature of tip 360 deg. C max.
>Soldering time
3 sec. max.
>Diameter
1mm max.
>Wattage of iron 30W max.
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature, the
trimmer potentiometer may deviate from the
specified characteristics.
(4) Apply the appropriate amount of solder paste.
The thickness of solder paste should be printed
from 100 micro m to 150 micro m and the
dimension of land pattern used should be Murata's
standard land pattern at reflow soldering.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause bridging
between the terminals.
(5) The soldering iron should not come in contact
with the case of the trimmer potentiometer. If
such contact does occur, the trimmer
potentiometer may be damaged.
2. Mounting
(1) Do not apply excessive force (preferably 4.9N
(Ref.; 500gf) max.), when the trimmer
potentiometer is mounted to the PCB.
(2) Do not warp and/or bend PC board to prevent
trimmer potentiometer from breakage.
(3) In chip placers, the recommended size of the
cylindrical pick-up nozzle should be outer
dimension 1.5-1.8mm dia. and inner dimension
1.3mm dia.
3. Cleaning
(1) In case there is flux on the resistive element,
clean sufficiently with cleaning solvents and
completely remove all residual flux.
(2) Isopropyl-alcohol and Ethyl-alcohol are
Continued on the following page.
7
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11
1
PVZ2 Series Notice
Continued from the preceding page.
applicable solvents for cleaning. If you use any
other types of solvents, please evaluate
performance by your product.
s
Reflow Soldering Standard Profile
For reflow soldering
Pre-heating (in the air)
230
Temperature (°C)
200
Soldering
Gradual Cooling
(in the air)
100
0
60-120 sec.
30 sec. max.
(Melting zone)
Time
s
Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
driver slot. We recommend the screwdriver below.
* Recommended screwdriver for manual adjustment
PVZ2A_A01=Murata P/N : KMDR090
PVZ2A_A04=Murata P/N : KMDR150
2. Don't apply more than 4.9N (Ref.; 500gf) of twist
and stress after mounting onto PCB to prevent
contact intermittence. If excessive force is
applied, the trimmer potentiometer may not
function.
3. Please use within the effective rotational angle.
The potentiometer does not have a mechanical stop
for over rotation. In cases out of effective
rotational angle, the trimmer potentiometer may
not function.
4. When using a lock paint to fix slot position,
please consult with a Murata factory representative
prior to using to prevent corrosion and contact
intermittence.
s
Notice (Other)
1. Please make sure that your product has been
evaluated and confirmed against your
specifications when our product is mounted to your
product.
2. Murata cannot guarantee trimmer potentiometer
integrity when used under conditions other than
those specified in this document.
8
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11
SMD Open Type and Test Methods
Specifications and SMD Sealed Type PVM4A_C01 Series Specifications and Test Methods
The tests and measurements should be conducted under the condition of 15 to 35°C of temperature, 25 to 75% of relative humidity and 86 to 106 kpa of
atmospheric pressure unless otherwise specified. If questionable results occur that have been measured in accordance with the above mentioned
conditions, the tests and measurements should be conducted under the condition of 25±2°C of temperature and, 45 to 55% of relative humidity and 86 to
106 kpa of atmospheric pressure.
No.
Item
Test Methods
Measure total resistance between the resistance element and terminals (terminals #1 and #3) with the contact arm
positioned against a stop. The positioning of the contact arm and terminal should be the same for subsequent total
resistance measurements on the same device.
Use the test voltage specified in Table-1 for total resistance measurements. This voltage should be used whenever a
subsequent total resistance measurement is made.
1
Total Resistance
Total Resistance,
Nominal (ohm)
10VRV100
100FRV1k
1kFRV10k
10kFRV100k
100kFR
Maximum Test
Voltage (V)
1.0
3.0
10.0
30.0
100.0
Table 1: Total resistance test voltage
Position the contact arm at the extreme counterclockwise limit of mechanical travel and measure the resistance
between the contact arm and the corresponding end terminal. Then, position the contact arm at the extreme clock-
wise limit of mechanical travel and measure the resistance between the contact arm and the corresponding end ter-
minal. During this test, take suitable precautions to ensure that the rated current of the resistance element is not
exceeded.
Contact resistance variation should be measured with the measuring circuit shown below, or its equivalent. The
operating wiper should be rotated in both directions through 90% of the actual effective-electrical travel for a total of
6 cycles.
The rate of rotation of the operating wiper should be such that the wiper completes 1 count in determining whether or
not a contact resistance variation is observed at least twice in the same location. The test current should follow the
value given in Table-2 unless otherwise limited by the power rating.
3
Contact Resistance
Standard Total
Resistance R (ohm)
100VRF10k
10kVRF100k
100kVR
Test Current
10mA max.
1mA max.
100µA max.
Constant Current
Source
(Test current
shown in Table 2)
#1
Rx
#2
Proofread
Resistence
AC
Amplifier
#3
Oscilloscope
2
Residual Resistance
Table 2: Test current for CRV
Rx : Trimmer Potentiometer
Oscilloscope bandwidth :100Hz to 50kHz
Figure 1: CRV measuring circuit
4
Humidity Exposure
The wiper contact point should be preset at about 50% position of effective rotational angle. After that, the poten-
tiometer should be placed in a chamber at 40±2°C and 90 - 95% without loading for 500±12 hours.
The resistance value should be measured after keeping the potentiometer in a room for 5±1/6 hours.
The wiper contact point should be preset at about 50% position of effective rotational angle. After that, the poten-
tiometer should be placed in a chamber at 70±2°C without loading for 500±12 hours. The resistance value should be
measured after keeping the potentiometer in a room for 1.5±1/6 hours.
The wiper contact point should be preset at about 50% position of effective rotational angle. After that, the poten-
tiometer should be placed in a chamber at 40±2°C and 90 - 95% with loading the 1/2 rated voltage between #1 and
#2 terminals, intermittently 1.5 hours ON and 0.5 hours OFF for 1000±12hours.
The resistance value should be measured after keeping the potentiometer in a room for 5±1/6 hours.
The wiper contact point should be preset at about 50% position of effective rotational angle. After that, the poten-
tiometer should be placed in a chamber at 70±2°C (50±2°C for PVZ) with loading the 1/2 rated voltage between #1
and #2 terminals, intermittently 1.5 hours ON and 0.5 hours OFF for 1000±12 hours. The resistance value should be
measured after keeping the potentiometer in a room for 1.5±1/6 hours.
The wiper contact point should be preset at about 50% position of effective rotational angle. After that, the poten-
tiometer should be subjected to Table 3,Table 4 temperature for 5 cycles. The resistance value should be measured
after keeping the potentiometer in a room for 1.5±10 minutes.
[i=s]This post was last edited by paulhyde on 2014-9-15 04:27[/i] Today is the third day of the competition and the work is not yet finished. I pulled an all-nighter on the last night. Is there anyone...
There is a very important code in the CE serial port driver: const HW_VTBL SerCardIoVTbl = { SerInitSerial, SL_PostInit, SerDeinit, SerOpen, .......... }; extern const HW_VTBL SerCardIoVTbl; const HW_...
Attached is the specification of the step-down constant current chip used to drive LEDs. I want to use this chip to drive multiple LEDs, such as four RGBW channels. I thought of a way to use four MOS ...
Do I need to write all these messy initializations myself when programming ARM bare metal? [img]file:///C:/Users/jy/AppData/Roaming/Tencent/Users/1075518049/QQ/WinTemp/RichOle/0MW06~E00FQO_B5B6[05)8H....
[align=left][b][font=宋体][size=16pt]Comprehensive Design Experiment of “Traffic Light Control and Display Circuit” (1)[/size][/font][/b][/align] [align=left][b][font=宋体][size=16pt]——Scheme Design[/size...
Electronics Design Contest
京公网安备 11010802033920号
EEWORLD
