FEATURES / BENEFITS
RoHS compliant
High brightness with low current draw - uses up to
90% less energy than an incandescent
Long life - up to 100K hours
True non-polarized configuration
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
AlInGaP and InGaN technology
Super bright single chip design
Colors include red, green, yellow, blue and white
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.

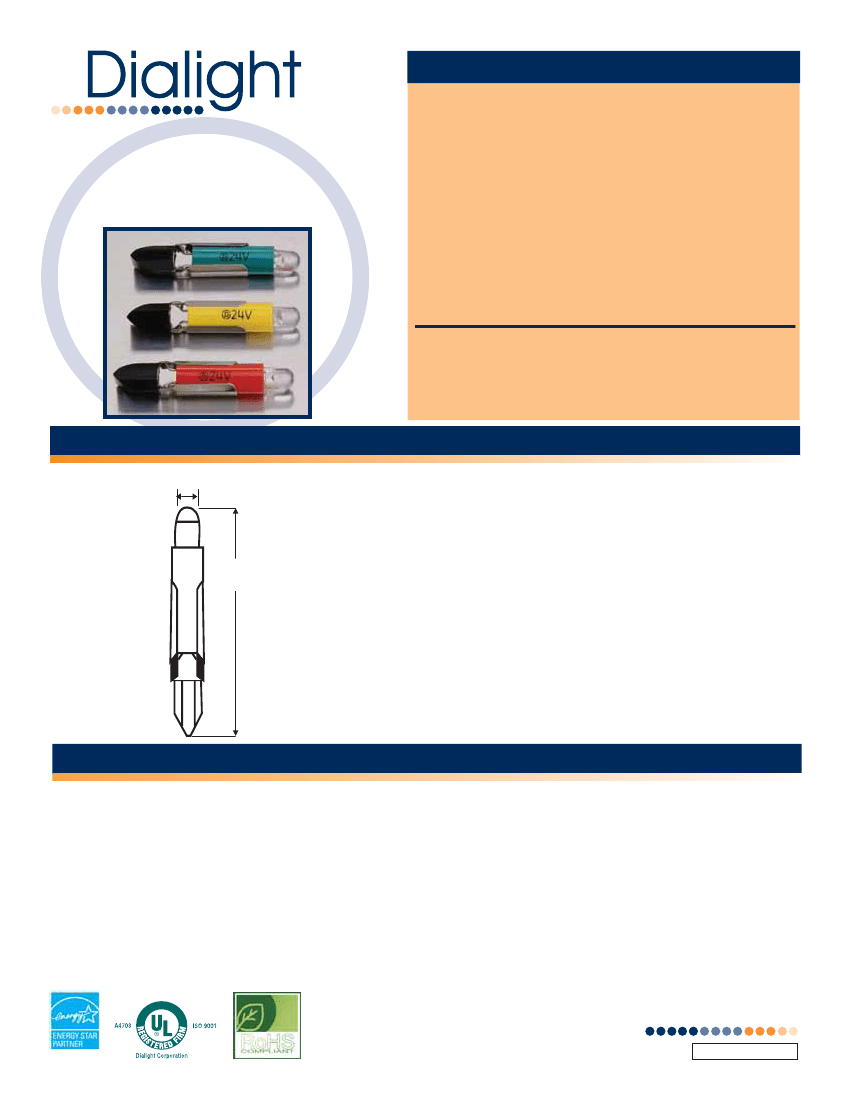

586 Series
Single Chip BASED LED
T2 Telephone Slide (TYPE 3)
SPECIFICATIONS
.197
00.5
]791.[
[5.00]
Operating voltage: 24 VAC/VDC
Non-polarized
7
1.68
6.24
[42.67]
]86.1[
Operating temperature: -30
o
C
to +
85
o
C
Storage temperature:
-40
o
C
to +
100
o
C
*
See Dialight’s Incandescent lamp/based LED
cross reference for a complete listing
Measurements are typical
Dimensions are inches [mm]
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the
LED. If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,
which will optimize light output.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586G001_F
586 Series
Single Chip BASED LED
T2 Telephone Slide (TYPE 3)
T2 TELEPHONE SLIDE (ANSI #1) NON-POLARIZED
PEAK
WAVELENGTH
(nm)
622
525
592
470
*
PART NUMBER
COLOR
VOLTAGE
(VDC)
CURRENT
TYP.-(mA)
INTENSITY
TYP.-(mcd)
RoHS
COMPLIANT
586-3501-204F
586-3502-204F
586-3503-204F
586-3505-204F
586-3506-204F
Red
Green
Yellow
Blue
White
24
24
24
24
24
25
25
25
25
25
600
5000
1700
1500
5600
* Color Coordinates: x = 0.290, y = 0.305
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent
lamp when used in similar packages. These advancements have created a new type of product called the based
LED - an LED with the functionality of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T1 3/4 Midget Flange
T1 3/4 Bi-Pin
T1 3/4 Wedge (T5)
T2 Telephone Slide
T3 1/4 Miniature Bayonet (BA9s)
T3 1/4 Miniature Screw (E10)
T3 1/4 Wedge (T10)
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow.
Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586G001_F
