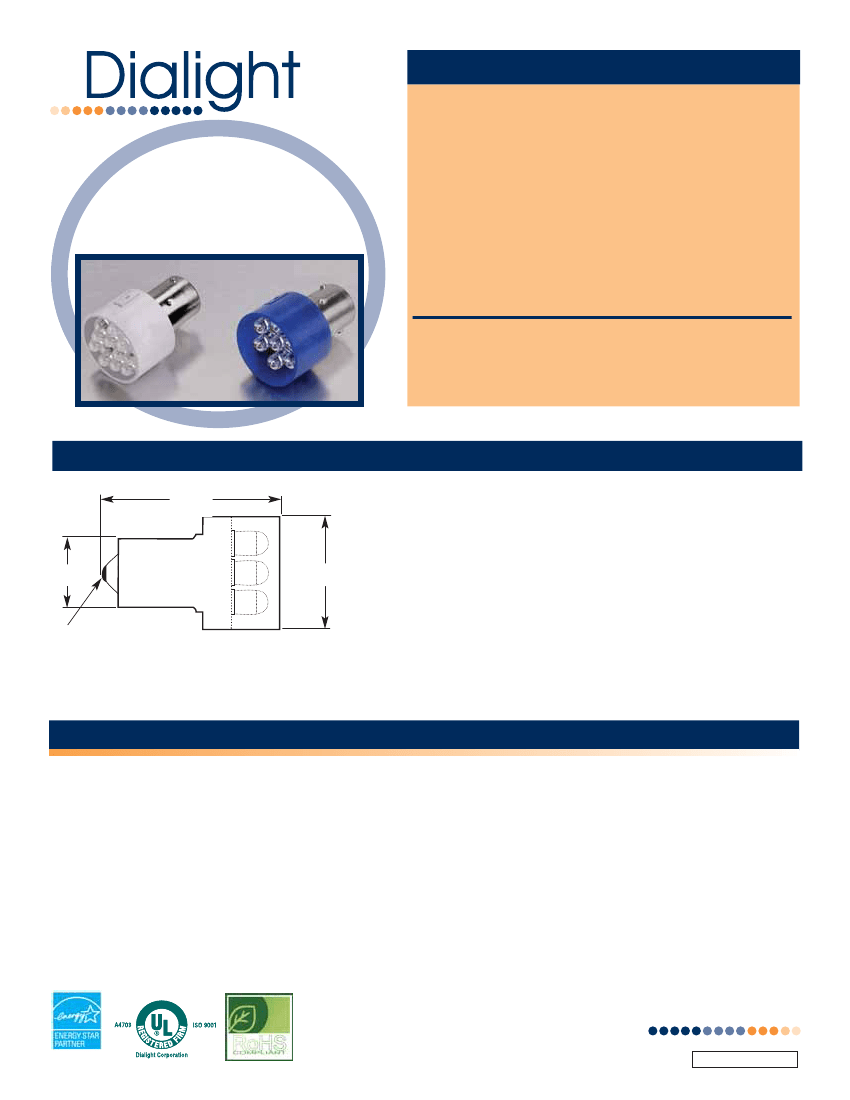

FEATURES / BENEFITS
RoHS Compliant
586 Series
CLUSTER BASED LED
15mm BAYONET
(BA15s)
High brightness with low current draw - uses up to
90% less energy than an incandescent
Long life - up to 100K hours
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
AIlnGaP and InGaN technology
Colors include red, green, yellow, blue and white
Dialight’s line of based LED lamps is designed to directly replace
many popular subminiature and miniature incandescent lamps. The
benefits of LED technology over incandescent are significant: they
offer long life, are shock resistant, withstand vibration and provide
energy conservation.
SPECIFICATIONS
1.525 max
[38.74]
.590
[14.99]
.980
[24.89]
Center Contact
(+) Plus
Operating voltages: 14 and 28 VDC
Multiple LED construction
Operating temperature: -30
o
C to +85
o
C
Storage temperature: -40
o
C to +100
o
C
Replaces incandescent lamps*: 67, 93, 97, 98,
105, 199, 303, 305, 307, 315, 623, 631, 1003,
1093, 1095, 1141, 1155, 1156, 1159, 1203, 1251,
1295, 1308, 1591, 1665, 1683, 1691, 2233
* See Dialight’s Incandescent lamp/based LED cross reference
for a complete listing.
Measurements are typical
Dimensions are inches [mm]
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED. If not
matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses, which will
optimize the light output.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586I001_F
586 Series
CLUSTER BASED LED
15mm BAYONET
(BA15s)
15mm BAYONET (BA15s) - POLARIZED
PEAK
WAVELENGTH
(nm)
639
525
594
470
*
639
525
594
470
*
VOLTAGE
(VDC)
14
14
14
14
14
28
28
28
28
28
CURRENT
TYP.-(mA)
30
20
30
20
20
30
20
30
20
20
INTENSITY
TYP.-(mcd)
17325
21000
17325
6300
23800
17325
21000
17325
6300
23800
*Color Coordinates: x = .310, y = .320
PART NUMBER
586-4601-103F
586-4602-103F
586-4603-103F
586-4605-103F
586-4606-103F
586-4601-105F
586-4602-105F
586-4603-105F
586-4605-105F
586-4606-105F
COLOR
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
RoHS
COMPLIANT
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent
lamp when used in similar packages. These advancements have created a new type of product called the based
LED - an LED with the functionality of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T1 3/4 Midget Flange
T1 3/4 Bi-Pin
T1 3/4 Wedge (T5)
T2 Telephone Slide
T3 1/4 Miniature Bayonet (BA9s)
T3 1/4 Miniature Screw (E10)
T3 1/4 Wedge (T10)
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow.
Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586I001_F
