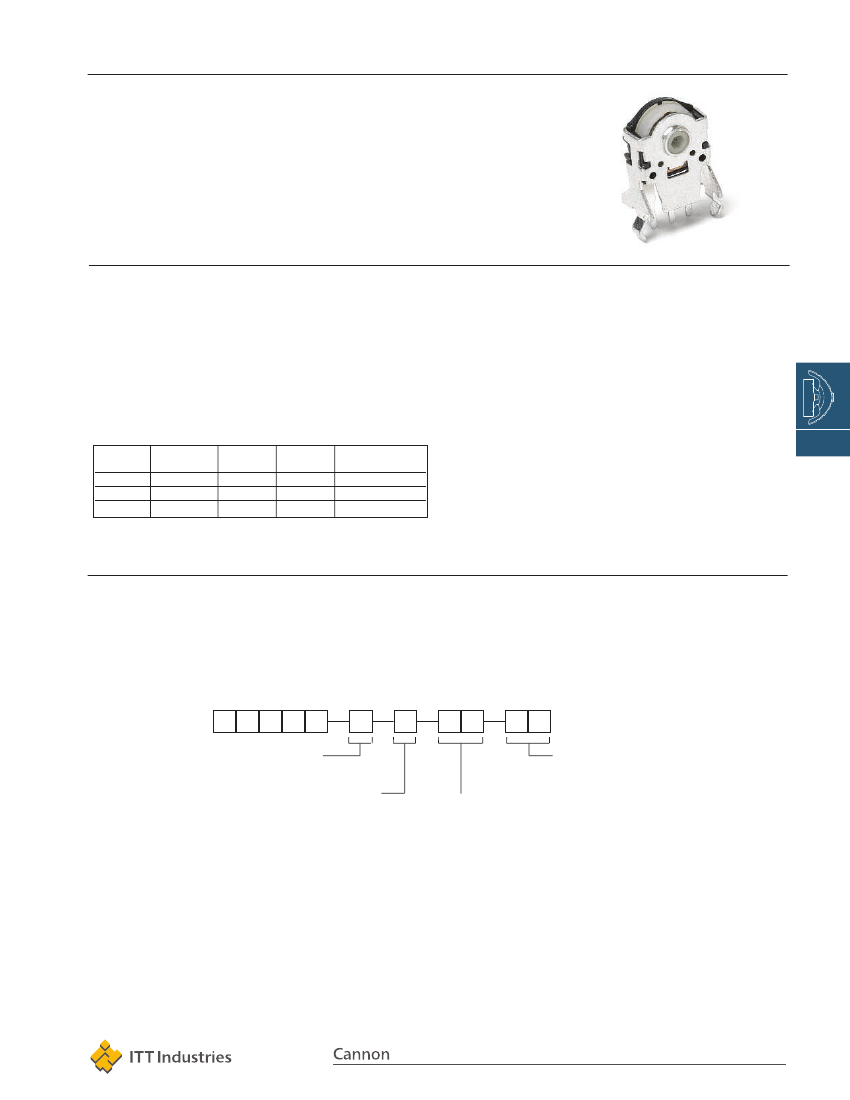

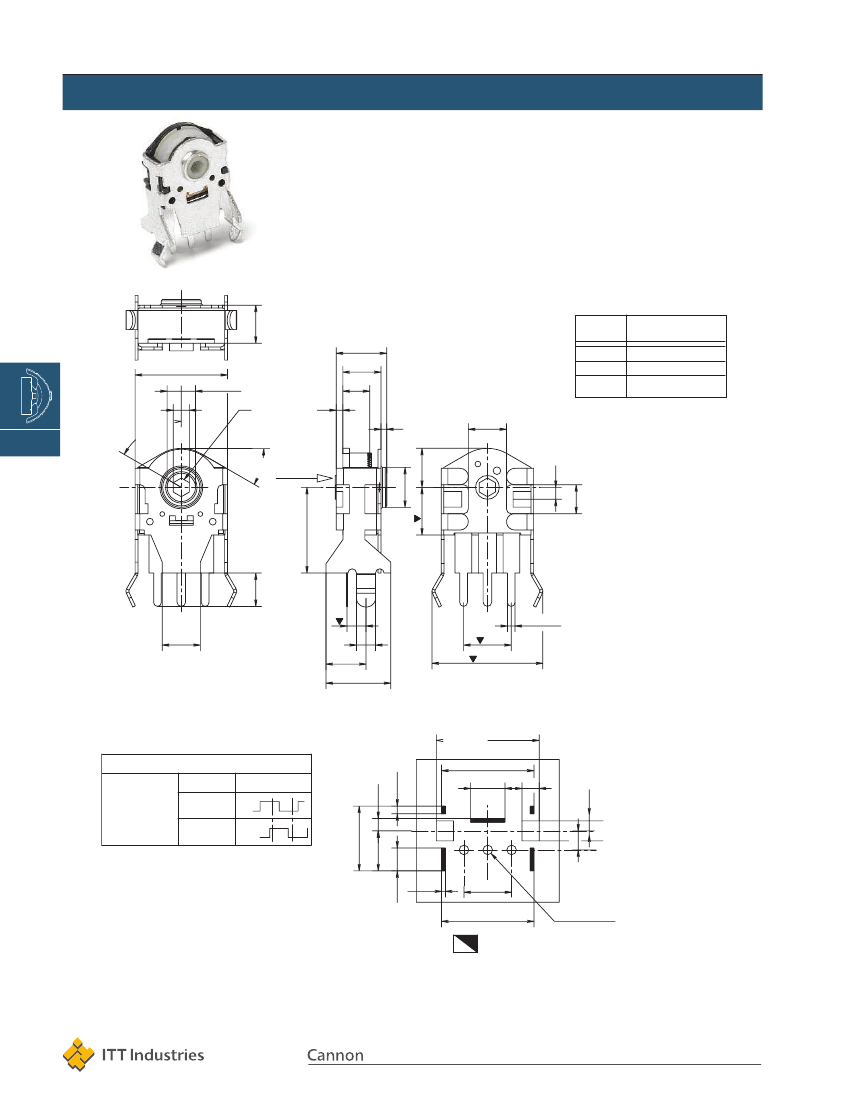

NSE10 Series
Navigation Switch Encoders
Features/Benefits
•
•
•
•
Reduced size 10 mm
Hollow shaft
Self clinching terminals
Positive detent feeling
Typical Applications
•
Audio / Video equipment
•
Navigation systems
•
Computer peripherals
Construction
FUNCTION: Incremental signal.
CONTACT ARRANGEMENT: Phase difference output of two signal
A and B.
TERMINAL: PC pin.
Electrical
MAXIMUM VOLTAGE: 5 VDC.
CURRENT DC: 1 mA
DIELECTRIC STRENGTH: 50 VAC.
INSULATION RESISTANCE: 50 MΩ min / 50 VDC.
BOUNCE TIME:
≤
5 ms
Mechanical
NUMBER OF DETENT: 24
DETENT TORQUE: 5 ± 3 mN.m
ROTATIONAL ANGLE: 360˚ endless.
ROTATIONAL LIFE: 100,000 cycles (1 cycle: 360˚ CW + 360˚ CCW).
Number
of Pulse
12
12
12
Number
of Detent
24
24
24
Detent
Torque
5mN.m
5mN.m
5mN.m
Mounting
Height
7
9
11
Environmental
OPERATING TEMPERATURE: -5˚C to +45˚C.
STORAGE TEMPERATURE: -15˚C to +65˚C.
Process
SOLDERING PROCESS:
Manual soldering 300˚C max., 3s max.
Wave soldering 260˚C max., 3s max.
No cleaning.
C
Navigation
Designation
NSE10DH127
NSE10DH129
NSE10DH1211
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired
option from each category and place it in the appropriate box.
N
S
E
1
0
D
H
1
2
Axis Height
7
7 mm
9
9 mm
11
11 mm
Detent
D
With detent
Appearance Type
H
Horizontal axis
Pulse Number
12
12
Dimensions are shown: mm (inch)
Dimensions subject to change
1
www.ittcannon.com
NSE10 Series
Navigation Switch Encoders
NSE10
4
OPTION
CODE
AXIS HEIGHT
7 mm
9 mm
11 mm
5,3
9,7
ø 2,98
±0,1
+0,05
1,7 0
60˚
±
3˚ ( x 6)
Shaft hole orientation
may vary
0,7
0,6
4
4
2,8
7
9
11
C
Navigation
Axis side
(ø 3,8 )
1,25
0,8
±0,1
(x3)
2
4,2
6,8
5
11,6
±1
LAYOUT
10,8
ELECTRICAL GRAPH
0,8
±0,5
1,3
±1
Shaft rotational direction
Signal
A (Terminal A-C)
C.W.
B (Terminal B-C)
ON
OFF
ON
OFF
Output
9,7
±1
3,6
±0,5
+0,1
1,8 0
+0,1
2,1 0
A
2,4
±0,5
t = 0,4
B COM
5
9,7
±1
Leg position
P.C.B. THICKNESS T = 1,6
View from mounting side
+0,1
ø 10 (x3)
2
3,05
5
COM
B A
2
4
3,5
H
6,8
±0,5
4,2
±0,5
30˚
±
3˚
4,1
Dimensions are shown: mm (inch)
Dimensions subject to change
2
www.ittcannon.com
NSE11 Series
Navigation Switch Encoders
Features/Benefits
•
•
•
•
•
Select switch
Metallic shaft
Self clinching terminals
Positive detent feeling
Large variety of shaft
Typical Applications
•
•
•
•
Audio / Video equipment
Navigation systems
Computer peripherals
Car radio
Construction
FUNCTION: Incremental signal + select switch.
CONTACT ARRANGEMENT: Phase difference output of two signal
A and B.
TERMINAL: PC pin.
Electrical
MAXIMUM VOLTAGE: 5 VDC.
MAXIMUM CURRENT DC: 10 mA
MINIMUM CURRENT DC: 1 mA
DIELECTRIC STRENGTH: 300 VAC / 1 mA.
INSULATION RESISTANCE: 100 MΩ min.
BOUNCE TIME:
≤
2 ms
Mechanical
NUMBER OF DETENT: 20 or 30
DETENT TORQUE: 3 - 20 mN.m
ROTATIONAL ANGLE: 360˚ endless.
ROTATIONAL LIFE: 15,000 cycles (1 cycle: 360˚ CW + 360˚ CCW).
Number Number Bracket
of Pulse of Detent Spacing
15
30
11 mm
20
20
11 mm
15
30
11 mm
20
20
11 mm
15
30
13,8 mm
20
20
13,8 mm
Select
Function
No
No
Yes
Yes
Yes
Yes
Switch Function
CONTACT: SPST
MAXIMUM POWER: 5 VDC 10 mA (min. 1 mA)
CONTACT RESISTANCE: Initial 100mΩ
TRAVEL: 0,5 mm +/- 0,4 mm
OPERATING FORCE: 4,5 +/- 1,5 N
LIFE TIME: 20,000 operations
C
Navigation
Designation
NSE11DV57NCF215A
NSE11DV57NCF220A
NSE11DSV57NAF215A
NSE11DSV57NAF220A
NSE11DSV57NAF215F
NSE11DSV57NAF220F
Environmental
OPERATING TEMPERATURE: -30˚C to +70˚C.
STORAGE TEMPERATURE: -40˚C to +85˚C.
Process
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
SOLDERING PROCESS:
Manual soldering 300˚C max., 3s max.
Wave soldering 260˚C max., 3s max.
No cleaning.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired
option from each category and place it in the appropriate box.
N
S
E
1
1
D
S
V
5
7
N
F
2
Detent
D
With detent
Switching Function
(NONE)
No Switch
S
Switch
Appearance Type
V
Vertical axis
Terminal Length
5
4,2 mm
Bushing Dimension
7
Length = 7 mm
Fixed Pillar
N
without locating pin
Shaft Length & Push Switch Slot
A
With select; Length of Shaft = 12,5 mm; push switch slot 0,5 mm
C
Without select; Length of Shaft = 13 mm; no push switch slot
Pulse
15
15 pulse
20
20 pulse
Bracket Spacing
A
11 mm
F
13,8 mm
Flat Length
2
10 mm
Shaft Type
F
with a flat
Dimensions are shown: mm (inch)
Dimensions subject to change
3
www.ittcannon.com
NSE11 Series
Navigation Switch Encoders
NSE11
OPTION
CODE
LS
Length of Shaft
12,5 mm
13 mm
A
Push Switch Slot
0,5
no push switch slot
A
- with select
C
- without select
Shaft flat orientation
may vary
20
11,7
E
D
4,2
±0,3
6,2
7
LS
10
11,7
8
5
7±0,5
0
ø 6-0,05
7,5
±0,5
2,45
±0,1
C
Navigation
4,5
ø7
3,8
±0,3
0,4
A
Push switch stroke 0,5±0,4
A
C
B
4,2
±0,3
2,5
±0,15
F
2,5
±0,15
LAYOUT
10,2
±0,1
E
1,8 +0,1
0
D
1,8 +0,1
0
2,6 +0,1
0
TERMINAL DETAIL
OPTION
CODE
F
Bracket Spacing
11 mm
13,8 mm
A
F
7
ø1+0,1 x 5 HOLES
0
7,5
0,9
A
C
5
B
P.C.B. THICKNESS T = 1,6
View from mounting side
15 Pulse
ELECTRICAL GRAPH
Shaft rotational direction
Signal
A (Terminal A-C)
C.W.
B (Terminal B-C)
ON
OFF
ON
OFF
Output
20 Pulse
ELECTRICAL GRAPH
Shaft rotational direction
Signal
A (Terminal A-C)
C.W.
B (Terminal B-C)
ON
OFF
ON
OFF
Output
SWITCH GRAPH
D
E
D
SWITCH GRAPH
E
5,3
Dimensions are shown: mm (inch)
Dimensions subject to change
4
www.ittcannon.com
6,5
7,3

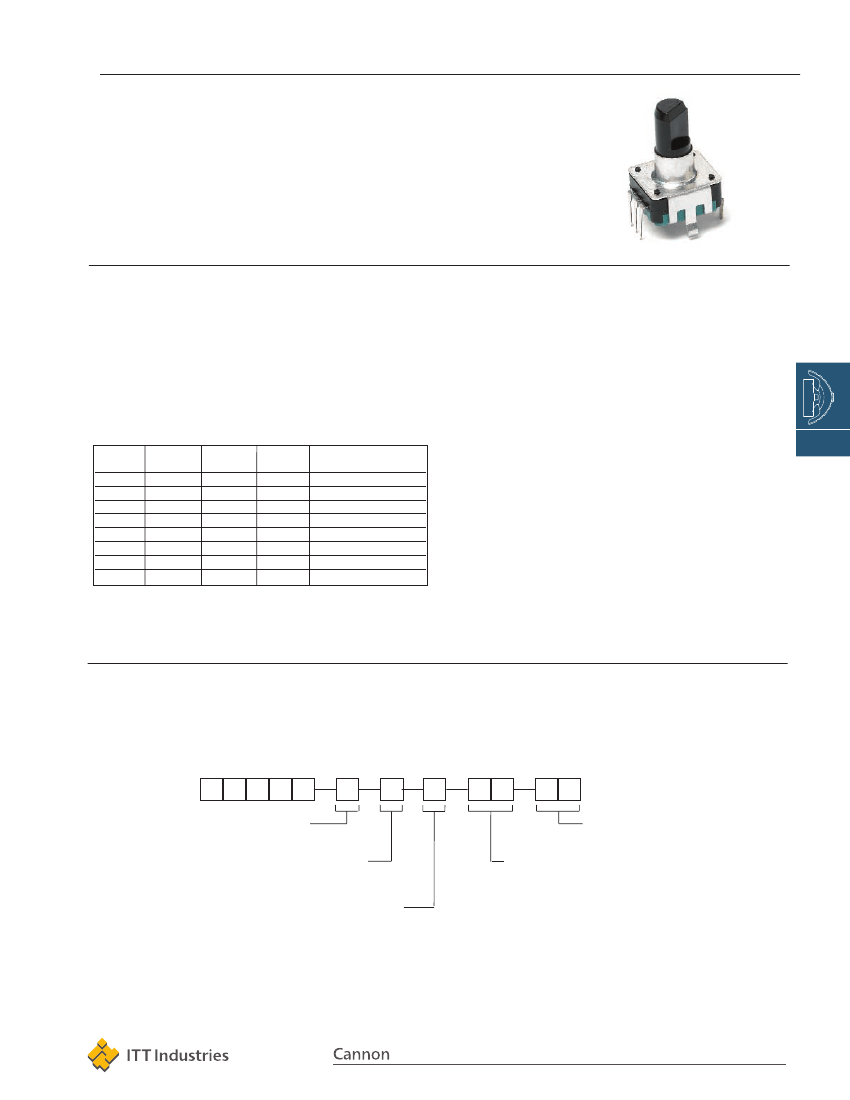

NSE12 Series
Navigation Switch Encoders
Features/Benefits
•
•
•
•
Select switch
Low profile
Self clinching terminals
Positive detent feeling
Typical Applications
•
•
•
•
Audio / Video equipment
Navigation systems
White goods equipment
Car radio
Construction
FUNCTION: Incremental signal + select switch.
CONTACT ARRANGEMENT: Phase difference output of two signal
A and B.
TERMINAL: PC pin.
Electrical
MAXIMUM VOLTAGE: 5 VDC.
MAXIMUM CURRENT DC: 10 mA
MINIMUM CURRENT DC: 1 mA
DIELECTRIC STRENGTH: 50 VAC / 1 mA.
INSULATION RESISTANCE: 10 MΩ.
BOUNCE TIME:
≤
2 ms
Mechanical
NUMBER OF DETENT: 12 or 24
DETENT TORQUE: 3 - 20 mN.m
ROTATIONAL ANGLE: 360˚ endless.
ROTATIONAL LIFE: 30,000 cycles (1 cycle: 360˚ CW + 360˚ CCW).
Number Number
of Pulse of Detent
12
12
24
24
12
12
24
24
12
12
24
24
12
12
24
24
Select
Function
No
No
No
No
Yes
Yes
Yes
Yes
Switch Function
CONTACT: SPST
MAXIMUM POWER: 5 VDC - 10 mA (min. 1 mA).
CONTACT RESISTANCE INITIAL: 100 mΩ.
TRAVEL: 0,5 mm +0,2/-0,1 mm
OPERATING FORCE: 4,5 ± 1,5 N.
LIFE TIME: 20,000 operations.
C
Navigation
Height
20 mm
20 mm
25 mm
25 mm
20 mm
20 mm
25 mm
25 mm
Designation
NSE12DV1220
NSE12DV2420
NSE12DV1225
NSE12DV2425
NSE12DSV1220
NSE12DSV2420
NSE12DSV1225
NSE12DSV2425
Environmental
OPERATING TEMPERATURE: -10˚C to +70˚C.
STORAGE TEMPERATURE: -40˚C to +85˚C.
Process
SOLDERING PROCESS:
Manual soldering 300˚C max., 3s max.
Wave soldering 260˚C max., 3s max.
No cleaning.
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired
option from each category and place it in the appropriate box.
N
S
E
1
2
D
V
Total Height
20
20 mm
25
25 mm
Pulse Number
12
12
24
24
Detent
D
With detent
Switch Function
(NONE)
No switch
S
Switch
Appearance Type
V
Vertical axis
Dimensions are shown: mm (inch)
Dimensions subject to change
5
www.ittcannon.com
