PTS635SL25SMTR Overview

SWITCH TACTILE SPST-NO 0.05A 12V

PTS635SL25SMTR Parametric

Parameter Name	Attribute value
circuit	SPST-NO
switch function	Off - instantaneous
Contact rated current at different voltages	0.05A @ 12VDC
Actuator type	Rectangular button
Installation type	surface mount
Actuator PCB height, vertical	2.50mm
Actuator length, right angle	-
Actuator direction	top touch
Terminal type	gullwing
shape	6.10mm x 3.70mm
illumination	Not glowing
lighting type, color	-
Lighting voltage (nominal)	-
force	130gf
Intrusion protection	-
characteristic	-
Operating temperature	-40°C ~ 60°C
Actuator material	Polyamide (PA66), Nylon 6/6
Switching stroke	-
Mechanical life	20,000 cycles

Preview

Download Datasheet

View All

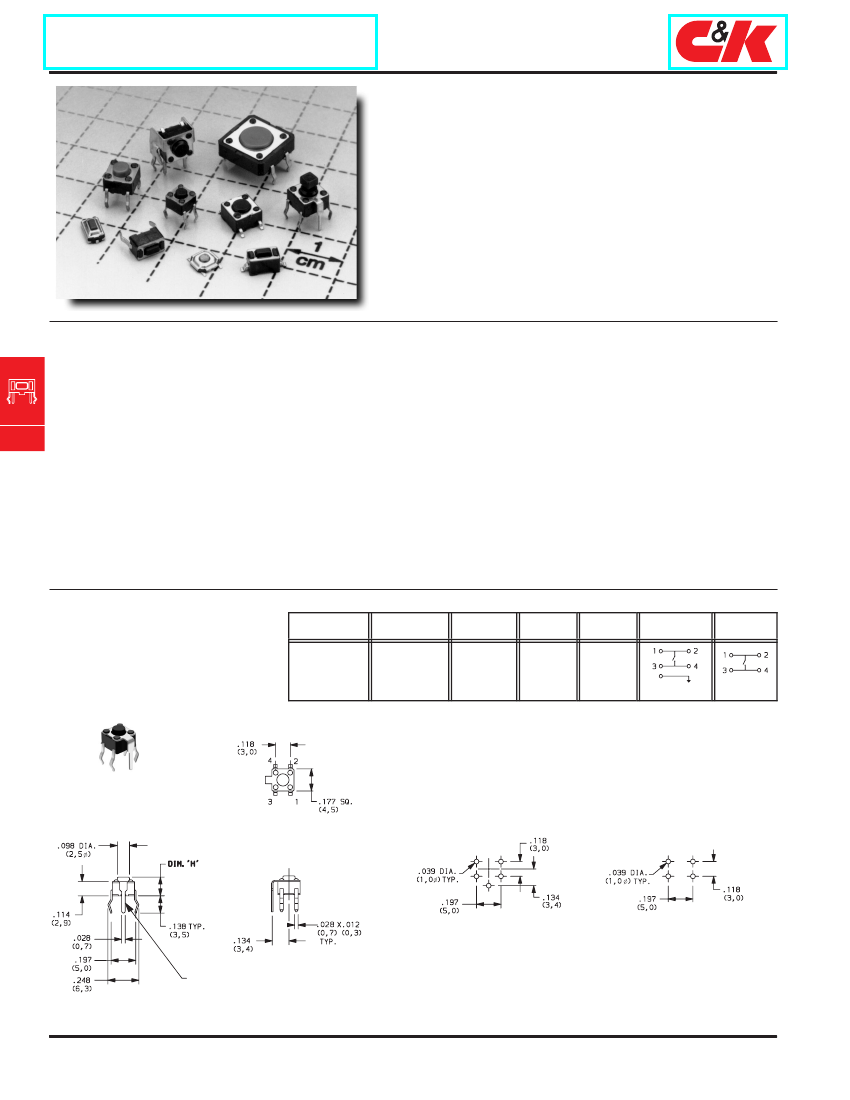

PTS Series

Subminiature Tactile Switches

Features/Benefits

Specifications

Cost-effective solution

Long life contact design

Variety of actuator styles and package sizes

Multiple actuation forces

Typical Applications

Consumer products

Instrumentation

Computer Products

Hand- held devices

Materials

BASE: 6/6 nylon or glass filled polyester (PBT) (UL 94HB).

ACTUATOR: 6/6 nylon or polyacetal (UL 94HB).

COVER PLATE: PTS453S, PTS635S, PTS635V models:

Tin-plated brass; PTS453T, PTS125, PTS645T, PTS645V,

PTS645TJ, PTS645VJ models: Tin alloy; PTS645S models

(Including TR): Polyester.

DOME CONTACTS: PTS635 models - stainless steel,

silver clad; all other models - phosphor bronze, silver clad.

STATIONARY CONTACTS: Brass, silver plated.

TERMINALS: Brass, silver plated. All terminals insert molded.

PACKAGING: Bulk packaging standard for PTS453, PTS635

and PTS645 models. Tube packaging standard for all PTS125 models.

Radial tape packaging available on PTS645S models; when ordering,

add suffix ‘TR’ to part number. Switches supplied 1,000 pieces per box.

Tactile

CONTACT RATING: 50 mA @ 12 V DC.

MECHANICAL & ELECTRICAL LIFE: 20,000 operations for

PTS635S/V models; 25,000 operations for PTS453S/T

models;100,000 operations for PTS645S/T, PTS645V, PTS645SJ/TJ

and PTS645VJ models; 200,000 operations for PTS125S models.

300,000 for PTS525 models.

CONTACT RESISTANCE: 100 milliohms max. initial.

INSULATION RESISTANCE: 10

Ω

min.

DIELECTRIC STRENGTH: 250 V AC min.

OPERATING TEMPERATURE: –10°C to 60°C.

SOLDERABILITY: Preheating to 100°C for 45 sec. max. Keep flux

flush with top surface of PCB; do not apply to component side of

PCB and area where terminals are located. Soldering to 255°C for

5 sec. max. Clean by brushing on soldering surface. Do not clean

switch with solvents. SMT capable of IR solder process, no

cleaning process.

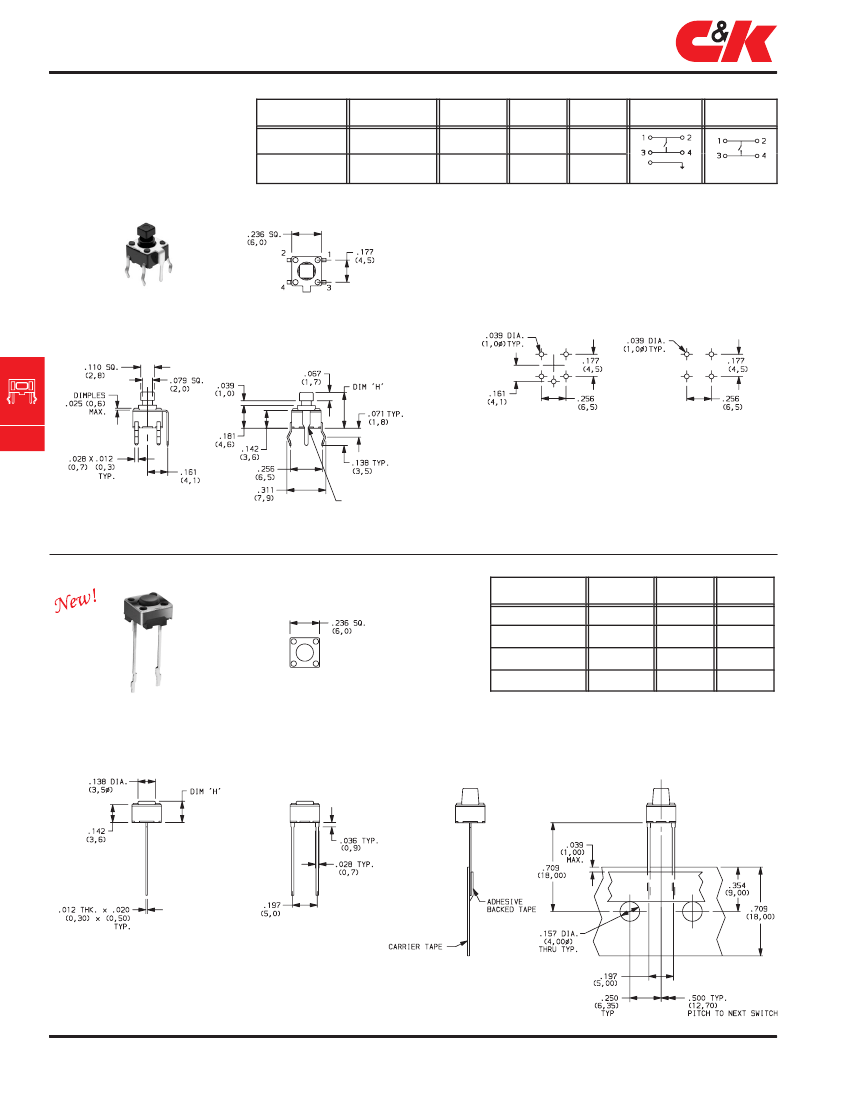

4.5 x 4.5mm Models

PART NUMBER

(With ESD Pin)

OPERATING

FORCE (TYP.)

DIM. ‘H’

ACTUATOR

COLOR

SCHEMATIC

(With ESD Pin)

SCHEMATIC

PTS453SL38

PTS453TL38

130 g

0.150 (3,8)

Black

SPST

PTS453TL38

SPST

PC MOUNTING

(With ESD Pin)

PC MOUNTING

ESD PIN WITH

PTS453TL38

MODEL ONLY

C-6

C&K Components, Inc. Web Site:

www.ckcorp.com

Americas Sales

Tel: 800-635-5936 Fax: 617-926-6846

Europe Sales

Tel: +44-1536-521147 Fax: +44-1536-411602

Asia Sales

Tel: +852-2798-6393 Fax: +852-2751-9926

Rev. A 8/99
