NOTE
E
1.½品詳細寸法については図面 528921001 PSD 000 を参照下さい.
RE DETAILED DIMENSION, SEE DOC. NO. 528921001 PSD 000.

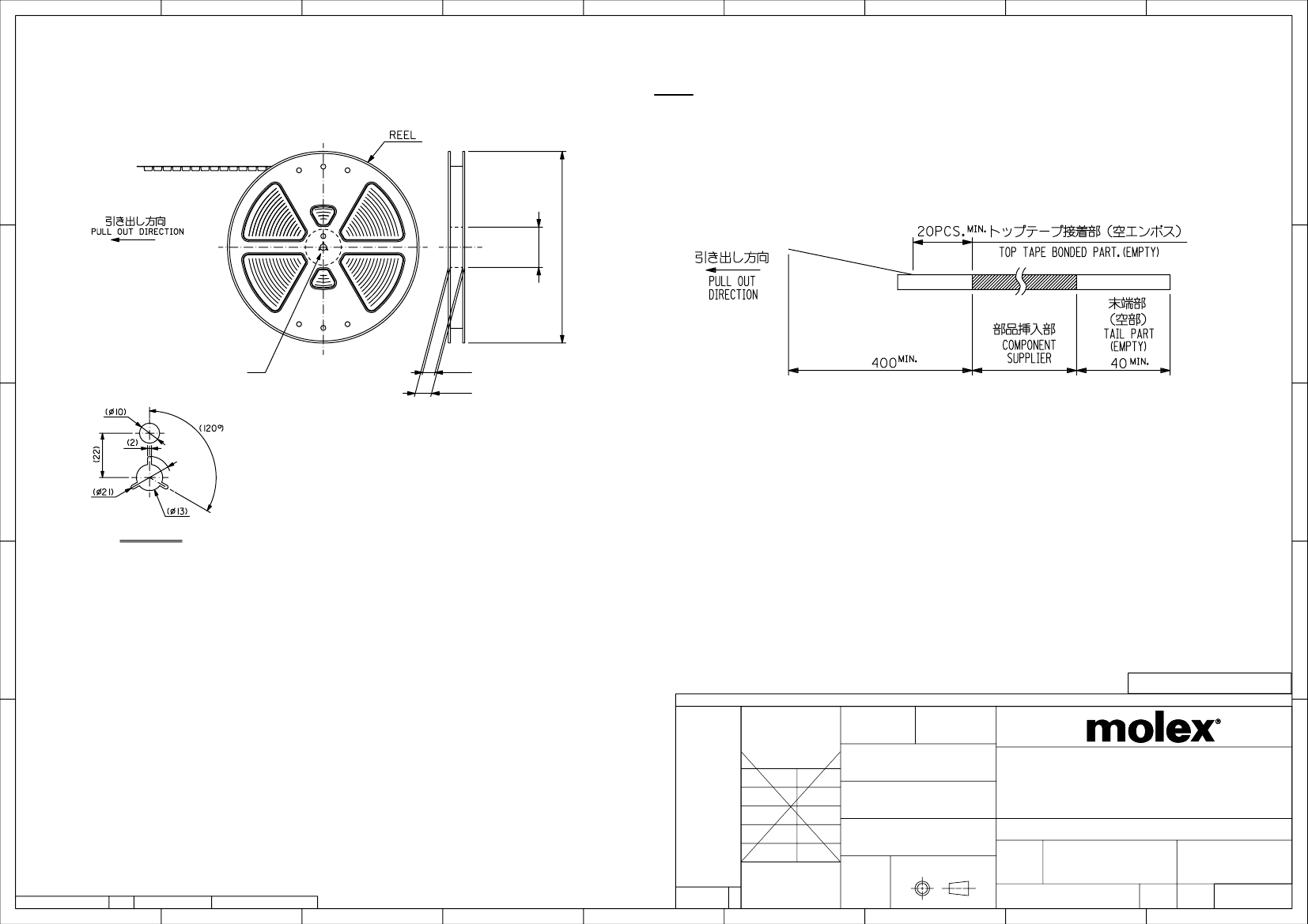

2.梱包数量：1000個/リール
NUMBER OF CONNECTORS : 1000 PCS/REEL

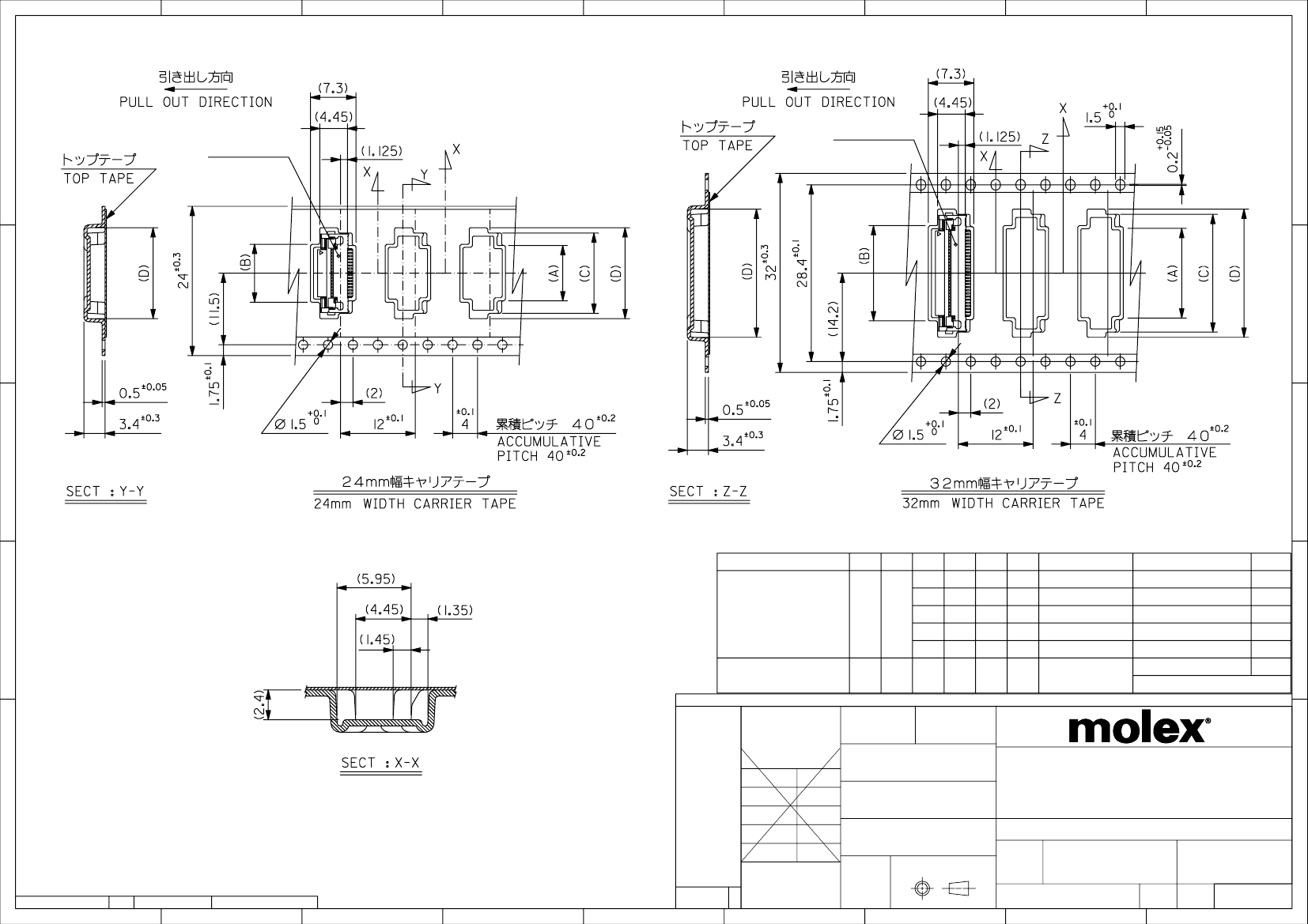

3.リードテープ長さ LEAD TAPE LENGTH
⌀
3302
(
⌀
80)
E
D
D
G
E1
F1
C
DETAIL G
3.トップテープの剥離強度：IEC60286-3.
PEELING OFF FORTH OF TOP TAPE : REFER TO IEC60286-3.
4.材料 MATERIAL
キャリアテープ：ポリプロピレン
トップテープ：PET, PE, PEF
リール：ポリスチレン (PS) ＜リサイクル材を含む＞
CARRIER TAPE : POLYPROPYLENE
TOP TAPE : PET, PE, PEF
REEL : POLYSTYRENE (PS) ＜RECYCLE MATERIAL CONTAINED＞
5.本½品は52892-**95の金めっき品である。
THIS PRODUCT IS GOLD PLATING OF 52892-**95.
C
B
B
MODEL NO. 52892-**96
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/12/14
2016/12/15
2016/12/20
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
---
RELEASED
4 PLACES
±
±
±
±
±
YMIZUNO02
CHK'D BY
DATE
2016/12/14
2016/12/15
DATE
111407
YMIZUNO02
YKOBAYASHI02
TKUSUHARA01
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.5 FFC/FPC ZIF SMT HSGASSY EMBSTPPKG
A
YKOBAYASHI02
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
TKUSUHARA01
DRAWING SIZE
2016/12/20
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: tb-prod-A3
REVISION: G
DATE: 2015/12/14
P1
RELEASE DATE
20.12.2016
00:53:43
A
7
6
5
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
52892
DOCUMENT NUMBER
SEE SHEET 2
GENERAL
A3
3
DOC TYPE
DOC PART
SHEET NUMBER
528920001
PSD
000
1 OF 2
9
8
4
2
1
9
8
7
6
5
4
3
2
1
E
E

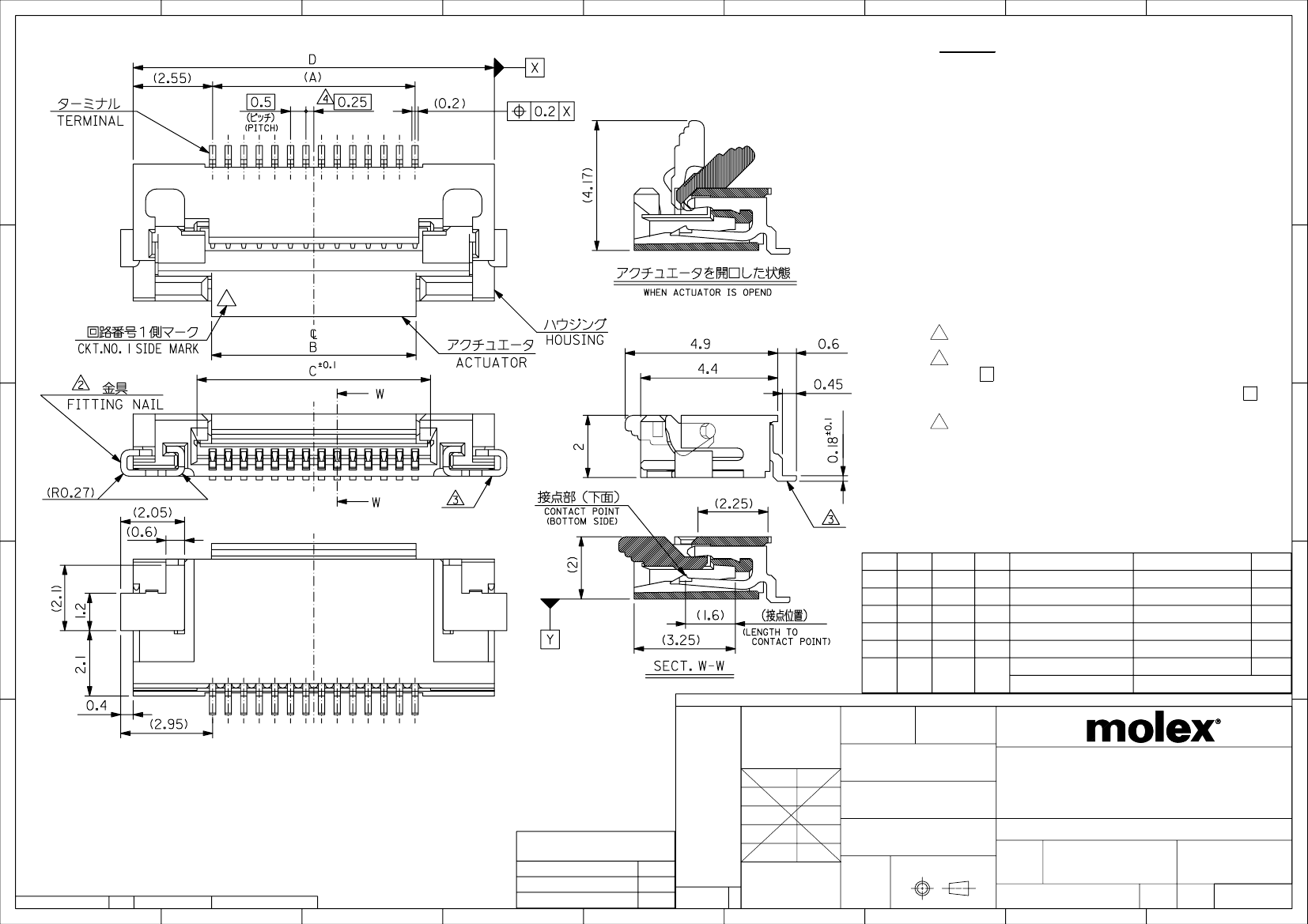

52892-**59
52892-**59
D
D
C
C
32
B
24
37.4 33.4 18.6
16.6
14.6
29.4 25.4 14.1
11.6
10.6
F
16.9
14.9
12.9
12.4
9.9
8.9
(C)
13.1
11.1
9.1
8.6
6.1
5.1
(B)
12.9
10.9
8.9
8.4
5.9
4.9
キャリアテープ幅
CARRIE TAPE WIDTH
2016/12/14
2016/12/15
2016/12/20
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
°
E
(D)
SCALE
52892-2496
24
52892-2096
20
52892-1696
16
52892-1596
15
B
52892-1096
10
52892-0896
8
MATERIAL NO.
CKT
(A)
CONNECTOR
MODEL NO. 52892-**96
52892-2459
52892-2059
52892-1659
52892-1559
52892-1059
52892-0859
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
MM
DRWN BY
DATE
---
RELEASED
4 PLACES
±
±
±
±
±
YMIZUNO02
CHK'D BY
DATE
2016/12/14
2016/12/15
DATE
111407
YMIZUNO02
YKOBAYASHI02
TKUSUHARA01
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.5 FFC/FPC ZIF SMT HSGASSY EMBSTPPKG
A
YKOBAYASHI02
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
TKUSUHARA01
DRAWING SIZE
2016/12/20
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
P1
RELEASE DATE
20.12.2016
00:53:43
A
7
6
5
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
52892
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
528920001
PSD
000
2 OF 2
9
8
4
2
1
9
8
7
6
5
4
3
注記 NOTES
2
1
E
D
1.材質 MATERIAL
ハウジング：46ナイロン、ガラス充填、UL94V-0、ナチュラル(½色)
HOUSING : 46NYLON, GLASS FILLED, UL94V-0, NATURAL(WHITE)
アクチュエータ：PPS、ナチュラル(茶色)、ガラス充填、UL94V-0
ACTUAOR : PPS, NATURAL(BROWN), GLASS FILLED, UL94V-0
ターミナル：リン青銅 (t=0.2)
TERMINAL : PHOSPHOR BRONZE (t=0.2)
めっき PLATING
接点部：金めっき (0.1μm以上)
テール部：金めっき (0.03μm以上)
ニッケル下地 (1.5μm以上)
CONTACT : GOLD PLATING (0.1 MICROMETER MINIMUM)
TAIL : GOLD PLATING (0.03 MICROMETER MINIMUM)
OVER NICKEL PLATING (1.5 MICROMETER MINIMUM)
金具：リン青銅 (t=0.2)
FITTING NAIL : PHOSPHOR BRONZE (t=0.2)
めっき PLATING
錫めっき (1.0μm以上)
ニッケル下地 (1.0μm以上)
CONTACT : GOLD PLATING (1.0 MICROMETER MINIMUM)
OVER NICKEL PLATING (1.0 MICROMETER MINIMUM)
2
パターンはくり止め用金具
FITTING NAIL FOR PREVENTION OF PEELING OF PCB PATTERN.
3
½ルダーテール半田付け面のズレ量、及び金具半田付け面のズレ量は、
基準面
Y に対し上方向0.05MAX.、下方向0.2MAX.とする。
E
D
MISALIGNMENT OF SOLDER TAILS AND FITTING NAILS FROM
Y
UPPER DIREVTION : 0.05 MAX. , LOWER DIRECTION : 0.2 MAX.
4
偶数極に適用。
APPLY FOR EVEN CIRCUIT.
5.テール及びネイルの平坦度は、0.1 MAX.
TAIL AND NAIL COPLANARITY TO BE 0.1 MAX.
6.本½品は52892シリーズの金めっき品である。
THIS PRODUCT IS GOLD PLATING OF 52892 SERIES.
7.ELV及びRoHS適合品.
ELV AND RoHS COMPLIANT.
C
C
B
16.6
14.6
12.6
12.1
9.6
8.6
D
2016/12/14
2016/12/15
2016/12/20
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
12.5
10.5
8.5
8.0
5.5
4.5
C
11.57
9.57
7.57
7.07
4.57
3.57
B
11.5
9.5
7.5
7.0
4.5
3.5
52892-2496
52892-2459
24
52892-2096
52892-2059
20
52892-1696
52892-1659
16
52892-1596
52892-1559
15
B
52892-1096
52892-1059
10
52892-0896
52892-0859
8
EMBOSSED TAPE MATERIAL NO.
CKT
(A)
ORDER NO.
MODEL NO. 52892-**59
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SCALE
MM
DRWN BY
DATE
---
RELEASED
4 PLACES
±
±
±
±
±
0.2
0.2
0.2
0.2
0.2
YMIZUNO02
CHK'D BY
DATE
2016/12/14
2016/12/15
DATE
111407
YMIZUNO02
YKOBAYASHI02
TKUSUHARA01
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.5 FFC/FPC ZIF HSG ASSY
A
GENERAL TOLERANCES
(UNLESS SPECIFIED)
10 UNDER
±
0.2
10 OVER
30 UNDER
±
0.25
±
0.3
30 OVER
YKOBAYASHI02
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
TKUSUHARA01
DRAWING SIZE
2016/12/20
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: tb-prod-A3
REVISION: G
DATE: 2015/12/14
P1
RELEASE DATE
20.12.2016
00:53:48
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
52892
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
528921001
PSD
000
1 OF 2
9
8
7
6
5
4
2
1
9
8
7
6
5
4
3
2
1
0.3
±
0.05
E
めっき：金めっき(0.2μm)
下地ニッケル(1-5μm)
PLATING : GOLD(0.2μm)
NICKEL UNDER(1-5μm)
GENERAL
仕上がり厚さ
THICKNESS
E
D
D
C
±
0.05
±
0.05
±
0.05
±
0.05
補強板:ポリイミド
REINFORCE BOARD : POLYIMIDE
熱硬化接着剤
THERMOSETTING ADHESIVE
ベースフィルム:ポリイミド(25μm)
BASE FILM : POLYIMIDE(25μm)
熱硬化接着剤
THERMOSETTING ADHESIVE
導½部:銅箔(35μm)
COPPER FOIL (35μm)
熱硬化接着剤
THERMOSETTING ADHESIVE
カバーレイ:ポリイミド(25μm)
COVER FILM : POLYIMIDE(25μm)
C

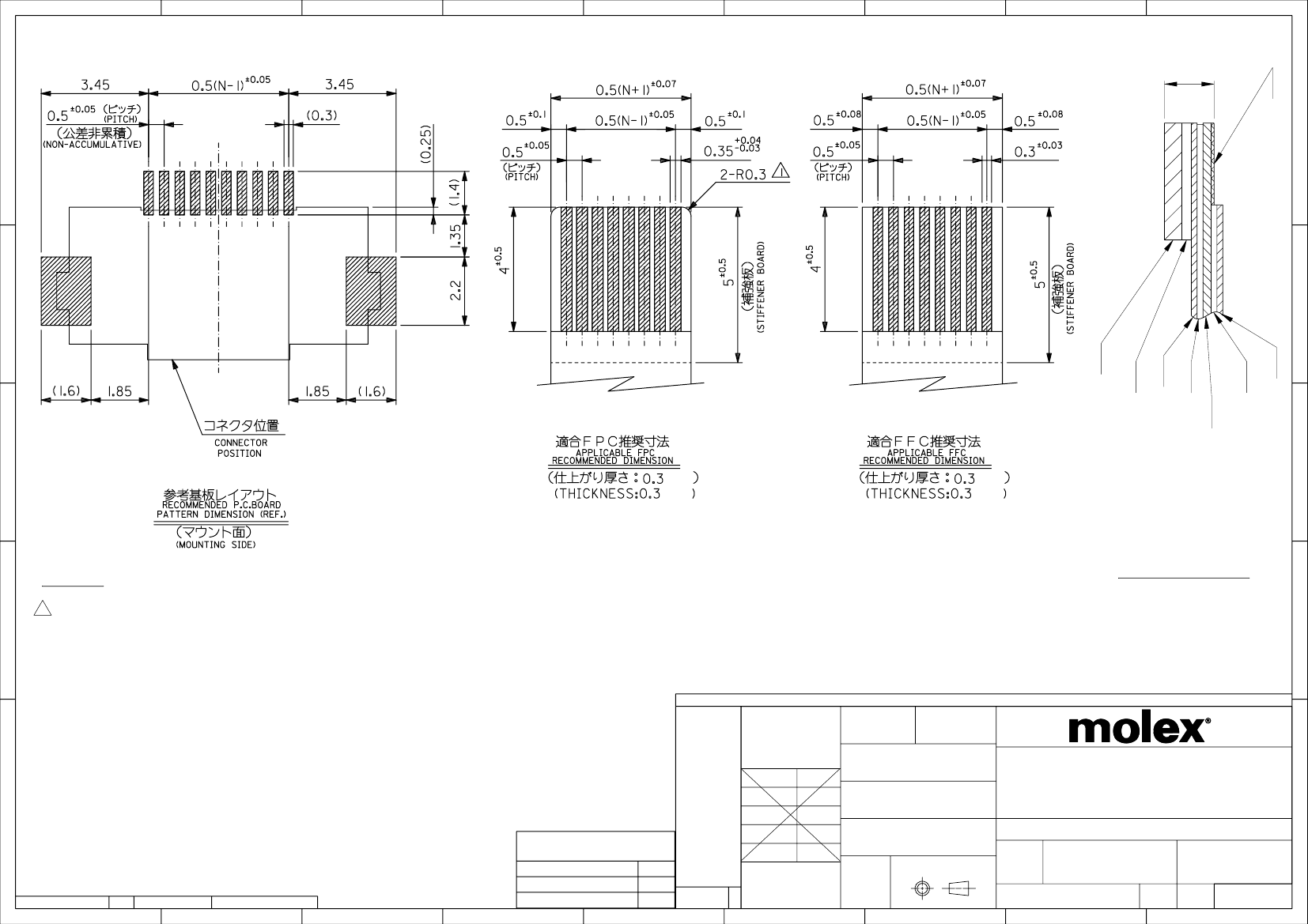

注記 NOTES
FPC構成推奨仕様
STRUCTURE OF FPC
B
1
111407
YMIZUNO02
YKOBAYASHI02
TKUSUHARA01
A
R0.3はFPCの導½部にかからないこと.
R0.3 MUST NOT BE OVERLAPPED TO PATTERN OF FPC.
2.FPCについて ABOUT FPC :
打ち抜き方向は導½側から補強板側を推奨します。
導½部については軟箔銅35μmまたは50μmを推奨します。
補強フィルム材質はポリイミドを推奨します。ベースフィルムは25μmを推奨します。
接着剤は熱硬化接着剤を推奨します。
尚、接着剤の接点部への付着は導通不良の原因になりますので、染み出しが無い様、お願い致します。
RECOMMENDED PUNCHING DIRECTION : FROM CONDUCTOR SIDE TO STIFFENER SIDE
RECOMMENDED CONDUCTOR SPEC : SOFT COPPER FOIL
RECOMMENDED CONDUCTOR THICKNESS : 35 MICROMETER OR 50 MICROMETER
RECOMMENDED STIFFENER MATERIAL : POLYIMIDE
RECOMMENDED BASE FILM THICKNESS : 25 MICROMETER
RECOMMENDED ADHESIVE : THERMOSETTING ADHESIVE
NOTE : PLEASE PUT APPROPRIATE AMOUT OF ADHESIVE ON ADHEREND BECAUSE THERE IS A
POSSIBILITY THAT THE EXTRA ADHESIVE CAUSES THE DEFECT IN ELECTRICAL CONTINUITY.
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/12/14
2016/12/15
2016/12/20
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
---
RELEASED
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
±
±
±
±
±
0.2
0.2
0.2
0.2
0.2
YMIZUNO02
CHK'D BY
DATE
2016/12/14
2016/12/15
DATE
0.5 FFC/FPC ZIF HSG ASSY
YKOBAYASHI02
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
P1
RELEASE DATE
20.12.2016
00:53:48
GENERAL TOLERANCES
(UNLESS SPECIFIED)
10 UNDER
±
0.2
10 OVER
30 UNDER
±
0.25
±
0.3
30 OVER
TKUSUHARA01
DRAWING SIZE
2016/12/20
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
52892
DOCUMENT NUMBER
SEE CHART
A3
3
DOC TYPE
DOC PART
SHEET NUMBER
528921001
PSD
000
2 OF 2
9
8
7
6
5
4
2
1
