PH1-500/120-401 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> PH1-500/120-401

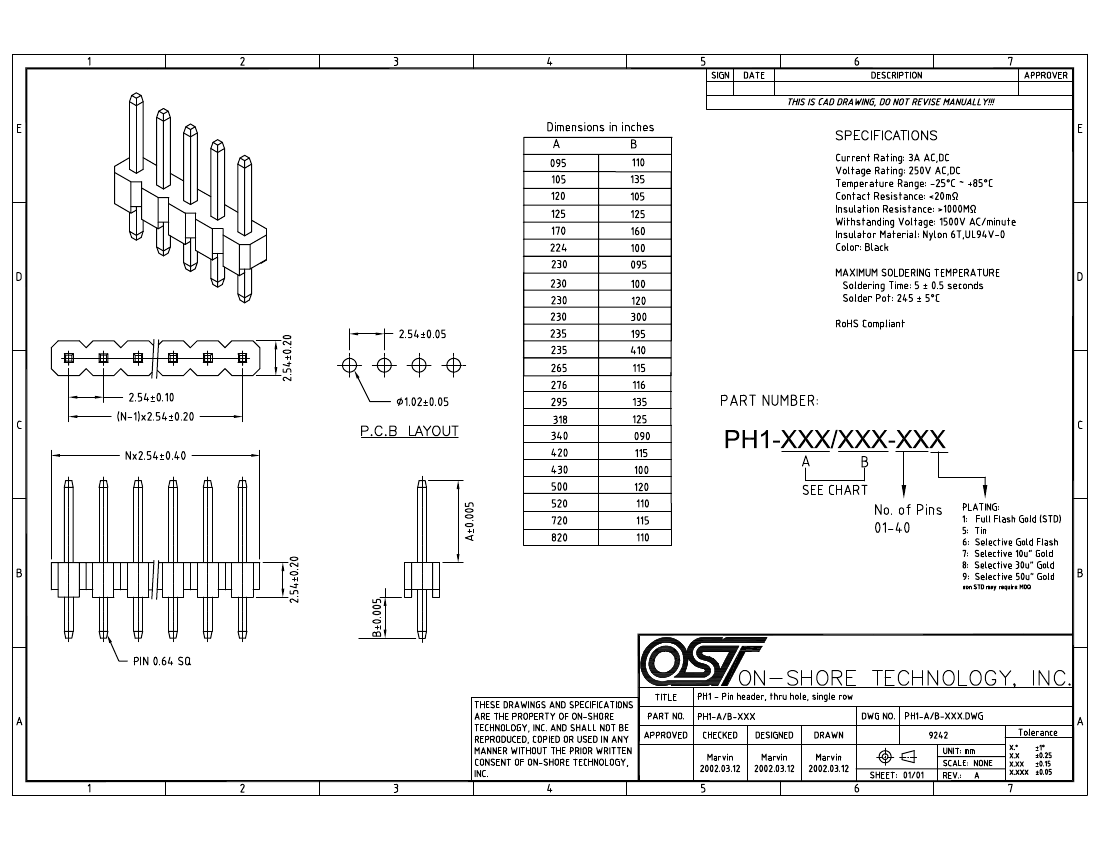

Preview

PH1-500/120-401: DescriptionCONN HDR .100 40POS VERT; CategoryThe connector; File Size70KB，1 Pages; ManufacturerOn Shore Technology Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

PH1-500/120-401 Overview

CONN HDR .100 40POS VERT

PH1-500/120-401 Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	40
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.500"（12.70mm）
Contact length - terminal	0.120"（3.05mm）
Overall contact length	0.720"（18.29mm）
Insulation height	0.100"（2.54mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Contact Surface Preparation - Column	-
Contact material	Phosphor bronze
Insulation Materials	Polyamide (PA6T), Nylon 6T
characteristic	-
Operating temperature	-25°C ~ 85°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	3A
Rated voltage	250V
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

PH1-500/120-401 Related Products

	PH1-500/120-401	PH1-230/120-021	PH1-230/120-061	PH1-230/120-051	PH1-820/110-161
Description	CONN HDR .100 40POS VERT	TERM BLOCK HDR 2.54MM 2POS PCB	TERM BLOCK HDR 2.54MM 6POS PCB	TERM BLOCK HDR 2.54MM 5POS PCB	CONN HEADER 16POS VERT .1" GOLD
Connector type	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Number of pins	40	2	6	5	16
Number of rows	1	1	1	1	1
Number of pins loaded	all	all	all	all	all
style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
shield	Uncovered	Uncovered	Uncovered	Uncovered	Uncovered
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole
Termination	welding	welding	welding	welding	welding
Fastening type	push-pull	push-pull	push-pull	push-pull	push-pull
Contact Length - Mating	0.500"（12.70mm）	0.230"（5.84mm）	0.230"（5.84mm）	0.230"（5.84mm）	0.820"（20.83mm）
Contact length - terminal	0.120"（3.05mm）	0.120"（3.05mm）	0.120"（3.05mm）	0.120"（3.05mm）	0.110"（2.79mm）
Overall contact length	0.720"（18.29mm）	0.450"（11.43mm）	0.450"（11.43mm）	0.450"（11.43mm）	1.030"（26.16mm）
Insulation height	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Contact shape	Square	Square	Square	Square	Square
Contact surface treatment - mating	gold	gold	gold	gold	gold
Contact Surface Treatment Thickness - Mating	flash memory	flash memory	flash memory	flash memory	flash memory
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Insulation Materials	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T
Operating temperature	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	black	black	black	black	black
Rated current	3A	3A	3A	3A	3A
Rated voltage	250V	250V	250V	250V	250V
