Part Number

Search

5033950810

Description
CONN RCPT SMD 8CKT BEIGE
CategoryThe connector
File Size459KB,4 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric Compare View All

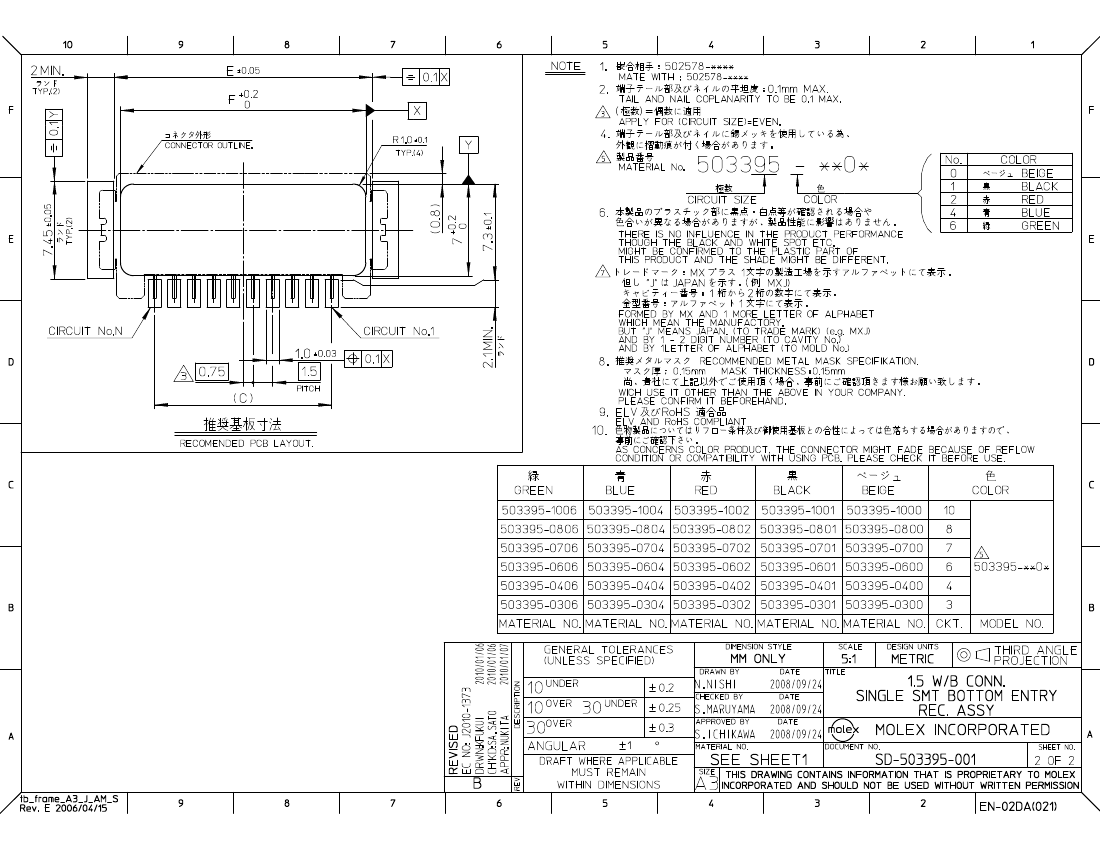

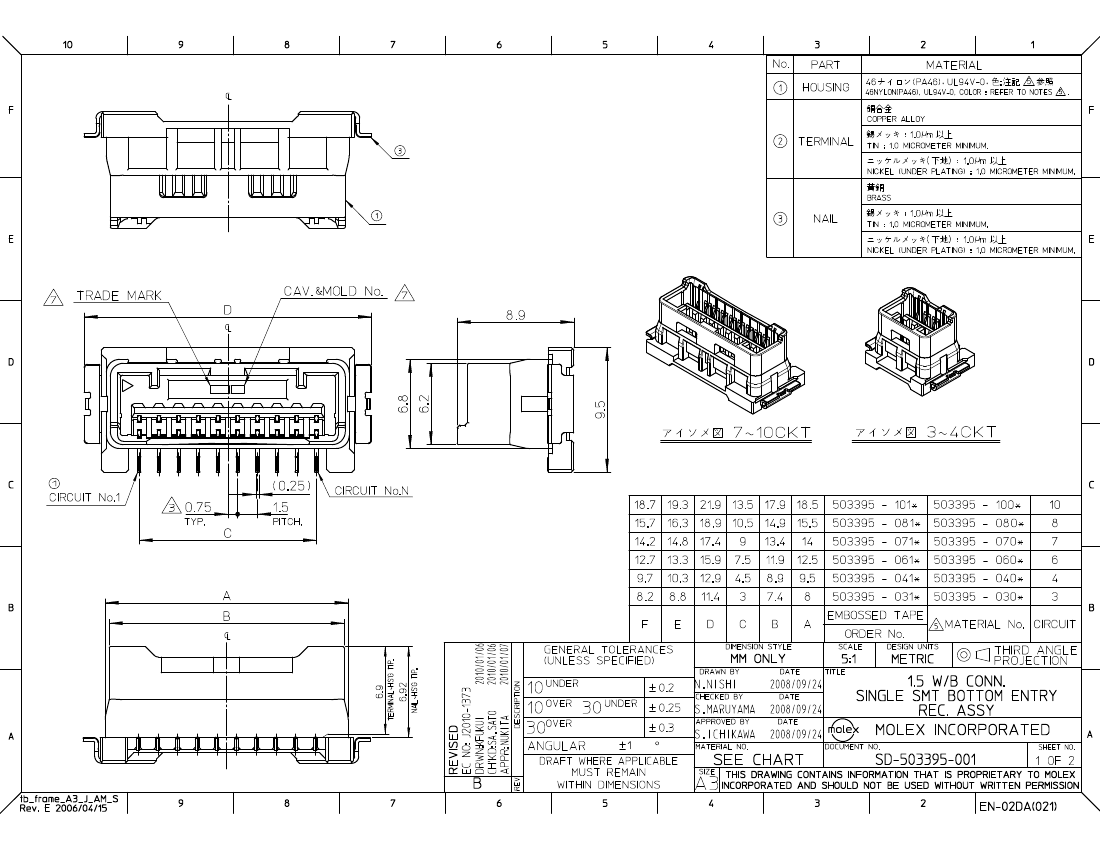

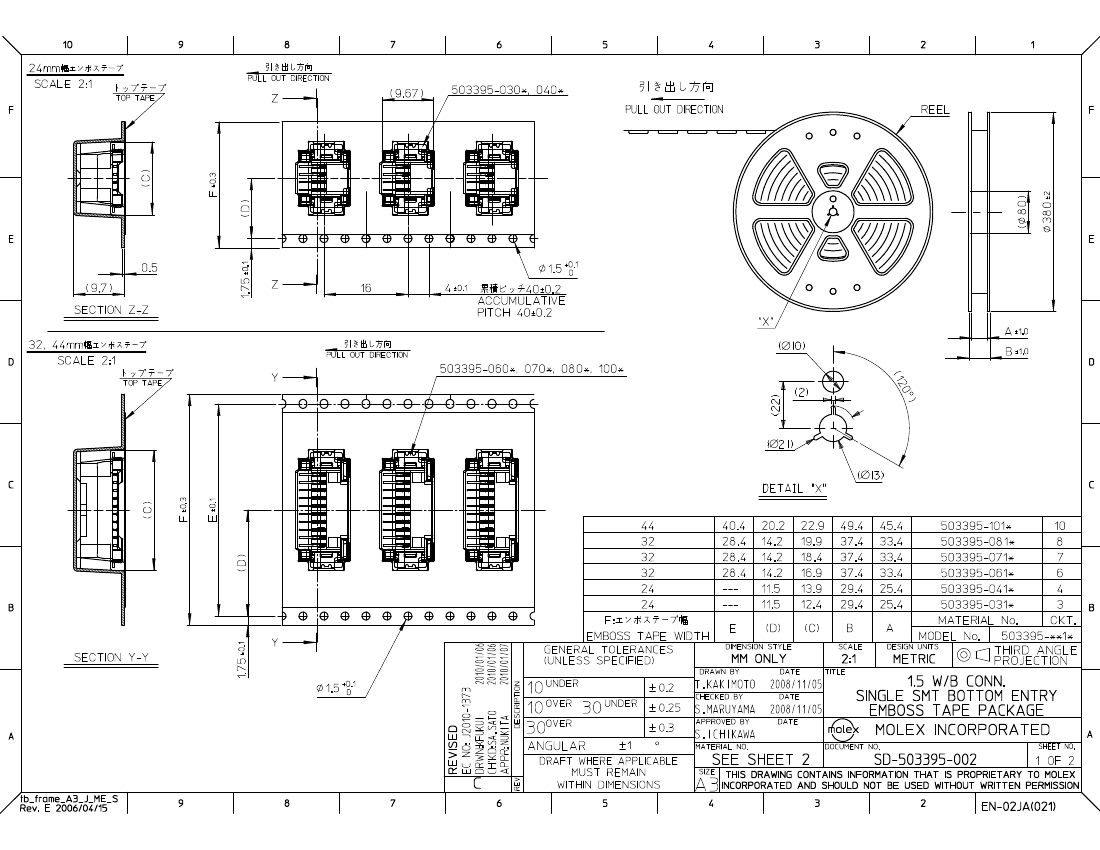

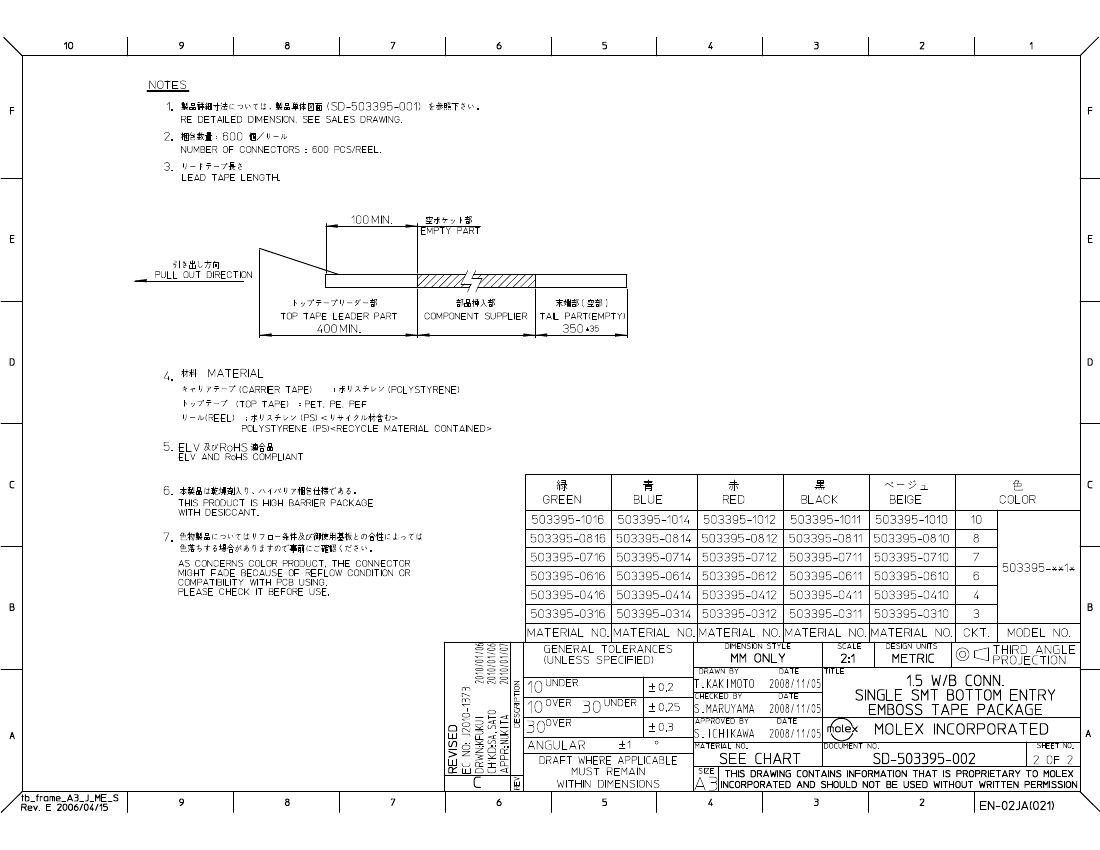

5033950810 Overview

CONN RCPT SMD 8CKT BEIGE

5033950810 Parametric

Parameter NameAttribute value
Connector typesocket
Contact typeForked
styleBoard to cable/wire
Number of pins8
Number of pins loadedall
Spacing - Mating0.059"(1.50mm)
Number of rows1
Line spacing - patching-
Installation typesurface mount
Terminationwelding
Fastening typelatch holder
Contact surface treatment - matingtin
Contact Surface Treatment Thickness - Mating39.4µin(1.00µm)
Insulation colorbeige
Insulation height0.350"(8.89mm)
Contact length - terminal-
Operating temperature-40°C ~ 105°C
Material flammability ratingUL94 V-0
Contact Surface Preparation - Columntin
Joint stack height-
Intrusion protection-
characteristicFixed solder tail
Rated current-
Rated voltage-
applicationAutomotive, general, industrial, lighting, medical
Insulation MaterialsPolyamide (PA46), Nylon 46
Contact shape-
Contact materialcopper alloy
Contact Surface Treatment Thickness - Column39.4µin(1.00µm)

5033950810 Related Products

5033950810 5033950410 5033950310 5033951010 5033950710 5033950610
Description CONN RCPT SMD 8CKT BEIGE CONN RCPT SMD 4CKT BEIGE CONN RCPT SMD 3CKT BEIGE CONN RCPT SMD 10CKT BEIGE CONN RCPT SMD 7CKT BEIGE CONN RCPT SMD 6CKT BEIGE
Connector type socket socket socket socket socket socket
Contact type Forked Forked Forked Forked Forked Forked
style Board to cable/wire Board to cable/wire Board to cable/wire Board to cable/wire Board to cable/wire Board to cable/wire
Number of pins 8 4 3 10 7 6
Number of pins loaded all all all all all all
Spacing - Mating 0.059"(1.50mm) 0.059"(1.50mm) 0.059"(1.50mm) 0.059"(1.50mm) 0.059"(1.50mm) 0.059"(1.50mm)
Number of rows 1 1 1 1 1 1
Installation type surface mount surface mount surface mount surface mount surface mount surface mount
Termination welding welding welding welding welding welding
Fastening type latch holder latch holder latch holder latch holder latch holder latch holder
Contact surface treatment - mating tin tin tin tin tin tin
Contact Surface Treatment Thickness - Mating 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm)
Insulation color beige beige beige beige beige beige
Insulation height 0.350"(8.89mm) 0.350"(8.89mm) 0.350"(8.89mm) 0.350"(8.89mm) 0.350"(8.89mm) 0.350"(8.89mm)
Operating temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Material flammability rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Surface Preparation - Column tin tin tin tin tin tin
characteristic Fixed solder tail Fixed solder tail Fixed solder tail Fixed solder tail Fixed solder tail Fixed solder tail
application Automotive, general, industrial, lighting, medical Automotive, general, industrial, lighting, medical Automotive, general, industrial, lighting, medical Automotive, general, industrial, lighting, medical Automotive, general, industrial, lighting, medical Automotive, general, industrial, lighting, medical
Insulation Materials Polyamide (PA46), Nylon 46 Polyamide (PA46), Nylon 46 Polyamide (PA46), Nylon 46 Polyamide (PA46), Nylon 46 Polyamide (PA46), Nylon 46 Polyamide (PA46), Nylon 46
Contact material copper alloy copper alloy copper alloy copper alloy copper alloy copper alloy
Contact Surface Treatment Thickness - Column 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm)
