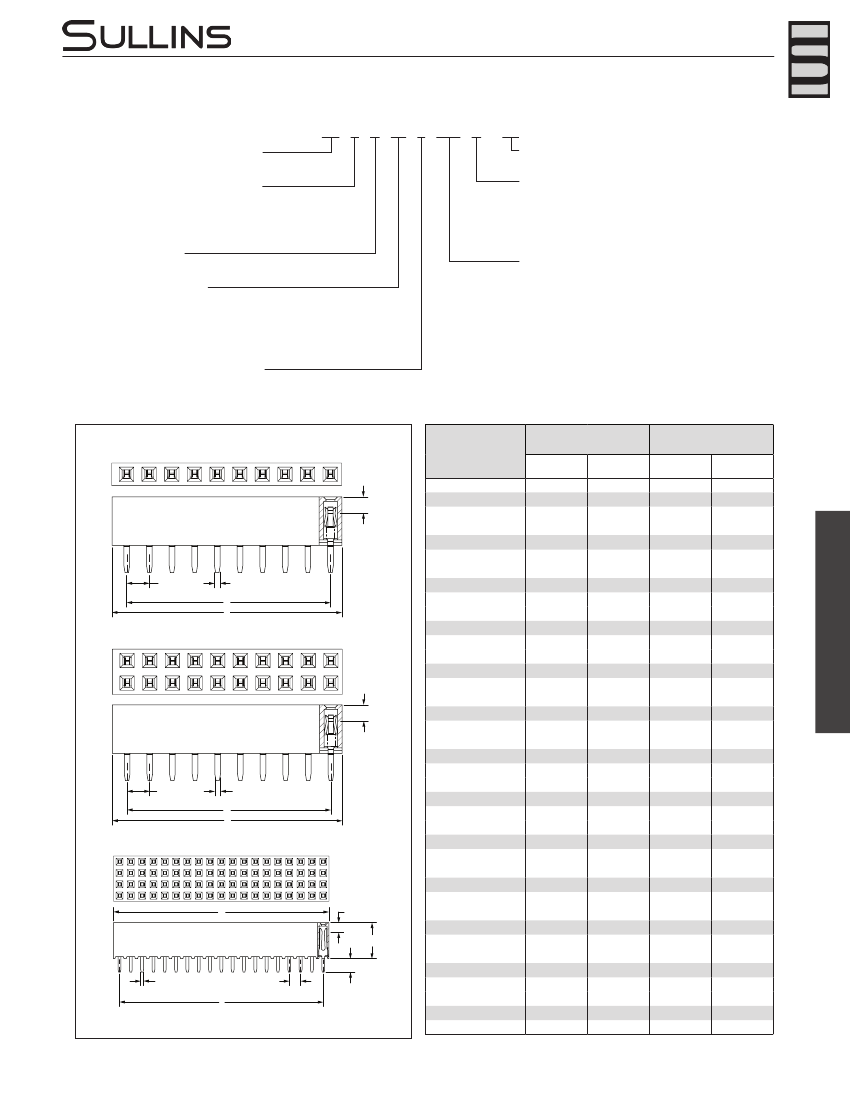

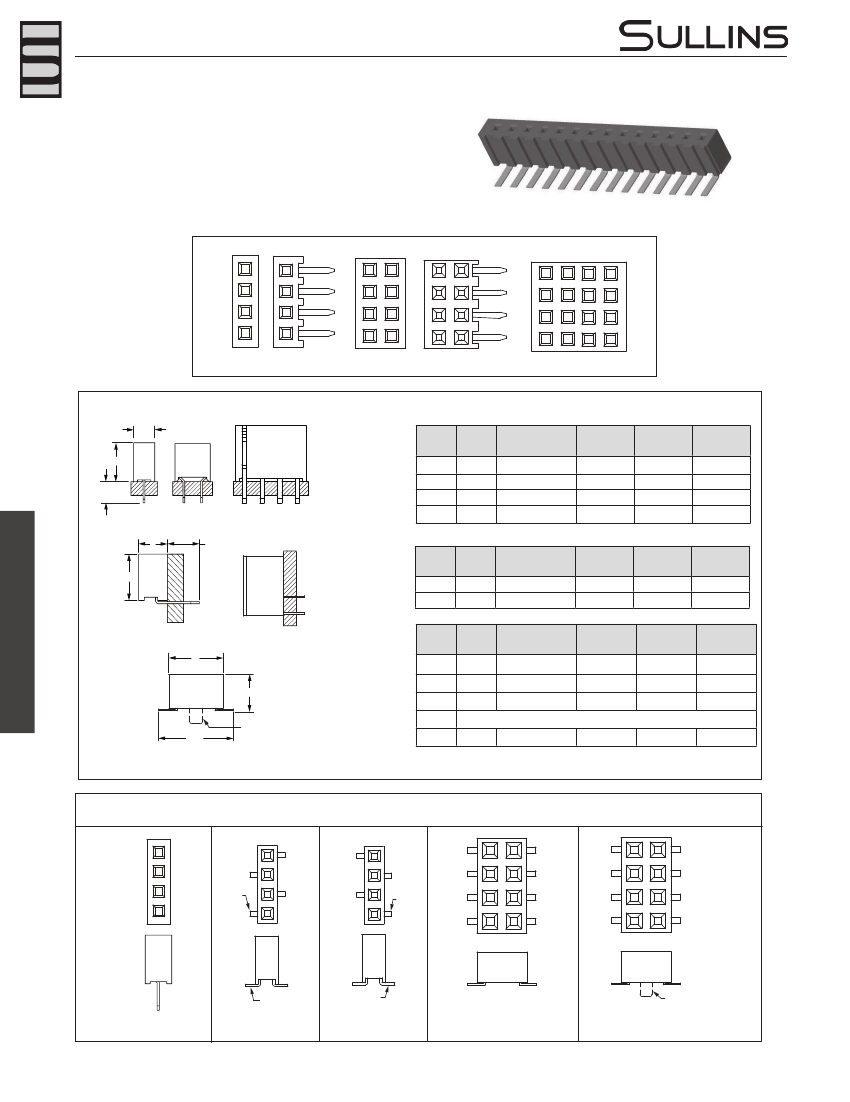

Sullins Headers
.079” [2.00 mm] Contact Centers, Female Headers,
Straight/Right Angle/SMT
SPECIFICATIONS
•
•
•
•
2 Amps current rating
UL Flammability Rating: 94V-0
Insulator Material: Black Nylon
Contact Material: Phosphor Bronze
READOUT
SINGLE (1)
DUAL (2)
QUAD (4)
TERMINATION TYPE
B
A
TAIL
P/N
CODE
ROWS
1
2
2
4
TERMINATION
TYPE
STRAIGHT
STRAIGHT
STRAIGHT
STRAIGHT
A
.173ʺ [4.40]
.169ʺ [4.30]
.250ʺ [6.35]
B
.094ʺ [2.40]
.157ʺ [4.00]
.315ʺ [8.00]
TAIL
.094ʺ [2.40]
.094ʺ [2.40]
.110ʺ [2.80]
.094ʺ [2.40]
STRAIGHT
BFC
AFC
AFE
EFC
.169ʺ [4.30] .157ʺ [4.00]
B
TAIL
Sullins Headers
A
RIGHT ANGLE
P/N
CODE
FGG
FJF
P/N
CODE
ROWS
1
2
TERMINATION
TYPE
RIGHT ANGLE
RIGHT ANGLE
TERMINATION
TYPE
SMT
SMT
SMT
SMT
A
.169ʺ [4.30]
.283ʺ [7.20]
B
.110ʺ [2.80]
.191ʺ [4.85]
TAIL
.122ʺ [3.10]
.118ʺ [3.00]
ROWS
1
1
2
2
A
.181ʺ [4.60]
.169ʺ [4.30]
.110ʺ [2.80]
.173ʺ [4.40]
B
.094ʺ [2.40]
.094ʺ [2.40]
.165ʺ [4.20]
.157ʺ [4.00]
TAIL
.157ʺ [4.00]
.157ʺ [4.00]
.228ʺ [5.80]
.228ʺ [5.80]
B
A
Refer to Mounting Style
BFL
SMT
BHL
GFN
GHN
FFK
Replaced by GFN
TAIL
MOUNTING STYLE
PIN 1
PIN 1
PIN 1
PIN 1
Guide Post
Dual Row SMT,
Without Guide Posts (S)
Dual Row SMT,
With Guide Posts (P)
Straight or
Right Angle (N)
Single Row SMT,
Pin 1 Left (C)
Single Row SMT,
Pin 1 Right (D)
102
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Sullins Headers
.079” [2.00 mm] Contact Centers, Female Headers,
Straight/Right Angle/SMT
PART NUMBER OPTIONS
NP P N 40 1 BFC N - RC
MATERIALS (INSULATOR/CONTACT)
NP = Nylon /Phosphor Bronze
CONTACT FINISH - RoHS Compliant
Contact Surface
Termination
P = Gold Flash
Gold Flash (For 1 and 2 Rows)
R = .000020” Gold
.000100” Tin (For 4 Rows)
Consult factory for other plating options.
CONTACT CENTERS
N = .079” [2.00 mm]
NUMBER OF POSITIONS
Positions
Termination
Available
2 Thru 40 = AFC, AFE, BFL, FFK, FGG, FJF, GFN
3 Thru 40 = BFC, BHL
5 Thru 30 = EFC
NUMBER OF ROWS (Opposite Page)
1 = One Row
2 = Two Rows
4 = Four Rows
RoHS COMPLIANT
Consult Factory For Modifications
MOUNTING STYLE
N = No Mounting
C = SMT, Single row female, pin 1 Left
D = SMT, Single row female, pin 1 Right
P = Surface mount with guide Posts
S = Surface mount without guide Posts
TERMINATION TYPE (Opposite Page)
AFC = Thru Hole
Top Entry
AFE = Thru Hole
Top Entry/Closed Bottom
BFC = Thru Hole
Top Entry
EFC = Thru Hole
Top Entry
FGG = R/A
Top Entry
FJF = R/A
Top Entry
BFL = SMT
Top Entry
FFK = SMT
Top Entry
BHL, GFN = SMT
Top/Bottom Entry
GHN = SMT
Replaced by GFN
NUMBER OF
CONTACTS
SINGLE/DUAL/
QUAD
02/04/NA
03/06/NA
04/08/NA
05/10/20
06/12/24
07/14/28
08/16/32
09/18/36
10/20/40
11/22/44
12/24/48
13/26/52
14/28/54
15/30/60
16/32/64
17/34/68
18/36/72
19/38/76
20/40/80
21/42/84
22/44/88
23/46/92
24/48/96
25/50/100
26/52/104
27/54/108
28/56/112
29/58/116
30/60/120
31/62/NA
32/64/NA
33/66/NA
34/68/NA
35/70/NA
36/72/NA
37/74/NA
38/76/NA
39/78/NA
40/80/NA
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
CENTER TO CENTER
LENGTH [A]
in
0.079
0.157
0.236
0.315
0.394
0.472
0.551
0.630
0.709
0.787
0.866
0.945
1.024
1.102
1.181
1.260
1.339
1.417
1.496
1.575
1.654
1.732
1.811
1.890
1.969
2.047
2.126
2.205
2.283
2.362
2.441
2.520
2.598
2.677
2.756
2.835
2.913
2.992
3.071
OVERALL LENGTH
[B]**
in
0.157
0.236
0.315
0.394
0.472
0.551
0.630
0.709
0.787
0.866
0.945
1.024
1.102
1.181
1.260
1.339
1.417
1.496
1.575
1.654
1.732
1.811
1.890
1.969
2.047
2.126
2.205
2.283
2.362
2.441
2.520
2.598
2.677
2.756
2.835
2.913
2.992
3.071
3.150
mm
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
32.00
34.00
36.00
38.00
40.00
42.00
44.00
46.00
48.00
50.00
52.00
54.00
56.00
58.00
60.00
62.00
64.00
66.00
68.00
70.00
72.00
74.00
76.00
78.00
mm
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
32.00
34.00
36.00
38.00
40.00
42.00
44.00
46.00
48.00
50.00
52.00
54.00
56.00
58.00
60.00
62.00
64.00
66.00
68.00
70.00
72.00
74.00
76.00
78.00
80.00
.059[1.50]
Sullins Headers
.079[2.00]
A
B
SINGLE READOUT,
STRAIGHT TAIL SHOWN
.020 [0.50]
X .008[0.20]
(FITS .031[0.80] HOLE)
.057 [1.45]
.079[2.00]
A
B
DUAL READOUT,
STRAIGHT TAIL SHOWN
.020[0.50]
X .008[0.20]
(FITS .031[0.80] HOLE)
B
.072[1.82]
.250[6.35]
.094[2.40]
.079[2.00]
.020[0.50]
SQ.
(FITS .031[0.80] HOLE)
A
QUAD READOUT,
STRAIGHT TAIL SHOWN
(SOLDER AREA)
** Dimension 'B' as shown are for 'FFK', Consult factory for other termination.
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
103
