2.54mm Pitch Bottom Entry Type Connector
MDF7 Series
Board to Board size Freely settable
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

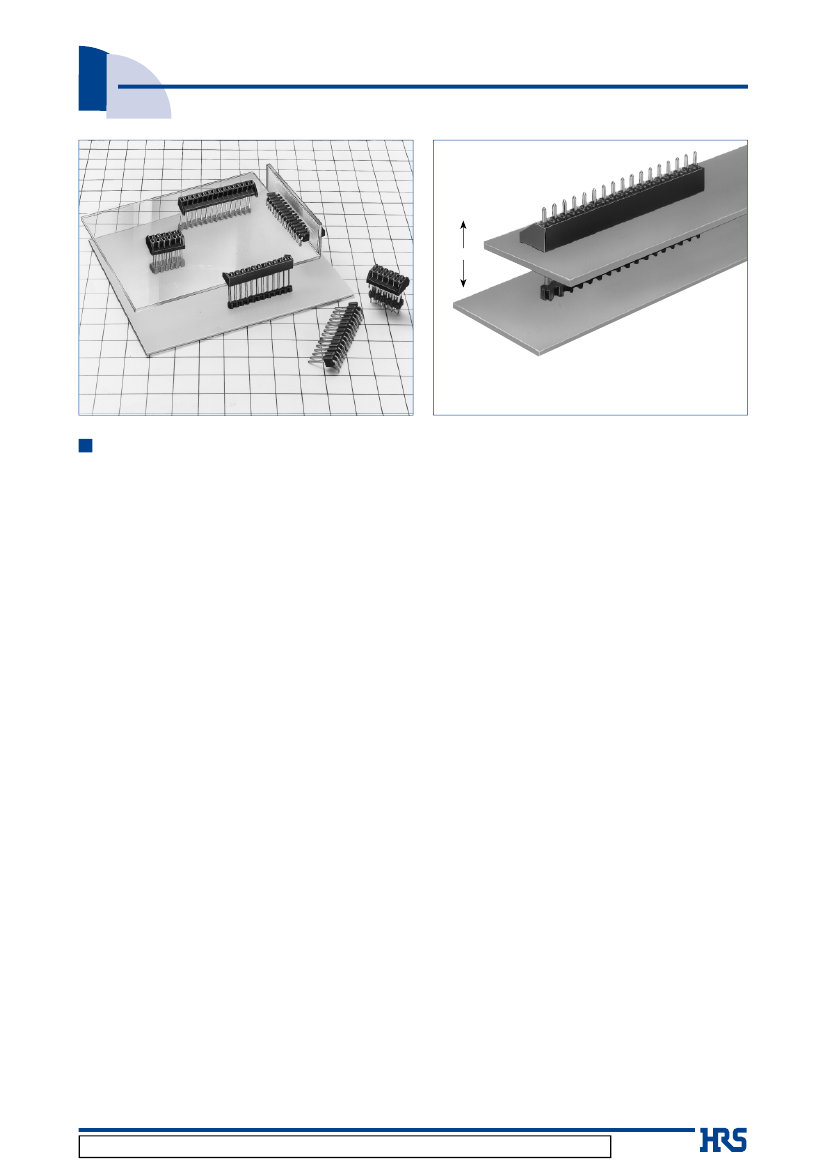

Fig.1
Features
1. Board to Board Size Freely Settable
The board to board size can be set at infinite stages, according to the header pin through type structure
and the diverse header variation.
The board to board size can be set at infinite stages.
2. Integrity of Parts Mounted Surface
The parts mounted surface on two boards aren't face each other, and can be oriented in the same
direction.
3. Wide Variation
Single-row product, double-row product, tin plated and gold plated products are lined up. In addition, the
header to correspond to the board to board size are prepared. Concerning board to board size, other
products can be provided, in addition to products in this catalog. Please contact HRS company as required.
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.3③
1
MDF7 Series●2.54mm Pitch Bottom Entry Type Connector
Product Specifications
Rating
Current rating : 3A
Operating Temperature Range : -35ç to +85ç (Note 1) Storage Temperature Range : -10ç to +60ç (Note 2)
Storage Humidity Range : 40% to 70% (Note 2)
Condition
500V DC
650V AC/1 minute
100mA
Measured by the square steel pin with
0.635±0.002mm
Frequency : 10 to 55Hz, single amplitude of
0.75mm, 2 hours in each of the 3 directions.
96 hours at temperature of
(-55ç : 30 minutes, 5 to 35ç : 10 minutes
85ç : 30 minutes, 5 to 35ç : 10 minutes)
5cycles
Tin plating : 30 cycles
Gold plating : 50 cycles
Flow : 260ç for 10 seconds
Manual soldering : 350ç for 3 seconds
Voltage rating : 250V AC Operating Humidity Range : 40% to 80%
Specification
1000Mø min.
No flashover or insulation breakdown.
30mø max.
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Single Insertion/Extraction
MIN 0.4N (40gf), MAX 4.4N (450gf)
Force
5. Vibration
No electrical discontinuity of 10µs or more
Contact resistance : 30mø max.
Contact resistance : 30mø max.
Insulation resistance : 1000Mø min.
Contact resistance : 30mø max.
No deformation of components affecting
performance.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
6. Humidity (Steady state)
7. Temperature Cycle
8. Durability
(Mating/un-mating)
9. Resistance to Soldering
heat
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
Material / Finish
Product
Receptacle
Pin Header
Contact
Insulator
Contact
Part
Insulator
Material
Polyamide
Phosphor bronze
PBT
Brass
Finish
Black
Tin plated or gold plated
Main unit : Black/Locator : Gray
Tin plated or gold plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
MDF7
q
-
*
S - 2.54 DSA (
**
)
w
e
r
t
y
y
Receptacle
(95) : Tin plated (100 pcs/pack)
(96) : Gold plated (100 pcs/pack)
Pin Header
P (55) : Tin plated (100 pcs/pack)
(01) : Gold plated (100 pcs/pack)
DP (55) : Tin plated (100 pcs/pack)
Blank : Gold plated (100 pcs/pack)
q
Series Name : MDF7
w
Number of contacts: 3 to 46
e
Connector Type
S : Single row receptacle
D : Double row receptacle
P : Single row pin header
DP: Double row pin header
r
Contact Pitch : 2.54mm
t
Contact type
DSA : Straight through hole
DS : Right Angle through hole
2
MDF7 Series●2.54mm Pitch Bottom Entry Type Connector

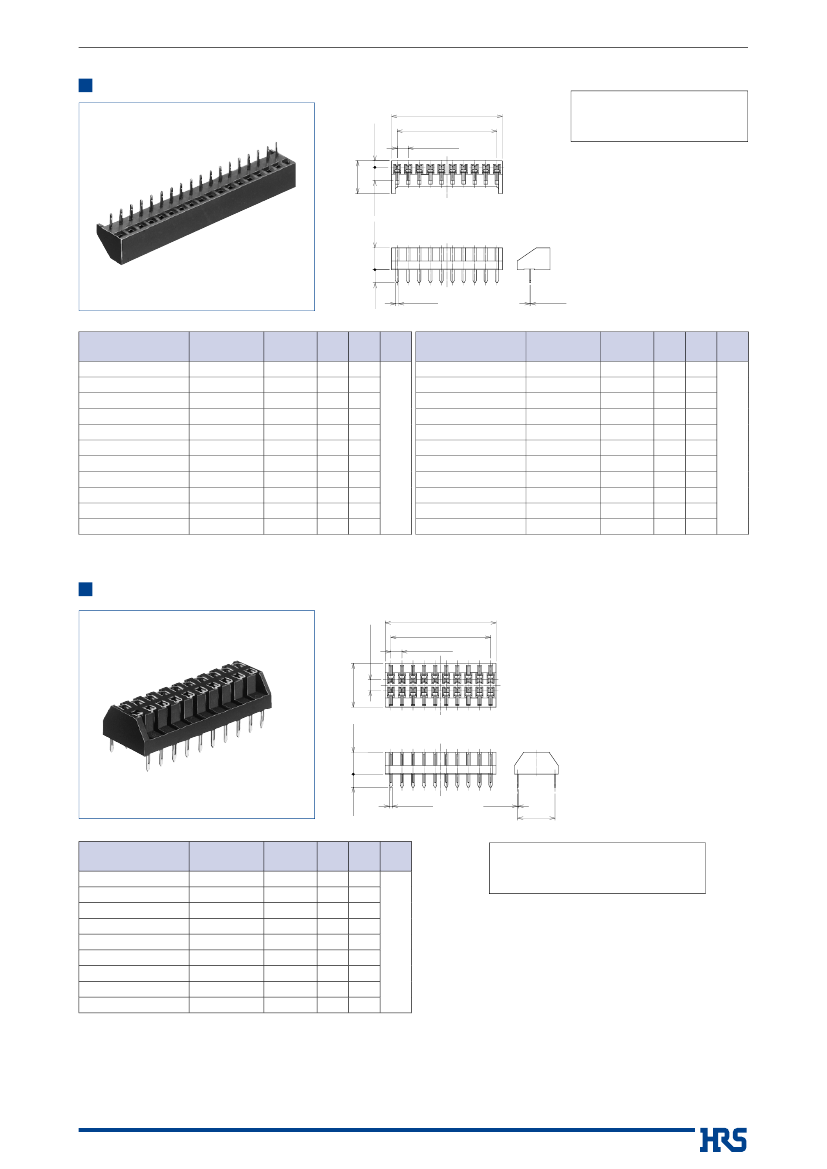

Single Row Receptacle
A
±0.5
1.5
±0.2
B
±0.3
P=2.54
±0.15
[Specific No.] (* *), * *
(95) : Tin plated
(96) : Gold plated
7.5
±0.3
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3
±0.3
5
±0.3
3
±0.2
0.76
±0.1
0.2
±0.1
Unit : mm
Part No.
HRS No.
No. of
Contacts
3
5
6
7
8
9
10
11
12
13
14
A
B
RoHS
Part No.
HRS No.
No. of
Contacts
15
16
17
18
19
20
21
22
23
24
25
A
B
RoHS
MDF7-3S-2.54DSA(**)
MDF7-5S-2.54DSA(**)
MDF7-6S-2.54DSA(**)
MDF7-7S-2.54DSA(**)
MDF7-8S-2.54DSA(**)
MDF7-9S-2.54DSA(**)
MDF7-10S-2.54DSA(**)
MDF7-11S-2.54DSA(**)
MDF7-12S-2.54DSA(**)
MDF7-13S-2.54DSA(**)
MDF7-14S-2.54DSA(**)
547-0355-0
**
547-0112-9
**
547-0129-1
**
547-0135-4
**
547-0136-7
**
547-0137-0
**
547-0038-8
**
547-0138-2
**
547-0040-0
**
547-0139-5
**
547-0140-4
**
7.62
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
5.08
10.16
12.70
15.24
17.78
20.32
Yes
22.86
25.40
27.94
30.48
33.02
MDF7-15S-2.54DSA(**)
MDF7-16S-2.54DSA(**)
MDF7-17S-2.54DSA(**)
MDF7-18S-2.54DSA(**)
MDF7-19S-2.54DSA(**)
MDF7-20S-2.54DSA(**)
MDF7-21S-2.54DSA(**)
MDF7-22S-2.54DSA(**)
MDF7-23S-2.54DSA(**)
MDF7-24S-2.54DSA(**)
MDF7-25S-2.54DSA(**)
547-0012-4
**
547-0141-7
**
547-0142-0
**
547-0013-7
**
547-0143-2
**
547-0051-6
**
547-0144-5
**
547-0145-8
**
547-0146-0
**
547-0147-3
**
547-0014-0
**
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
35.56
38.10
40.64
43.18
45.72
48.26
Yes
50.80
53.34
55.88
58.42
60.96
Note : The quantity for delivery is determined 100 pcs/pack. Please order the products per pack.
Double Row Receptacle
2.54
±0.15
A
±0.5
B
±0.3
P=2.54
±0.15
5
±0.3
10
±0.3
3
±0.3
0.76
±0.1
0.2
±0.1
8.54
±0.4
Unit : mm
No. of
[Specific No.] (* *), * *
A
B RoHS
Contacts
(95) : Tin plated
MDF7-12D-2.54DSA(**) 547-0032-1
**
12
15.24 12.70
(96) : Gold plated
MDF7-14D-2.54DSA(**) 547-0354-8
**
14
17.78 15.24
MDF7-16D-2.54DSA(**) 547-0363-9
**
16
20.32 17.78
MDF7-20D-2.54DSA(**) 547-0033-4
**
20
25.40 22.86
MDF7-22D-2.54DSA(**) 547-0246-5
**
22
27.94 25.40
Yes
MDF7-24D-2.54DSA(**) 547-0244-0
**
24
30.48 27.94
MDF7-26D-2.54DSA(**) 547-0247-8
**
26
33.02 30.48
MDF7-30D-2.54DSA(**) 547-0016-5
**
30
38.10 35.56
MDF7-34D-2.54DSA(**) 547-0227-0
**
34
43.18 40.64
Note 1 : A quantity for delivery is determined 100 pcs/pack. Please order the products per pack.
Part No.
HRS No.
3
MDF7 Series●2.54mm Pitch Bottom Entry Type Connector

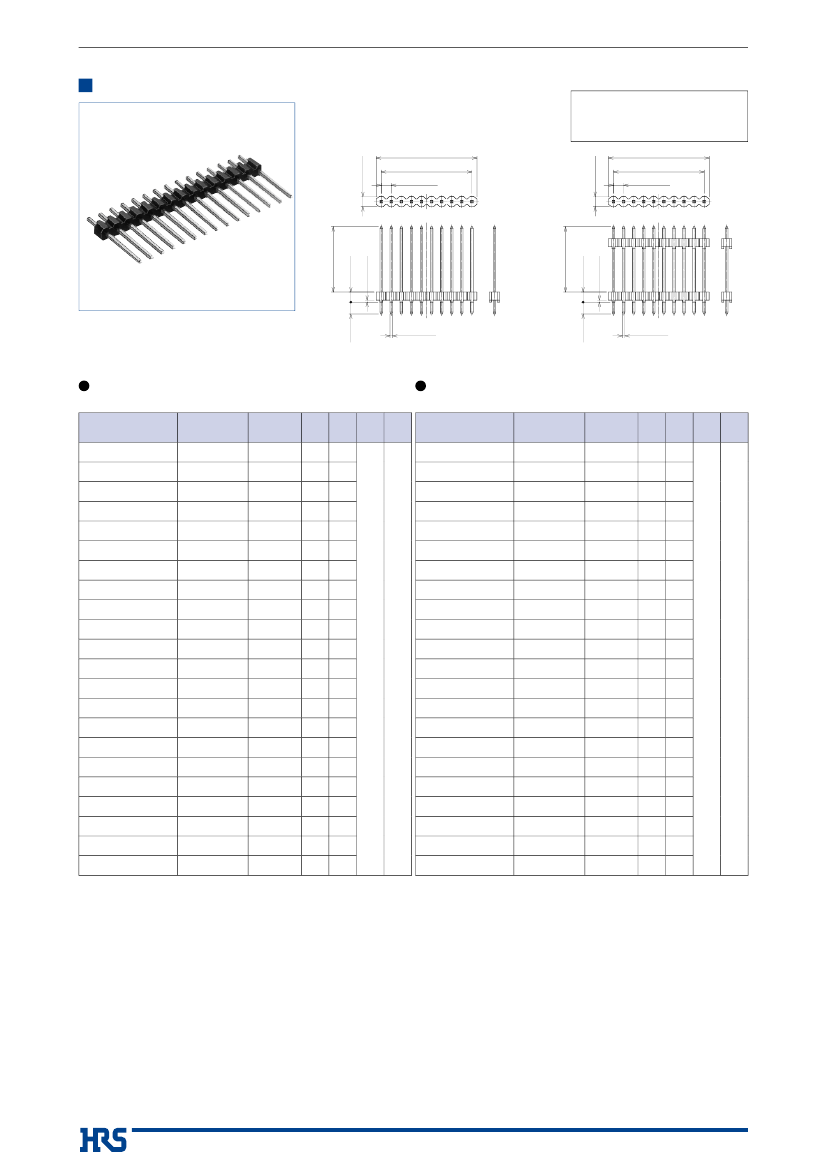

Single Row Straight Pin Header
[Specific No.]
(* *), * *
(55) : Tin plated
(01) : Gold plated
2.54
±0.3
2.54
±0.3
A
±0.5
B
±0.3
P=2.54
±0.15
A
±0.5
B
±0.3
P=2.54
±0.15
C
±0.3
2.54
±0.2
0.5
±0.2
C
±0.3
□0.64
±0.1
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3±0.3
3±0.3
●Board
Through-hole Diameter :
Ø1.0
+
0.1
+
0
2.54
±0.2
0.5
±0.2
□0.64
±0.1
[without locator]
[with locator]
MDF7 (PCB distance : 2.54 to 5.5mm)
Unit : mm
Part No.
MDF7-3P-2.54DSA(**)
MDF7-5P-2.54DSA(**)
MDF7-6P-2.54DSA(**)
MDF7-7P-2.54DSA(**)
MDF7-8P-2.54DSA(**)
MDF7-9P-2.54DSA(**)
HRS No.
547-0220-1
**
547-0113-1
**
547-0130-0
**
547-0148-6
**
547-0149-9
**
547-0150-8
**
No. of
Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
B
C RoHS
MDF7B (PCB distance : 2.54 to 12mm)
Unit : mm
Part No.
HRS No.
No. of
Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
B
C RoHS
7.62 5.08
12.70 10.16
15.24 12.70
17.78 15.24
20.32 17.78
22.86 20.32
25.40 22.86
27.94 25.40
30.48 27.94
33.02 30.48
35.56 33.02
38.10 35.56
40.64 38.10
43.18 40.64
45.72 43.18
48.26 45.72
50.80 48.26
53.34 50.80
55.88 53.34
58.42 55.88
60.96 58.42
63.50 60.96
10
Yes
MDF7B-3P-2.54DSA(**) 547-0304-0
**
MDF7B-5P-2.54DSA(**) 547-0133-9
**
MDF7B-6P-2.54DSA(**) 547-0131-3
**
MDF7B-7P-2.54DSA(**) 547-0177-4
**
MDF7B-8P-2.54DSA(**) 547-0178-7
**
MDF7B-9P-2.54DSA(**) 547-0179-0
**
MDF7B-10P-2.54DSA(**) 547-0048-1
**
MDF7B-11P-2.54DSA(**) 547-0047-9
**
MDF7B-12P-2.54DSA(**) 547-0041-2
**
MDF7B-13P-2.54DSA(55) 547-0180-9
55
MDF7B-14P-2.54DSA(55) 547-0181-1
55
MDF7B-15P-2.54DSA(**) 547-0024-3
**
MDF7B-16P-2.54DSA(**) 547-0182-4
**
MDF7B-17P-2.54DSA(55) 547-0183-7
55
MDF7B-18P-2.54DSA(55) 547-0025-6
55
MDF7B-19P-2.54DSA(55) 547-0184-0
55
MDF7B-20P-2.54DSA(**) 547-0052-9
**
MDF7B-21P-2.54DSA(55) 547-0185-2
55
MDF7B-22P-2.54DSA(55) 547-0186-5
55
MDF7B-23P-2.54DSA(55) 547-0066-3
55
MDF7B-24P-2.54DSA(55) 547-0067-6
55
MDF7B-25P-2.54DSA(55) 547-0026-9
55
7.62 5.08
12.70 10.16
15.24 12.70
17.78 15.24
20.32 17.78
22.86 20.32
25.40 22.86
27.94 25.40
30.48 27.94
33.02 30.48
35.56 33.02
38.10 35.56
40.64 38.10
43.18 40.64
45.72 43.18
48.26 45.72
50.80 48.26
53.34 50.80
55.88 53.34
58.42 55.88
60.96 58.42
63.50 60.96
16.46
Yes
MDF7-10P-2.54DSA(**) 547-0039-0
**
MDF7-11P-2.54DSA(**) 547-0151-0
**
MDF7-12P-2.54DSA(**) 547-0043-8
**
MDF7-13P-2.54DSA(**) 547-0152-3
**
MDF7-14P-2.54DSA(**) 547-0153-6
**
MDF7-15P-2.54DSA(**) 547-0018-0
**
MDF7-16P-2.54DSA(**) 547-0111-6
**
MDF7-17P-2.54DSA(**) 547-0154-9
**
MDF7-18P-2.54DSA(**) 547-0022-8
**
MDF7-19P-2.54DSA(**) 547-0155-1
**
MDF7-20P-2.54DSA(**) 547-0123-5
**
MDF7-21P-2.54DSA(**) 547-0156-4
**
MDF7-22P-2.54DSA(**) 547-0157-7
**
MDF7-23P-2.54DSA(**) 547-0158-0
**
MDF7-24P-2.54DSA(**) 547-0159-2
**
MDF7-25P-2.54DSA(**) 547-0023-0
**
Note 1 : PCB distance in the above table represents the case where the 1.6mm thickness board is used.
Note 2 : The quantity for delivery is determined 100 pcs/pack. Please order the products per pack.
4
MDF7 Series●2.54mm Pitch Bottom Entry Type Connector
MDF7P (PCB distance : 2.54 to 8mm)
Unit : mm
Part No.
HRS No.
MDF7C (PCB distance : 5.08 to 15mm, with Locator)
Unit : mm
Part No.
HRS No.
MDF7P-3P-2.54DSA(01)
MDF7P-5P-2.54DSA(**)
MDF7P-6P-2.54DSA(**)
MDF7P-7P-2.54DSA(**)
MDF7P-8P-2.54DSA(55)
MDF7P-9P-2.54DSA(**)
MDF7P-11P-2.54DSA(**)
MDF7P-13P-2.54DSA(**)
547-0462-0
01
547-0511-4
**
547-0513-0
**
–––––––
547-0514-2
55
–––––––
–––––––
–––––––
No. of
A
B
Contacts
3
7.62 5.08
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
C RoHS
MDF7C-3P-2.54DSA(**)
MDF7C-5P-2.54DSA(**)
MDF7C-6P-2.54DSA(55)
MDF7C-7P-2.54DSA(**)
MDF7C-8P-2.54DSA(55)
MDF7C-9P-2.54DSA(55)
547-0489-7
**
547-0344-4
**
547-0268-8
55
547-0378-6
**
547-0375-8
55
547-0506-4
55
No. of
A
B
Contacts
3
7.62 5.08
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
C RoHS
12.70 10.16
15.24 12.70
17.78 15.24
20.32 17.78
22.86 20.32
25.40 22.86
27.94 25.40
30.48 27.94
33.02 30.48
35.56 33.02
38.10 35.56
40.64 38.10
43.18 40.46
45.72 43.18
48.26 45.72
50.80 48.26
53.34 50.80
55.88 53.34
58.42 55.88
60.96 58.42
63.50 60.96
12.5
Yes
12.70 10.16
15.24 12.70
17.78 15.24
20.32 17.78
22.86 20.32
25.40 22.86
27.97 25.40
30.48 27.94
33.02 30.48
35.56 33.02
38.10 35.56
40.64 38.10
43.18 40.64
45.72 43.18
48.26 45.72
50.80 48.26
53.34 50.80
55.88 53.34
58.42 55.88
60.96 58.42
63.50 60.96
19.46
Yes
MDF7P-10P-2.54DSA(55) 547-0360-0
55
MDF7C-10P-2.54DSA(55) 547-0191-5 55
MDF7C-11P-2.54DSA(55) 547-0376-0
55
MDF7C-12P-2.54DSA(**) 547-0475-2
**
MDF7C-13P-2.54DSA(55) 547-0401-6
55
MDF7C-14P-2.54DSA(55) 547-0380-8
55
MDF7C-15P-2.54DSA(55) 547-0187-8
55
MDF7C-16P-2.54DSA(**)
MDF7C-17P-2.54DSA(**)
–––––––
–––––––
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
MDF7P-12P-2.54DSA(55) 547-0345-7
55
MDF7P-14P-2.54DSA(55) 547-0385-1
55
MDF7P-15P-2.54DSA(55) 547-0230-5
55
MDF7P-16P-2.54DSA(55) 547-0346-0
55
MDF7P-17P-2.54DSA(**)
MDF7P-18P-2.54DSA(**)
MDF7P-20P-2.54DSA(**)
MDF7P-21P-2.54DSA(**)
MDF7P-22P-2.54DSA(**)
MDF7P-23P-2.54DSA(**)
MDF7P-24P-2.54DSA(**)
–––––––
–––––––
–––––––
–––––––
–––––––
–––––––
–––––––
MDF7C-18P-2.54DSA(55) 547-0029-7
55
MDF7C-19P-2.54DSA(55) 547-0361-3
55
MDF7C-20P-2.54DSA(**) 547-0198-4
**
MDF7C-21P-2.54DSA(**)
MDF7C-22P-2.54DSA(**)
MDF7C-24P-2.54DSA(**)
–––––––
–––––––
–––––––
MDF7P-19P-2.54DSA(55) 547-0347-2
55
MDF7C-23P-2.54DSA(55) 547-0909-0
55
MDF7C-25P-2.54DSA(55) 547-0305-2
55
MDF7P-25P-2.54DSA(55) 547-0348-5
55
Note 1 : PCB distance in the above table represents the case where the 1.6mm thickness board is used.
Note 2 : A quantity for delivery is determined 100 pcs/pack. Please order the products per pack.
Note 3 : As for the products, which HRS No. is not indicated in the above table, we will correspond to samples, and mass-
production according to your demand. Please contact our account executive, as required.
5
京公网安备 11010802033920号
EEWORLD
