MDF7P-10P-2.54DSA(55) datasheet, PDF

MDF7P-10P-2.54DSA(55): DescriptionCONN HDR 10POS 2.54MM; CategoryThe connector; File Size511KB，8 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

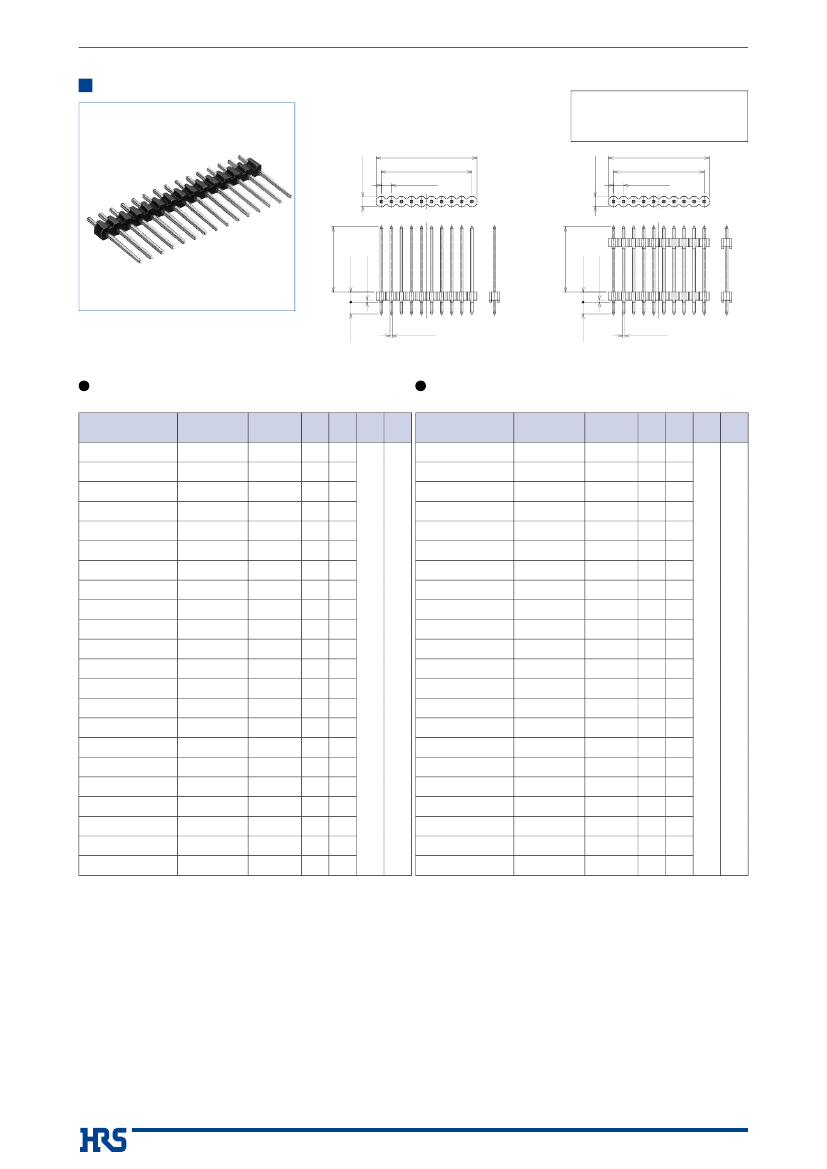

MDF7P-10P-2.54DSA(55) Overview

CONN HDR 10POS 2.54MM

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	10
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	board to board
shield	Uncovered
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.492"（12.50mm）
Contact length - terminal	0.118"（3.00mm）
Overall contact length	0.710"（18.03mm）
Insulation height	0.100"（2.54mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polybutylene terephthalate (PBT)
characteristic	-
Operating temperature	-35°C ~ 85°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	3A
Rated voltage	250V
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

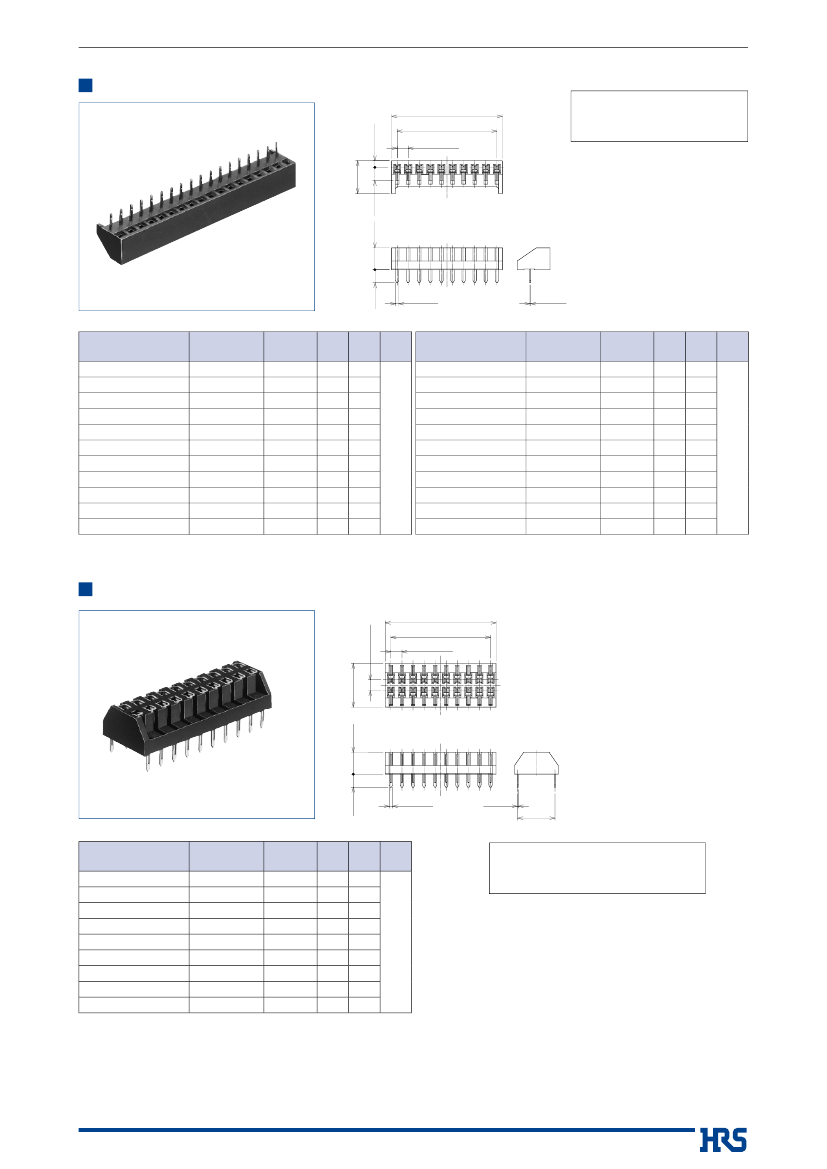

2.54mm Pitch Bottom Entry Type Connector

MDF7 Series

Board to Board size Freely settable

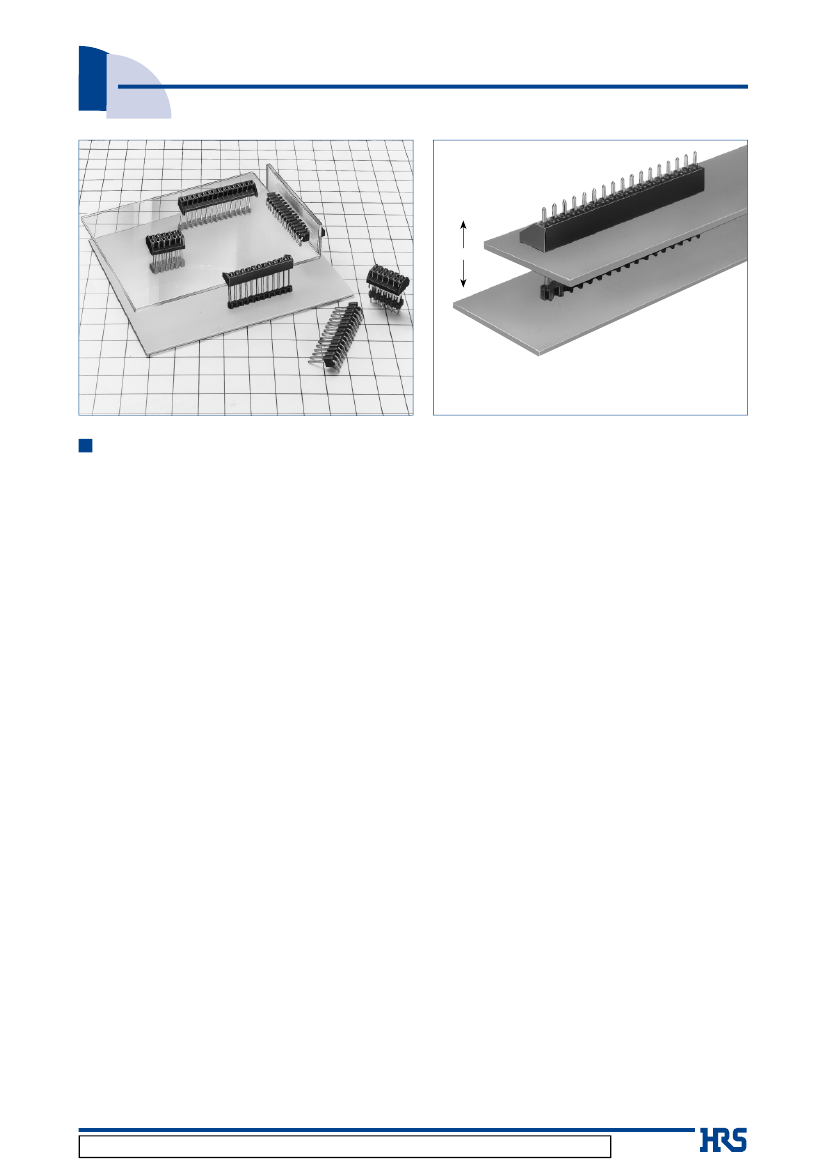

Fig.1

Features

1. Board to Board Size Freely Settable

The board to board size can be set at infinite stages, according to the header pin through type structure

and the diverse header variation.

The board to board size can be set at infinite stages.

2. Integrity of Parts Mounted Surface

The parts mounted surface on two boards aren't face each other, and can be oriented in the same

direction.

3. Wide Variation

Single-row product, double-row product, tin plated and gold plated products are lined up. In addition, the

header to correspond to the board to board size are prepared. Concerning board to board size, other

products can be provided, in addition to products in this catalog. Please contact HRS company as required.

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2018.3③
