5023521400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5023521400

5023521400: Description2.0 W/B CONN 14CKT EMBSTP PKG; CategoryThe connector; File Size585KB，6 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5023521400 Overview

2.0 W/B CONN 14CKT EMBSTP PKG

5023521400 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	14
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Surface mount, right angle
Termination	welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.252"（6.40mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	-
Contact material	copper alloy
Insulation Materials	Polyamide (PA), nylon
characteristic	Fixed solder tail
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	Automotive grade, industrial grade

Preview

Download Datasheet

View All

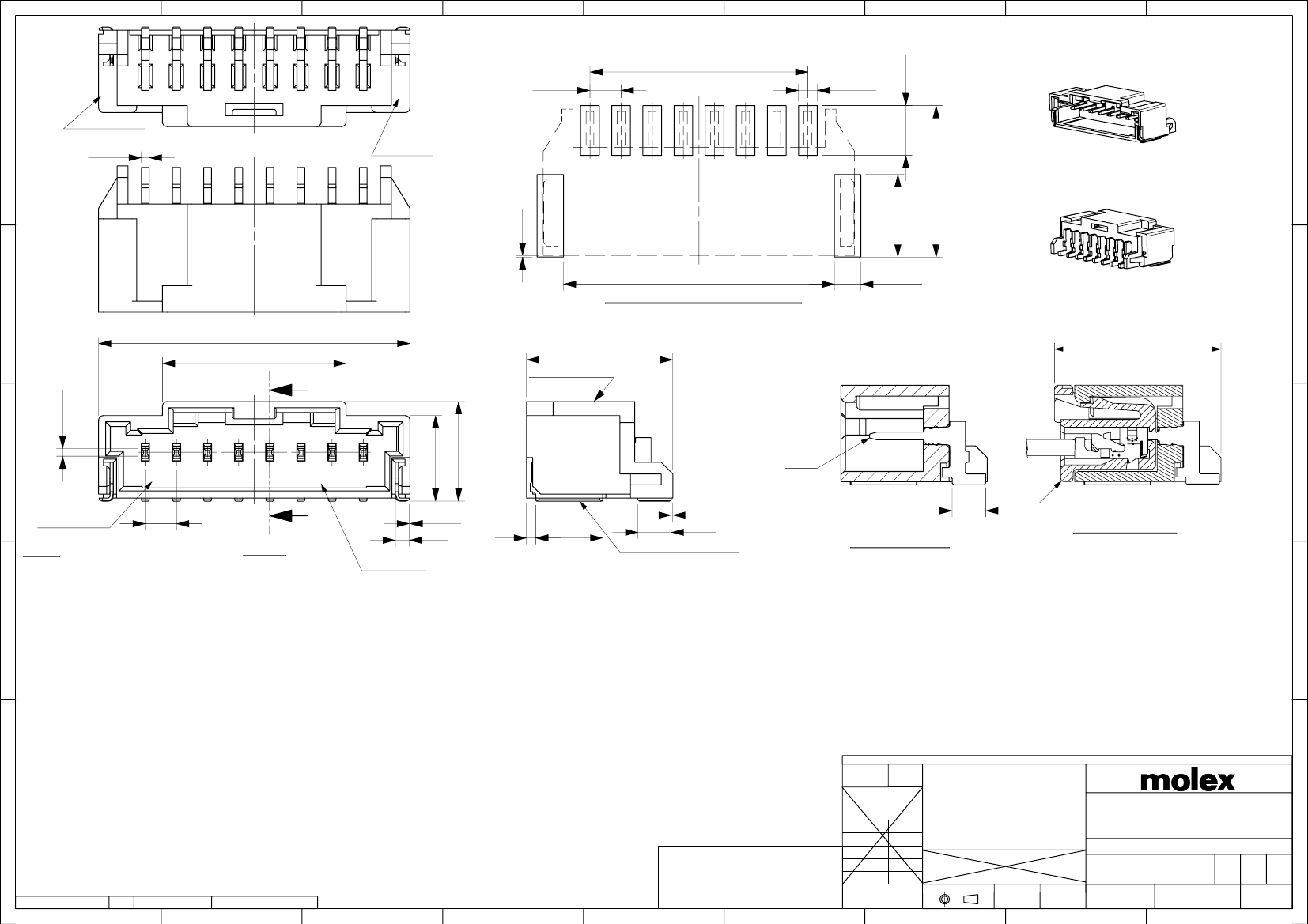

(PITCH)

0.05

1.2

0.05

3.2

0.05

2×(N-1)

0.05

TRADE MARK

0.5

(0.1)

2×N+1.4

0.05

参考基板取り付け寸法(N=極数)

PCB PATTERN LAYOUT (N:CIRCUIT)

5.3

0.05

1.7

0.05

11.8

□

0.5

9.4

5.5

6.4

ハウジング

HOUSING

9.73

0.05

SERIES NO.

注記

NOTES

MATERIAL

1.材質

　ハウジング：耐熱性ナイロンUL94V-0

7.一般公差

　ピン：銅合金、ニッケル下地、錫メッキ、金メッキ

　 GENERAL TOLERANCES

　フィッティングネール：銅合金、ニッケル下地、錫メッキ

　 10 UNDER: 0.2

　 MATERIAL

　 10 OVER 30 UNDER:0.25

　 HOUSING:POLYAMIDE UL94V-0

　 30 OVER: 0.3

　 PIN: COPPER ALLOY, GOLD OR TIN OVER NICKEL PLATE.

　 ANGULAR: ±3°

　 FITTING NAIL: COPPER ALLOY, TIN OVER NICKEL PLATE.

2.色：ナチュラル、黒、赤、青

　 COLOR:NATURAL, BLACK, RED, BLUE

3.嵌合相手

　ハウジング：502351-**0*

　錫メッキ端子：50212-8*00,50372-8*00,560085-0101

　金メッキ端子：56161-8*81

　 MATES WITH

　 HOUSING:502351-**0*

　 SN PLATING TERMINAL:50212-8*00,50372-8*00,560085-0101

　 AU PLATING TERMINAL:56161-8*81

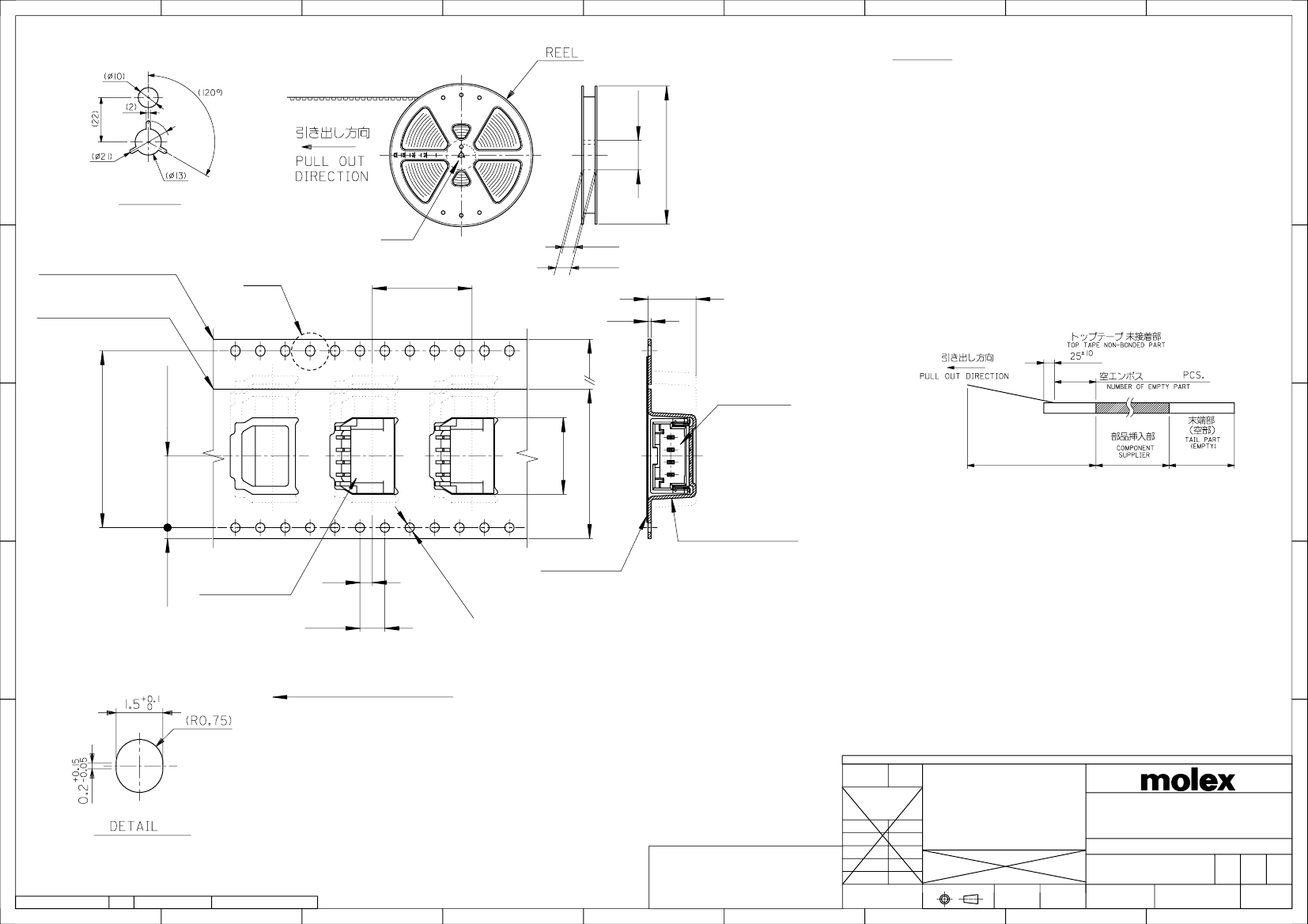

4.エンボス梱包品の詳細はSD-502352-002参照

　 DETAILED TAPING PACKAGE, SEE SD-502352-002.

5.ELV及びRoHS適合

　 ELV AND RoHS COMPLIANT

6.半田付け面のコプラナリティ：0.1mm MAX.

　 CO-PLANARITY OF SOLDERING TAILS TO BE 0.1mm MAX.

DOCUMENT STATUS

FORMAT: master-tb-prod-A3

REVISION: H

DATE: 2018/01/18

M□□

CAV. NO.

＆DIE NO.

502352

PITCH

＞PA9T＜

ピン

8CKTS

0.04

0.9

0.1

0.6

4.3

2.15

502351-**0*

嵌合寸法

MATED DIMENSION

2.15

フィッティングネール

FITTING NAIL

SECTION

Z-Z

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

ANGULAR TOL

5:1

CURRENT REV DESC:

GENERAL TOLERANCES

(UNLESS SPECIFIED)

4 PLACES

3 PLACES

RELEASE DATE

2018/05/23

09:22:56

INITIAL REVISION:

DRWN SHSHIBATA 2007/12/18

CHECK

HKOMATSU

2007/12/18

APPR

AKANESHIGE

2007/12/18

2 PLACES

1 PLACE

0 PLACES

DRWN:

RHORI

CHK'D: HKOMATSU

APPR:

TOSADA

INITIAL REVISION:

DRWN:

SHSHIBATA

APPR:

AKANESHIGE

THIRD ANGLE PROJECTION

DRAWING

EC NO:

177053

2018/05/21

2018/05/23

2008/01/23

SERIES

2.0MM PITCH W/B CONN.

WAFER ASSY R/A SMT

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-502352-001

MATERIAL NUMBER

CUSTOMER

PSD

001

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

502352

SEE CHART

GENERAL MARKET

1 OF 4

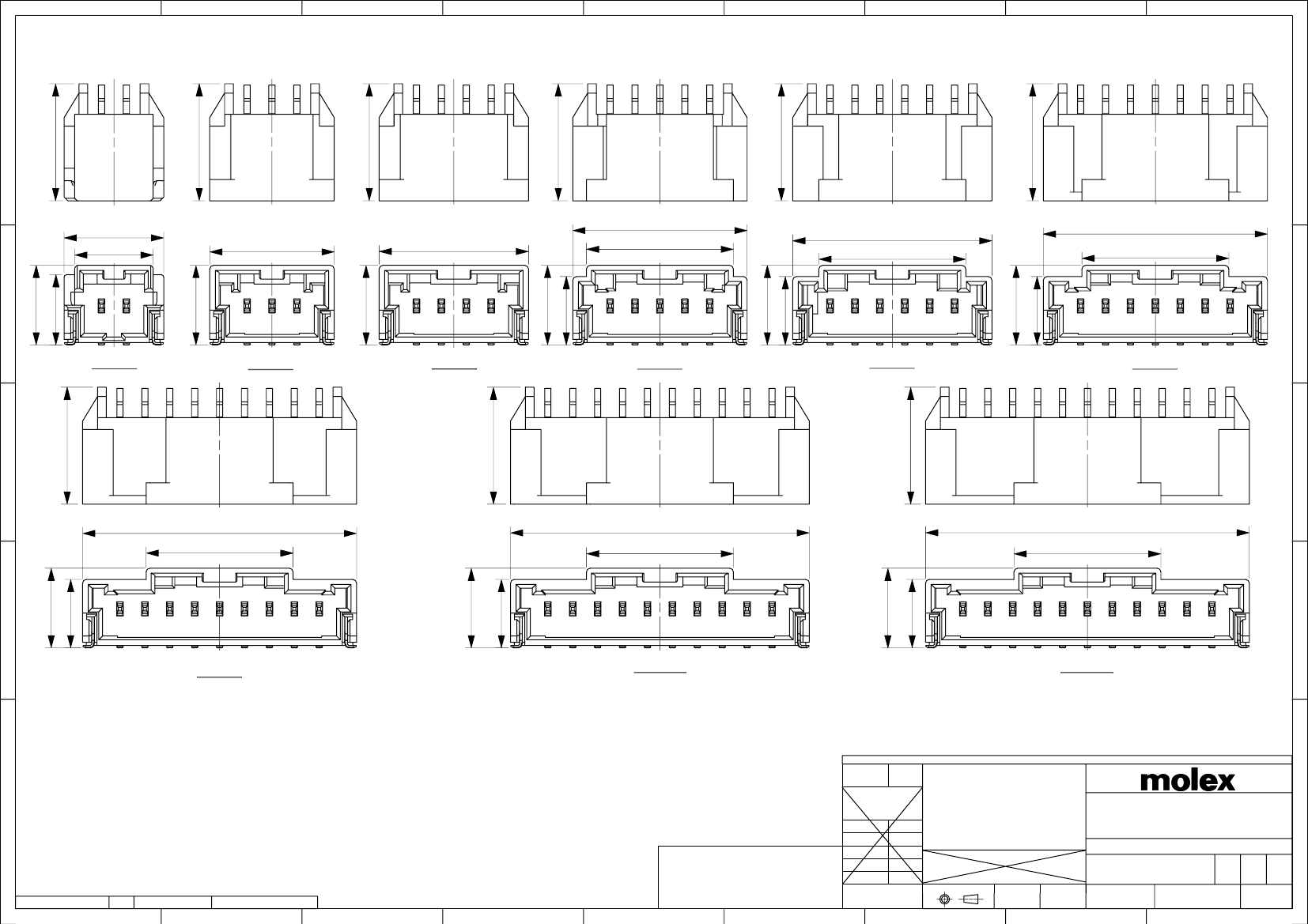

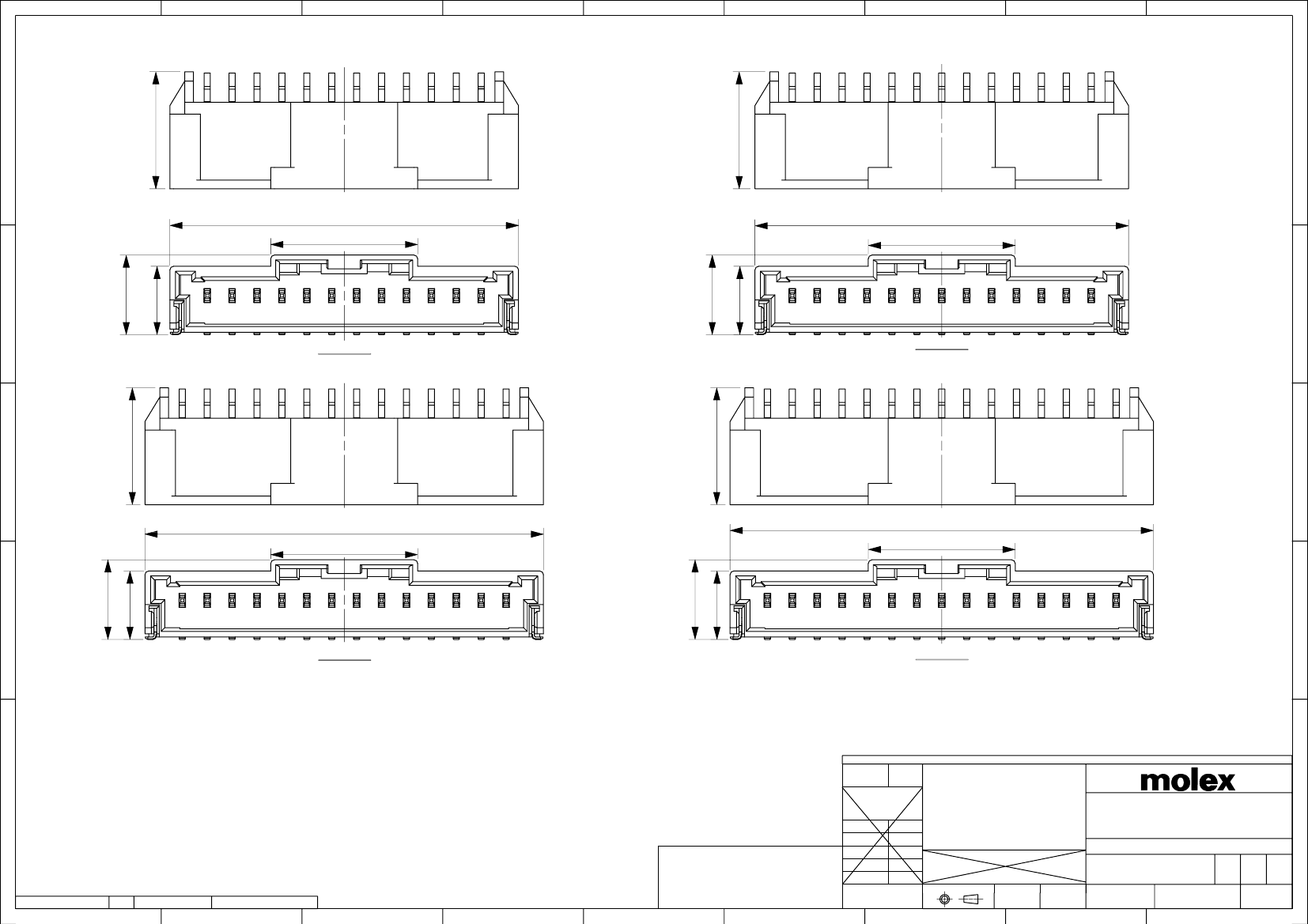

5023521400 Related Products

	5023521400	5023520410
Description	2.0 W/B CONN 14CKT EMBSTP PKG	CONN HEADER 4POS 2MM R/A SMD
Connector type	Connector	Connector
Contact type	Male pin	Male pin
Spacing - Mating	0.079"（2.00mm）	0.079"（2.00mm）
Number of pins	14	4
Number of rows	1	1
Number of pins loaded	all	all
style	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls
Installation type	Surface mount, right angle	Surface mount, right angle
Termination	welding	welding
Fastening type	latch holder	latch holder
Insulation height	0.252"（6.40mm）	0.252"（6.40mm）
Contact shape	Square	Square
Contact surface treatment - mating	tin	gold
Contact material	copper alloy	copper alloy
Insulation Materials	Polyamide (PA), nylon	Polyamide (PA), nylon
characteristic	Fixed solder tail	Fixed solder tail
Material flammability rating	UL94 V-0	UL94 V-0
Insulation color	natural	natural
application	Automotive grade, industrial grade	Automotive grade, industrial grade
