0522130414: Description2.5 SP. CONN REC H.A.; CategoryThe connector; File Size203KB，1 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0522130414 Overview

2.5 SP. CONN REC H.A.

0522130414 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	female socket
Number of pins	4
spacing	0.098"（2.50mm）
Number of rows	1
spacing	-
Installation type	free hanging
Contact termination	crimp
Fastening type	Lock pin slide
color	blue
characteristic	Waterproof (mated, IP67)
Remark	Does not include contacts

Preview

Download Datasheet

View All

14

13

12

11

10

9

8

7

6

5

4

3

2

1

H

CKT. No. 1

G

F

52213-041*

E

CKT. No. 2

D

52213-0311

C

茶

BROWN

青

BLUE

黒

BLACK

52213-0417

52213-0414

52213-0411

52213-0410

52213-0311

4

3

C

B

1. 適合端子：50148-8*00

APPLICABLE TERMINAL：50148-8*00

2. 嵌合相手：52266-**1*

MATES WITH：52266-**1*

3. ½品仕様書： PS-52213-003

PRODUCT SPECIFICATION：PS-52213-003

4. 取扱説明書 : AS-52213-001

APPLICATION SPECIFICATION : AS-52213-001

½

WHITE

黒

BLACK

極数

½品番号

ハウジングの色

HOUSING COLOR

MATERIAL NO.

NO. OF CKT.

B

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC:

mm

GENERAL TOLERANCES

(UNLESS SPECIFIED)

UNDER

5:1

±

3.0 °

GENERAL TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL

EC NO:

174474

10

±0.2

UNDER

4 PLACES

OVER

0.2

30

±0.25

3 PLACES

2 PLACES

1 PLACE

0.25

0.3

A

±0.3

30

ANGULAR ±3 °

FORMAT: master-tb-prod-A2

REVISION: H

DATE: 2018/01/18

DOCUMENT STATUS

P1

14

13

RELEASE DATE

12

2018/04/20

09:04:08

11

INITIAL REVISION:

±

0 PLACES

DRWN

S.KATAOKA

2006/09/11

DRAFT WHERE APPLICABLE

CHECK

K.TOYODA

2006/09/11

MUST REMAIN

APPR

N.UKITA

2006/09/11

WITHIN DIMENSIONS

DRWN:

RHORI

CHK'D: HKOMATSU

APPR:

TOSADA

INITIAL REVISION:

DRWN:

SKATAOKA

APPR: NUKITA

THIRD ANGLE PROJECTION

DRAWING

2018/04/04

2018/04/13

2018/04/20

2006/09/21

2006/09/26

SERIES

2.5 MINI WATERPROOF

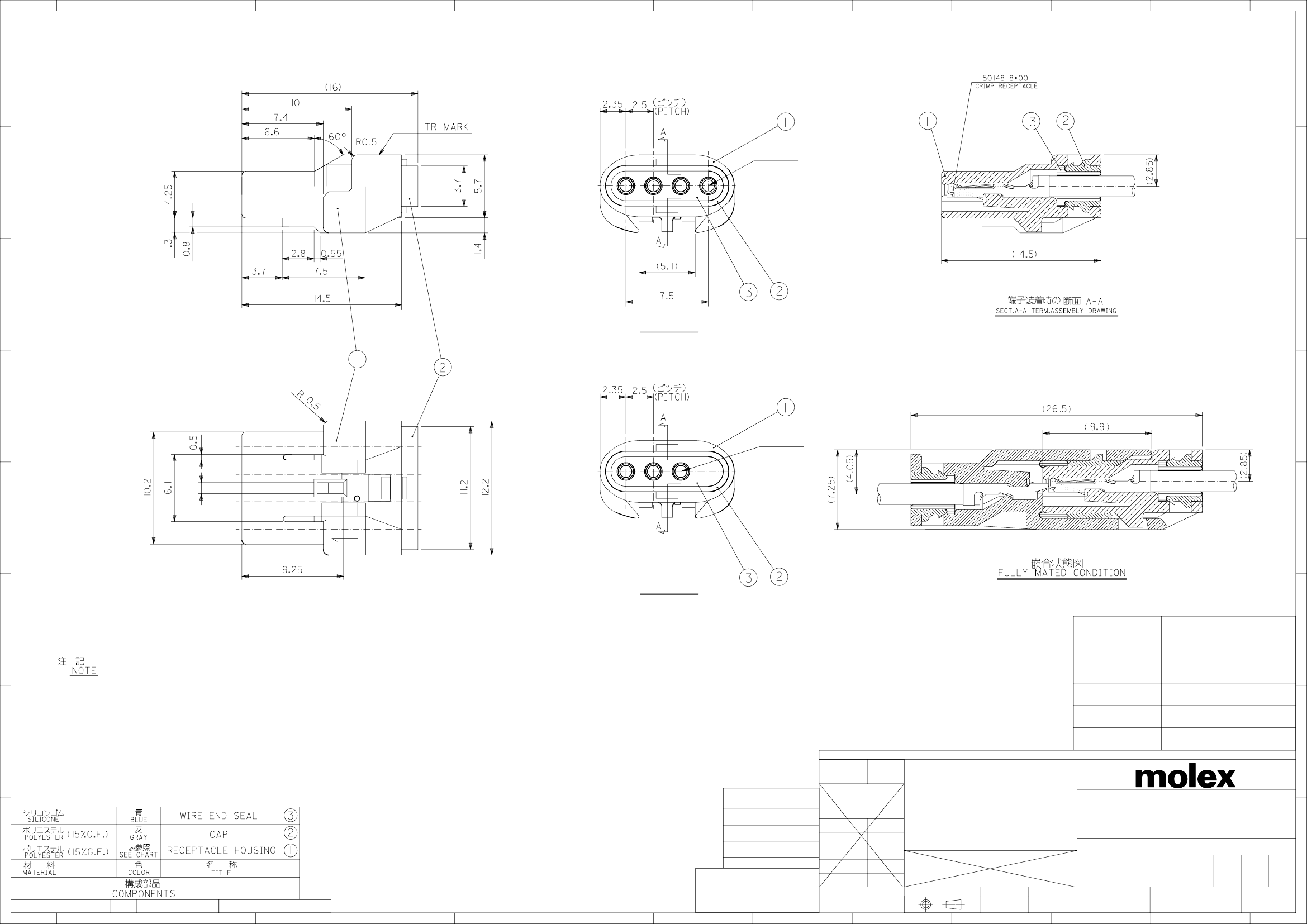

CONN REC HSG ASSY (3 AND 4 CKT.)

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

A

SD-52213-001

MATERIAL NUMBER

CUSTOMER

PSD

001

A2

1

SHEET NUMBER

A2-SIZE

5

4

52213

SEE CHART

GENERAL MARKET

1 OF 1

10

9

8

7

6

3

2

0522130414 Related Products

	0522130414	0522130311	0522130417	0522130410
Description	2.5 SP. CONN REC H.A.	CONN RCPT 3POS 2.5MM BLACK	CONN RCPT 4POS 2.5MM BROWN	2.5 SP. CONN REC H.A.
Connector type	socket	socket	socket	socket
Contact type	female socket	female socket	female socket	female socket
Number of pins	4	3	4	4
Number of rows	1	1	1	1
Installation type	free hanging	free hanging	free hanging	free hanging
Contact termination	crimp	crimp	crimp	crimp
Fastening type	Lock pin slide	Lock pin slide	Lock pin slide	Lock pin slide
color	blue	black	brown	White
characteristic	Waterproof (mated, IP67)	Waterproof (mated, IP67)	Waterproof (mated, IP67)	Waterproof (mated, IP67)
Remark	Does not include contacts	Does not include contacts	Does not include contacts	Does not include contacts
