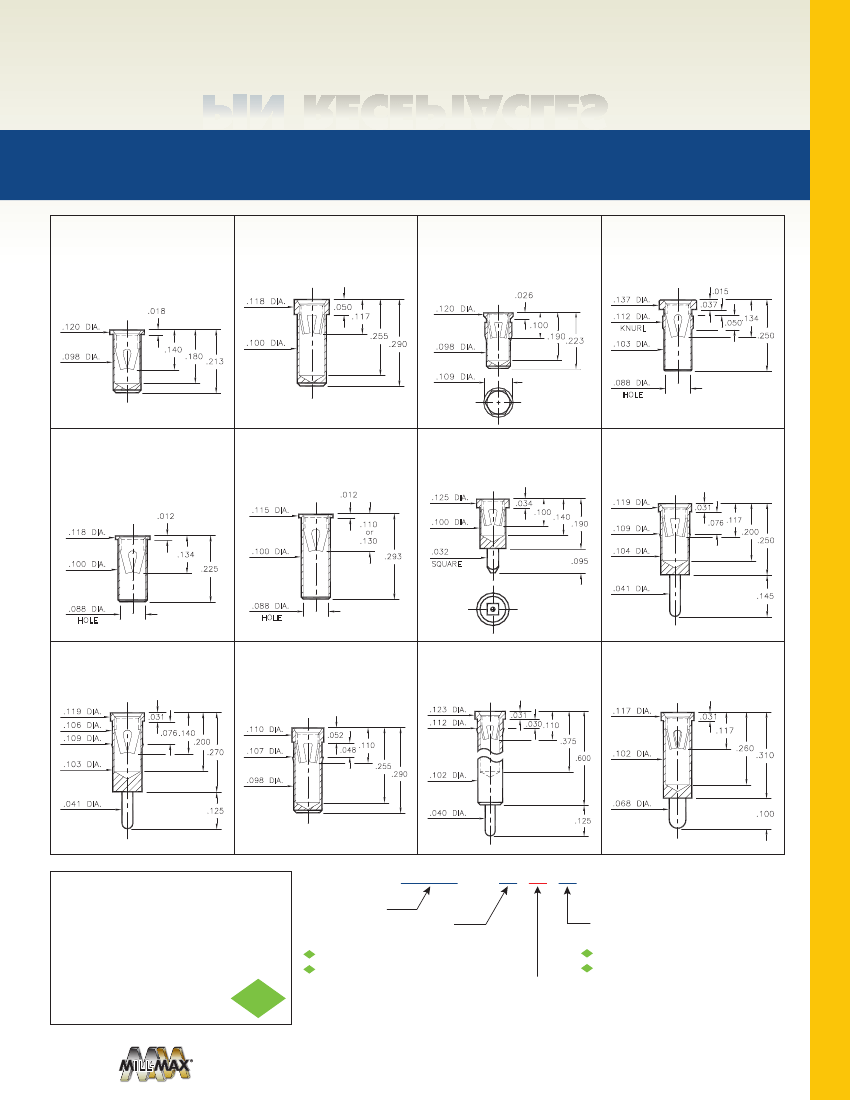

RECEPTACLES

FOR .048” - .064” DIAMETER PINS (#13 CONTACT)

FOR .045” - .065” DIAMETER PINS (#23 CONTACT)

0364

0364-0-15-XX-13-XX-10-0

0363

.118 DIA.

Solder mount in .100 min. mounting hole

Also available on 16mm wide carrier tape:

1,300 parts per 13” reel

See page 194.13 for Tape & Reel details

.018

.120 DIA.

.140

0363-0-15-XX-23-XX-10-0

Solder mount in .102 min. mounting hole

0365

0365-0-15-XX-23-XX-10-0

.026

.120 DIA.

0366

.137 DIA.

.112 DIA.

KNURL

.103 DIA.

Hex press-fit in .105 plated through-hole

Also available on 16mm wide carrier tape:

1,200 parts per 13” reel

See page 194.14 for Tape & Reel details

0366-0-15-XX-13-XX-10-0

Press-fit in .109 mounting hole

.015

.037

.134

.050

.250

.050

.117

.255

.290

.100 DIA.

.180

.213

.098 DIA.

.100

.190

.223

.098 DIA.

.109 DIA.

.088 DIA.

HOLE

0372

0372-0-15-XX-13-XX-10-0

0362

.115 DIA.

Solder mount in .102 min. mounting hole

Also available on 24mm wide carrier tape:

950 parts per 13” reel

See page 194.14 for Tape & Reel details

.012

.118 DIA.

.134

.100 DIA.

.225

0362-0-15-XX-X3-XX-10-0

Solder mount in .102 min. mounting hole

.012

0367

.125 DIA.

.100 DIA.

0367-0-15-XX-23-XX-10-0

Square press-fit in .040 plated through-hole

.034

.100

.140

.190

9324

.119 DIA.

9324-0-15-XX-23-XX-04-0

Press-fit in .106 mounting hole

.031

.076 .117

.200

.250

.110

or

.130

.100 DIA.

.293

.109 DIA.

.104 DIA.

.032

SQUARE

.095

.041 DIA.

.145

.088 DIA.

HOLE

.088 DIA.

HOLE

0492

.119 DIA.

.106 DIA.

.109 DIA.

.103 DIA.

0492-0-15-XX-13-XX-04-0

Press-fit in .106 mounting hole

.031

.076 .140

.200

.270

0381

0381-0-15-XX-23-XX-10-0

Press-fit in .104 mounting hole

4034

.123 DIA.

.112 DIA.

4034-0-15-XX-23-XX-04-0

Press-fit in .109 mounting hole

.031

.030 .110

.375

3044

.117 DIA.

3044-0-15-XX-23-XX-04-0

Solder mount in .104 min. mounting hole

.031

.117

.102 DIA.

.260

.310

.110 DIA.

.107 DIA.

.052

.048

.110

.255

.290

.600

.102 DIA.

.098 DIA.

.041 DIA.

.125

.068 DIA.

.040 DIA.

.125

.100

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - XX - XX -

XX

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

27

30

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#13 or #23

CONTACT (DATA ON PAGE 260)

(For alternate contact choices, see group G on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 189 | PIN RECEPTACLES
