ABS2 - ABS10
Taiwan Semiconductor
CREAT BY ART

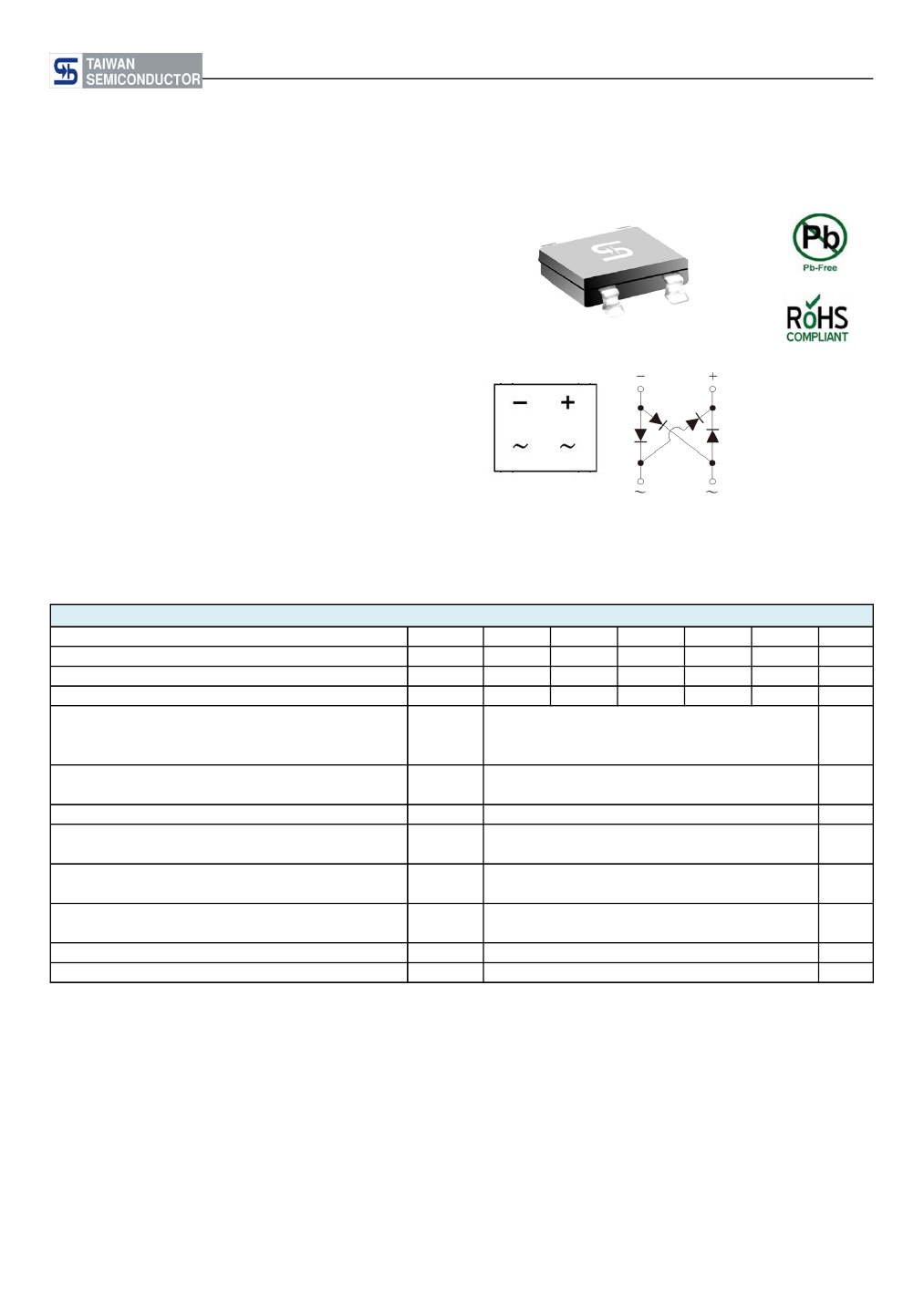

1A, 200V - 1000V Glass Passivated Bridge Rectifiers
FEATURES
- Glass passivated junction
- Ideal for automated placement
- Reliable low cost construction utilizing molded plastic technique
- High surge current capability
- UL Recognized File # E-326854
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
ABS
MECHANICAL DATA
Case:
Molded plastic body
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Polarity as marked on the body
Weight:
0.12 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
On glass-epoxy
On aluminum substrate
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 0.4 A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
ABS2
200
140
200
ABS4
400
280
400
ABS6
600
420
600
0.8
1.0
30
3.74
0.95
10
150
25
80
- 55 to +150
- 55 to +150
ABS8
800
560
800
ABS10
1000
700
1000
Unit
V
V
V
A
I
FSM
I
2
t
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
A
A
2
s
V
μA
°C/W
°C
°C
Document Number: DS_D1410049
Version: L15
ABS2 - ABS10
Taiwan Semiconductor

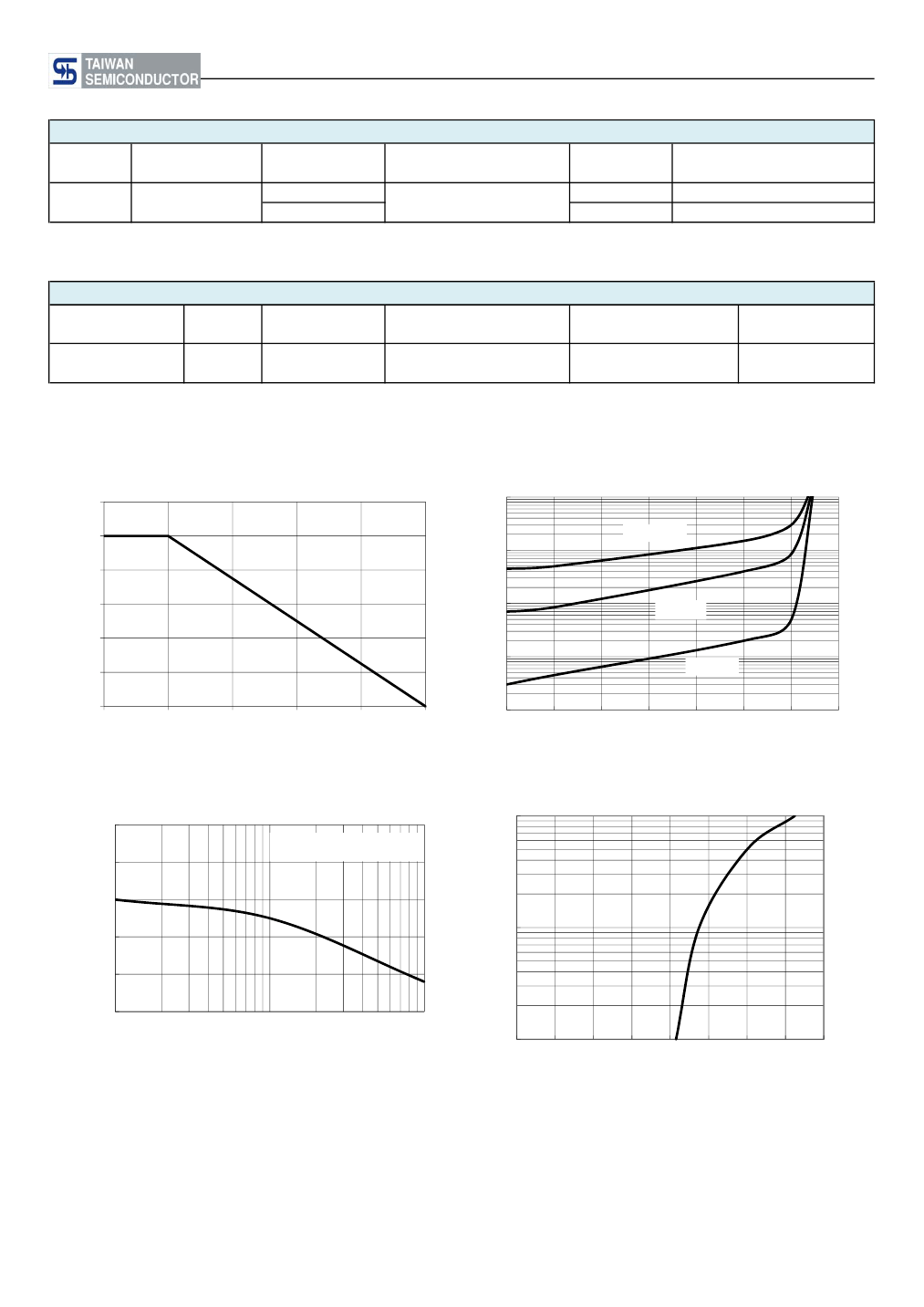

ORDERING INFORMATION
PART NO.
ABSxx
(Note 1, 2)
PART NO.
SUFFIX
H
RE
RG
PACKING CODE
PACKING CODE
SUFFIX
G
ABS
ABS
1,000 / 7" Plastic reel
5,000 / 13" Paper reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 200V (ABS2) to 1000V (ABS10)
Note 2: Whole series with green compound
EXAMPLE
PREFERRED P/N
ABS8HREG
PART NO.
ABS8
PART NO.
SUFFIX
H
PACKING CODE
RE
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT DERATING
CURVE
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
T
J
=100°C
10
1.2
AVERAGE FORWARD CURRENT (A)
1
0.8
0.6
0.4
0.2
0
0
30
60
90
120
150
1
T
J
=75°C
0.1
T
J
=25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE(%)
AMBIENT TEMPERATURE (
o
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT
(A)
8.3ms Single Half Sine-Wave
FIG. 4 TYPICAL FORWARD CHARACTERISTIC
10
1
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
Document Number: DS_D1410049
Version: L15
ABS2 - ABS10
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
a
100
f=1MHz
Vsig=50mVp-p
10
0.1
1
10
REVERSE VOLTAGE (V)
100
1000

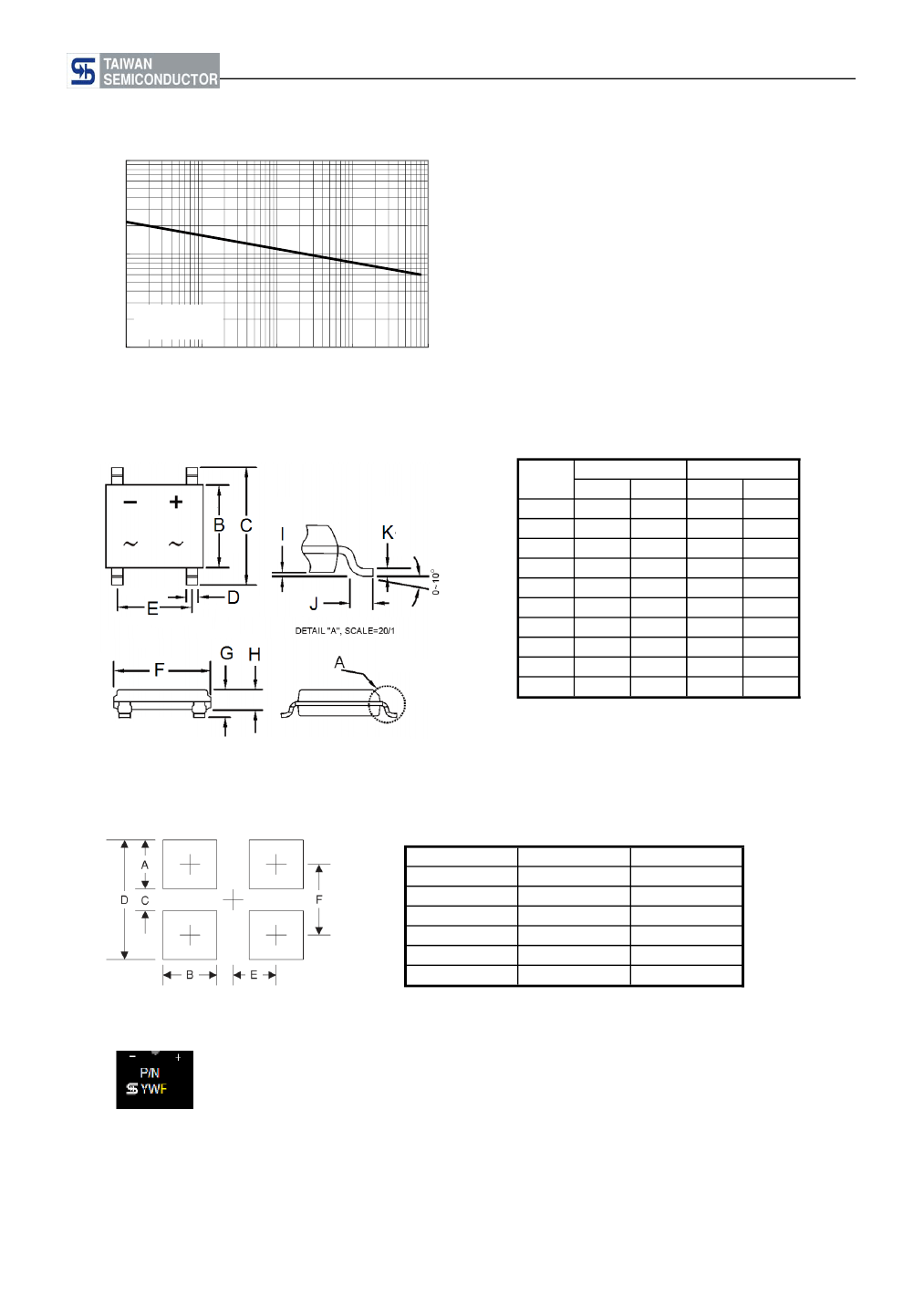

PACKAGE OUTLINE DIMENSIONS
ABS
DIM.
B
C
D
E
F
G
H
I
J
K
Unit (mm)
Min
4.30
6.25
0.60
3.90
4.90
1.40
1.35
0.05
0.30
0.15
Max
4.50
6.65
0.70
4.10
5.10
1.60
1.45
0.15
0.70
0.25
Unit (inch)
Min
0.169
0.246
0.024
0.154
0.193
0.055
0.053
0.002
0.012
0.006
Max
0.177
0.262
0.028
0.161
0.200
0.063
0.057
0.006
0.028
0.010
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
F
Unit (mm)
1.5
0.9
4.22
7.22
2.05
5.72
Unit (inch)
0.059
0.035
0.166
0.284
0.081
0.225
MARKING DIAGRAM
P/N
YW
F
= Specific Device Code
= Date Code
= Factory Code
Document Number: DS_D1410049
Version: L15
ABS2 - ABS10
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1410049
Version: L15
