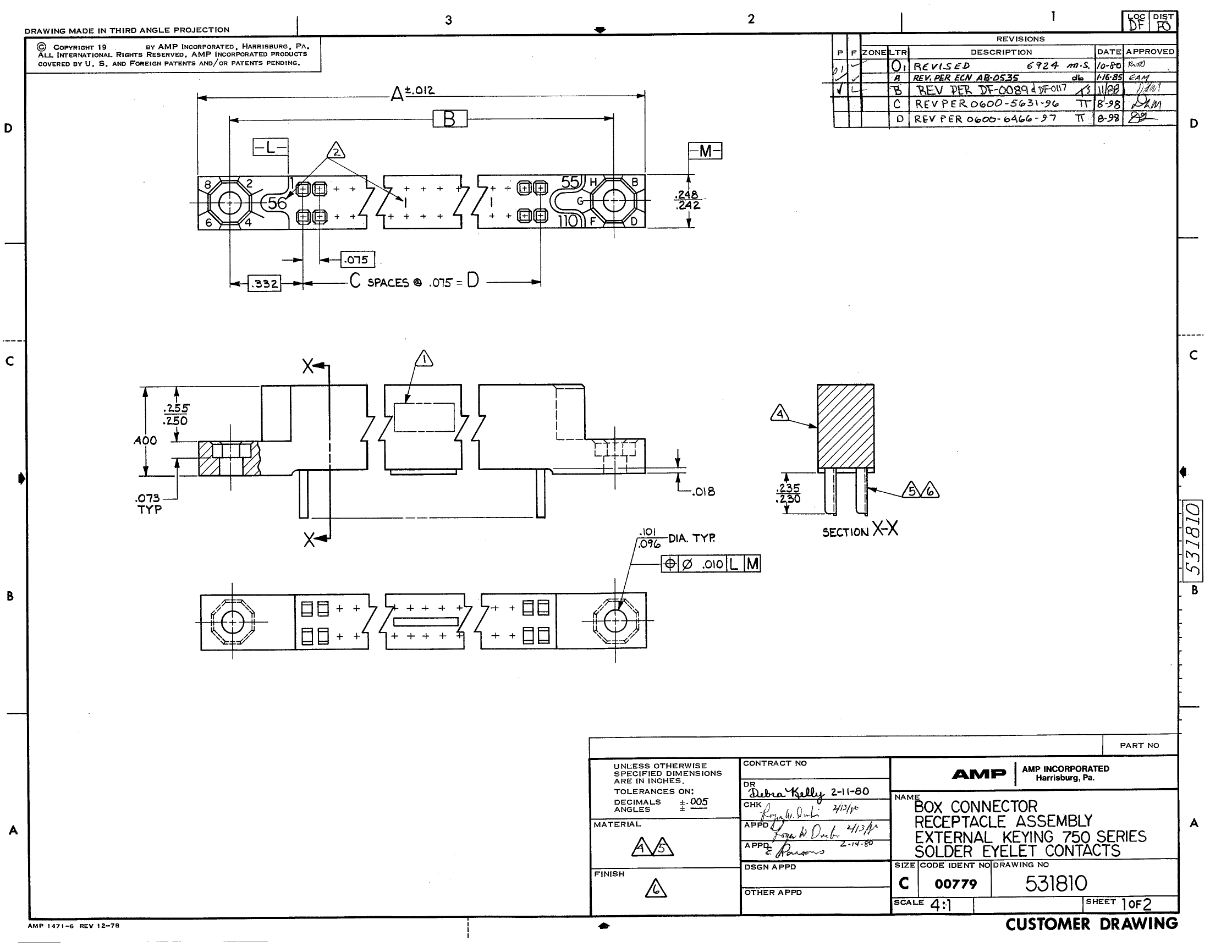

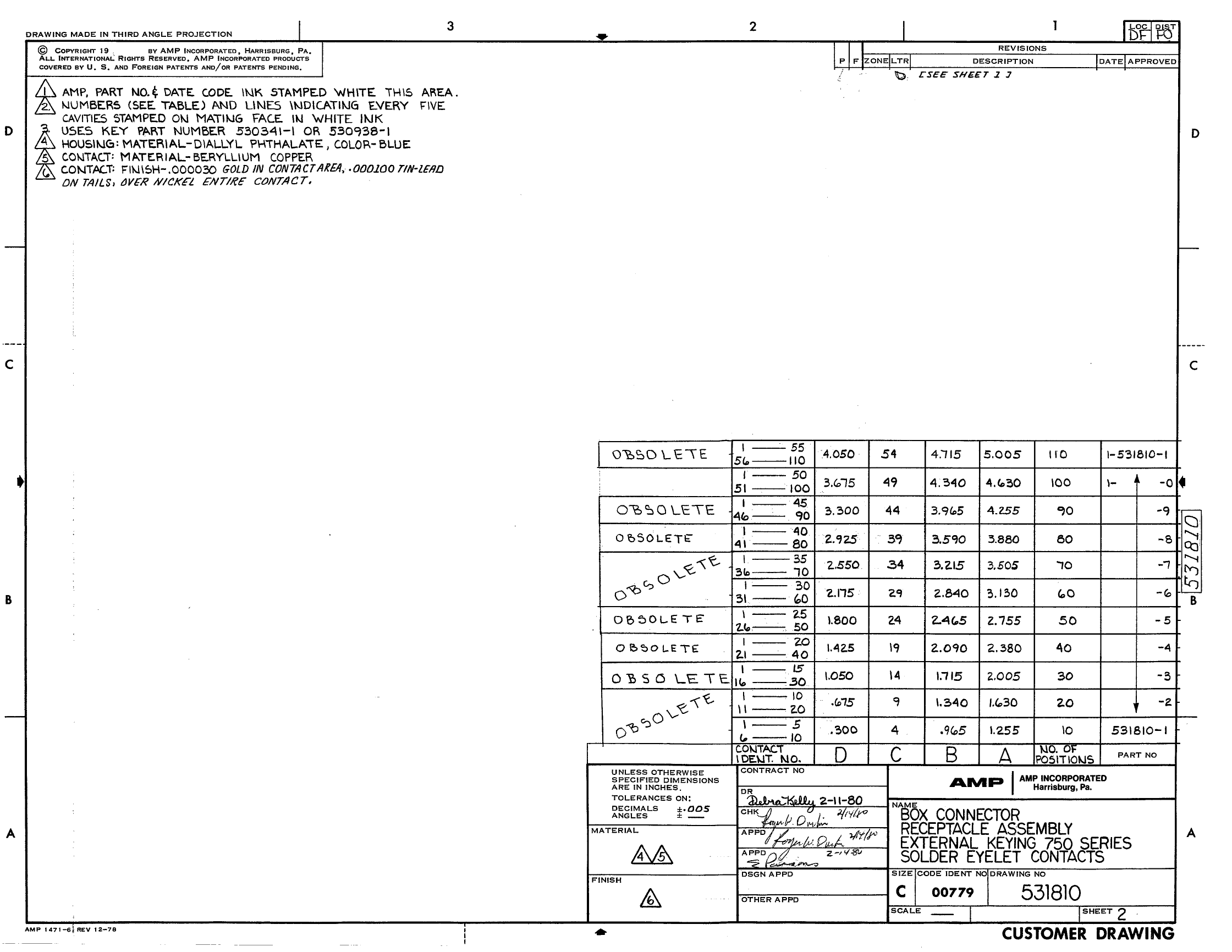

1-531810-1: DescriptionCONNECTOR, 110 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-531810-1 Overview

CONNECTOR, 110 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

1-531810-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	531810
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.91 mm
Termination type	SOLDER
Total number of contacts	110
Base Number Matches	1

Preview

Download Datasheet

View All

1-531810-1 Related Products

	1-531810-1	531810-1	531810-2	531810-3	531810-6	531810-7	531810-9	531810-8	531810-4	531810-5
Description	CONNECTOR, 110 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 60 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 90 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	HEADER CONNECTOR,CABLE MNT,PLUG,80 CONTACTS,SKT,0.075 PITCH,SOLDER TERMINAL,HOLE .087-.098	HEADER CONNECTOR,CABLE MNT,PLUG,40 CONTACTS,SKT,0.075 PITCH,SOLDER TERMINAL,HOLE .087-.098	HEADER CONNECTOR,CABLE MNT,PLUG,50 CONTACTS,SKT,0.075 PITCH,SOLDER TERMINAL,HOLE .087-.098
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Manufacturer's serial number	531810	531810	531810	531810	531810	531810	531810	531810	531810	531810
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	110	10	20	30	60	70	90	80	40	50
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	-	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	-	-	-
Filter function	NO	NO	NO	NO	NO	NO	NO	-	-	-
IEC compliance	NO	NO	NO	NO	NO	NO	NO	-	-	-
MIL compliance	NO	NO	NO	NO	NO	NO	NO	-	-	-
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	-	-	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-
Terminal pitch	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	-	-	-
Base Number Matches	1	1	1	1	1	1	1	1	-	-
