PM3-PHDW12.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PM3-PHDW12.0

PM3-PHDW12.0: DescriptionPNL MNT RED 20MA W/WIRE: 12"; CategoryLED optoelectronic/LED; File Size116KB，2 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

PM3-PHDW12.0 Overview

PNL MNT RED 20MA W/WIRE: 12"

PM3-PHDW12.0 Parametric

Parameter Name	Attribute value
type	LED
lamp color	red
Lens color	white
Lens transparency	scattering
grade	AC/DC
Voltage	8 V ~ 48 V
current	20mA
Panel opening shape	round
Panel opening size	0.19"（4.83mm）
Lens style/size	Round, with flat top, 5.90mm
millicandela level	30mcd
Wavelength - Peak	625nm
perspective	120°
Terminal type	Lead - 12" (304.80mm)
Intrusion protection	IP67
characteristic	-

Preview

Download Datasheet

View All

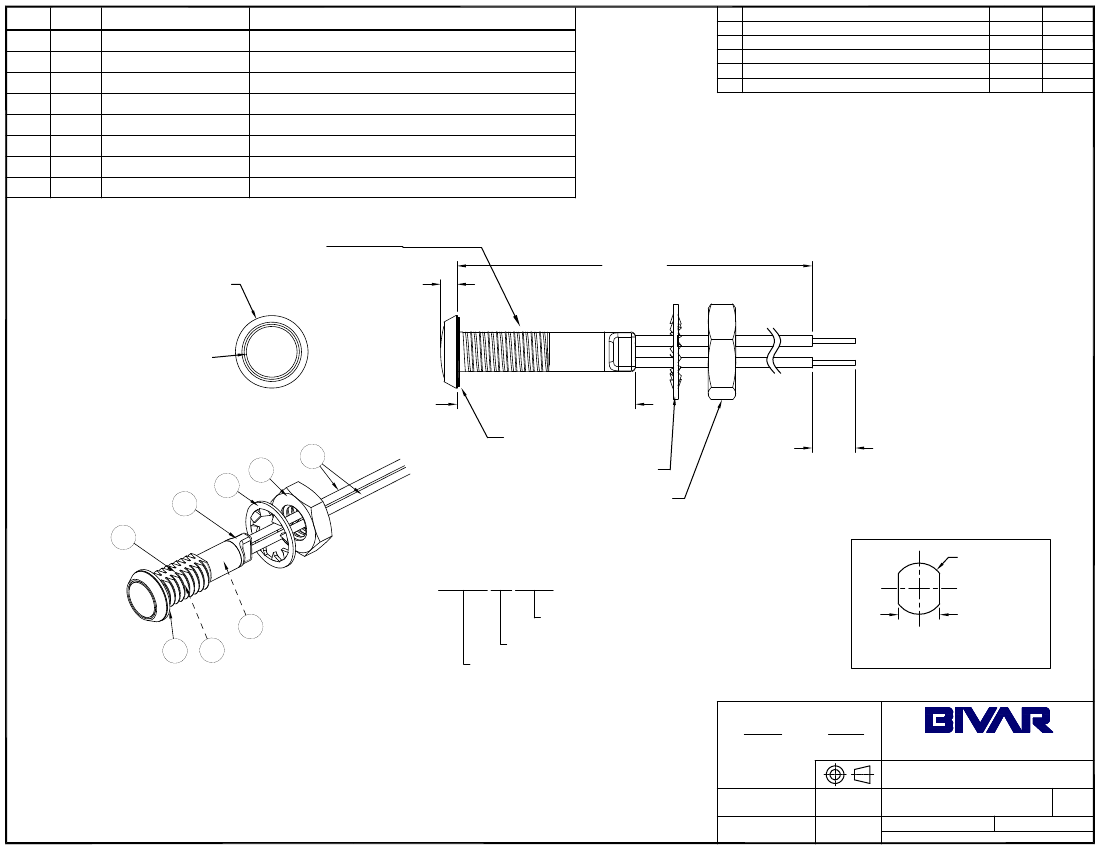

ITEM

Q'TY

PART NUMBER

PM3-PE

PM3-HP

PM3-VS

WASH-1009

NUT-1004

3XX-S

PCBA-1081

BWS24-1061-BK

PART DESCRIPTION

3mm Polycarbonate Panel Mount Extended Housing

3mm Panel Mount Wide Range Plug

3mm Sealing Ring

M6 Internal Tooth Lock Washer

M6x1 Thin Nut

3mm LED, SEE SHEET #2

8~48V Universal Power Board

24AWG Wire, UL Style 1061, Black

REV.

DESCRIPTION

DATE

APPROVED

Engineering Release

Updated Descriptions

Updated LED Optical Characteristics

04/12/12

03/21/13

09/15/15

T. Y.

J. C.

M6x1 Thread

Ø0.332 [Ø8.4mm]

0.075 [1.9mm]

XX.X +0.20

-0.05

Ø0.232 [Ø5.9mm]

0.82 [20.7mm]

SEALING RING

LOCK WASHER

M6 NUT

MOUNTING TORQUE 0.35 Nm

0.20 [5.0mm]

Stripped &

Tinned

EXAMPLE:

PM3-PRDW6.5

Ø.234+.003

-.002

Wire Length in 0.5" Increments

LED Color & Lens Appearance.

Series

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

0.190 [4.8mm]

Recommended Mounting Hole

1.5mm-6mm Panel Thickness

NOTES:

1. SEALED TO IP67 RATING

2. WIDE RANGE VOLTAGE INPUT, 8-48 VAC/VDC

3. BIPOLAR OPERATION

4. ROHS COMPLIANT

5. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

6. INSERT SEALING RING ON PANEL MOUNT PRIOR TO PANEL INSERTION

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

IP67 Rated Panel Mount

Indicator w/ Wire

REVISION:

PART NO:

TITLE:

T. Yin

CHECKED:

04/12/12

DATE:

PM3-PXXXWXX.X

CAGE CODE : 32559

B. Oliver

04/12/12

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

PM3-PHDW12.0 Related Products

	PM3-PHDW12.0	PM3-PWDW12.0	PM3-PBWDW12.0	PM3-PADW12.0	PM3-PPGDW12.0	PM3-PYDW12.0	PM3-PGDW12.0	PM3-PPGDW48.0	PM3-PRDW12.0
Description	PNL MNT RED 20MA W/WIRE: 12"	led panel mount indicators 8.4mm wht diff 12in ip67 rtd Sealed pmi	led panel mount indicators 8.4mm blu diff 12in ip67 rtd Sealed pmi	led panel mount indicators 8.4mm amb diff 12in ip67 rtd Sealed pmi	PNL MNT GREEN 20MA W/WIRE: 12"	PNL MNT YLW 20MA W/WIRE: 12"	PNL MNT GREEN 20MA W/WIRE: 12"	LED PANEL INDICATOR GRN 8V-48V	PNL MNT RED 20MA W/WIRE: 12"
type	LED	-	-	-	LED	LED	LED	LED	LED
lamp color	red	-	-	-	green	yellow	green	green	red
Lens color	white	-	-	-	white	white	white	white	white
Lens transparency	scattering	-	-	-	scattering	scattering	scattering	scattering	scattering
grade	AC/DC	-	-	-	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Voltage	8 V ~ 48 V	-	-	-	8 V ~ 48 V	8 V ~ 48 V	8 V ~ 48 V	8 V ~ 48 V	8 V ~ 48 V
current	20mA	-	-	-	20mA	20mA	20mA	20mA	20mA
Panel opening shape	round	-	-	-	round	round	round	round	round
Panel opening size	0.19"（4.83mm）	-	-	-	0.19"（4.83mm）	0.19"（4.83mm）	0.19"（4.83mm）	0.23"（5.84mm）	0.19"（4.83mm）
Lens style/size	Round, with flat top, 5.90mm	-	-	-	Round, with flat top, 5.90mm	Round, with flat top, 5.90mm	Round, with flat top, 5.90mm	Round with dome	Round, with flat top, 5.90mm
millicandela level	30mcd	-	-	-	20mcd	30mcd	30mcd	20mcd	40mcd
Wavelength - Peak	625nm	-	-	-	555nm	585nm	568nm	555nm	645nm
perspective	120°	-	-	-	120°	120°	120°	120°	120°
Terminal type	Lead - 12" (304.80mm)	-	-	-	Lead - 12" (304.80mm)	Lead - 12" (304.80mm)	Lead - 12" (304.80mm)	Lead - 48" (1219.20mm)	Lead - 12" (304.80mm)
Intrusion protection	IP67	-	-	-	IP67	IP67	IP67	IP67	IP67
