142-5407-106: DescriptionCONN SMA PLUG R/A 50 OHM SOLDER; CategoryThe connector; File Size304KB，2 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

142-5407-106 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	142-5407-106	-	-	View	Buy Now

142-5407-106 Overview

CONN SMA PLUG R/A 50 OHM SOLDER

142-5407-106 Parametric

Parameter Name	Attribute value
Connector style	SMA
Connector type	Plug, male pin
Contact termination	welding
Protective termination	crimp
impedance	50 ohms
Installation type	Free hanging, right angle
Installation features	-
cable set	RG-58，141，303
Fastening type	Threaded, reverse
Frequency - maximum	12.4GHz
Number of ports	1
characteristic	-
Shell color	silver
Intrusion protection	-
include	3 pieces - 1 connector, 1 end cap, 1 ferrule
Matrix material	brass
substrate surface	nickel
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C
center contact material	brass
Rated voltage	335V
Number of patches	500
Insertion loss	-

Preview

Download Datasheet

View All

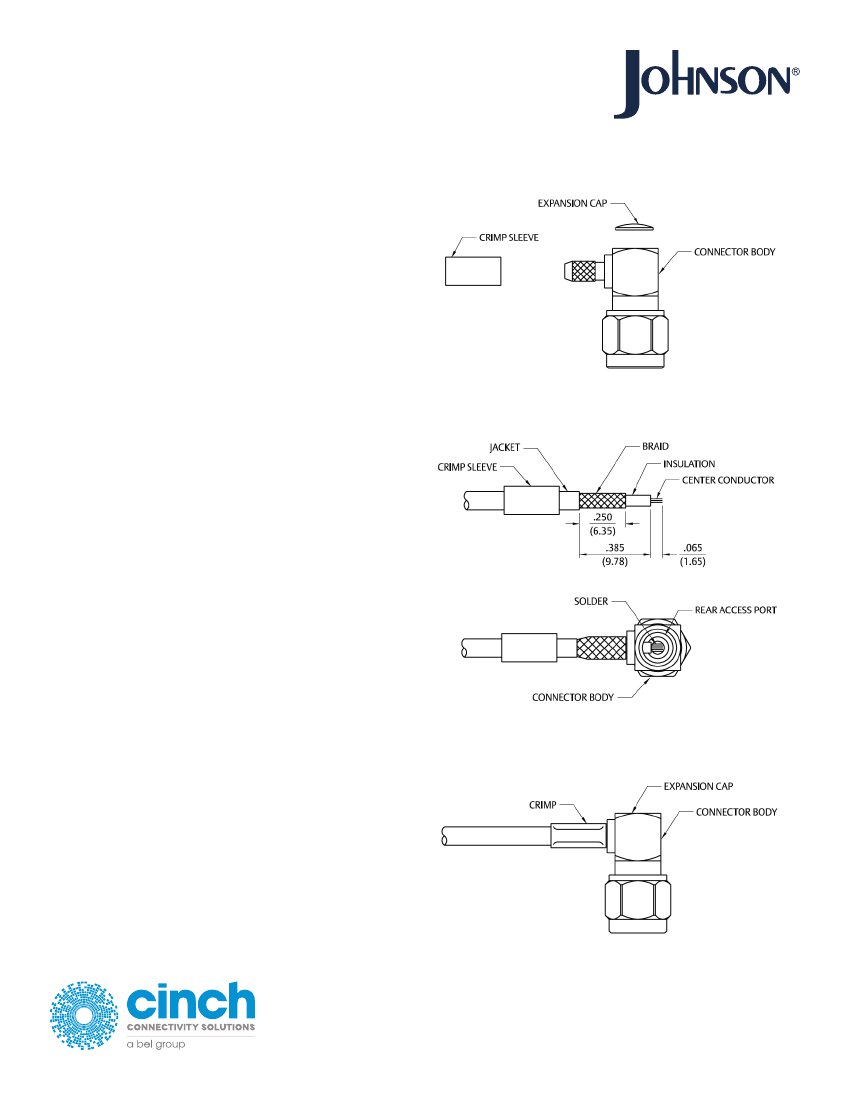

SMA Crimp Type Right Angle Plugs for Flexible Cable

1. Identify connector parts. (3 piece parts)

2. Strip cable to dimensions shown. Do not nick braid

or center conductor. When stripping LMR-100

low loss cable, remove foil back to where cable

jacket is stripped. A wire stripper of correct size is

recommended for this step. Twist stranded center

conductor into tight bundle and tin (optional). Slide

crimp sleeve onto cable as shown.

3. Flare braid and slide cable into body making certain

that the cable insulation bottoms on center contact.

Solder center conductor to contact through the

rear access port. Use a minimum amount of solder

for a full fillet joint. .020 (0.51) diameter solder is

recommended.

4. Arrange braid uniformly around crimp stem. Slide

crimp sleeve over braid and crimp securely using

recommended crimp tool. Place expansion cap in

access port and seat with .187 (4.75) diameter flat

punch. Shrink heat shrink tubing over crimp sleeve if

applicable.

243

Cinch Connectivity Solutions Waseca

299 Johnson Avenue SW, Suite 100

Waseca, MN 56093 USA

+1 507.833.8822

inquiry@cinch.com

cinch.com

ccsjai 02.17

142-5407-106 Related Products

	142-5407-106	142-5407-101	142-5404-106	142-9404-101	142-9403-101	142-5404-101	142-9407-101
Description	CONN SMA PLUG R/A 50 OHM SOLDER	CONN SMA PLUG R/A 50 OHM SOLDER	CONN SMA PLUG R/A 50 OHM SOLDER	CONN SMA PLUG R/A 50 OHM SOLDER	CONN SMA PLUG R/A 50 OHM SOLDER	CONN SMA PLUG R/A 50 OHM SOLDER	CONN SMA PLUG R/A 50 OHM SOLDER
Connector style	SMA	SMA	SMA	SMA	SMA	SMA	SMA
Connector type	Plug, male pin	Plug, male pin	Plug, male pin	Plug, male pin	Plug, male pin	Plug, male pin	Plug, male pin
Contact termination	welding	welding	welding	welding	welding	welding	welding
Protective termination	crimp	crimp	crimp	crimp	crimp	crimp	crimp
impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Installation type	Free hanging, right angle	Free hanging, right angle	Free hanging, right angle	Free hanging, right angle	Free hanging, right angle	Free hanging, right angle	Free hanging, right angle
cable set	RG-58，141，303	RG-58，141，303	RG-188DS，316DS	RG-188DS，316DS	RG-161，174，188，316	RG-188DS，316DS	RG-58，141，303
Fastening type	Threaded, reverse	Threaded, reverse	Threaded, reverse	Threaded	Threaded	Threaded, reverse	Threaded
Frequency - maximum	12.4GHz	12.4GHz	12.4GHz	12.4GHz	12.4GHz	12.4GHz	12.4GHz
Number of ports	1	1	1	1	1	1	1
Shell color	silver	gold	silver	gold	gold	gold	gold
include	3 pieces - 1 connector, 1 end cap, 1 ferrule	3 pieces - 1 connector, 1 end cap, 1 ferrule	3 pieces - 1 connector, 1 end cap, 1 ferrule	3 pieces - 1 connector, 1 end cap, 1 ferrule	3 pieces - 1 connector, 1 end cap, 1 ferrule	3 pieces - 1 connector, 1 end cap, 1 ferrule	3 pieces - 1 connector, 1 end cap, 1 ferrule
Matrix material	brass	brass	brass	copper alloy	copper alloy	brass	copper alloy
substrate surface	nickel	gold	nickel	gold	gold	gold	gold
Center contact plating	gold	gold	gold	gold	gold	gold	gold
dielectric materials	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C
center contact material	brass	brass	brass	copper alloy	copper alloy	brass	copper alloy
Rated voltage	335V	335V	250V	250V	250V	250V	335V
Number of patches	500	500	500	500	500	500	500
