5452349 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5452349

5452349: DescriptionTERM BLOCK HDR 19POS 3.81MM; CategoryThe connector; File Size96KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5452349 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5452349	-	-	View	Buy Now

5452349 Overview

TERM BLOCK HDR 19POS 3.81MM

5452349 Parametric

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	19
Number of pins per level	19
Number of levels	1
spacing	0.150"（3.81mm）
Needle seat direction	90°, right angle
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	8A
Voltage - IEC	160V
Current - UL	8A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-
Contact mating surface treatment	tin
characteristic	mating flange
Material flammability rating	-
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	-
Shell material	-
Contact tail length	0.134"（3.40mm）
Insulation height	0.291"（7.40mm）

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5452349

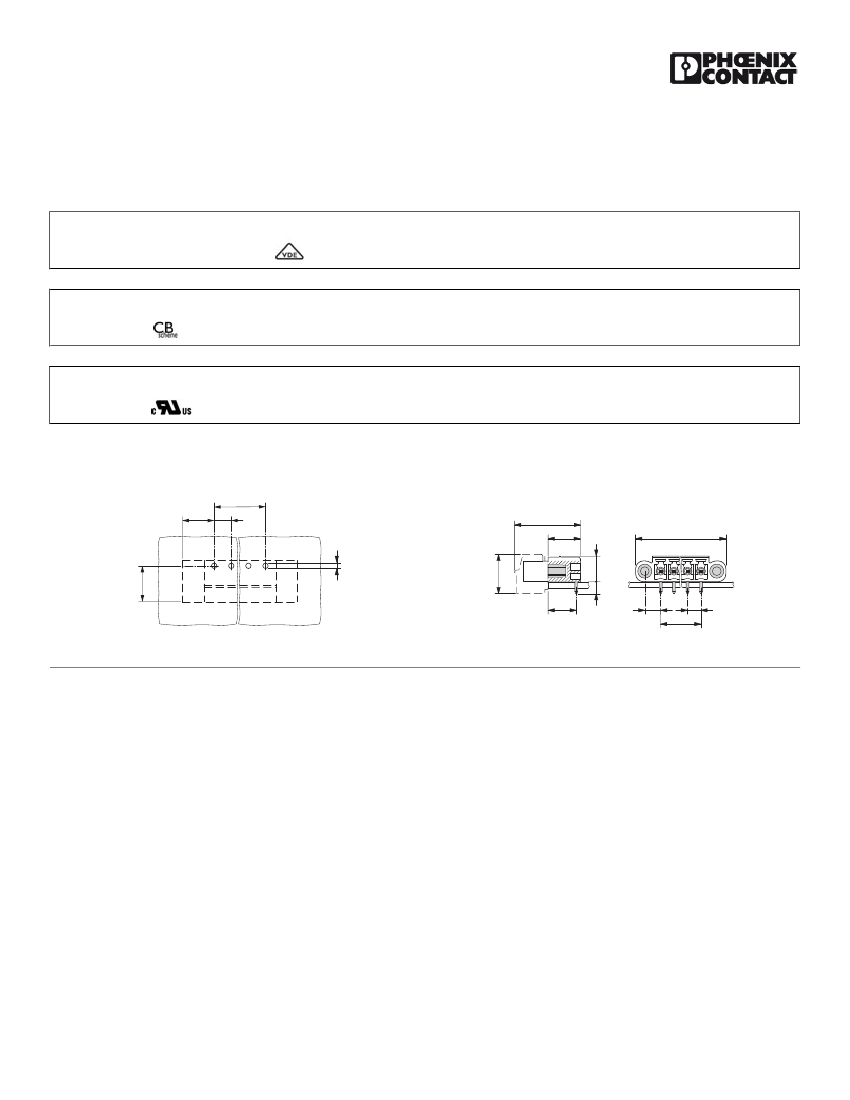

Printed-circuit board connector - BCH-381HF-19 BK - 5452349

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

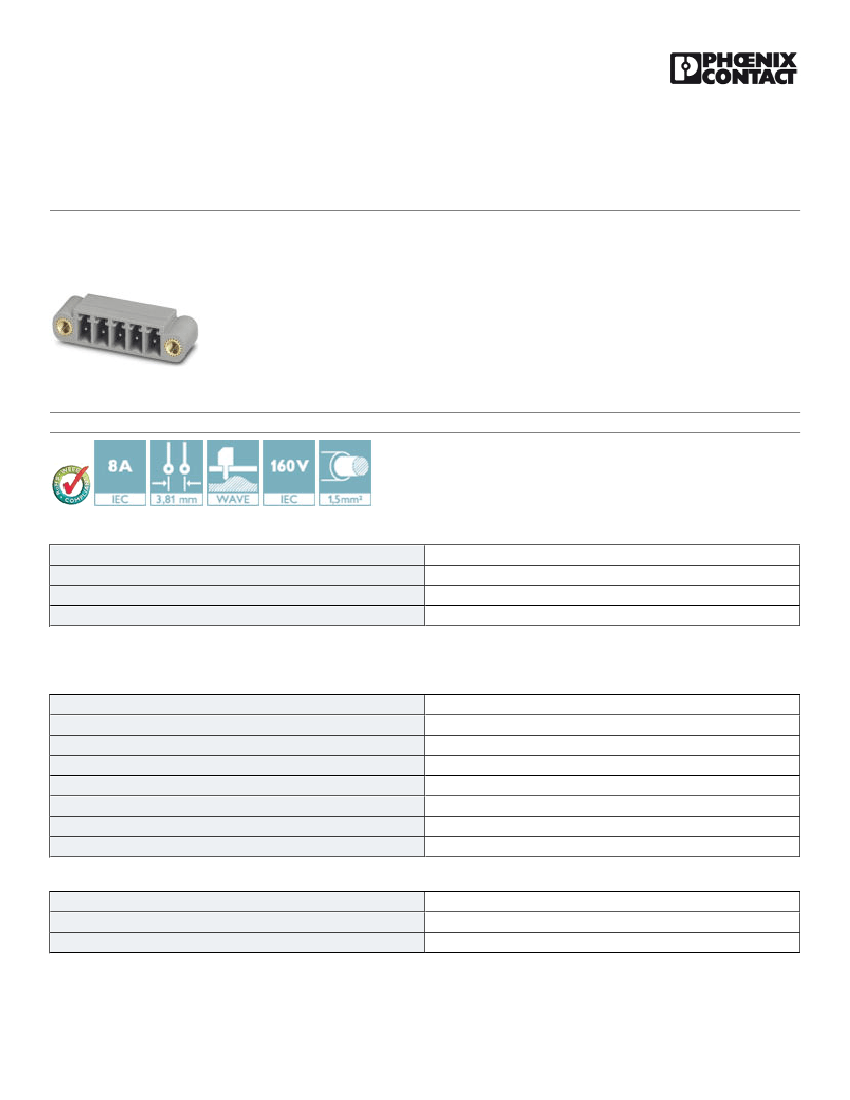

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 19, Pitch: 3.81 mm, Color: black,

Contact surface: Tin, Mounting: Wave soldering

The figure shows the 5-pos. version

of the product in gray

Key Commercial Data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

China

Classifications

eCl@ss

eCl@ss 4.0

eCl@ss 4.1

eCl@ss 5.0

eCl@ss 5.1

eCl@ss 6.0

eCl@ss 7.0

eCl@ss 8.0

eCl@ss 9.0

272607xx

27260701

27261101

27440401

27440402

ETIM

ETIM 3.0

ETIM 4.0

ETIM 5.0

EC001121

EC002637

05/03/2016 Page 1 / 3
