4445-09K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 4445-09K

4445-09K: DescriptionFIXED IND 47NH 3A 20 MOHM TH; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

4445-09K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4445-09K	-	-	View	Buy Now

4445-09K Overview

FIXED IND 47NH 3A 20 MOHM TH

4445-09K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	API Delevan
package instruction	2010
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2010
structure	Epoxy Molded
core material	Iron
DC Resistance	0.02 Ω
Nominal inductance(L)	0.047 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Lead diameter	0.508 mm
Lead length	25.4 mm
lead spacing	2.54 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.46 mm
Package length	5.08 mm
Package form	Radial
Package width	2.54 mm
method of packing	Bulk
Minimum quality factor (at nominal inductance)	60
Maximum rated current	3 A
self resonant frequency	650 MHz
series	4445
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	100 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

TI )

RA A

T (m

EN UM

RR IM

CU X

MA STA S)

SI HM

RE M (O

)**

)

(µ

f.)

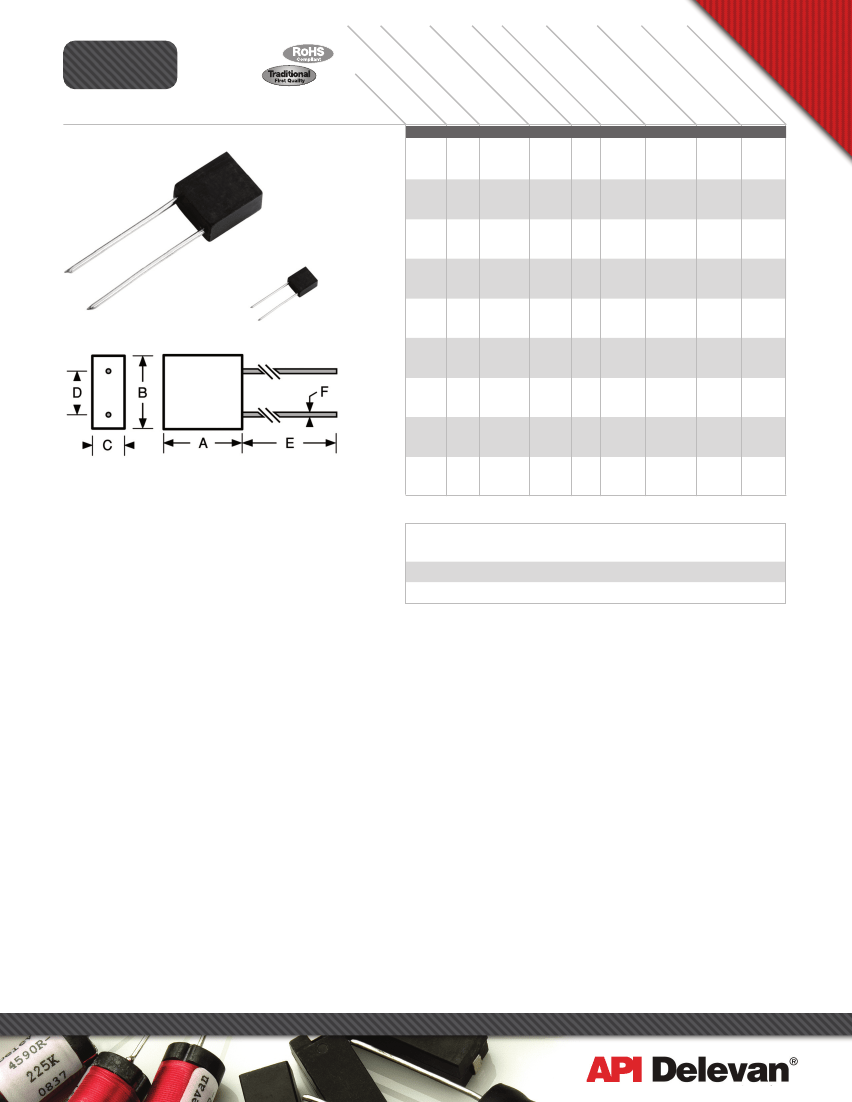

SERIES

4445R

4445

Radial Toroidal Inductors

Actual Size

-01M

-02M

-03M

-04M

-05M

-06M

-07M

-08M

-09M

-10M

-11M

-12M

-13K

-14K

-15K

-16K

-17K

-18K

-19K

-20K

-21K

-22K

-23K

-24K

-25K

MS21423 (Ref.) – SERIES 4445

0.010

± 20% 60

150

1000

0.012

± 20% 60

150

1000

0.015

± 20% 60

150

1000

0.018

± 20% 60

150

1000

0.022

± 20% 60

100

900

0.027

± 20% 60

100

800

0.033

± 20% 60

100

750

0.039

± 20% 60

100

700

0.047

± 20% 60

100

650

0.056

± 20% 60

100

600

0.068

± 20% 60

100

550

0.082

± 20% 60

100

500

0.100

± 10% 80

450

0.120

± 10% 80

400

0.150

± 10% 80

350

0.180

± 10% 80

320

0.220

± 10% 80

300

0.270

± 10% 80

280

0.330

± 10% 80

260

0.390

± 10% 80

240

0.470

± 10% 80

220

0.560

± 10% 70

200

0.680

± 10% 70

180

0.820

± 10% 70

160

1.000

± 10% 70

150

0.020

0.030

0.040

0.050

0.060

0.070

0.080

0.100

0.120

0.150

0.200

0.250

0.300

0.350

0.400

3000

2500

2200

2000

1800

1600

1500

1400

1300

1150

1000

900

800

750

700

Military Speciﬁcation

MS21423 (Ref.)

Mechanical Conﬁguration Units are radial leaded and

encapsulated in an epoxy molded package.

Physical Parameters

Inches

0.200 to 0230

0.190 to 0.210

0.090 to 0.110

1.00 Min.

0.0185 to 0.0215

Optional Tolerances: J = 5% H = 3% G

(Dash 01-12 Min. Tolerance is ±5%)

Millimeters

5.08 to 5.84

4.83 to 5.33

2.29 to 2.79

25.4 Min.

0.470 to 0.546

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

Operating Temperature

–55°C to +125°C

Current Rating at 90°C Ambient

35°C Rise

Maximum Power Dissipation at 90°C

0.200 W

Note

Inductance measured 0.25" from body.

Weight Max.

(Grams) 0.5

* * Note

Self Resonant Frequency (SRF) values above

250 MHz are calculated and for reference only.

Marking 4445; dash number with tolerance letter; Delevan

cage code (99800); date code (YYWWL). Note: An R after

4445 indicates a RoHS component.

Example: 4445-01M

4445

-01M

99800

0828A

Packaging

Bulk only

Made in the U.S.A.

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
