BC807W series
Rev. 7 — 3 July 2018
45 V, 500 mA PNP general-purpose transistors
Product data sheet
1
Product profile
1.1 General description
PNP general-purpose transistors in a very small SOT323 (SC-70) Surface-Mounted
Device (SMD) plastic package.
Table 1. Product overview
Type number
BC807W
BC807-16W
BC807-25W
BC807-40W
Package
Nexperia
SOT323
JEDEC
-
JEITA
SC-70
BC817W
BC817-16W
BC817-25W
BC817-40W
NPN complement
1.2 Features and benefits
•
High current
•
Three current gain selections
•
AEC-Q101 qualified
1.3 Applications
•
General-purpose switching and amplification
Nexperia
45 V, 500 mA PNP general-purpose transistors
BC807W series
1.4 Quick reference data
Table 2. Quick reference data
T
amb
= 25 °C unless otherwise specified.
Symbol
V
CEO
I
C
I
CM
h
FE
Parameter
collector-emitter voltage
collector current
peak collector current
DC current gain
BC807W
BC807-16W
BC807-25W
BC807-40W
[1] pulsed; t
p
≤ 300 μs; δ ≤ 0.02
Conditions
open base
single pulse; t
p
≤ 1 ms
V
CE
= -1 V; I
C
= -100 mA
[1]
[1]
[1]
[1]
Min
-
-
-
100
100
160
250
Typ
-
-
-
-
-
-
-
Max
-45
-500
-1
600
250
400
600
Unit
V
mA
A
2
Pin
Pinning information
Symbol
B
E
C
Description
base
emitter
collector
3
Table 3. Pinning
Simplified outline
Graphic symbol
SOT323
1
2
3
C
B
E
1
2
sym132
3
Ordering information
Package
Name
Description
Plastic surface-mounted package; 3 leads
Version
SOT323
SC-70
Table 4. Ordering information
Type number
BC807W
BC807-16W
BC807-25W
BC807-40W
BC807W_SER
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 7 — 3 July 2018
2 / 16
Nexperia
45 V, 500 mA PNP general-purpose transistors
BC807W series
4
Marking
Marking code
[1]
[1]
[1]
[1]
Table 5. Marking
Type number
BC807W
BC807-16W
BC807-25W
BC807-40W
[1] % = placeholder for manufacturing site code
5D%
5A%
5B%
5C%
5
Limiting values
Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
T
amb
= 25 °C unless otherwise specified.
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
P
tot
T
j
T
amb
T
stg
Parameter
collector-base voltage
collector-emitter voltage
emitter-base voltage
collector current
peak collector current
peak base current
total power dissipation
junction temperature
ambient temperature
storage temperature
single pulse; t
p
≤ 1 ms
single pulse; t
p
≤ 1 ms
T
amb
≤ 25 °C
[1] [2]
[3] [2]
Conditions
open emitter
open base
open collector
Min
-
-
-
-
-
-
-
-
-
-65
-65
Max
-50
-45
-5
-500
-1
-200
200
290
150
150
150
Unit
V
V
V
mA
A
mA
mW
mW
°C
°C
°C
[1] Device mounted on an FR4 Printed-Circuit-Board (PCB); single-sided copper; tin-plated and standard footprint.
[2] Valid for all available selection groups.
2
[3] Device mounted on an FR4 Printed-Circuit-Board (PCB); single-sided copper; tin-plated; mounting pad for collector 1 cm .
BC807W_SER
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 7 — 3 July 2018
3 / 16
Nexperia
45 V, 500 mA PNP general-purpose transistors
aaa-028121
BC807W series
400
P
tot
(mW)
300
(1)
200
(2)
100
0
-75
-25
2
25
75
125
175
T
amb
(°C)
(1) FR4 PCB, single-sided copper; 1 cm
Figure 1. Power derating curves
(2) FR4 PCB, single-sided copper; standard footprint
BC807W_SER
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 7 — 3 July 2018
4 / 16
Nexperia
45 V, 500 mA PNP general-purpose transistors
BC807W series
6
Thermal characteristics
Table 7. Thermal characteristics
T
amb
= 25 °C unless otherwise specified.
Symbol
R
th(j-a)
Parameter
thermal resistance from junction
to ambient
Conditions
in free air
[1] [2]
[3] [2]
Min
-
-
Typ
-
-
Max
625
431
Unit
K/W
K/W
[1] Device mounted on an FR4 Printed-Circuit-Board (PCB); single-sided copper; tin-plated and standard footprint.
[2] Valid for all available selection groups.
2
[3] Device mounted on an FR4 Printed-Circuit-Board (PCB); single-sided copper; tin-plated; mounting pad for collector 1 cm .
10
3
duty cycle = 1
Z
th(j-a)
(K/W)
10
2
0.10
0.05
10
0.02
0.01
0.75
0.33
0.50
0.20
aaa-028114
0
1
10
-5
10
-4
10
-3
10
-2
10
-1
1
10
10
2
t
p
(s)
10
3
FR4 PCB; single-sided copper; tin-plated and standard footprint

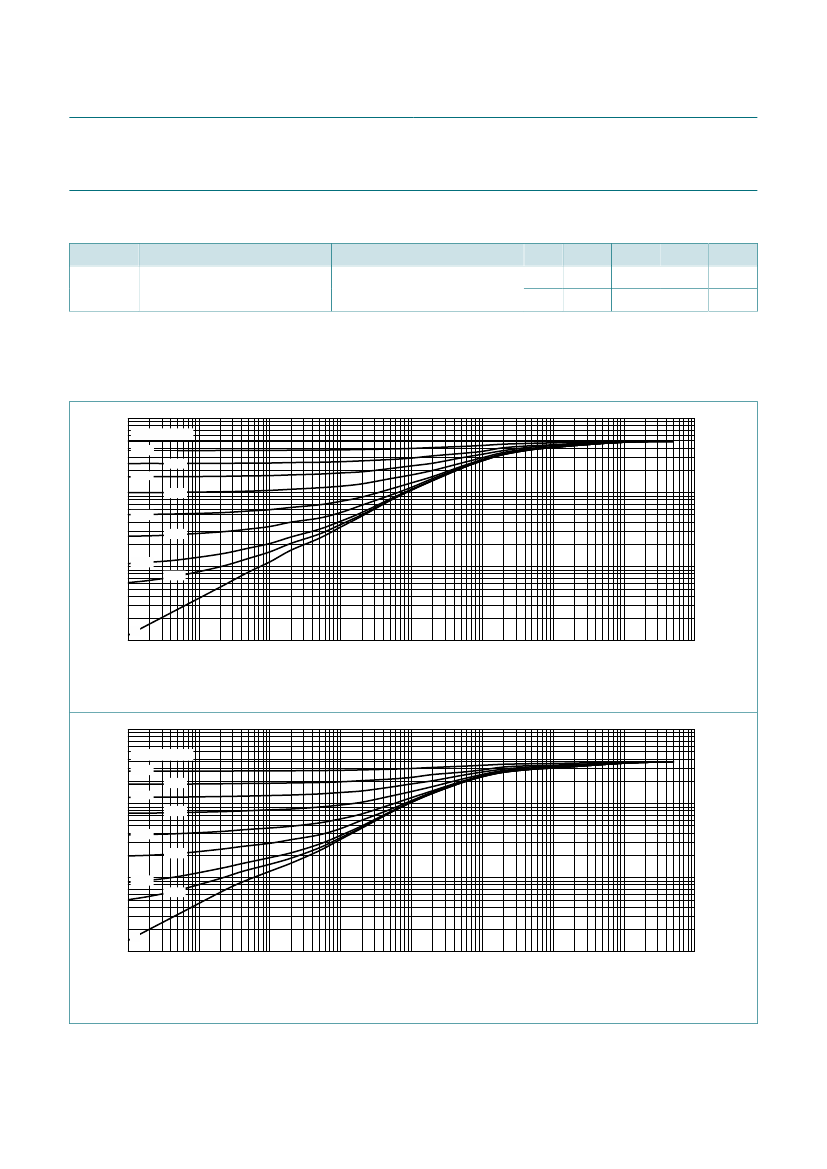

Figure 2. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
10
3
Z
th(j-a)
(K/W)
10
2
duty cycle = 1
0.75
0.33
0.50
0.20
0.10
0.05
10
0.02
aaa-028115
0.01
0
1
10
-5
10
-4
10
-3
10
-2
10
-1
1
2
10
10
2
t
p
(s)
10
3
FR4 PCB; single-sided copper; tin-plated; mounting pad for collector 1 cm
Figure 3. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
BC807W_SER
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 7 — 3 July 2018
5 / 16
