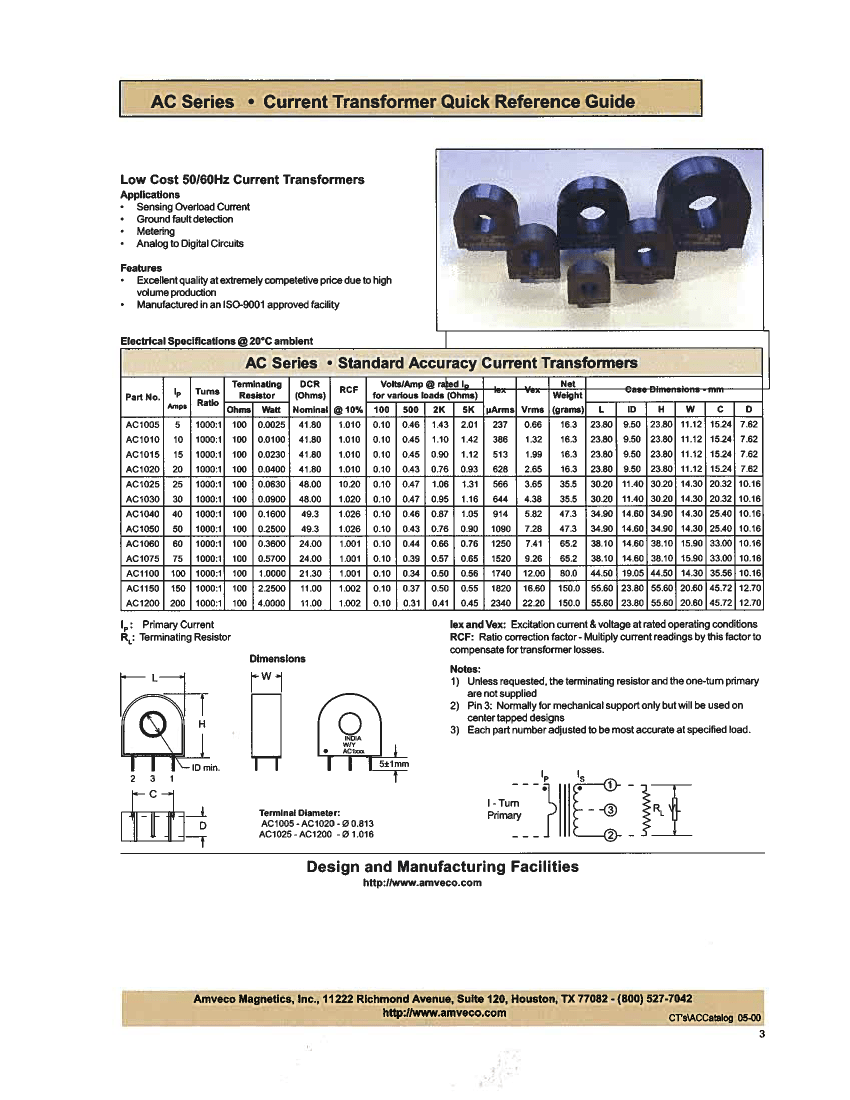

AC1200: DescriptionCURR SENSE XFMR 200A T/H; CategoryPower/power management; File Size53KB，1 Pages; ManufacturerAcme Electric Amveco_Actown; Environmental Compliance

Download Datasheet Parametric Compare View All

AC1200 Overview

CURR SENSE XFMR 200A T/H

Parameter Name	Attribute value
Frequency Range	50/60Hz
type	Non-intrusive type (solid core)
Rated current	200A
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	-
Current ratio	1000:1
DC resistance (DCR)	11 ohms
grade	-
Installation type	Through hole
size/dimensions	2.189" long x 0.811" wide (55.60mm x 20.60mm)
Height - Installation (maximum)	2.189" (55.60mm)
Terminal type	PC pin
weight	0.331 lbs (150.14g)

	AC1200	AC1015	AC1025	AC1050	AC1010
Description	CURR SENSE XFMR 200A T/H	CURR SENSE XFMR 15A T/H	TRANSFORMER CURRENT 25.0 AMP	CURR SENSE XFMR 50A T/H	CURR SENSE XFMR 10A T/H
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
type	Non-intrusive type (solid core)	Non-intrusive type (solid core)	Non-intrusive type (solid core)	Non-intrusive type (solid core)	Non-intrusive type (solid core)
Current ratio	1000:1	1000:1	1000:1	1000:1	1000:1
DC resistance (DCR)	11 ohms	41.8 ohms	48 ohms	49.3 ohms	41.8 ohms
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole
size/dimensions	2.189" long x 0.811" wide (55.60mm x 20.60mm)	0.937" long x 0.438" wide (23.80mm x 11.12mm)	1.189" long x 0.563" wide (30.20mm x 14.30mm)	1.374" long x 0.563" wide (34.90mm x 14.30mm)	0.937" long x 0.438" wide (23.80mm x 11.12mm)
Height - Installation (maximum)	2.189" (55.60mm)	0.937"（23.80mm）	1.189"（30.20mm）	1.374"（34.90mm）	0.937"（23.80mm）
Terminal type	PC pin	PC pin	PC pin	PC pin	PC pin
weight	0.331 lbs (150.14g)	0.036 lbs (16.33g)	0.079 lbs (35.83g)	0.104 lbs (47.17g)	0.036 lbs (16.33g)
Rated current	200A	15A	-	50A	10A
