Freescale Semiconductor
Quick Start Guide
Rev. 0.0, 08/25/2004
DEMO908GZ60 Quick Start Guide
Introduction and Default Settings
This kit contains everything you need to get started minus the +9 VDC power supply. This guide will walk
you though how to connect the board to your PC, run the pre-programmed LED test, install the correct
version of CodeWarrior Development Studio, and load an ATD (Analog to Digital) test program. Source
code for DEMO908GZ60_LED (LED test) and DEMO908GZ60_ATD (ATD test) are provided on the
Axiom CD in the “Examples” folder.
Below are diagrams of the default settings for the DEMO908GZ60 demo board. Please refer to the
DEMO908GZ60 User’s Guide on the Axiom CD for information on other configurations. All diagrams in
this guide are oriented with the MON08 header in the bottom right-hand corner. Black blocks indicate the
“on” or “installed” position of jumpers. Please check the settings before continuing.

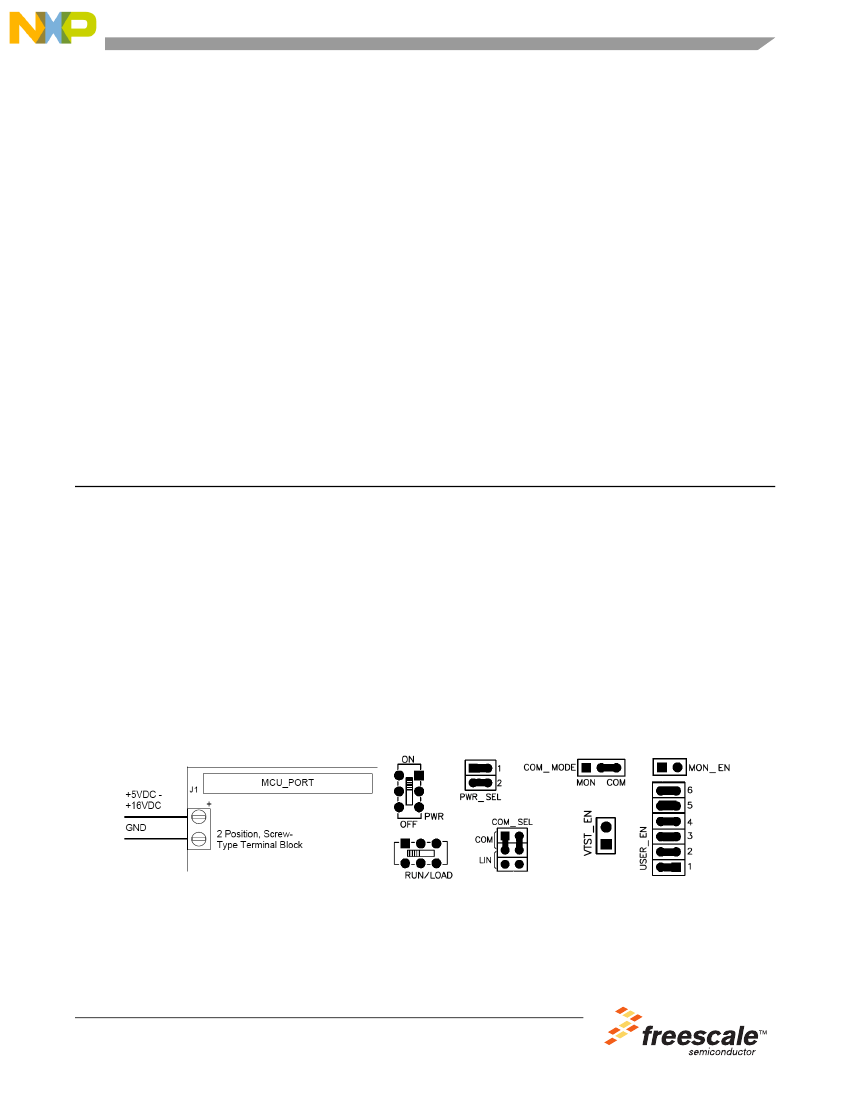

Figure 1
.
DEMO908GZ60 Default Settings
© Freescale Semiconductor, Inc., 2004. All rights reserved.
Introduction and Default Settings
Connect the DEMO908GZ60 to your computer and apply power
1. Connect the 9-pin serial cable provided to the COM1 port of the DEMO board. Connect the other
end to a COM port on your host PC.
2.
There are two ways to apply power to the demo board: via the power terminal block or the J1
MCU_PORT. Refer to the DEMO908GZ60 User’s Guide about using the MCU_PORT. Otherwise,
connect the +9 VDC supply into the screw-type terminal block. Please review the diagram above
for wire placement. Apply power to the power and turn on the power switch. The +5V LED should
turn on. If the LED is not on, please check the PWR_SEL jumpers, PWR switch, and the placement
of the +9 VDC power supply wires.
Please Note: +9 VDC supply must be used for proper MON08 monitor operation.
Run the DEMO908GZ60_LED program
The DEMO908GZ60 is shipped with the DEMO908GZ60_LED stored in on-chip Flash memory. You may
view the source code for this program by accessing the “DEMO908GZ60_LED.zip” file on the Axiom CD
(located in the “examples” folder).
1.
2.
Press SW1 and LED1 will turn on. Release SW1 and LED1 should turn off.
Press SW2 and LED2 will turn on. Release SW2 and LED2 should turn off.
Install CodeWarrior Development Studio Version 3.1 for HC(S)08
If you do not have version 3.1 of CodeWarrior for HC(S)08 Special Edition installed on your computer,
please refer to the provided “CodeWarrior Development Studio for Motorola” CD for HC(S)08 Special
Edition Version 3.1 and the included CodeWarrior Quick Start.
Important:
You must register and obtain
a license key to use CodeWarrior. You must also obtain another special edition license key, which will
allow you to experience all the features of the CodeWarrior debugger (see install, register, and license
key instructions in the CodeWarrior Quick Start).
Use the MON08 Monitor to install DEMO908GZ60_ATD program
The MON08 Monitor allows a user to program the MCU Flash and debug application via serial connection.
1.
On the Axiom CD (examples folder), copy and open the “DEMO908GZ60_ATD.zip” file to your PC,
and extract the files into a working folder on your desktop.
Note:
Be sure to extract, and
not
just
copy, the files.
If you have not already done so, connect serial cable and apply power to the board.
In the working folder on the desktop, double click on the “DEMO908GZ60.mcp” project file. The
CodeWarrior IDE will launch.
Open “DEMO908GZ60_ATD.c” in the source folder by double clicking on
“DEMO908GZ60_ATD.c”.
Please change the jumpers on the board to ensure proper communication between the PC and
DEMO908GZ60 board.
2.
3.
4.
5.
DEMO908GZ60 Quick Start Guide, Rev. 0.0
2
Freescale Semiconductor
Troubleshooting
Figure 2. MON08 Debug Setting for Serial Connection
6.
Click on “Debug” under Project in the menu bar or hit “F5.” The True-Time Simulator & Real-Time
Debugger interface window will appear. Please follow the instructions on the screen to complete
the Flash programming process.
If the “Attempting to contact target and pass security…” window appears, please make sure the
following options are configured correctly:
–
–
–
–
Target Hardware Type:
Class 3
Serial Port:
1 (Depends on the PC COM Port)
Baud:
7200 Baud
Target MCU Security bytes:
Check the “IGNORE security failure and enter monitor mode”
checkbox
Click the “Contact target with these settings…” button and follow the instructions on the screen.
When the “Erase and Program Flash?” window appears, click the “Yes” button.
To cycle the power, you should use the PWR switch near the power terminal block (TB1). Click
“OK” in the “Power Cycle Dialog” window. Please follow the remaining instructions on the screen
to complete the Flash programming process.
The “CPROG08SZ Programmer” window should close after the MCU Flash is programmed. You
are now ready to run the DEMO908GZ60_ATD code. Click on the green arrow in the toolbar at the
top of the screen to run the program. Once you click this button, a message in the command
window (bottom right-hand side) should say “RUNNING”.
Turn the RV1 dial (sometimes referred as a pot) and according to the position of the RV1 LED1
through LED8 will be turned on and off.
7.
8.
9.
10.
11.
Troubleshooting
Code will not run after reset
•
•
Make sure the “MON_EN” and “VTST_EN” jumpers are removed and press reset again.
Reinstall the jumpers to the default position. Refer to figure 1.
Unable to program the part using MON08 Monitor
•
•
•
Make sure the jumpers are in the debug position. Refer to figure 2.
Make sure the COM port matches the serial port in “Attempting to contact target and pass
security…” window.
Make sure the supply voltage connected to the terminal power block is +9 VDC.
DEMO908GZ60 Quick Start Guide, Rev. 0.0
Freescale Semiconductor
3
How to Reach Us:
USA/Europe/Locations not listed:
Freescale Semiconductor Literature Distribution
P.O. Box 5405, Denver, Colorado 80217
1-800-521-6274 or 480-768-2130
Japan:
Freescale Semiconductor Japan Ltd.
SPS, Technical Information Center
3-20-1, Minami-Azabu
Minato-ku
Tokyo 106-8573, Japan
81-3-3440-3569
Asia/Pacific:
Freescale Semiconductor H.K. Ltd.
2 Dai King Street
Tai Po Industrial Estate
Tai Po, N.T. Hong Kong
852-26668334
Learn More:
For more information about Freescale
Semiconductor products, please visit
http://www.freescale.com
Information in this document is provided solely to enable system and software implementers to use
Freescale Semiconductor products. There are no express or implied copyright licenses granted
hereunder to design or fabricate any integrated circuits or integrated circuits based on the information
in this document.
Freescale Semiconductor reserves the right to make changes without further notice to any products
herein. Freescale Semiconductor makes no warranty, representation or guarantee regarding the
suitability of its products for any particular purpose, nor does Freescale Semiconductor assume any
liability arising out of the application or use of any product or circuit, and specifically disclaims any
and all liability, including without limitation consequential or incidental damages. “Typical” parameters
which may be provided in Freescale Semiconductor data sheets and/or specifications can and do
vary in different applications and actual performance may vary over time. All operating parameters,
including “Typicals” must be validated for each customer application by customer’s technical experts.
Freescale Semiconductor does not convey any license under its patent rights nor the rights of others.
Freescale Semiconductor products are not designed, intended, or authorized for use as components
in systems intended for surgical implant into the body, or other applications intended to support or
sustain life, or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer purchase or use
Freescale Semiconductor products for any such unintended or unauthorized application, Buyer shall
indemnify and hold Freescale Semiconductor and its officers, employees, subsidiaries, affiliates, and
distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney
fees arising out of, directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale Semiconductor was
negligent regarding the design or manufacture of the part.
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other
product or service names are the property of their respective owners.
© Freescale Semiconductor, Inc. 2004.
Rev. 0.0, 08/25/2004
