D O C - 0 3 6 9 - 0 1 0
R E V
C
DEMO908QC16
Demonstration Board for Freescale MC68HC908QC16
Axiom Manufacturing
•
2813 Industrial Lane
•
Garland, TX 75041
Email:
Sales@axman.com
Web:
http://www.axman.com
D E M O 9 0 8 Q C 1 6
J U N E
2 0 ,
2 0 0 5
CONTENTS
CAUTIONARY NOTES ..............................................................................................................4
TERMINOLOGY.........................................................................................................................4
FEATURES ................................................................................................................................5
REFERENCES ...........................................................................................................................6
GETTING STARTED..................................................................................................................6
OPERATING MODES ................................................................................................................6
RUN MODE ........................................................................................................................... 6
MON08 MODE ...................................................................................................................... 7
MEMORY MAP ..........................................................................................................................8
SOFTWARE DEVELOPMENT ...................................................................................................8
DEVELOPMENT SUPPORT ......................................................................................................9
INTEGRATED MON08 .......................................................................................................... 9
OPTION HEADER............................................................................................................. 9
DATA RATE .................................................................................................................... 10
MON08 HEADER ................................................................................................................ 10
VTST_EN ........................................................................................................................ 10
POWER ....................................................................................................................................11
POWER SELECT ................................................................................................................ 11
PWR_SEL ....................................................................................................................... 11
VX_EN............................................................................................................................. 12
RESET SWITCH ......................................................................................................................12
LOW VOLTAGE INHIBIT .........................................................................................................13
TIMING .....................................................................................................................................13
COMMUNICATIONS ................................................................................................................13
LIN COMMUNICATIONS..................................................................................................... 13
RS-232 ................................................................................................................................ 14
COM_SEL ....................................................................................................................... 14
COM CONNECTOR ........................................................................................................ 15
USER OPTIONS ......................................................................................................................15
PUSHBUTTON SWITCHES ............................................................................................ 15
LED INDICATORS .......................................................................................................... 15
POTENTIOMETER.......................................................................................................... 16
PHOTOCELL................................................................................................................... 16
I/O PORT CONNECTOR..........................................................................................................17
APPENDIX A............................................................................................................................18
SILKSCREEN...................................................................................................................... 18
APPENDIX B............................................................................................................................19
BILL OF MATERIALS .......................................................................................................... 19
2
D E M O 9 0 8 Q C 1 6
J U N E
2 0 ,
2 0 0 5
FIGURES
Figure 1: USB_SPEED Option Header.....................................................................................10
Figure 2: MON08 Debug Port ...................................................................................................10
Figure 3: PWR_SEL Option Header .........................................................................................12
Figure 4. VX_EN Option Header .............................................................................................12
Figure 5: OSC_EN Option Header ...........................................................................................13
Figure 6: LIN Connector ...........................................................................................................14
Figure 7: COM Connections .....................................................................................................14
Figure 8: COM_SEL Option Header .........................................................................................14
Figure 9: COM Connector.........................................................................................................15
Figure 10: MCU I/O Port Connector .........................................................................................17
TABLES
Table 1: Run Mode Setup...........................................................................................................7
Table 2: MON08 Mode Setup .....................................................................................................7
Table 3: Memory Map.................................................................................................................8
Table 4: USB-MON08 Enable Header ........................................................................................9
Table 5: User Option Jumper Settings......................................................................................16
REVISION
Date
May 5, 2005
June 3, 2005
June 20, 2005
Rev
A
B
C
Comments
Initial Release
Updated FCC certification as Class A
Updated USB powered, stand-alone mode configura-
tion.
3
D E M O 9 0 8 Q C 1 6
J U N E
2 0 ,
2 0 0 5
CAUTIONARY NOTES
1) Electrostatic Discharge (ESD) prevention measures should be used when handling this
product. ESD damage is not a warranty repair item.
2) Axiom Manufacturing does not assume any liability arising out of the application or use of
any product or circuit described herein; neither does it convey any license under patent
rights or the rights of others.
3) EMC Information on the DEMO908QC16 board:
a) This product as shipped from the factory with associated power supplies and cables, has
been verified to meet with requirements
FCC
as a
CLASS A
product.
b) This product is designed and intended for use as a development platform for hardware
or software in an educational or professional laboratory.
c) In a domestic environment, this product may cause radio interference in which case the
user may be required to take adequate prevention measures.
d) Attaching additional wiring to this product or modifying the products operation from the
factory default as shipped may effect its performance and cause interference with other
apparatus in the immediate vicinity. If such interference is detected, suitable mitigating
measures should be taken.
TERMINOLOGY
This development board uses option selection jumpers. A jumper is a plastic shunt that con-
nects 2 terminals electrically. Terminology for application of the option jumpers is as follows:
Jumper on, in, or installed - jumper is installed such that 2 pins are connected together.
Jumper off, out, or idle - jumper is installed on 1 pin only. It is recommended that jump-
ers be idled by installing on 1 pin so they will not be lost.
4
D E M O 9 0 8 Q C 1 6
J U N E
2 0 ,
2 0 0 5

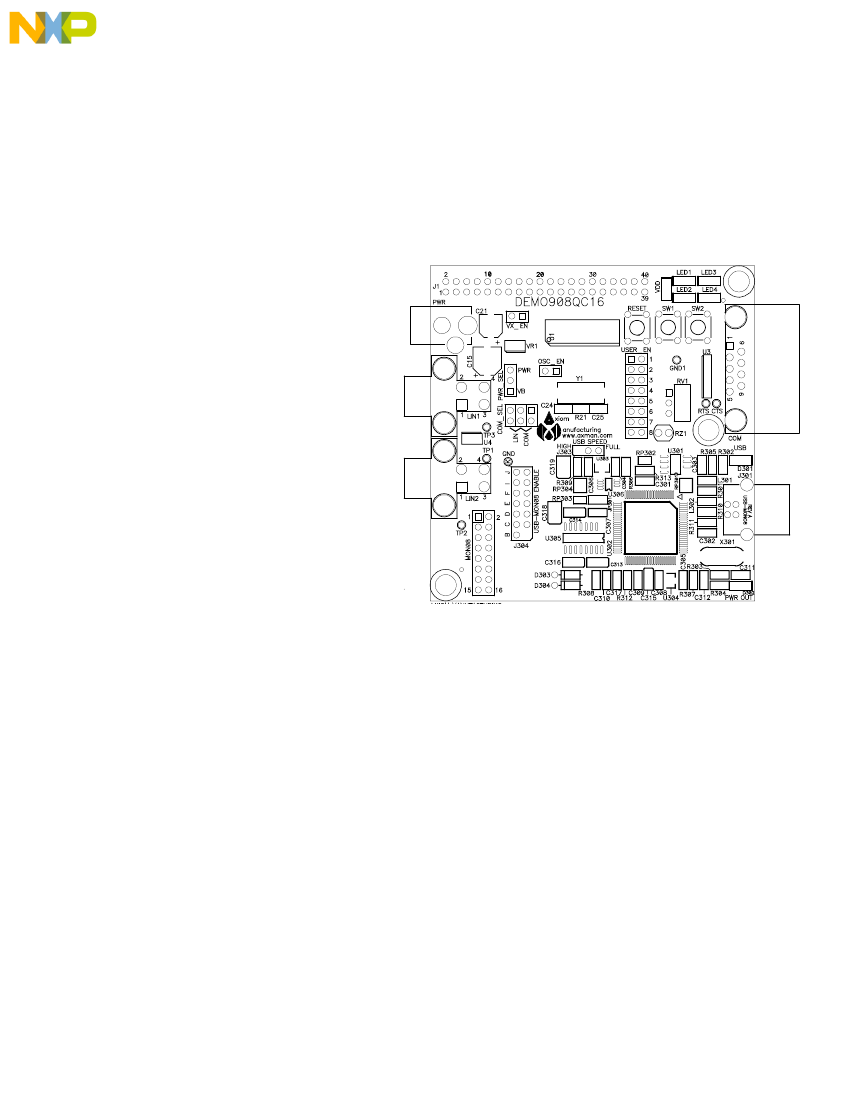

FEATURES
The DEMO908QC16 is an evaluation or demonstration board for the MC68HC908QC16 MCU.
Application development is quick and easy with the integrated USB-MON08, included USB ca-
ble, sample software tools, and examples. An optional MON08 port is also provided to allow
use of a MON08 debugger. The MON08 port header is not installed in default configurations.
A 40-pin connector allows connecting the DEMO908QC16 board to an expanded evaluation
environment.
Features:
•
MC68HC908QC16 MCU, 28 SOIC
•
16K bytes Flash
•
512 bytes RAM
•
24 General Purpose IO pins
•
2 Input only pins
•
6 KBI inputs
•
Internal Low Voltage Inhibit w/ selectable
trip point
•
Internal Oscillator, trimmable to ±4%
•
ESCI Module
•
SPI Module
•
4Ch, 16-bit Timer
•
2Ch, 16-bit Timer
•
10Ch, 10-bit ADC
Integrated MON08 Debugger
MON08 Header for MON08 Debug cable sup-
port (not installed)
RS-232 Serial Port w/ DB9 Connector
LIN Bus PHY w/ 2, 4-pin connectors
•
COM_SEL Jumper Selects Communications Protocol
Internal Oscillator, trimmable to ±0.4%, selectable frequency
Optional external 8.0 MHz Clock Oscillator w/ enable (not installed)
4Ch, 16-bit, Timer (TIM1)
2Ch, 16-bit Timer (TIM2)
10-Ch, 10-bit Analog to Digital Converter (ATD) w/ internal bandgap reference
Power Input Selection Jumper
•
Power input from USB-MON08 Debugger
•
Power input from on-board regulator
•
Power input from MCU_PORT connector
•
Power output through MCU_PORT connector
User Components Provided
•
3 Push Switches; 2 User, 1 Reset
•
7 LED Indicators; 4 User, +5V, USB, POWER_OUT
Jumpers
•
Power Select
•
VX_EN
•
Disable User Functions
•
OSC_EN
•
COM_SEL
Connectors
•
28-pos MCU I/O Connector
•
2.0mm Barrel Connector
•
MON08 Pin Header (not installed)
•
•
•
•
•
•
•
•
•
•
•
•
•
5
