ROMEO2
MC33593
PLL Tuned UHF Receiver
for Data Transfer Applications
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
868MHz, 902-928MHz Bands
OOK and FSK Demodulation
Low Current Consumption: 7mA Typ. in Run Mode
Internal or External Strobing
Fast Wake-Up Time (1ms)
-105dBm RF Sensitivity (at 4.8kBd Data Rate)
Fully Integrated VCO
Image Cancelling Mixer
Integrated IF Bandpass Filter at 660kHz
IF Bandwidth: 500kHz
ID Byte and Tone Detection
Data Rate: 1 to 11kBd
Manchester Coded Data Clock Recovery
Fully Configurable by SPI Interface
Few External Components, no RF Adjustment
Pin Connections
RCBGAP
STROBE
GNDDIG
MIXOUT
CAFC
24
VCC
1
VCC
2
VCCLNA
3
RFIN
4
GNDLNA
5
GNDSUB
6
23
22
21
20
19
18
VCCDIG
17
SCLK
16
MOSI
15
MISO
14
RESETB
13
DMDAT
7
PFD
8
GNDVCO
9
GND
10
XTAL1
11
XTAL2
12
CAGC

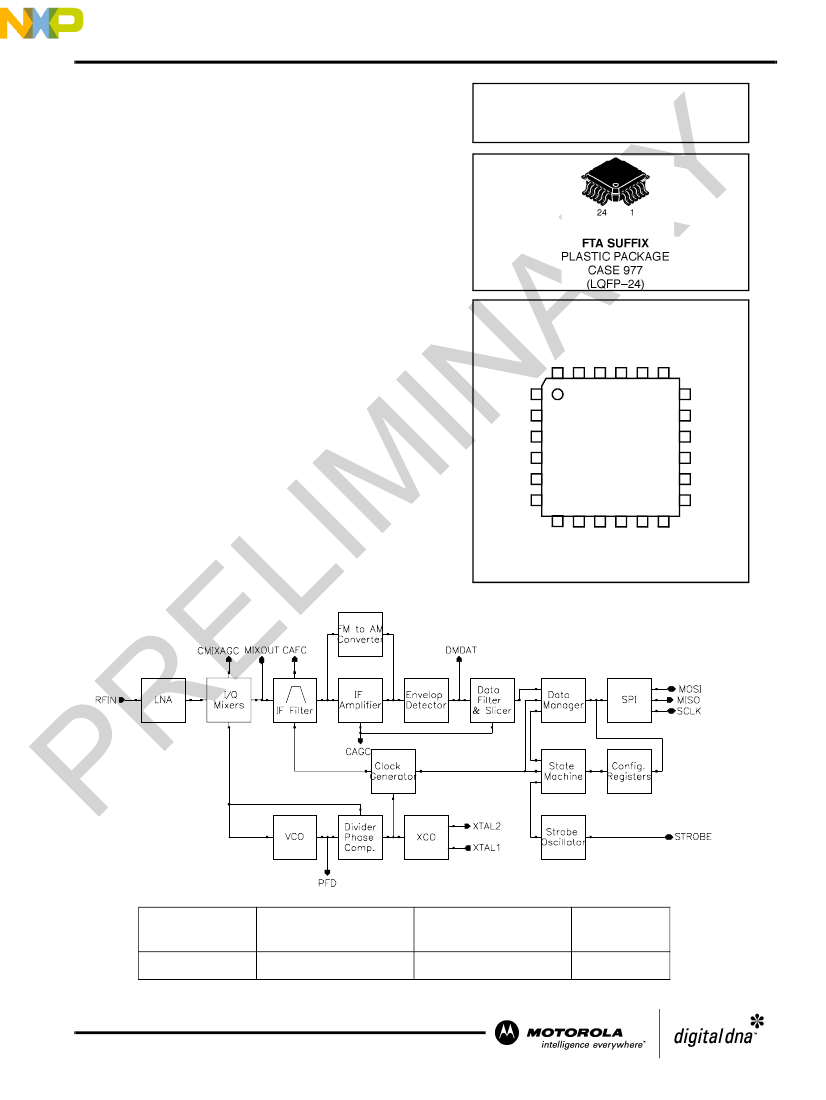

Figure 1: Simplified block diagram
Table 1: Ordering Information
Device
MC33593FTA
RF frequency/
IF filter bandwidth
868MHz / 500kHz
Ambiant
Temperature Range
-40°C to +85°C
Package
LQFP24
This document contains information on a new product under development. Motorola
reserves the right to change or discontinue this product without notice.
REV 7.0
© Motorola, Inc., 2002.
For More Information On This Product,
Go to: www.freescale.com
Non Disclosure Agreement Required
CMIXAGC
Freescale Semiconductor, Inc...
MC33593
Freescale Semiconductor, Inc.
PIN FUNCTION DESCRIPTION
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Name
VCC
VCC
VCCLNA
RFIN
GNDLNA
GNDSUB
PFD
GNDVCO
GND
XTAL1
XTAL2
CAGC
DMDAT
RESETB
MISO
MOSI
SCLK
VCCDIG
GNDDIG
RCBGAP
STROBE
CAFC
MIXOUT
CMIXAGC
Description
5V power supply
5V power supply
5V LNA power supply
RF input
LNA ground
Ground
Access to VCO control voltage
VCO ground
Ground
Reference oscillator crystal
Reference oscillator crystal
IF AGC capacitor for OOK
Reference for FSK
Demodulated data (OOK & FSK modulation)
State Machine Reset
SPI interface I/O
SPI interface I/O
SPI interface clock
5V digital power supply
Digital ground
Reference voltage output
Strobe oscillator control
Stop/Run external control input
AFC capacitor
Mixer output
Mixer AGC capacitor
© Motorola, Inc., 2002.
MOTOROLA SEMICONDUCTORS PRODUCTS
For More Information On This Product,
2
Go to: www.freescale.com
revision 7.0, 5 February 2002
Non Disclosure Agreement Required
Freescale Semiconductor, Inc...
MC33593
Freescale Semiconductor, Inc.
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply Voltage
Voltage Allowed on Each Pin
ESD HBM Voltage Capability on Each Pin (note 1)
ESD MM Voltage Capability on Each Pin (note 2)
Solder Heat Resistance Test (10 s)
Storage Temperature
Junction Temperature
Notes:
1 Human Body model, AEC-Q100-002 Rev. C.
2 Machine Model, AEC-Q100-003 Rev. E.
Symbol
V
CC
V
CCLNA
Value
V
GND
- 0.3 to 5.5
V
GND
- 0.3
to V
CC
+ 0.3
±2000
±200
260
Unit
V
V
V
V
°C
°C
°C
Ts
Tj
-65 to +150
150
© Motorola, Inc., 2002.
MOTOROLA SEMICONDUCTORS PRODUCTS
For More Information On This Product,
3
Go to: www.freescale.com
revision 7.0, 5 February 2002
Non Disclosure Agreement Required
Freescale Semiconductor, Inc...
MC33593
Freescale Semiconductor, Inc.
RECEIVER FUNCTIONAL DESCRIPTION
The basic functionality of the ROMEO2 receiver may be seen by reference to the accompanying block
diagram (see figure 1). It is fully compatible with the TANGO3 transmitter.
The RF section comprises a mixer with image cancelling, followed by an IF band-pass filter at 660kHz, an
AGC controlled gain stage and OOK and FSK demodulators, the desired modulation type being selectable by the
SPI interface. The data output from the circuit may either be the data comparator output, or, if Data Manager is
enabled, the SPI port.
The local oscillator is controlled with a PLL referenced to the crystal oscillator. The received channel is defined
by the choice of the crystal frequency.
An SPI bus permits programming the modulation type, data rate, UHF frequency, ID word etc., though to
accomodate applications where no bus interface is available the circuit defaults at power-on to a standard
operating mode.
THE LOCAL OSCILLATOR PLL
The PLL is tuned by comparing the local oscillator frequency, after suitable division, with that of the crystal
oscillator reference. The loop filter has been integrated in the IC. Practical limits upon the values of components
which may be integrated mean that the local oscillator performance may be slightly improved by using an
external PFD filter, shown in Figure 2. In this way the user may choose to have optimum performance with the
addition of external filter components. The PLL gain may be programmed by bit PG: it is recommended that this
bit be set to 1, corresponding to low loop gain.
Figure 2 : External loop filter
C1=4.7nF, C2=390pF, R=1kΩ
© Motorola, Inc., 2002.
MOTOROLA SEMICONDUCTORS PRODUCTS
For More Information On This Product,
4
Go to: www.freescale.com
revision 7.0, 5 February 2002
Non Disclosure Agreement Required
Freescale Semiconductor, Inc...
Depending upon the configuration, the circuit can be either externally strobed by the STROBE input or
internally wait-and-sleep cycled to reduce the power consumption. At any time, a high level on STROBE
overrides the internal timer output and wakes up ROMEO2. When the circuit is switched into sleep mode its
current consumption is approximately 100µA. The circuit configuration which has previously been programmed is
retained.
MC33593
Freescale Semiconductor, Inc.
COMMUNICATION PROTOCOL
MANCHESTER CODING DESCRIPTION
Manchester coding is defined as follows: data is sent during the first half-bit, complementary data is sent
during the second half-bit.
Figure 3: Manchester coding example
0
1
0
0
1
1
0
Original data
Manchester coded
PREAMBLE, ID, HEADER WORDS AND MESSAGE DESCRIPTION
The following description applies if the Data Manager is enabled (DME=1).
The ID word is a Manchester coded byte whose content has been previously loaded in the Configuration
Register 2. The complement of the ID word is recognized as an ID word. ID word is sent at the same data rate as
data.
A preamble is required:
- before ID,
- before Header if HE=1,
- before data if HE=0.
It enables:
- in case of OOK modulation, AGC to settle,
- in case of FSK modulation, data slicer reference voltage to settle,
- in any case, clock recovery.
Figure 4 defines the Preamble word in OOK and FSK modulation. Preamble content must be carefully defined in
order not to be decoded as an ID or Header word.
Figure 4: Preamble definition
OOK Modulation:
AGC settling time
Clock recovery
ID
‘1’ NRZ > 200µs
i.e.:
2 ‘1’ NRZ at 9.6kBd,
1 ‘1’ NRZ at 4.8kBd
‘0’ Manchester
at data rate
FSK Modulation:
Data slicer reference settling time Clock recovery
ID
3 ‘1’ or ‘0’ Manchester
at data rate
‘1’ or ‘0’ Manchester
at data rate
The Header word is a 4 bit Manchester coded message ‘0110’ or its complement sent at the selected data
rate.
This bit sequence and its complement must not be found in the sequence preamble and ID word.
Data must follow the Header without any delay.
Data are completed by a End-of-Message (EOM) word, consisting of 2 NRZ consecutive ones or zeroes.
Even in case of FSK modulation, the data must be completed by a EOM and not by simply stopping the RF
telegram. If the complement of the Header word is received, output data are complemented too.
© Motorola, Inc., 2002.
MOTOROLA SEMICONDUCTORS PRODUCTS
For More Information On This Product,
5
Go to: www.freescale.com
revision 7.0, 5 February 2002
Non Disclosure Agreement Required
Freescale Semiconductor, Inc...
The signal average value is constant. This allows clock recovery from the data stream itself. In order to
achieve a correct clock recovery, Manchester coded data must have a duty cycle between:
- 48% and 52% in OOK,
- 45% and 55% in FSK.
