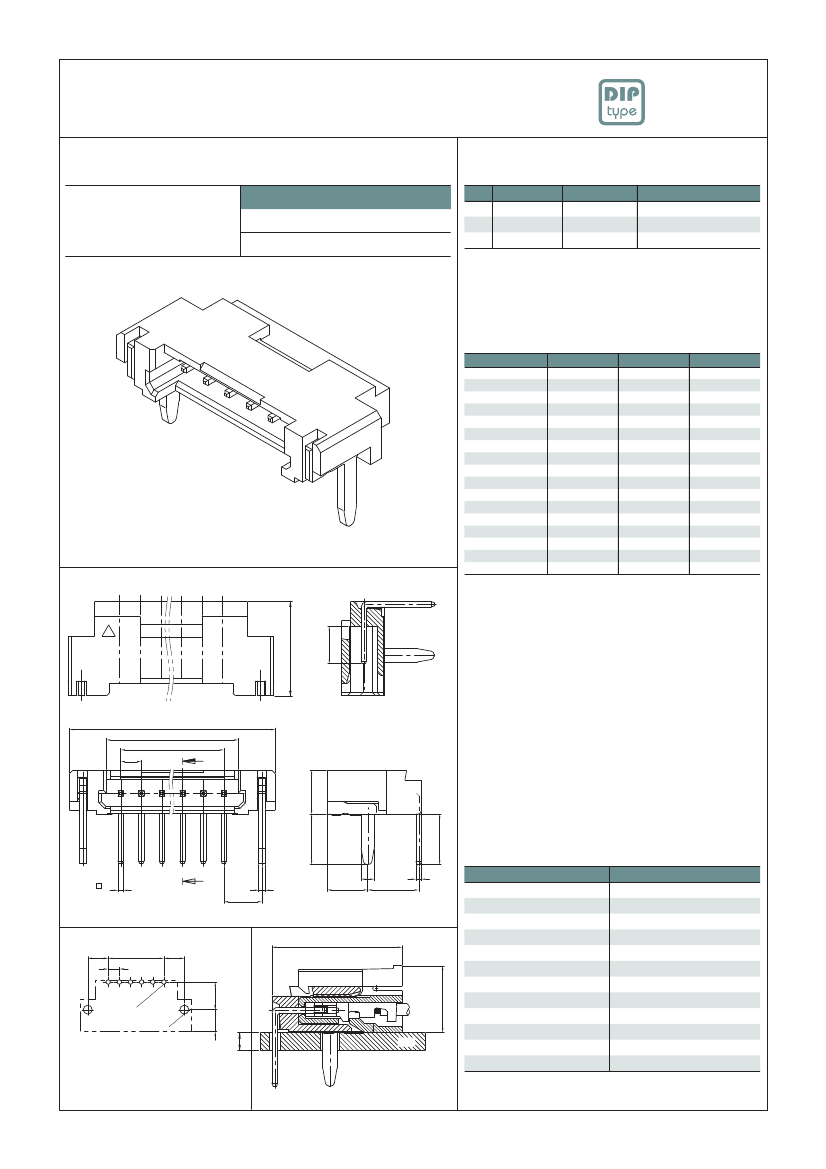

12507WR-08LD

Description
1.25mm PITCH CONNECTOR
File Size203KB,1 Pages
ManufacturerYEONHO ELECTRONICS CO., LTD.
Websitehttp://www.yeonho.com/
Download Datasheet View All

12507WR-08LD Overview

1.25mm PITCH CONNECTOR

1.25mm
(0.049") PITCH CONNECTOR
Wire-to-Board
Wafer
DIP
12507WR-NNLD Series
Material
I/NO DESCRIPTION
TITLE
MATERIAL
1
WAFER
12507WR-NNLD PA46 or PA6T, UL 94V Grade
2
Brass & Tin plated
PIN
3
Brass & Tin plated
HOOK
20032LR
Right Angle
Available Pin
12507WR-02LD
12507WR-03LD
12507WR-04LD
12507WR-05LD
12507WR-06LD
12507WR-07LD
12507WR-08LD
12507WR-09LD
12507WR-10LD
12507WR-11LD
12507WR-12LD
12507WR-13LD
12507WR-14LD
12507WR-15LD
12507WR-20LD
12507WR-25LD
12507WR-30LD
PARTS NO.
7.45
8.70
9.95
11.2
12.45
13.7
14.95
16.2
17.45
18.7
19.95
21.2
22.45
23.7
29.95
36.2
42.45
A
3.00
4.25
5.50
6.75
8.0
9.25
10.5
11.75
13.0
14.25
15.5
16.75
18.0
19.25
25.5
31.75
38.0
B
1.25
2.50
3.75
5.00
6.25
7.50
8.75
10.0
11.25
12.5
13.75
15.0
16.25
17.5
23.75
30.0
36.25
C
5.7
2.25
1.25(PITCH)
A
B
C
Z
2.65
SECTION Z-Z
3
3
Specification
0.32
Z
2.3
T=0.4
(2.45)
0.8
3.10
0.32
Voltage Rating
Current Rating
Operating Temperature
Contact Resistance
Withstanding Voltage
Insulation Resistance
Applicable Wire
Applicable P.C.B
Applicable FPC/FFC
Solder Height
Crimp Tensile Strength
UL FILE NO
ITEM
AC/DC 125V
AC/DC 1A
-25℃~+85℃
SPEC
2.3
±0.1
1.25
±0.05
c
±0.05
2.3
±0.1
7.3
Ø1.0
±0.05
(2.45)
Ø0.5
±0.05
PCB
30mΩ MAX
AC250V/1min
100MΩ MIN
-
1.2~1.6mm
-
-
-
-
3.1
±0.1
PCB LAYOUT
T
PCB ASS'Y
3.75
