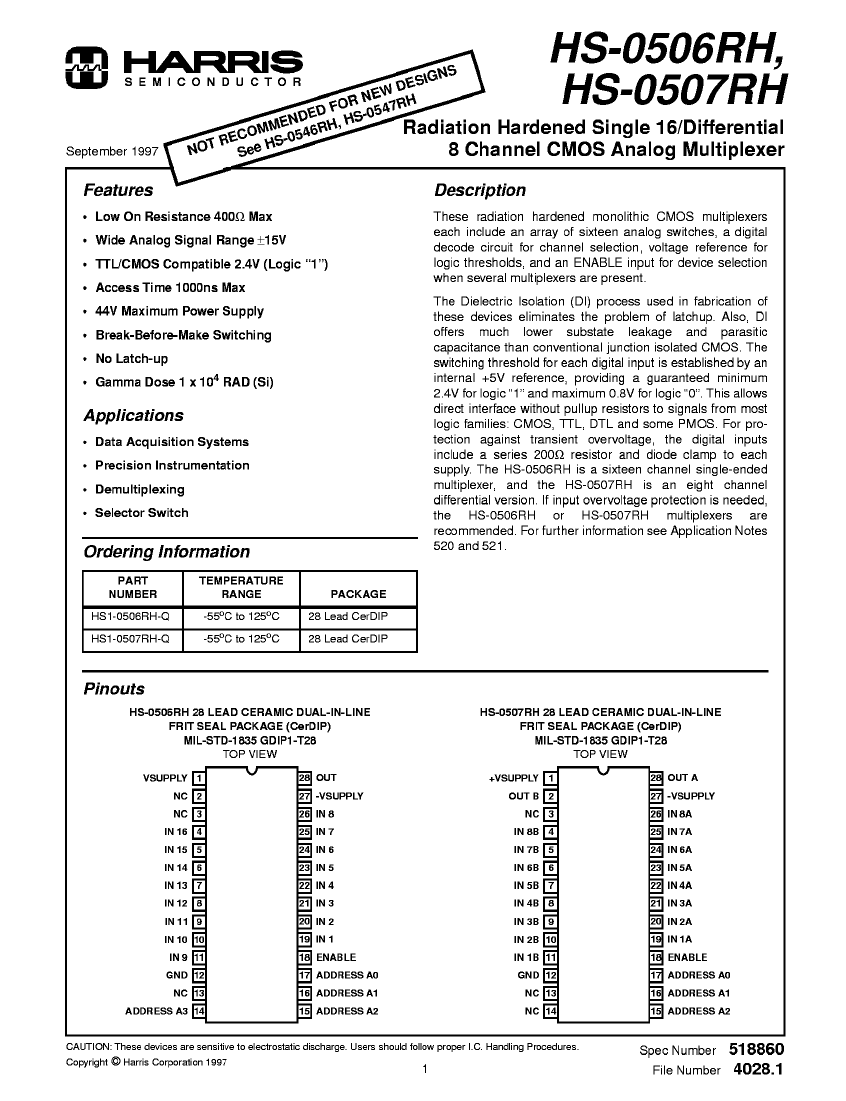

5962D9569102VXA datasheet, PDF

5962D9569102VXA: DescriptionDifferential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28; CategoryThe signal circuit; File Size36KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962D9569102VXA Overview

Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
Number of channels	8
Number of functions	1
Number of terminals	28
Maximum on-state resistance (Ron)	400 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	10k Rad(Si) V
Base Number Matches	1

	5962D9569102VXA	HS1-0506RH-Q	5962D9569101VXA	HS1-0507RH-Q
Description	Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28	Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28
Maker	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28
JESD-609 code	e0	e0	e0	e0
Number of channels	8	16	16	8
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Maximum on-state resistance (Ron)	400 Ω	400 Ω	400 Ω	400 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
