Technical Data 1034
Effective May 2016
Supersedes December 1998
BUSSMANN
SERIES
Edison base plug fuses – dual-element,
time-delay, 125 volts, up to 30 amps
Recommended fuse holders
Catalog
numbers
SOU
SRU
SSU
SOW
SRW
SSW
SOX
SRX
Type
box
2 1/4”
handy
2 3/4”
handy
4”
octagon
Catalog
numbers
SOY
SRY
SSY
SSY-RL
STY
SCY
SOY-B
SSN
Type
box
4”
square
Catalog symbol:
•
•
T - (amps)
BP/T - (amps)
Single
gang
Description:
Bussmann
®
series dual-element, time-delay
Edison style plug fuse.
Package quantity and weight
Quantity
Amp
ratings
3/10 to 14 A
15 to 30 A
Per
box
4
4
Per
card
1
3
Weight
Per
box
0.210
0.25
Per 5
cards
0.46
1.07
Specifications:
Ratings
•
•
•
Volts — 125 Vac or less
Amps — 3/10 to 30 A
Interrupting rating — 10 kA RMS Sym
Features:
•
•
Heavy duty time-delay plug fuse
Use to protect critical motor circuits or
motors that cycle on/off frequently
An industrial/commerical grade product with
exclusive dualelement construction
Edison base size
These fuses thread into fuse receptacles and
box cover units
Industrial strength, featuring an exclusive
dual-element construction
This spring loaded design provides superior
short circuit and overload protection
More time-delay than the medium duty Type
TL fuses in order to better protect industrial
motors and critical residential circuits
Agency Information
•
UL
®
Listed (up to 6-1/4 A), Std. 248-11, Guide
JFHR, File E56412, (7 to 30 A) Guide JEFV,
File E12112
CSA
®
Certified, Class 1423-01, File 53787
CE
•
•
•
•
•
•
Catalog numbers (amps)
T - 3/10
T - 4/10
T - 1/2
T - 6/10
T - 8/10
T-1
T - 1-1/8
T - 1-1/4
T - 1-4/10
T - 1-6/10
T - 1-8/10
T-2
T - 2-1/4
T - 2-1/2
T - 2-8/10
T-3
T - 3-2/10
T - 3-1/2
T-4
T - 4-1/2
T-5
T - 5-6/10
T-6
T - 6-1/4
T-7
T-8
T-9
T - 10
T - 12
T - 14
T - 15
T - 20
T - 25
T - 30
—
—
•
•
Technical Data 1034
Effective May 2016
Edison base plug fuses
dual-element, time-delay, 125 volts, up to 30 amps

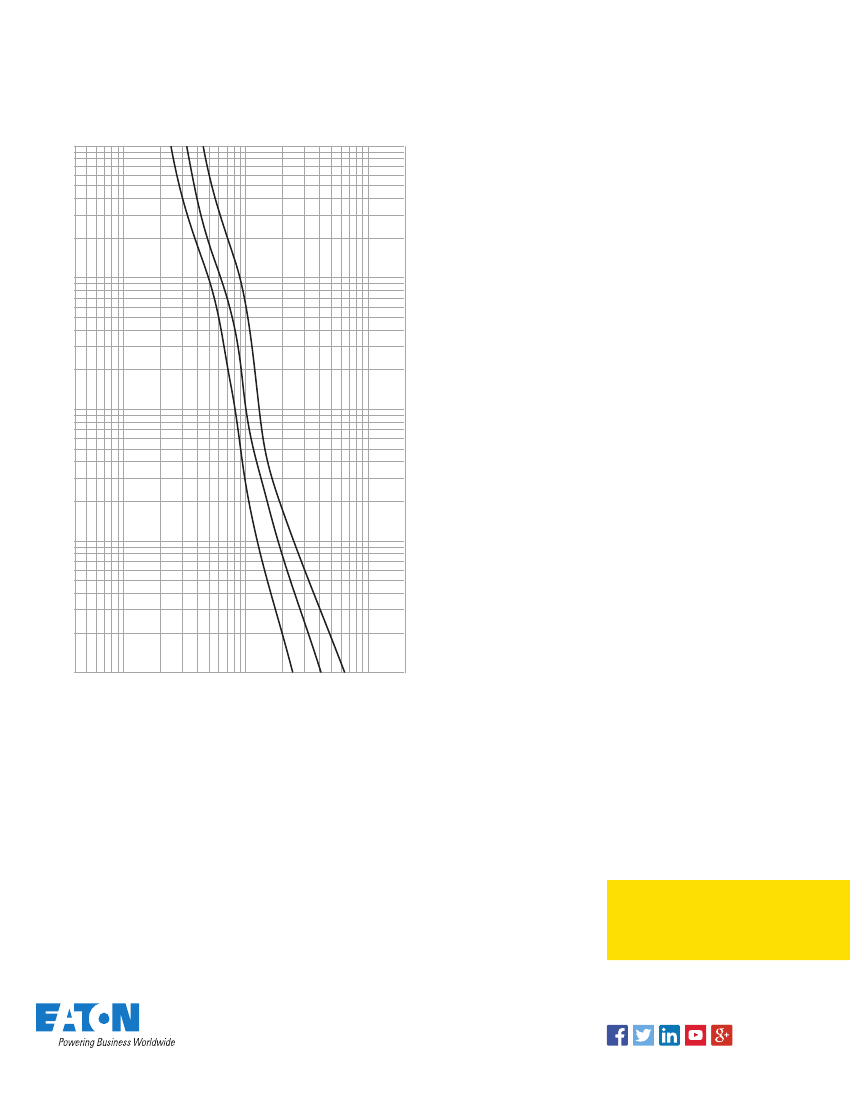

Time-current curve – average melt
100
Amp
rating
15
20
30
10
Time in seconds
1
0.1
10
Current in amps
