ZSSC3170 Evaluation Kit Description
Restrictions:
IDT’s ZSSC3170 SSC Modular Evaluation Kit (SSC Evaluation Kit) hardware and software are designed for
evaluation of the ZSSC3170, laboratory setup, and module development only. The ZSSC3170 SSC Modular
Evaluation Kit hardware and software must not be used for module production and production test setups.
IDT shall not be liable for any damages arising out of defects resulting from (i) delivered hard and software (ii)
non-observance of instructions contained in this manual, or (iii) misuse, abuse, use under abnormal conditions
or alteration by anyone other than IDT. To the extent permitted by law, IDT hereby expressly disclaims and
User expressly waives any and all warranties, whether express, implied, or statutory, including, without
limitation, implied warranties of merchantability and of fitness for a particular purpose, statutory warranty of
non-infringement and any other warranty that may arise by reason of usage of trade, custom, or course of
dealing.
Contents
1
2
Kit Contents ................................................................................................................................................... 4
ZSSC3170 Evaluation Board ........................................................................................................................ 5
2.1. Overview ................................................................................................................................................. 5
2.2. Schematic ............................................................................................................................................... 6
2.3. Connections to the ZSSC3170 ............................................................................................................... 8
2.4. Reset Switch ........................................................................................................................................... 8
3 Pinout and Package ...................................................................................................................................... 9
4 ZSSC3170 Software .................................................................................................................................... 10
4.1. Overview ............................................................................................................................................... 10
4.2. USB Driver Installation ......................................................................................................................... 10
4.3. User Files .............................................................................................................................................. 11
4.4. General Setup of the Software ............................................................................................................. 11
4.4.1. Interface Selection ......................................................................................................................... 12
4.4.2. ZSSC3170 Configuration ............................................................................................................... 13
4.4.3. Analog Front End (AFE) Adjustment.............................................................................................. 14
4.4.4. Temperature Sensor Selection ...................................................................................................... 14
4.4.5. ADC Settings.................................................................................................................................. 14
4.4.6. Application Settings ....................................................................................................................... 15
4.5. Operation Section ................................................................................................................................. 15
4.5.1. Normal Operation Mode (NOM) ..................................................................................................... 16
4.5.2. Command Mode (CM) ................................................................................................................... 16
4.5.3. Power IC OFF ................................................................................................................................ 16
4.5.4. Data Read-Out ............................................................................................................................... 16
4.5.5. Enable Error Check ........................................................................................................................ 17
© 2016 Integrated Device Technology, Inc.
1
March 30, 2016
ZSSC3170 Evaluation Kit Description
5
6
7
8
9
4.5.6. Average Count and Statistics......................................................................................................... 17
4.6. Output Configuration ............................................................................................................................ 17
4.6.1. I²C™ Interface ................................................................................................................................ 17
4.6.2. PWM Interface ............................................................................................................................... 17
4.6.3. LIN Interface................................................................................................................................... 18
4.7. Calibration Window ............................................................................................................................... 19
4.8. RAM-Register Dialog Window .............................................................................................................. 20
4.9. Calibration-Register (RAM) Dialog ....................................................................................................... 21
4.10. Get Raw Values Dialog ........................................................................................................................ 21
4.11. Send Command .................................................................................................................................... 22
Calibration Example .................................................................................................................................... 23
5.1. Hardware Setup .................................................................................................................................... 23
5.2. Software Startup ................................................................................................................................... 24
5.3. Calibration Data Acquisition ................................................................................................................. 25
5.4. Calculation of the Coefficients and Limits ............................................................................................ 25
Ordering Information ................................................................................................................................... 26
Related Documents ..................................................................................................................................... 27
Glossary ...................................................................................................................................................... 27
Document Revision History ......................................................................................................................... 28
List of Figures
Figure 1.1
Figure 2.1
Figure 2.2
Figure 3.1
Figure 4.1
Figure 4.2
Figure 4.3
Figure 4.4
Figure 4.5
Figure 4.6
Figure 4.7
Figure 4.8
Figure 4.9
Figure 4.10
Figure 4.11
Figure 4.12
Figure 4.13
Figure 4.14
Figure 4.15
Figure 4.16
ZSSC3170 SSC Evaluation Kit ........................................................................................................ 4
ZSSC3170 SSC Evaluation Board – Overview ............................................................................... 5
SSC Evaluation Board Schematic ................................................................................................... 7
Pin Configurations for Different Packaging Options ........................................................................ 9
Main Window of the Evaluation Software ...................................................................................... 12
Interface Selection Section ............................................................................................................ 12
TM
Additional I²C and LIN Interface Settings in the “Send Command” Menu.................................. 13
DUT Configuration Section ............................................................................................................ 13
Bridge Sensor Adaptation and Mode ............................................................................................. 14
Temperature Sensor ...................................................................................................................... 14
ADC Adjust .................................................................................................................................... 14
Application and Settings ................................................................................................................ 15
Normal Operation Section ............................................................................................................. 15
Measure Output Window ............................................................................................................... 16
PWM Config ................................................................................................................................... 17
LIN Config ...................................................................................................................................... 18
“Sensor – Calibration” Dialog......................................................................................................... 19
Displaying RAM-EEP Register Contents ....................................................................................... 20
“Calibration-Register (RAM)” Dialog .............................................................................................. 21
“Get Raw Values” Dialog ............................................................................................................... 21
© 2016 Integrated Device Technology, Inc.
2
March 30, 2016
ZSSC3170 Evaluation Kit Description
Figure 4.17
Figure 5.1
Figure 5.2
Figure 5.3
Figure 5.4
“Send-Command” Dialog ............................................................................................................... 22
Hardware Setup for Calibration Example ...................................................................................... 23
Select Interface .............................................................................................................................. 24
Select Span and Sensor Mode ...................................................................................................... 24
Displaying the Result of the Coefficient Calculation ...................................................................... 26
© 2016 Integrated Device Technology, Inc.
3
March 30, 2016
ZSSC3170 Evaluation Kit Description
1
•
•
•
•
•
Kit Contents
SSC Communication Board (SSC CB) V3.3 (including USB cable) *
ZSSC3170 SSC Evaluation Board (SSC EB) V2.0
SSC Sensor Replacement Board (SRB) V2.0
5 samples of the ZSSC3170DAT2 (SSOP20 5.3mm)
SSC Evaluation Kit start up information
The ZSSC3170 Evaluation Kit consists of the following parts:
Note: The
ZSSC3170 Evaluation Software
is downloaded from
www.IDT.com/ZSSC3170KIT
as described in
section 4.1.

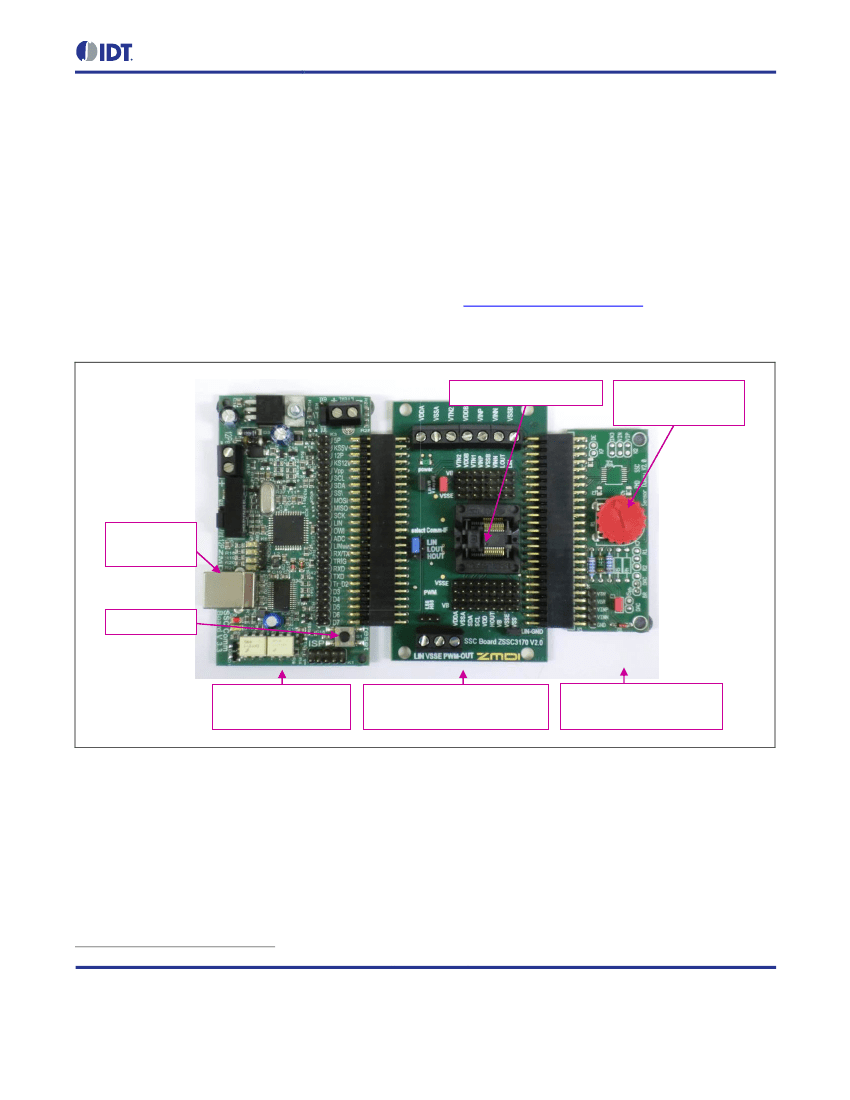

Figure 1.1
ZSSC3170 SSC Evaluation Kit
Pin 1 on ZSSC3170
Potentiometer for
Bridge Simulation
USB
Connector
Reset
SSC Communication
Board (SSC CB)
ZSSC3170 SSC
Evaluation Board (SSC EB)
SSC Sensor Replacement
Board (SRB)
The SSC Evaluation Kit provides the hardware needed for communication and calibration of the ZSSC3170
sensor signal conditioning (SSC) IC. A PC can communicate with the ZSSC3170 SSC Evaluation Board via the
SSC Communication Board (CB) through a USB connection. The software should function on any Windows®
2000/XP/ Vista / Windows® 7/Windows® 8 system after the installation of a USB driver.
The Sensor Replacement Board (SRB) provides a replacement for an actual sensor and can be used for the first
step of calibration or a dry-run calibration as described in section 4. On the SRB, the sensor replacement signal is
controlled by a potentiometer (see Figure 1.1).
*
For detailed information about the SSC Communication Board, please refer to the
SSC Communication Board Datasheet.
© 2016 Integrated Device Technology, Inc.
4
March 30, 2016
ZSSC3170 Evaluation Kit Description
2
2.1.
ZSSC3170 Evaluation Board
Overview

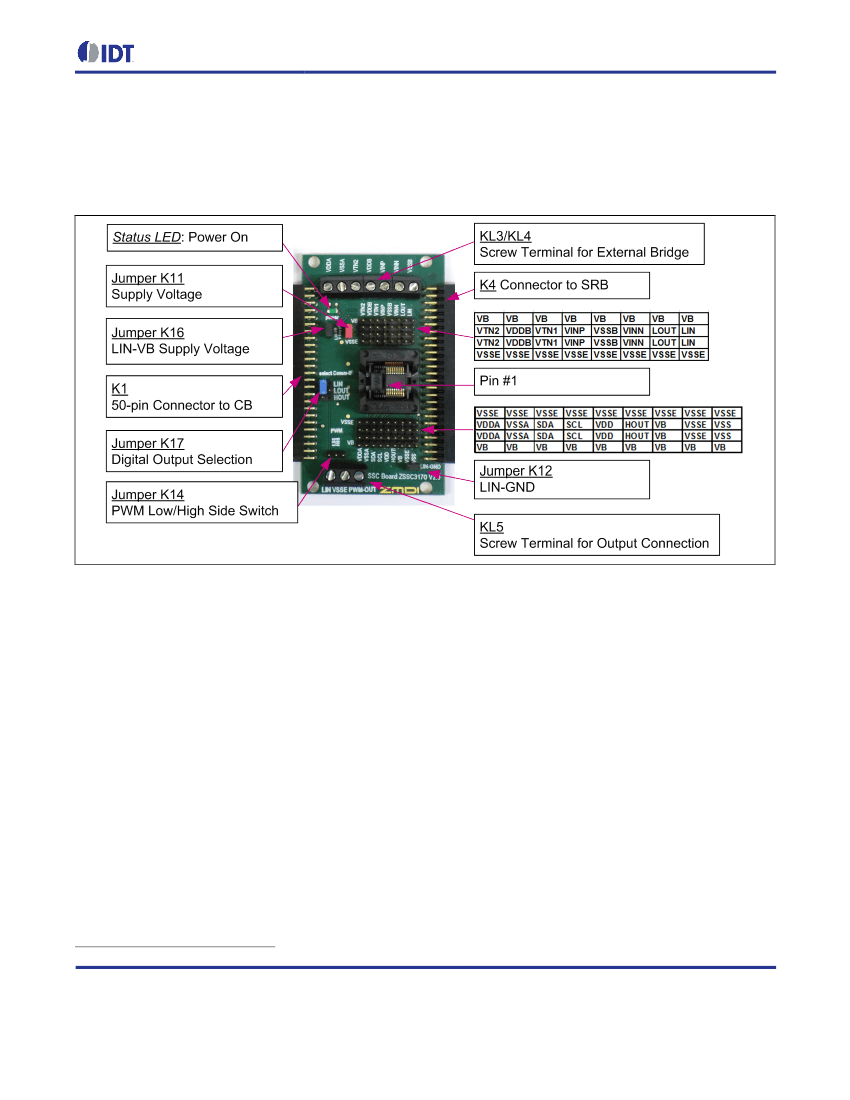

ZSSC3170 SSC Evaluation Board – Overview
Figure 2.1
The main purpose of the SSC Evaluation Kit is to perform communication between the user’s PC and the
ZSSC3170 (referred to as the DUT). The PC sends commands and data via the USB port on the CB (virtual COM
2
†
port). The microcontroller on the CB interprets these commands and relays them to the DUT in the I C™ or LIN
communication mode (via connector K1; see Figure 2.1). The microcontroller also forwards any data bytes from
the DUT back to the PC via the USB connection. These bytes can be bridge and temperature readings to be
displayed by the ZSSC3170 SSC Evaluation Kit software or raw ADC readings used during calibration or
EEPROM content bytes.
The SSC CB microcontroller controls the power signals required for entering the Command Mode, and it is able to
read the PWM output signal of ZSSC3170 and send this value back to PC. Because the ZSSC3170 provides a
high and low side switch PWM signal, an inverted LIN communication protocol is also required. This is generated
automatically by the SSC EB and controlled via the SSC CB.
† 2
I C™ is a trademark of NXP.
© 2016 Integrated Device Technology, Inc.
