SE1530F,DT: DescriptionCASE PLSTC TAN 46.6"L X 16.72"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size337KB，1 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

SE1530F,DT Overview

CASE PLSTC TAN 46.6"L X 16.72"W

SE1530F,DT Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	46.600" long x 16.720" wide (1183.64mm x 424.69mm)
high	6.830"（173.48mm）
Area (L x W)	779 in²（5026 cm²）
design	Equipment housing, hinged cover
Material	Plastic - Polypropylene
color	brown
thickness	-
characteristic	Accuform foam, handles, wheels
grade	IP67/MIL-STD 810F-512.4
Material flammability rating	UL-HB75
delivery information	Shipping from Digi-Key
weight	17 lbs (7.7kg)

Preview

Download Datasheet

View All

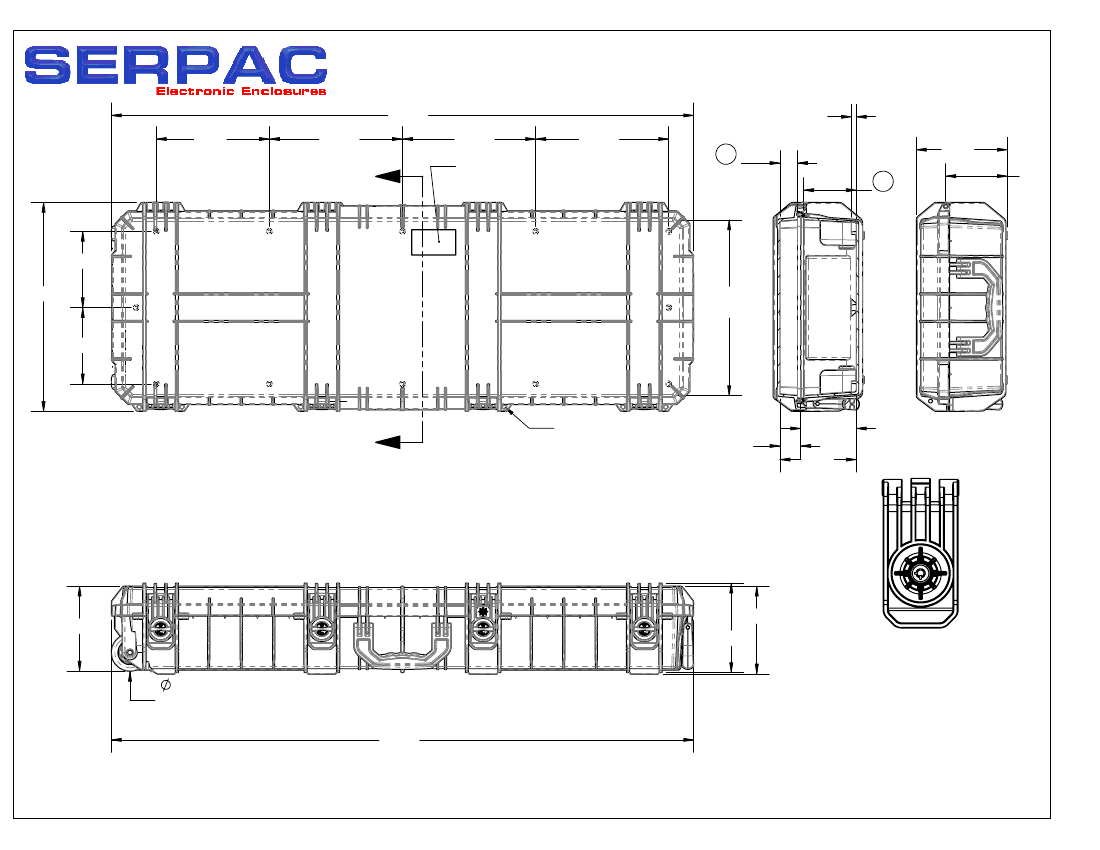

1530

46.60

9.05

10.65

3

1.40

.38

Bottom

bosses

3

4.20

A

3.5" X 2.0"

Label area

7.28

4.93

6.10

16.72

6.10

14.07

internal

A

Padlock

hole (6X)

1.65

4.45

6.10

SECTION A-A

Optional latch with

metal lock. See note 4

1530ML

6.81

7.03

7.17

3.00

(2) Wheels

w/ball bearings

46.60

NOTES:

1) Max. usable inside dimensions are:

44.5" X 14.1" X 6.2" (5.7"

top of boss)

dim. are approx.

2) Bosses on bottom use a 1/4

self tapping screw.

3) Dimensions to bottom of panel flange.

4) Optional pair of latches with Metal Lock

Specify p/n SE1530ML.

ALL DIMENSIONS ARE ± .010"

5/10/17

2009 Wright Ave. La Verne CA 91750

Ph. (626) 339-6673 Fx. (626) 331-8584 www.seahorse.net

SE1530F,DT Related Products

	SE1530F,DT	SE1530,BK	SE1530,DT	SE1530ML,BK	SE1530ML,DT	SE1530F,BK	SE1530FML,BK	SE1530FML,DT
Description	CASE PLSTC TAN 46.6"L X 16.72"W	CASE PLSTC BLACK 46.6"LX16.72"W	CASE PLSTC TAN 46.6"L X 16.72"W	CASE PLSTC BLACK 46.6"LX16.72"W	CASE PLSTC TAN 46.6"L X 16.72"W	CASE PLSTC BLACK 46.6"LX16.72"W	CASE PLSTC BLACK 46.6"LX16.72"W	CASE PLSTC TAN 46.6"L X 16.72"W
Container type	box	box	box	box	box	box	box	box
size/dimensions	46.600" long x 16.720" wide (1183.64mm x 424.69mm)	46.600" long x 16.720" wide (1183.64mm x 424.69mm)	46.600" long x 16.720" wide (1183.64mm x 424.69mm)	46.600" long x 16.720" wide (1183.64mm x 424.69mm)	46.600" long x 16.720" wide (1183.64mm x 424.69mm)	46.600" long x 16.720" wide (1183.64mm x 424.69mm)	46.600" long x 16.720" wide (1183.64mm x 424.69mm)	46.600" long x 16.720" wide (1183.64mm x 424.69mm)
high	6.830"（173.48mm）	6.830"（173.48mm）	6.830"（173.48mm）	6.830"（173.48mm）	6.830"（173.48mm）	6.830"（173.48mm）	6.830"（173.48mm）	6.830"（173.48mm）
Area (L x W)	779 in²（5026 cm²）	779 in²（5026 cm²）	779 in²（5026 cm²）	779 in²（5026 cm²）	779 in²（5026 cm²）	779 in²（5026 cm²）	779 in²（5026 cm²）	779 in²（5026 cm²）
design	Equipment housing, hinged cover	Equipment housing, hinged cover	Equipment housing, hinged cover	Equipment housing, hinged cover	Equipment housing, hinged cover	Equipment housing, hinged cover	Equipment housing, hinged cover	Equipment housing, hinged cover
Material	Plastic - Polypropylene	Plastic - Polypropylene	Plastic - Polypropylene	Plastic - Polypropylene	Plastic - Polypropylene	Plastic - Polypropylene	Plastic - Polypropylene	Plastic - Polypropylene
color	brown	black	brown	black	brown	black	black	brown
characteristic	Accuform foam, handles, wheels	handle, wheel	handle, wheel	handle, lock, wheel	handle, lock, wheel	Accuform foam, handles, wheels	Accuform foam, handle, lock, wheel	Accuform foam, handle, lock, wheel
grade	IP67/MIL-STD 810F-512.4	IP67/MIL-STD 810F-512.4	IP67/MIL-STD 810F-512.4	IP67/MIL-STD 810F-512.4	IP67/MIL-STD 810F-512.4	IP67/MIL-STD 810F-512.4	IP67/MIL-STD 810F-512.4	IP67/MIL-STD 810F-512.4
Material flammability rating	UL-HB75	UL-HB75	UL-HB75	UL-HB75	UL-HB75	UL-HB75	UL-HB75	UL-HB75
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	17 lbs (7.7kg)	20 pounds (9.1kg)	20 pounds (9.1kg)	20 pounds (9.1kg)	20 pounds (9.1kg)	17 lbs (7.7kg)	17 lbs (7.7kg)	17 lbs (7.7kg)
