MIKROE-2290
OVERVIEW
Summary
A smart display solution,
mikromedia HMI 7" Cap
has a
800x480px
color display with a capacitive touch panel
on the front, and a powerful
FT900Q
32-bit MCU with additional essential circuitry on the back - making it a
standalone but cost-effective solution suitable for industrial applications.
MCU
mikromedia HMI boards are driven by
FTDI Chip's FT900Q
with their proprietary
32-bit RISC core
with industry-
leading performance. With execution from shadow memory, the MCU can achieve speeds of
3.1 DMIPS/MHz at
100 MHz.
FT900Q has 256KB of Flash memory, a small part of which is taken by the
built-in bootloader.

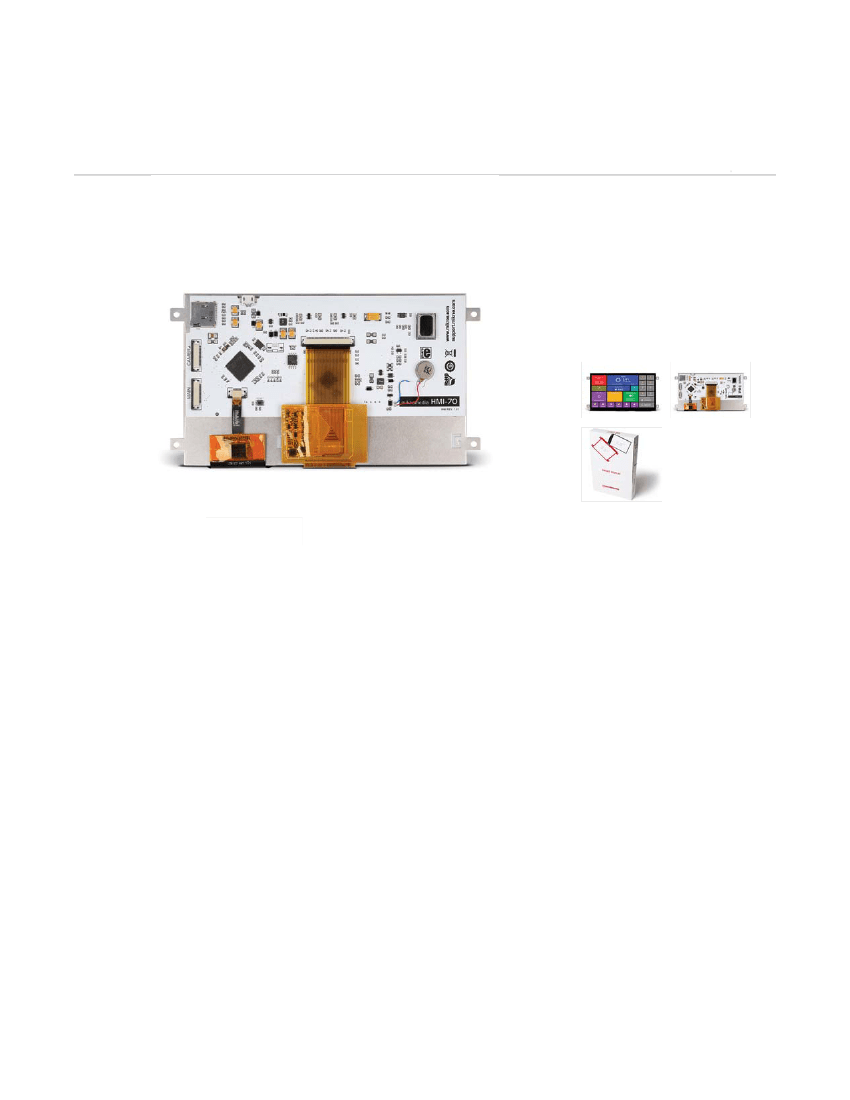

Additional circuitry
The concept of mikromedia HMI is to keep only the essential components that simplify its integration into a final
product, whilst keeping overall costs down.
The board integrates a
microSD card
for expanding storage capacity, a
haptic feedback motor,
small
audio
speaker,
and a
micro USB connector.
A connector for interfacing the MCU with external electronics, along with
a separate connector for FT900Q's
parallel camera interface.

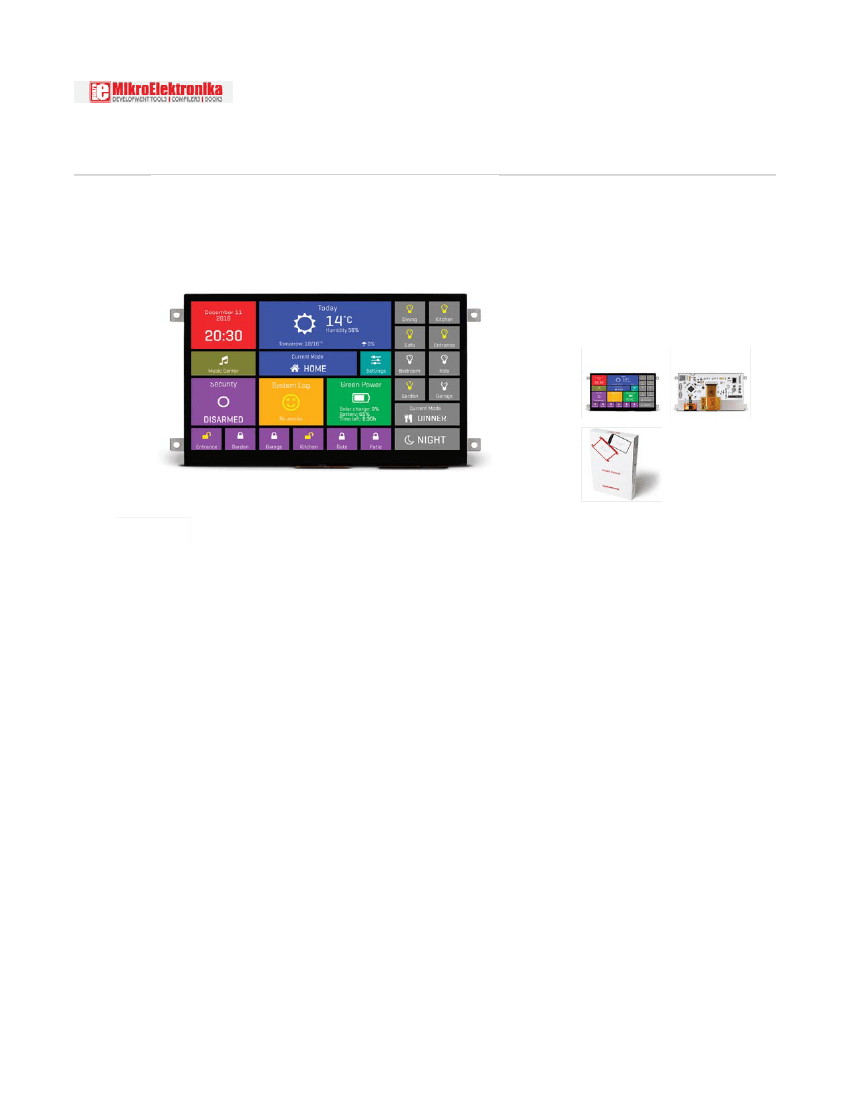

Display
mikromedia for HMI 7" Caphas a high-quality
Riverdi display
with
16.7M color depth
and
550 NIT brigtness.
The display is driven by a
FT812 graphic controller.
A
mounting frame
surrounding the screen simplifies
integration.
MIKROE-2290
KEY FEATURES
•
Size:
7”
•
Resolution:
800x480
•
Brightness:
350
•
MCU:
FT900Q
Speed:
100MHz; 310 DMIPS
Memory:
256 KB Flash
Peripherals include:
2xCAN, 2xSPI, 2xI2C, I2S, UART
•
Graphic controller:
FT813
•
Touchscreen:
Capacitive
•
Interface:
Main connector, Camera connector, Micro USB
•
Storage:
8MB Flash + MicroSD card slot
•
Audio speaker
•
Haptic feedback engine
•
Mounting frame
