180-060XWS7-23-8PD datasheet, PDF

Datasheet> All Categories > The connector> The connector> 180-060XWS7-23-8PD

180-060XWS7-23-8PD: DescriptionFiber Optic Connector, Simplex, Receptacle; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-060XWS7-23-8PD Overview

Fiber Optic Connector, Simplex, Receptacle

180-060XWS7-23-8PD Parametric

Parameter Name	Attribute value
Reach Compliance Code	_compli
Body/casing type	RECEPTACLE
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	180
Installation type	PANEL
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

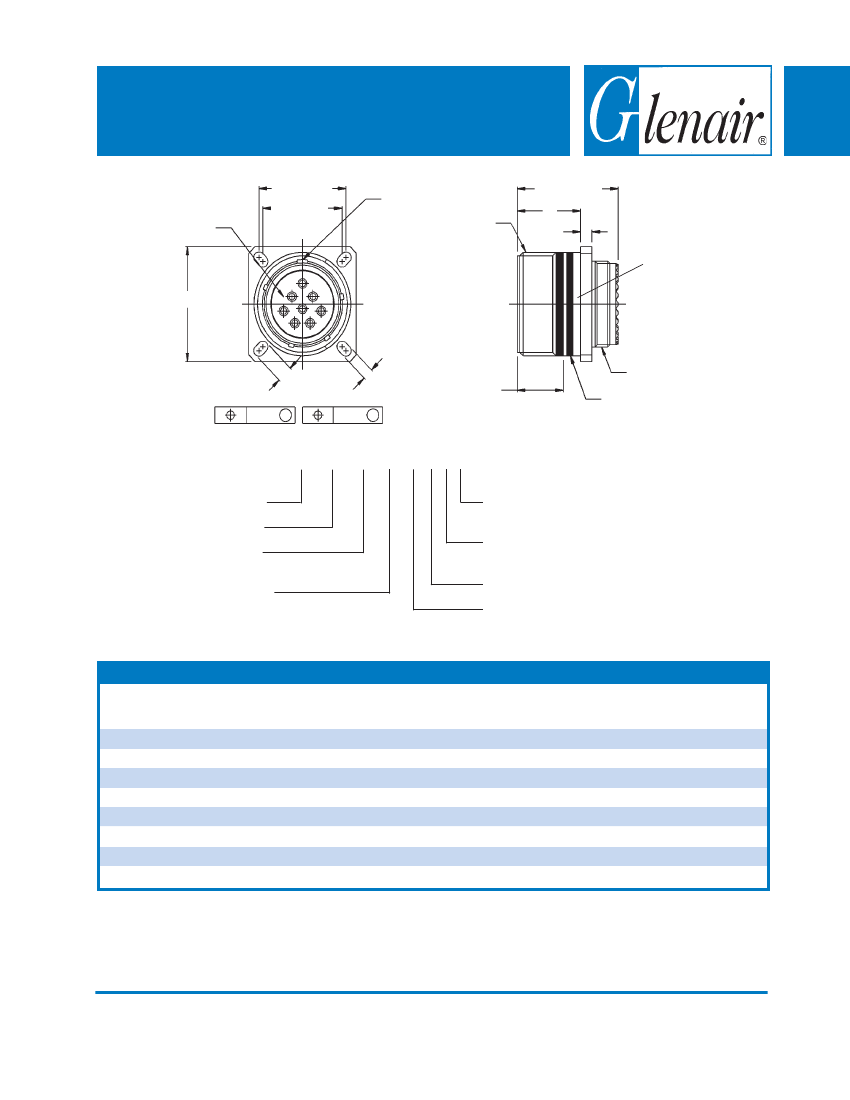

MIL-DTL-38999 Style Fiber Optic Connector

For use with MIL-T-29504/4 & /5 Termini

S7 Wall-Mounted Receptacle with Slotted Holes

2 x C BSC

See Insert

Arrangements

on Page C-2

2 x D BSC

(See Note 3)

1.240 (31.5)

Max

A Thread

Yellow Color Band

(Fiber Optic

Indicator)

Master Key

Square

2XU

J Thread

4xF

.005 (0.1) M

4xE

.005 (0.1) M

.520 (13.2) Max

Fully-Mated

Red Indicator Band

Blue Color Band

indicates rear release

retention system

180-060 XW S7-17-8 S N

Product Series

Basic Number

Finish Symbol

(See Table II, Page C-2)

Connector Style

Alternate Key Position per MIL-DTL-38999

A, B, C, D, or E (N = Normal)

Insert Designator

P = Pin S = Socket

Insert Arrangement (See page C-2)

Shell Size (Table I)

TABLE I: SHELL SIZE

Shell

Size

Code

Shell

Size

Thread

.7500-.1P-.3L-TS-2A

.8750-.1P-.3L-TS-2A

1.0000-.1P-.3L-TS-2A

1.1875-.1P-.3L-TS-2A

1.2500-.1P-.3L-TS-2A

1.3750-.1P-.3L-TS-2A

1.5000-.1P-.3L-TS-2A

1.6250-.1P-.3L-TS-2A

1.043

1.019

1.138

1.114

1.232

1.208

1.323

1.299

1.449

1.425

1.575

1.551

1.701

1.677

1.823

1.799

(26.5)

(25.9)

(28.9)

(28.3)

(31.3)

(30.7)

(33.6)

(33.0)

(36.8)

(36.2)

(40.0)

(39.4)

(43.2)

(42.6)

(46.3)

(45.7)

BSC

.812 (20.6)

.906 (23.0)

.969 (24.6)

1.062 (27.0)

BSC

.719 (18.3)

.812 (20.6)

.906 (23.0)

.969 (24.6)

.136

.120

.136

.120

.136

.120

.136

.120

.136

.120

.136

.120

.162

.146

.162

.146

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(4.1)

(3.7)

(4.1)

(3.7)

.202

.186

.202

.186

.202

.186

.202

.186

.202

.186

.202

.186

.250

.234

.250

.234

(5.1)

(4.7)

(5.1)

(4.7)

(5.1)

(4.7)

(5.1)

(4.7)

(5.1)

(4.7)

(5.1)

(4.7)

(6.4)

(5.9)

(6.4)

(5.9)

.144 (3.7)

.083 (2.1)

.144 (3.7)

.083 (2.1)

.144 (3.7)

.083 (2.1)

.144 (3.7)

.083 (2.1)

.144 (3.7)

.083 (2.1)

.171 (65.2)

.083 (39.8)

.171 (65.2)

.083 (39.8)

.171 (68.4)

.083 (68.1)

.823

.768

.823

.768

.823

.768

.823

.768

.823

.768

.791

.736

.791

.736

.791

.736

(20.9)

(19.5)

(20.9)

(19.5)

(20.9)

(19.5)

(20.9)

(19.5)

(20.9)

(19.5)

(20.0)

(18.7)

(20.0)

(18.7)

(20.0)

(18.7)

Thread

M15 x 1.0-6g 0.100R

M18 x 1.0-6g 0.100R

M22 x 1.0-6g 0.100R

M25 x 1.0-6g 0.100R

M28 x 1.0-6g 0.100R

M31 x 1.0-6g 0.100R

M34 x 1.0-6g 0.100R

M37 x 1.0-6g 0.100R

.136

.120

.136

.120

.136

.120

.136

.120

.136

.120

.136

.120

.162

.146

.162

.146

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(3.5)

(3.0)

(4.1)

(3.7)

(4.1)

(3.7)

.112-40

UNC-2B

.112-40

UNC-2B

.112-40

UNC-2B

.112-40

UNC-2B

.112-40

UNC-2B

.112-40

UNC-2B

.138-32

UNC-2B

.138-32

UNC-2B

1.156 (29.4) 1.062 (27.0)

1.250 (31.8) 1.156 (29.4)

1.375 (34.9) 1.250 (31.8)

1.500 (38.1) 1.375 (34.9)

NOTES:

1. Metric dimensions (mm) are in parentheses and are for reference only.

2. See Page C-2 for Panel Cut-Out Dimensions

3. Front Panel Mount Only

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

C-5

Fiber Optic

Connectors

Recommended Resources
