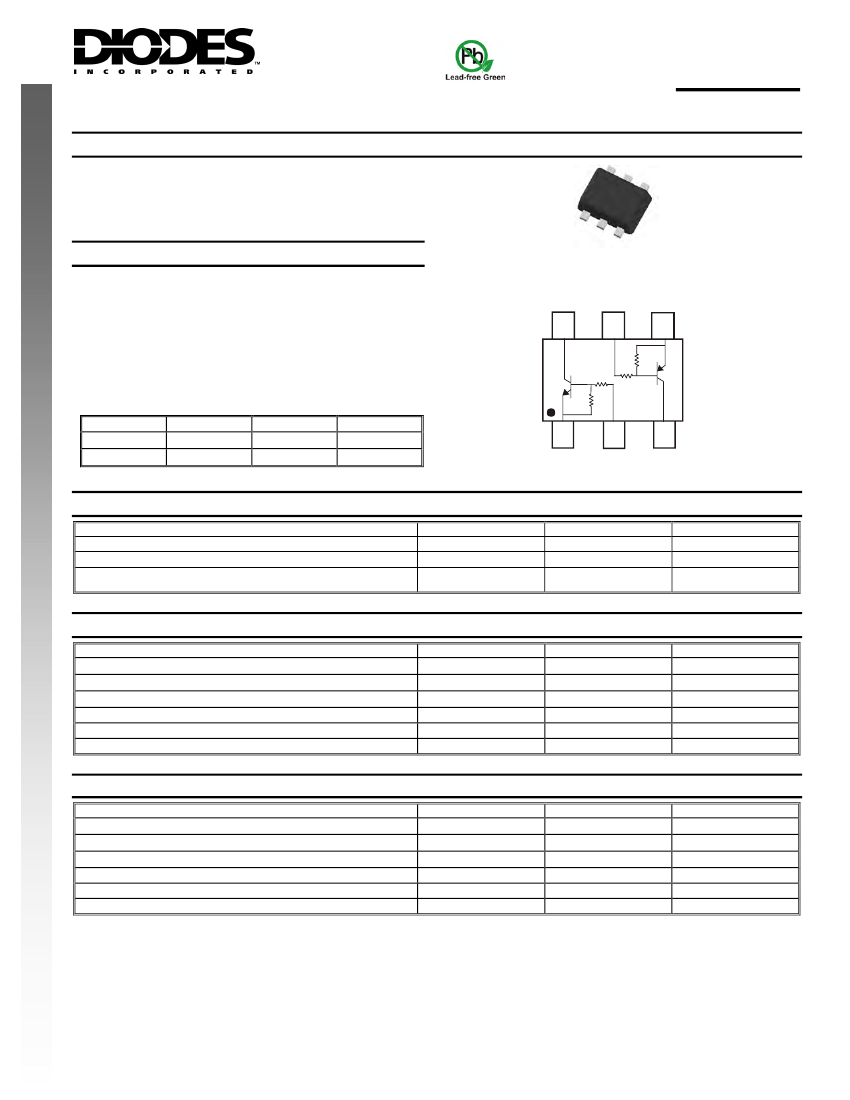

DEMD48
DUAL NPN/PNP PRE-BIASED TRANSISTOR
Features
•
•
•
•
•
Epitaxial Planar Die Construction
Surface Mount Package Suited for Automated Assembly
Simplifies Circuit Design and Reduces Board Space
Lead Free/RoHS Compliant (Note 1)
"Green" Device (Note 2)
SOT-563
NEW PRODUCT
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-563
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish
⎯
Matte Tin Finish annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Marking Information: See Page 4
Ordering Information: See Page 4
Weight: 0.005 grams (approximate)
Reference
Q
1
Q
2
Device Type
NPN
PNP
R1(Nom)
47kΩ
2.2 kΩ
R2(Nom)
47kΩ
47kΩ
6
5
R
2
47k
R
1
4
Q
1
R
1
47k
R
2
47k
2.2k
Q
2
1
2
3
Maximum Ratings, Total Device
@T
A
= 25°C unless otherwise specified
Symbol
P
D
R
θ
JA
T
j
, T
STG
Value
300
417
-55 to +150
Unit
mW
°C/W
°C
Characteristic
Power Dissipation (Note 3)
Thermal Resistance, Junction to Ambient Air (Note 3)
Operating and Storage Temperature Range
Maximum Ratings, Pre-Biased NPN Transistor, Q
1
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Input Voltage
Output Current (DC)
Peak Collector Current
@T
A
= 25°C unless otherwise specified
Value
50
50
10
-10 to +40
100
100
Unit
V
V
V
V
mA
mA
Symbol
V
CBO
V
CEO
V
EBO
V
IN
I
O
I
CM
Maximum Ratings, Pre-Biased PNP Transistor, Q
2
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Input Voltage
Output Current (DC)
Peak Collector Current
Notes:
@T
A
= 25°C unless otherwise specified
Value
-50
-50
-10
-12 to +5
-100
-100
Unit
V
V
V
V
mA
mA
Symbol
V
CBO
V
CEO
V
EBO
V
IN
I
O
I
CM
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
DS31224 Rev. 4 - 2
1 of 4
www.diodes.com
DEMD48
© Diodes Incorporated

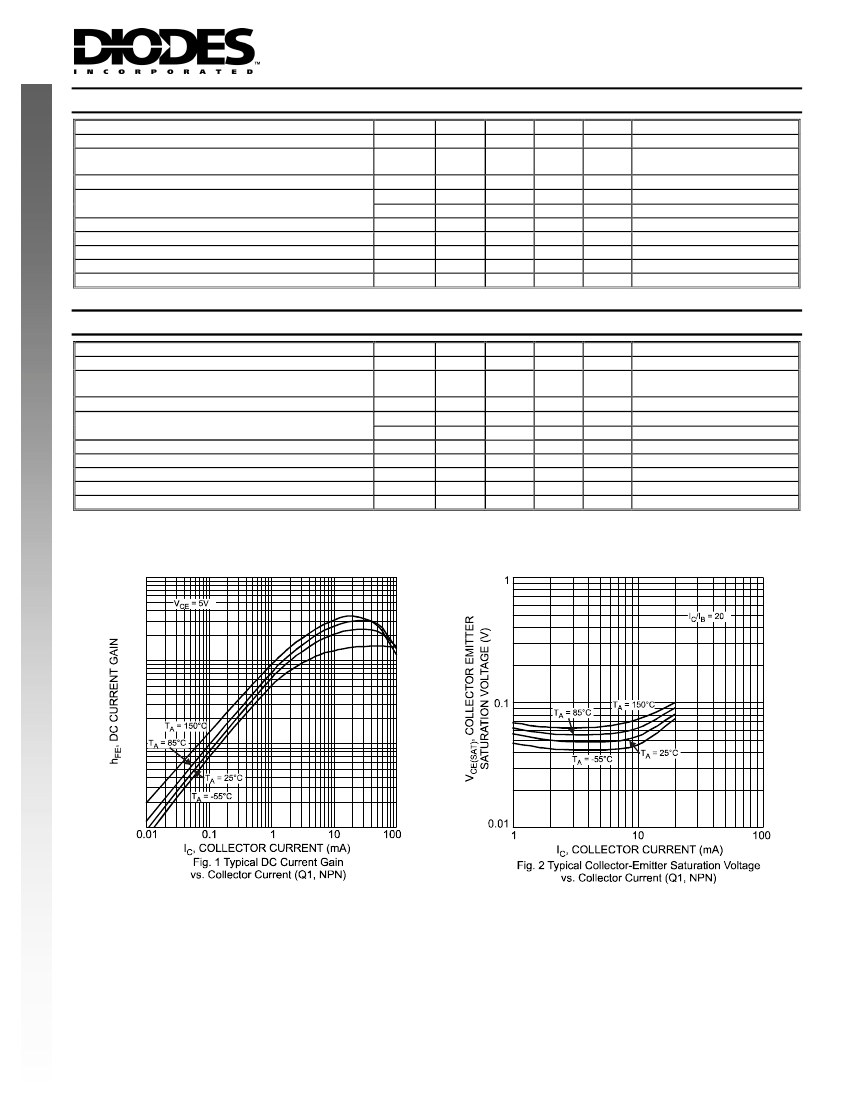

Electrical Characteristics, Pre-Biased NPN Transistor, Q
1
Characteristic
Collector-Base Cut-Off Current
Collector-Emitter Cut-Off Current
Emitter-Base Cut-Off Current
Input Voltage
Symbol
I
CBO
I
CEO
I
EBO
V
I(off)
V
I(on)
V
CE(SAT)
h
FE
R
1
R
2
/R
1
C
C
Min
-
-
-
-
3
-
80
33
0.8
-
Typ
-
-
-
1.2
1.6
-
-
47
1
-
@T
A
= 25°C unless otherwise specified
Max
100
1
50
90
0.8
-
0.15
-
61
1.2
2.5
Unit
nA
μA
μA
V
V
V
-
kΩ
-
pF
Test Condition
V
CB
= 50V, I
E
= 0A
V
CE
= 30V, I
B
= 0A
V
CE
= 30V, I
B
= 0A, T
A
= 150°C
V
EB
= 5V, I
C
= 0A
V
CE
= 5V, I
O
= 100μA
V
CE
= 0.3V, I
O
= 2mA
I
C
/I
B
= 10mA/0.5mA
V
CE
= 5V, I
C
= 5mA
-
-
V
CB
= 10V, I
E
= 0, f = 1MHz
B
B
B
NEW PRODUCT
Collector-Emitter Saturation Voltage
DC Current Gain
Input Resistance
Resistance Ratio
Collector Capacitance

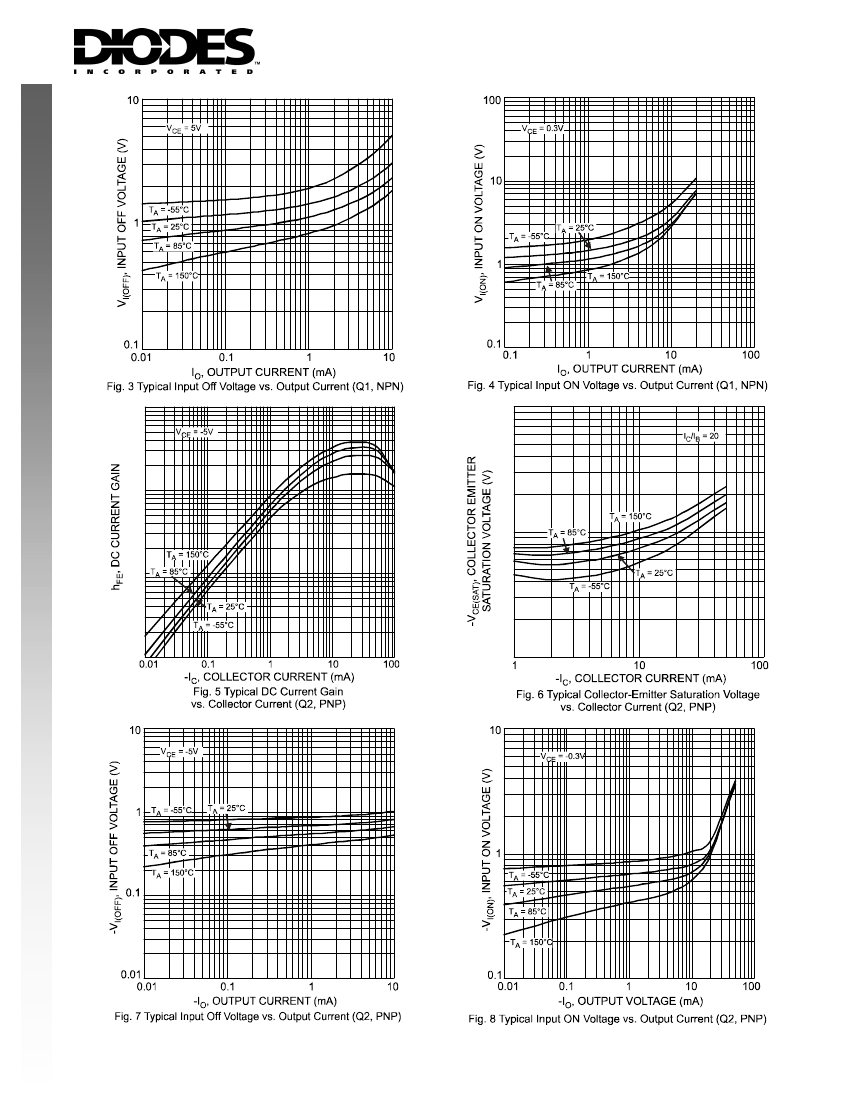

Electrical Characteristics, Pre-Biased PNP Transistor, Q
2
Characteristic
Collector-Base Cut-Off Current
Collector-Emitter Cut-Off Current
Emitter-Base Cut-Off Current
Input Voltage
Collector-Emitter Saturation Voltage
DC Current Gain
Input Resistance
Resistance Ratio
Collector Capacitance
Symbol
I
CBO
I
CEO
I
EBO
V
I(off)
V
I(on)
V
CE(SAT)
h
FE
R
1
R
2
/R
1
C
C
Min
-
-
-
-
-1.1
-
100
1.54
17
-
Typ
-
-
-
-0.6
-0.75
-
-
2.2
21
-
@T
A
= 25°C unless otherwise specified
Max
-100
-1
-50
-180
-0.5
-
-0.1
-
2.86
26
3.0
Unit
nA
μA
μA
V
V
V
-
kΩ
-
pF
Test Condition
V
CB
= -50V, I
E
= 0A
V
CE
= -30V, I
B
= 0A
V
CE
= -30V, I
B
= 0A, T
A
= 150°C
V
EB
= -5V, I
C
= 0A
V
CC
= -5V, I
O
= -100μA
V
O
= -0.3V, I
O
= -5mA
I
C
/I
B
= -5mA/-0.25mA
V
CE
= -5V, I
C
= -10mA
-
-
V
CB
= -10V, I
E
= 0, f = 1MHz
B
B
B
1,000
100
10
1
DS31224 Rev. 4 - 2
2 of 4
www.diodes.com
DEMD48
© Diodes Incorporated
Ordering Information
Device
DEMD48-7
Note:
4.
(Note 4)
Packaging
SOT-563
Shipping
3000/Tape & Reel
For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
NEW PRODUCT
Marking Information
D48 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: U = 2007
M = Month ex: 9 = September
D48 YM
Date Code Key
Year
Code
Month
Code
Jan
1
2007
U
Feb
2
Mar
3
2008
V
Apr
4
May
5
2009
W
Jun
6
Jul
7
2010
X
Aug
8
Sep
9
2011
Y
Oct
O
Nov
N
2012
Z
Dec
D
Package Outline Dimensions
A
B C
D
G
K
H
M
SOT-563
Dim Min
Max Typ
A
0.15
0.30 0.20
B
1.10
1.25 1.20
C
1.55
1.70 1.60
D
-
-
0.50
G
0.90
1.10 1.00
H
1.50
1.70 1.60
K
0.55
0.60 0.60
L
0.10
0.30 0.20
M
0.10
0.18 0.11
All Dimensions in mm
L
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
DS31224 Rev. 4 - 2
4 of 4
www.diodes.com
DEMD48
© Diodes Incorporated
