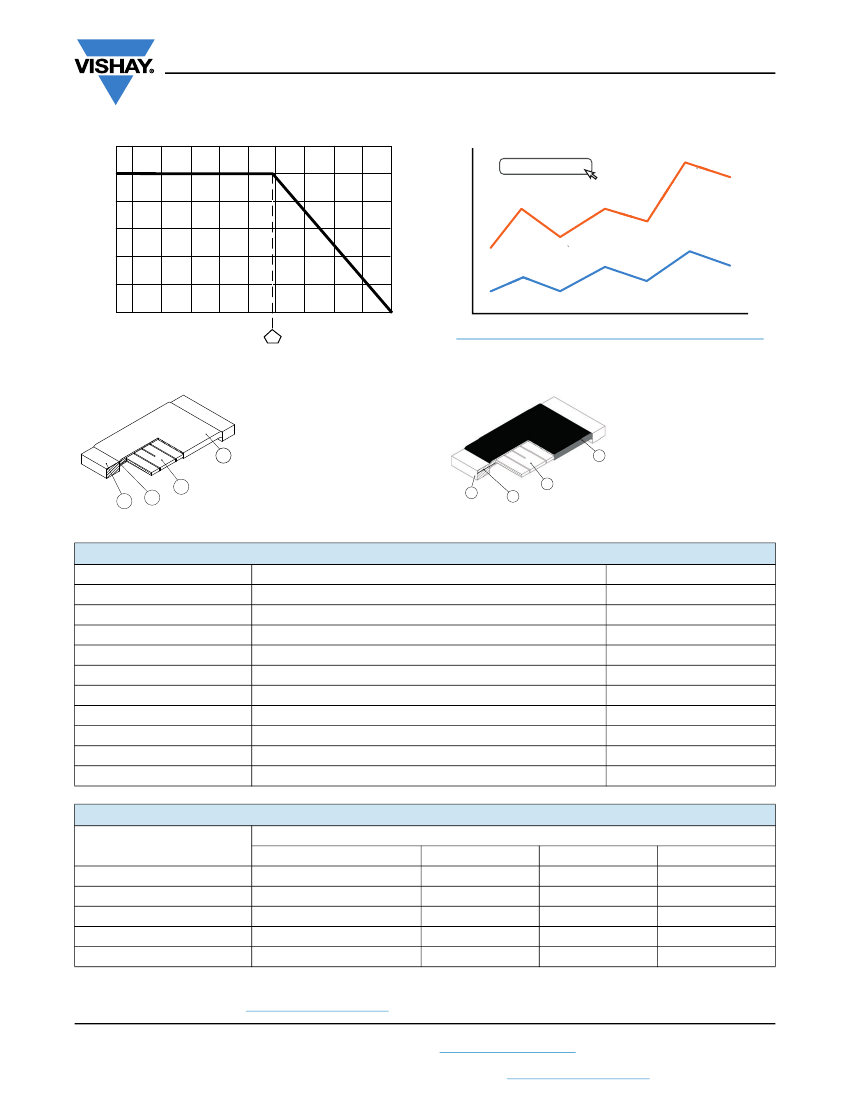

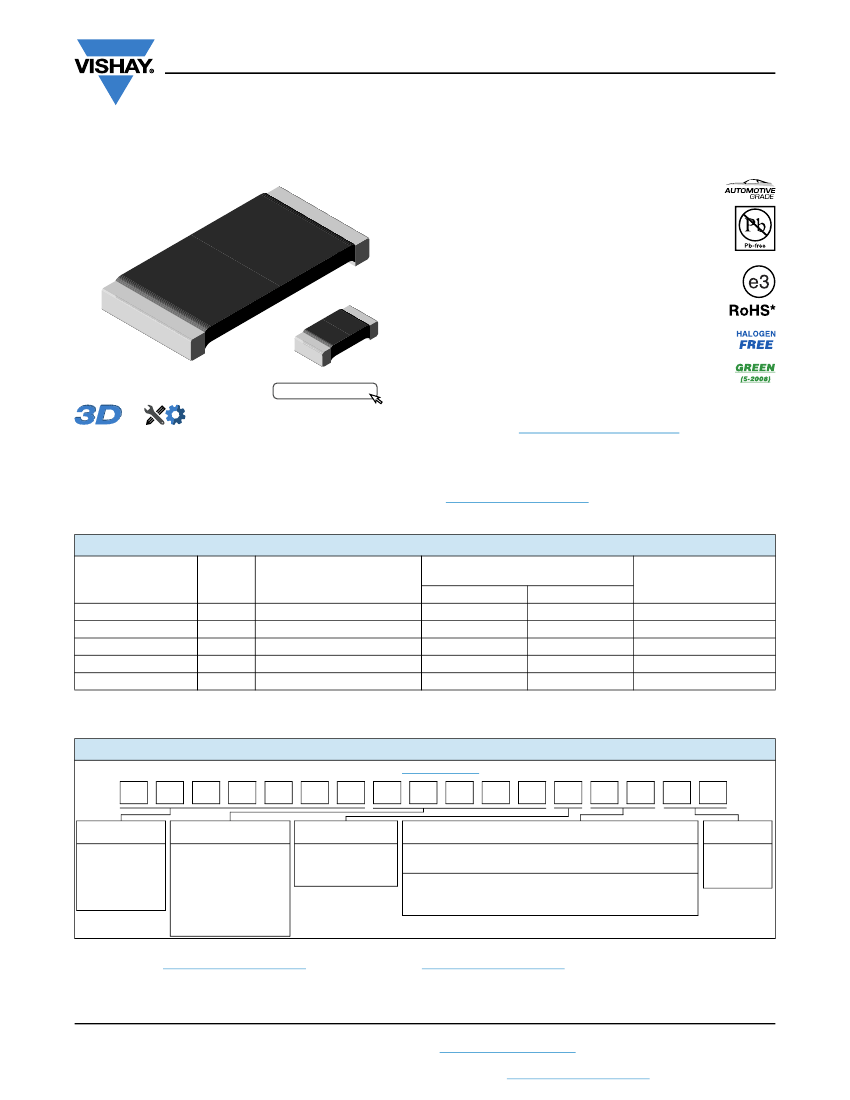

WSL...18 High Power
www.vishay.com
Vishay Dale
Power Metal Strip
®
Resistors, High Power (2 x Standard WSL),
Low Value (down to 0.0005
),
Surface Mount
FEATURES
• All welded construction of the Power Metal
Strip
®
resistors are ideal for all types of current
sensing, voltage division and pulse
applications
• Proprietary processing technique produces
extremely low resistance values (down to
0.0005
)
• Sulfur resistance by construction that is
unaffected by high sulfur environments
• Very low inductance 0.5 nH to 5 nH
• Low thermal EMF (< 3 μV/°C)
Available
Available
Available
DESIGN SUPPORT TOOLS
Models
Available
Design Tools
click logo to get started
• AEC-Q200 qualified
(1)
Available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Available
Notes
• This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details.
• Follow link to Overview of Automotive Grade Products for more details:
www.vishay.com/doc?49924.
(1)
Flame retardance test may not be applicable to some resistor technologies.
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
WSL0603...18
WSL0805...18
WSL1206...18
WSL2010...18
WSL2512...18
SIZE
0603
0805
1206
2010
2512
POWER RATING
P
70 °C
W
0.20
0.25
0.5
1.0
2.0
RESISTANCE VALUE RANGE
Tol. ± 0.5 %
0.01 to 0.1
0.005 to 0.2
0.005 to 0.2
0.004 to 0.5
0.003 to 0.04
Tol. ± 1.0 %
0.01 to 0.1
0.005 to 0.2
0.001 to 0.2
0.001 to 0.5
0.0005 to 0.04
WEIGHT
(typical)
g/1000 pieces
1.9
4.8
16.2
38.9
63.6
Note
• Part marking: Value; tolerance: Due to resistor size limitations some resistors will be marked with only the resistance value.
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: WSL25124L000FEA18
(visit
www.vishay.net
Vishay Dale parts numbering manual for all options)
W
S
L
2
5
1
2
4
L
0
0
0
F
E
A
1
8
SPECIAL
18
=
“High power”
option
GLOBAL MODEL RESISTANCE VALUE
(1)
TOLERANCE CODE
WSL0603
WSL0805
WSL1206
WSL2010
WSL2512
L
= m*
R
= decimal
5L000
= 0.005
R0100
= 0.01
* Use “L” for resistance
values < 0.01
D
= ± 0.5 %
F
= ± 1.0 %
J
= ± 5.0 %
PACKAGING CODE
(2)
EA
= lead (Pb)-free, tape / reel
EK
= lead (Pb)-free, bulk
TA
= tin / lead, tape / reel (R86)
TG
= tin / lead, tape / reel (RT1, for WSL0603 and WSL0805)
BA
= tin / lead, bulk (B43)
Notes
(1)
WSL Marking (www.vishay.com/doc?30327); WSL Decade Values (www.vishay.com/doc?30117)
(2)
Packaging code: EB (lead (Pb)-free) and TB (tin / lead) are non-standard packaging codes that designate 1000 piece reel quantities. These
non-standard packaging codes are identical to our standard EA (lead (Pb)-free) and TA (tin / lead), except that they have a package quantity
of 1000 pieces
Revision: 16-May-2018
Document Number: 31057
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSL...18 High Power
www.vishay.com
Vishay Dale
TECHNICAL SPECIFICATIONS
PARAMETER
UNIT
RESISTOR CHARACTERISTICS
± 75 for 7 m to 0.5
Component temperature coefficient
(including terminal)
(1)
TCR measured from -55 °C to 150 °C
± 110 for 5 m to 6.9 m
ppm/°C
± 150 for 3 m to 4.9 m
± 275 for 1 m to 2.9 m
± 400 for 0.5 m to 0.99 m
Element TCR
(2)
Operating temperature range
Maximum working voltage
(3)
ppm/°C
°C
V
< 20
-65 to +170
(P x
R)
1/2
Notes
(1)
Component TCR - total TCR that includes the TCR effects of the resistor element and the copper terminal
(2)
Element TCR - only applies to the alloy used for the resistor element; refer to item 1 in the construction illustration on the following page#
(3)
Maximum working voltage - the WSL is not voltage sensitive, but is limited by power / energy dissipation and is also not ESD sensitive
DIMENSIONS
in inches (millimeters)
H
l
W
T
L
a
Typical sensing traces
b
Notes
• 3D models available:
www.vishay.com/doc?30307.
• Surface mount solder profile recommendations:
www.vishay.com/doc?31052.
MODEL
RESISTANCE
RANGE ()
0.01 to 0.1
0.005 to 0.2
0.001 to 0.0019
WSL1206...18
0.002 to 0.0059
0.006 to 0.20
0.001 to 0.0069
WSL2010...18
0.007 to 0.5
0.0005 to 0.00099
0.001 to 0.0049
WSL2512...18
0.005 to 0.0069
0.007 to 0.04
0.250 ± 0.010
(6.35 ± 0.254)
0.125 ± 0.010
(3.18 ± 0.254)
0.025 ± 0.010
(0.635 ± 0.254)
0.200 ± 0.010
(5.08 ± 0.254)
0.100 ± 0.010
(2.54 ± 0.254)
0.025 ± 0.010
(0.635 ± 0.254)
0.126 ± 0.010
(3.20 ± 0.254)
0.063 ± 0.010
(1.60 ± 0.254)
DIMENSIONS
L
0.060 ± 0.010
(1.52 ± 0.254)
0.080 ± 0.010
(2.03 ± 0.254)
W
0.030 ± 0.010
(0.76 ± 0.254)
0.050 ± 0.010
(1.27 ± 0.254)
H
T
SOLDER PAD DIMENSIONS
a
0.040
(1.01)
0.040
(1.02)
b
0.040
(1.01)
0.050
(1.27)
l
0.020
(0.50)
0.020
(0.50)
WSL0603...18
WSL0805...18
0.013 ± 0.010 0.015 ± 0.005
(0.330 ± 0.254) (0.381 ± 0.127)
0.013 ± 0.010 0.015 ± 0.005
(0.330 ± 0.254) (0.381 ± 0.127)
0.041 ± 0.010
(1.04 ± 0.254)
0.025 ± 0.010 0.025 ± 0.010
(0.635 ± 0.254) (0.635 ± 0.254)
0.020 ± 0.010
(0.508 ± 0.254)
0.058 ± 0.010
(1.47 ± 0.254)
0.020 ± 0.010
(0.508 ± 0.254)
0.107 ± 0.010
(2.72 ± 0.254)
0.087 ± 0.010
(2.21 ± 0.254)
0.047 ± 0.010
(1.19 ± 0.254)
0.030 ± 0.010
(0.762 ± 0.254)
0.062
(1.57)
0.070
(1.78)
0.030
(0.76)
0.093
(2.36)
0.055
(1.40)
0.120
(3.05)
0.120
(3.05)
0.055
(1.40)
0.130
(3.30)
0.120
(3.05)
0.145
(3.68)
0.050
(1.27)
0.083
(2.11)
0.065
(1.65)
0.125
(3.18)
0.160
(4.06)
Revision: 16-May-2018
Document Number: 31057
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSL...18 High Power
www.vishay.com
DERATING
Rated Power in %
120
100
Vishay Dale
PULSE CAPABILITY
click to get started
80
60
40
20
U
S
LL
I
- 25
0
25
50
75
70
100
125
150
170
VE
TI
A
TR
S
S
E
O
RP
PU
LY
ON
0
- 65 - 50
Ambient Temperature in °C
www.vishay.com/resistors/power-metal-strip-calculator
WELDED CONSTRUCTION
2512, 2010, 1206
1) Resistive element:
solid
metal nickel-chrome
or manganese-copper
alloy resistive element with
low TCR (< 20 ppm/°C)
2) Plated terminal
3) Terminal / element weld
4)
Silicone
coating with ink print
CLAD CONSTRUCTION
0805 and 0603
1) Resistive element: Ni-Cr
2) Terminal:
Solid
copper,
100 %
Sn
(100 μ" min.) with
100 % Ni (20 μ" min.) under
layer finish
3) Terminal to element weld
4) High temperature encapsulant:
“siliconized polyester”
coating material
4
1
2
3
4
1
3
2
PERFORMANCE
TEST
Thermal shock
Short time overload
Low temperature storage
High temperature exposure
Bias humidity
Mechanical shock
Vibration
Load life
Resistance to solder heat
Moisture resistance
(1)
CONDITIONS OF TEST
-55 °C to +150 °C, 1000 cycles, 15 min at each extreme
5 x rated power for 5 s
-65 °C for 24 h
1000 h at + 170 °C
+85 °C, 85 % RH, 10 % bias, 1000 h
100
g’s
for 6 ms, 5 pulses
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at rated power, + 70 °C, 1.5 h “ON”, 0.5 h “OFF”
+260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7a and 7b not required
TEST LIMITS
± 0.5 % + 0.0005
± 0.5 % + 0.0005
± 0.5 % + 0.0005
± 1.0 % + 0.0005
± 0.5 % + 0.0005
± 0.5 % + 0.0005
± 0.5 % + 0.0005
± 1.0 % + 0.0005
± 0.5 % + 0.0005
± 0.5 % + 0.0005
PACKAGING
MODEL
WSL0603...18
WSL0805...18
WSL1206...18
WSL2010...18
WSL2512...18
REEL
TAPE WIDTH
8 mm/punched paper
8 mm/punched paper
8 mm/embossed plastic
12 mm/embossed plastic
12 mm/embossed plastic
DIAMETER
178 mm/7"
178 mm/7"
178 mm/7"
178 mm/7"
178 mm/7"
PIECES/REEL
5000
5000
4000
4000
2000
CODE
EA
EA
EA
EA
EA
Notes
• Embossed Carrier Tape per EIA-481.
(1)
Additional packaging details at
www.vishay.com/doc?20051.
Revision: 16-May-2018
Document Number: 31057
3
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
