1203-16-9 datasheet, PDF - EEWORLD Datasheet

1203-16-9: DescriptionRF N Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

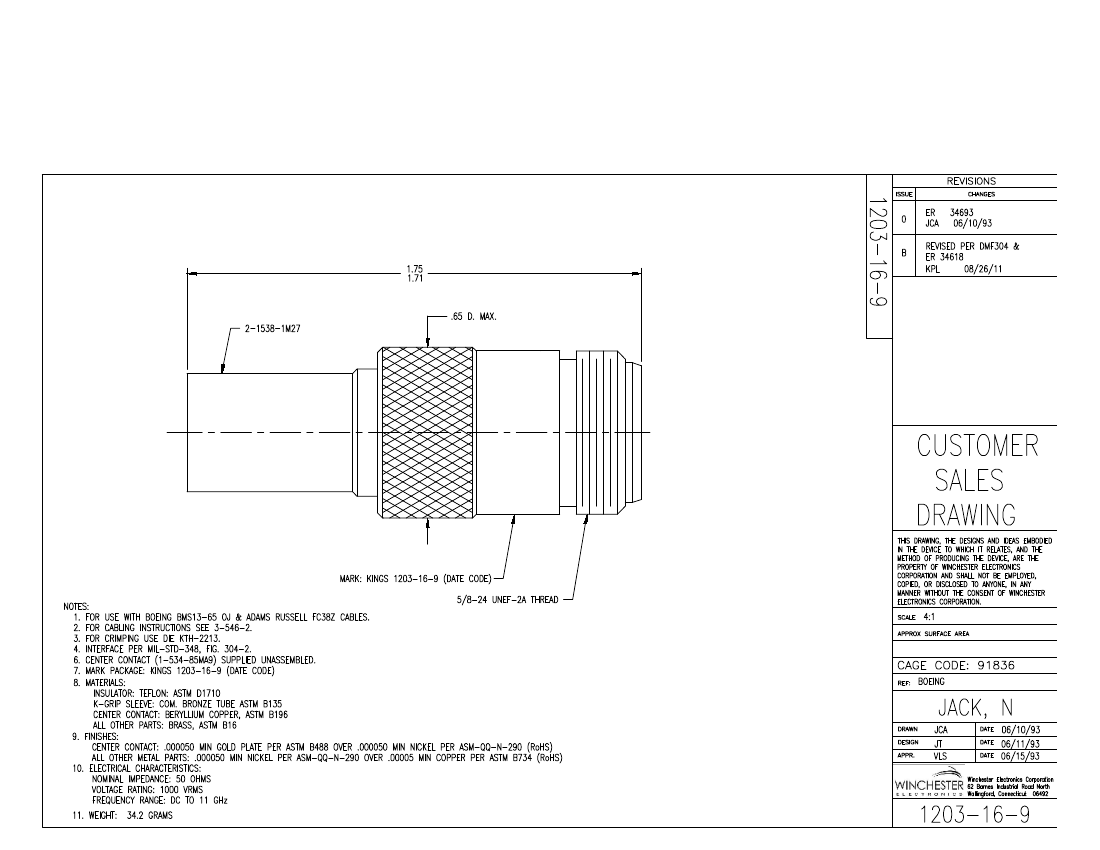

1203-16-9 Overview

RF N Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Locking, Jack

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Body diameter	0.65 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact style	COAX
insulator material	TEFLON
Manufacturer's serial number	1203-16-9
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1
